JRC16BP-14S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> JRC16BP-14S

JRC16BP-14S: Descriptionconn plug 14 pos socket silver; CategoryThe connector The connector; File Size565KB，11 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

JRC16BP-14S Overview

conn plug 14 pos socket silver

JRC16BP-14S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
Other features	SOLDER TYPE, W/ BAYONET LOCK
body width	1.063 inch
body length	1.063 inch
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	AG
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	5 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	JR
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	ALUMINUM ALLOY
Termination type	SOLDER LUG
Total number of contacts	14
Base Number Matches	1

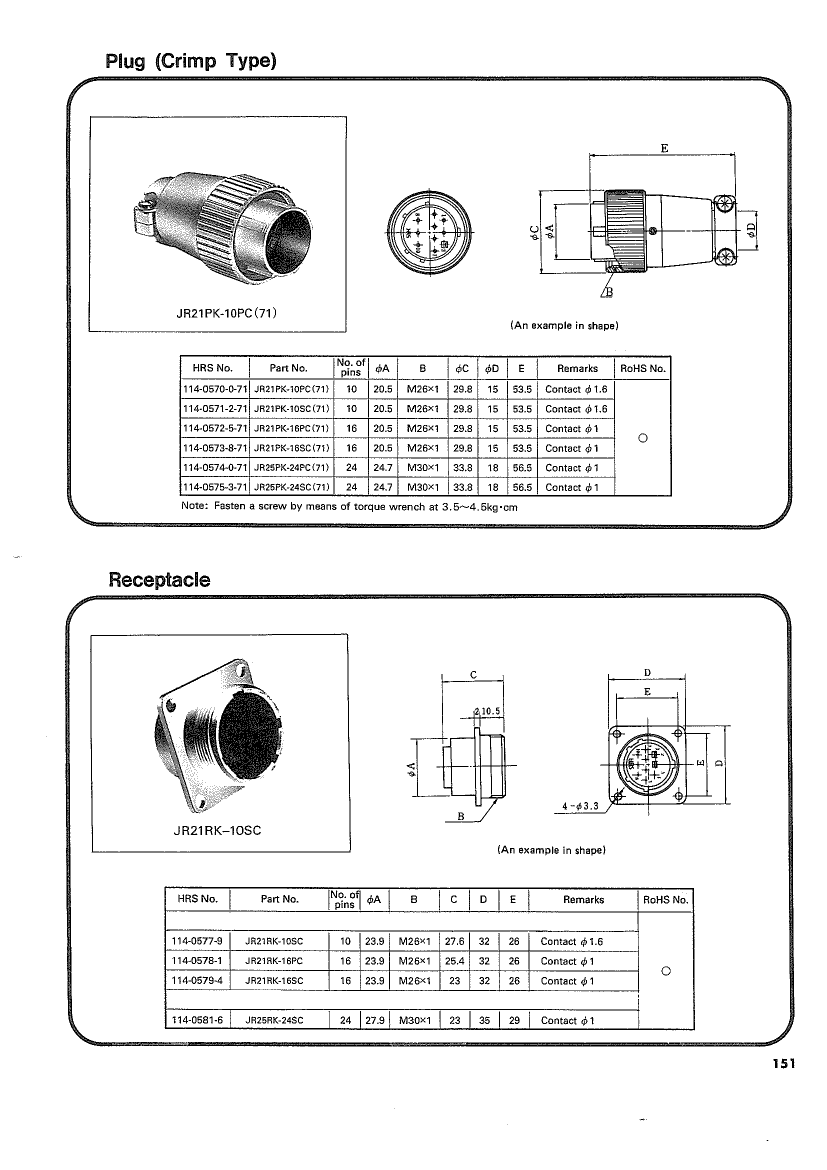

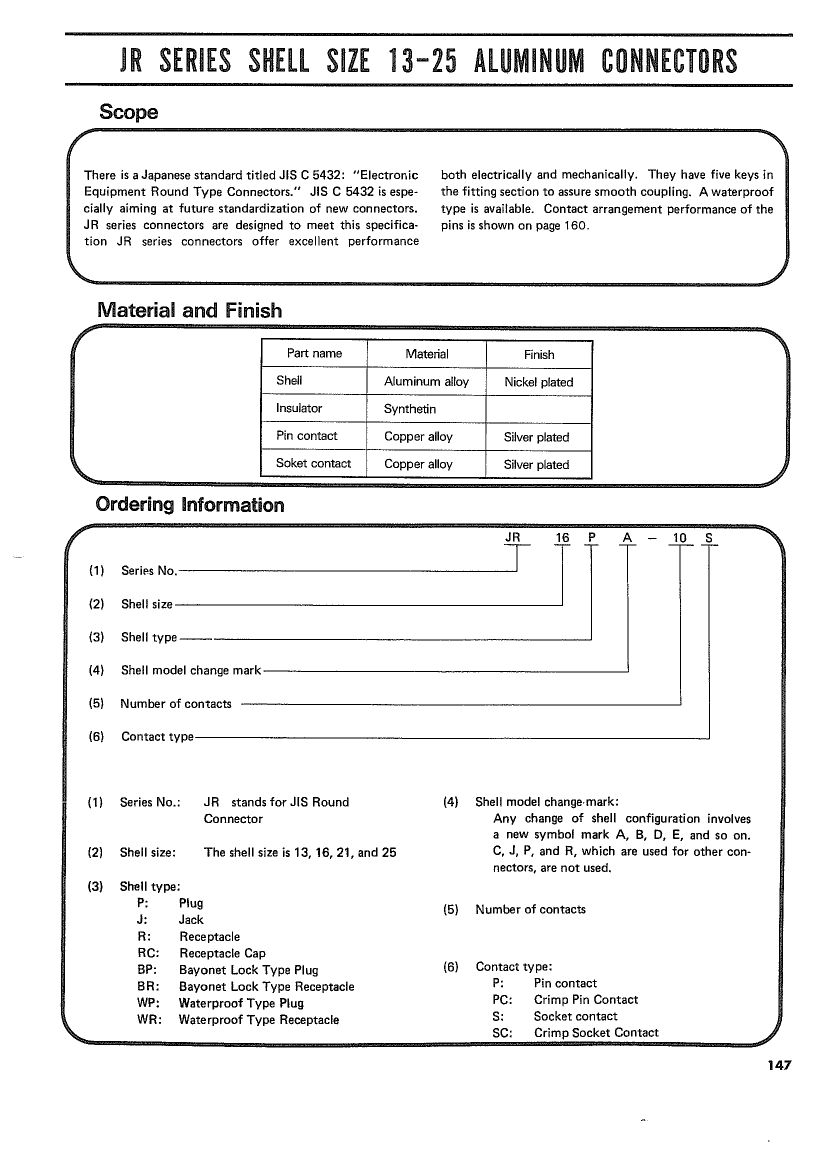

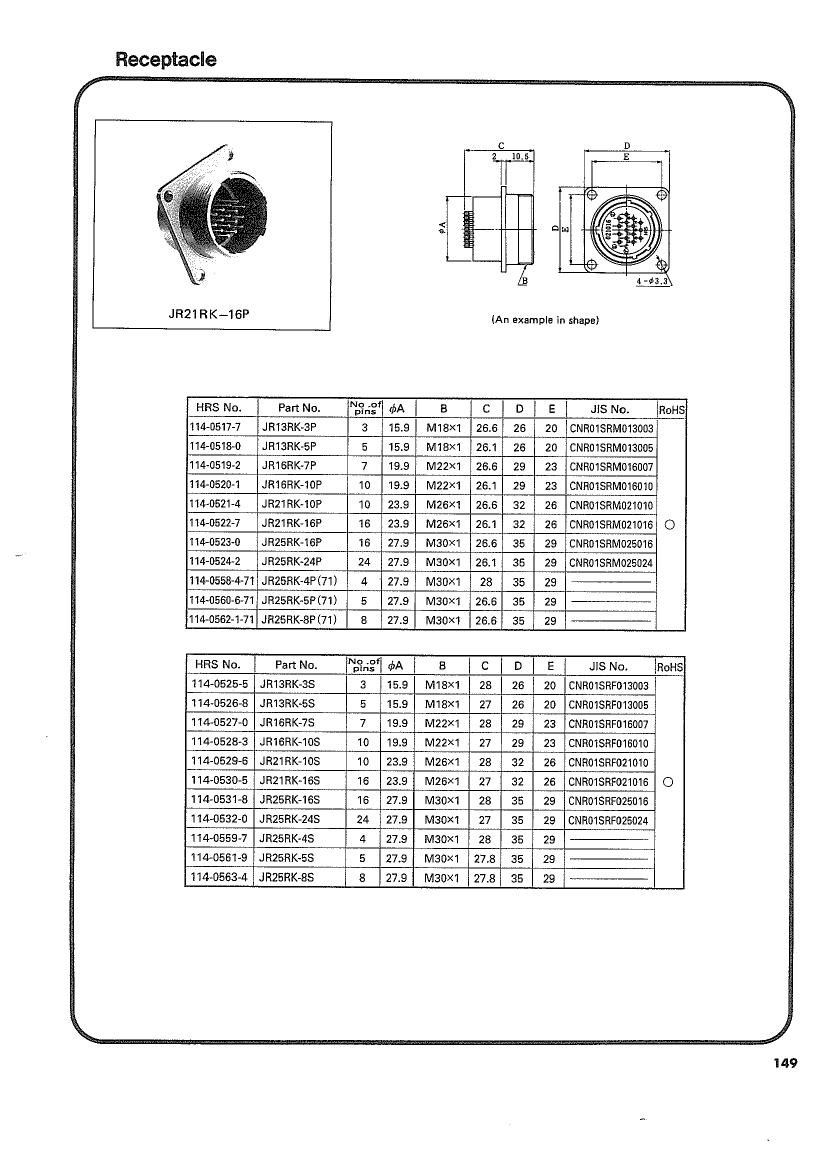

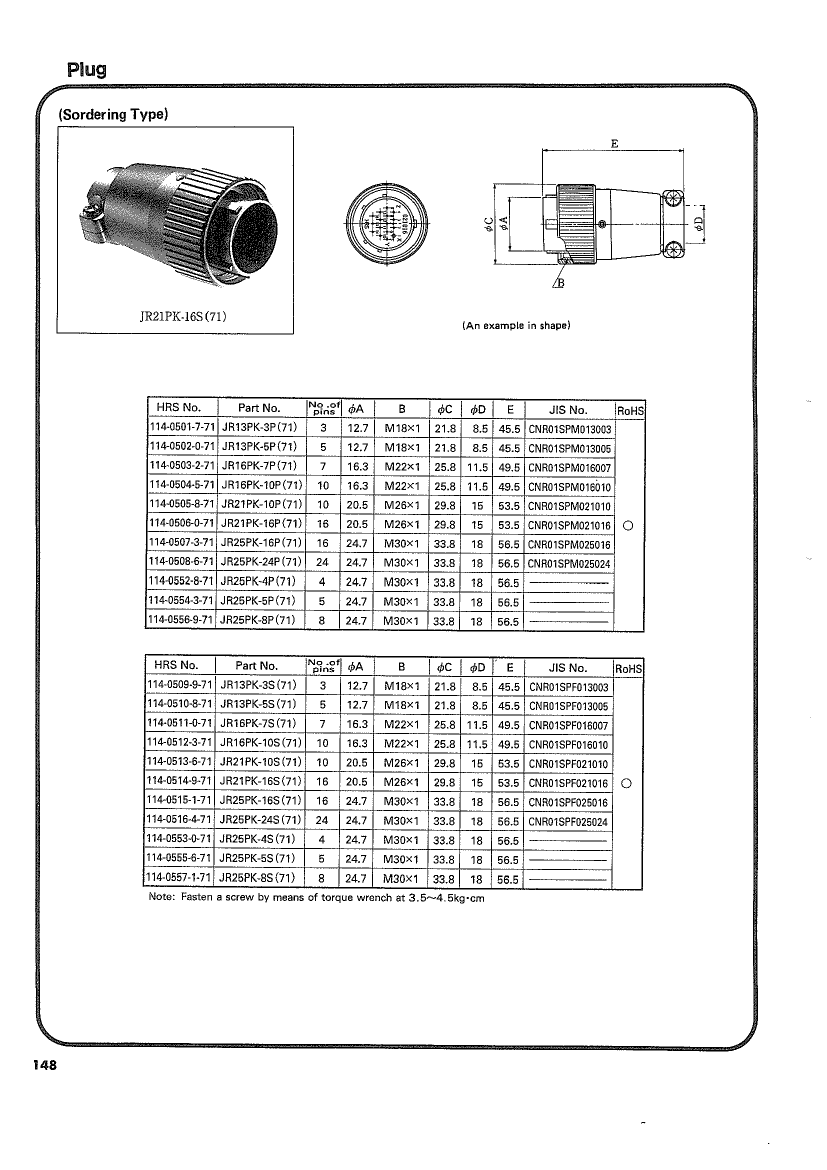

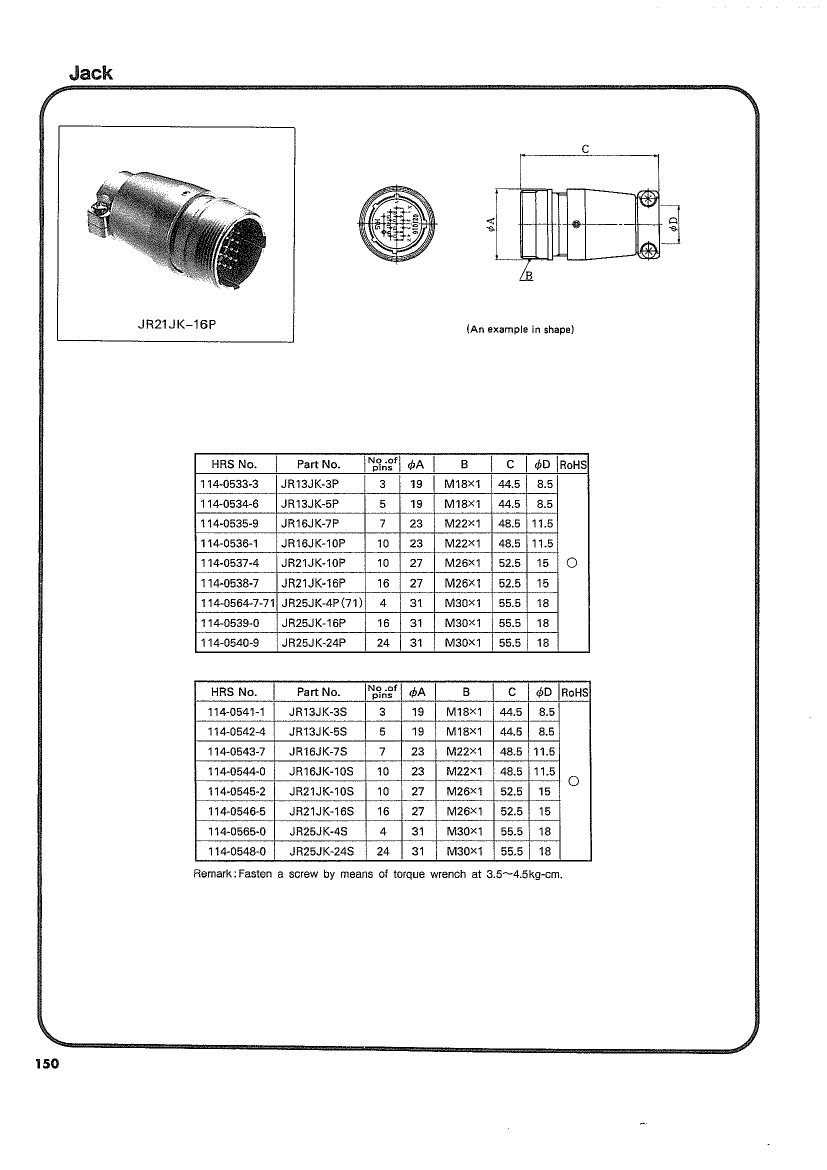

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
