Reduced footprint from ABLS (standard HC/49US package) by 50%
• Low profile: 2.0mm max. height
• Suitable for RoHS compliant reflow
• Tight stability & extended temperature options
• High reliability & Cost effective
• Resistance welded metal package
Pb
RoHS / RoHS II Compliant
7.0 x 4.1 x 2.0mm
Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable
APPLICATIONS:
•
Wireless Applications
• Home electronics
• Computers, modems, and communications
• Microprocessors

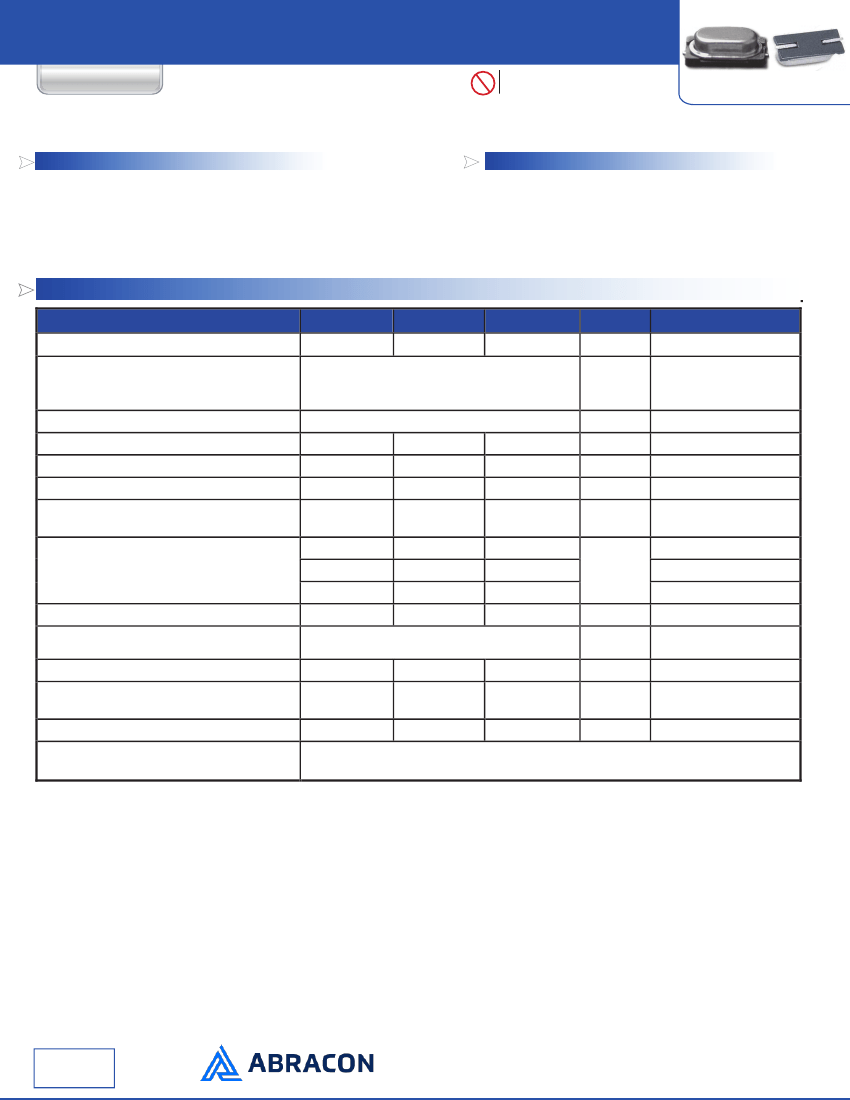

STANDARD SPECIFICATIONS:
Parameters
Freq
u
ency Range*
Standard Frequencies
Operation Mode
Operating Temperature
Storage Temperat
u
re
Frequency
Tolerance @+25°C
Frequency
Stability over the Operating
Temperature ( ref. to +25°C)
Equivalent
series resistance (R1)
@+25°C
Sh
u
nt capacitance (C0)
Loa
d
capacitance (CL)
Drive Level
Aging
Ins
u
lation Resistance
Drive level
dependency
(DLD)
-5
18
50
100
+5
Minimum
Typical
Maximum
Units
M
H
z
MHz
Notes
12.0
40.0
12.0, 12.288, 13.5, 13.56, 14.31818,
14.7456, 16.0, 18.432, 20.0, 20.5, 24.0,
24.576, 25.0, 26.0, 27.0
Fundamental (AT-cut)
0
-40
-50
-50
+70
+125
+50
+50
60
40
25
5
ºC
ºC
ppm
ppm
Ω
pF
pF
µW
ppm
See options
See options
See options
12.000 ~ 16.000MHz
16.001 ~ 30.000MHz
30.001 ~ 40.000MHz
Standard
(See options if
other than STD)
* Please contact Abracon for other frequencies.
500
M
Ω
10nw ~ 100uw，12 points
Change in ESR (Maximum - Minimum) over DLD range < 30% ESR max.
@25°C±3°C
First year
@ 100Vdc
± 15V
ABRACON IS
ISO9001:2015
CE R TIFIED
Revised:07.29.2021
Headquarters: 5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
SMD MICROPROCESSOR CRYSTAL
ABLS7M2
PART IDENTIFICATIONS:
(left blank if standard)
Pb
RoHS / RoHS II Compliant
7.0 x 4.1 x 2.0mm
ABLS7M2 -
Frequency in MHz
Please specify the
frequency
in
MHz.
e.g.
12.000MHz
14.31818MHz
Load Capacitance
(pF)
Please specify CL
(Minimum 8pF) in pF
or S for series
Custom ESR if other
than standard
R□
□:
Specify a value in
Ω
(e.g.: R40)
MHz -
-
-
-
Packaging
Blank: Bulk
T: Tape
&
Reel
Operating Temp.
Blank: 0°C ~ +70°C
A: -10°C ~ +60°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D: -40°C ~ +85°C
J: -40°C ~ +105°C
K: -40°C ~ +125°C
Freq. Tolerance
Blank: ± 50 ppm
1: ± 10 ppm
7: ± 15 ppm
2: ± 20 ppm
3: ± 25 ppm
4: ± 30 ppm
Freq. Stability
(See Table 1 for details)
Blank: ± 50 ppm
U: ± 10 ppm
G: ± 15 ppm
X: ± 20 ppm
W: ± 25 ppm
Y: ± 30 ppm
H:
± 35 ppm
Q: ± 100 ppm
Table 1 Available Combinations of Operating Temp. and Freq. Stability
Operating Temp.
A: -10°C ~ +60°C
Std.: 0°C ~ +70°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D: -40°C ~ +85°C
J: -40°C ~ +105°C
K: -40°C ~ +125°C
Freq. Stability
U:±10ppm
√
√
G:±15ppm
√
√
√
X:±20ppm
√
√
√
√
W:±25ppm
√
√
√
√
Y:±30ppm
√
√
√
√
√
√
H:±35ppm Std.:±50ppm Q:±100ppm
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
Note: Please contact Abracon for other frequency stability and operating temperature range options.
ABRACON IS
ISO9001:2015
CE RTIFIED
Revised:07.29.2021
Headquarters: 5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
SMD MICROPROCESSOR CRYSTAL
ABLS7M2

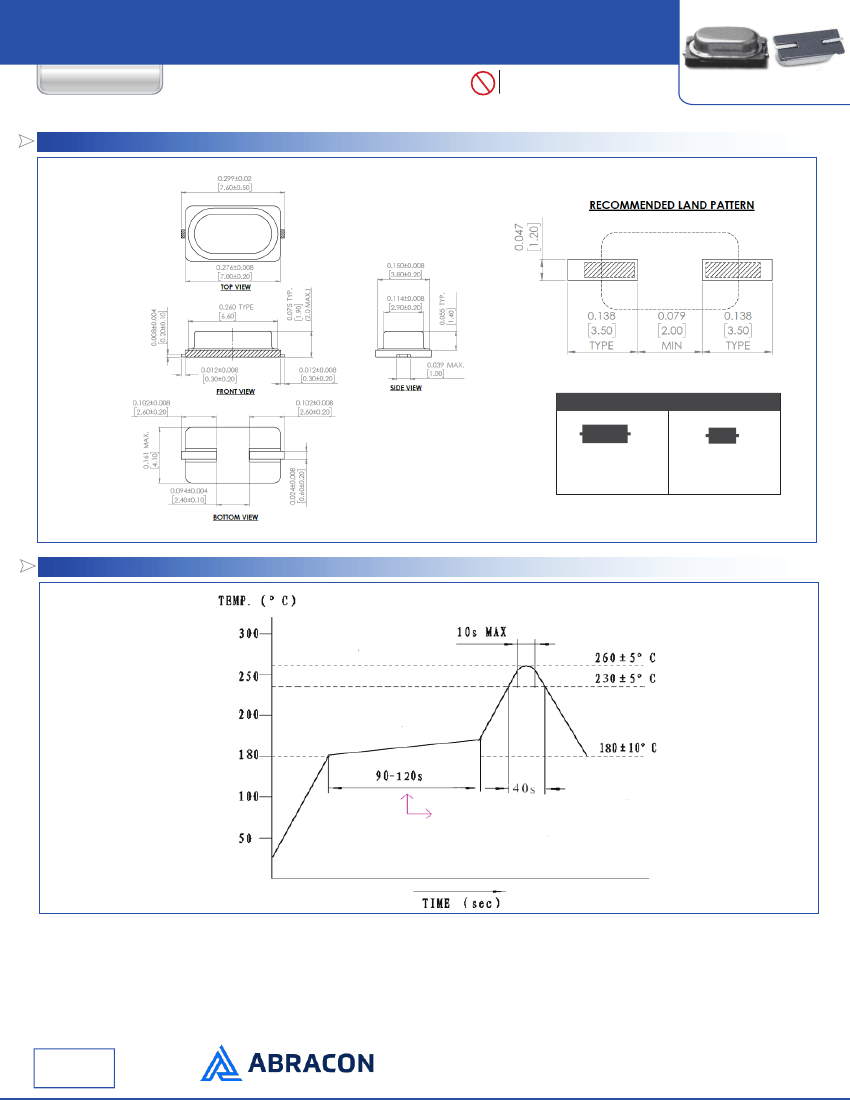

OUTLINE DIMENSION:
Pb
RoHS / RoHS II Compliant
7.0 x 4.1 x 2.0mm
Actual Size Comparison
ABLS
11.4 x 4.7 x 4.2 mm
ABLS7M2
7.0 x 4.1 x 2.0 mm
Dimension: inches [mm]
REFLOW PROFILE:
ABRACON IS
ISO9001:2015
CE R TIFIED
Revised:07.29.2021
Headquarters: 5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
SMD MICROPROCESSOR CRYSTAL
ABLS7M2

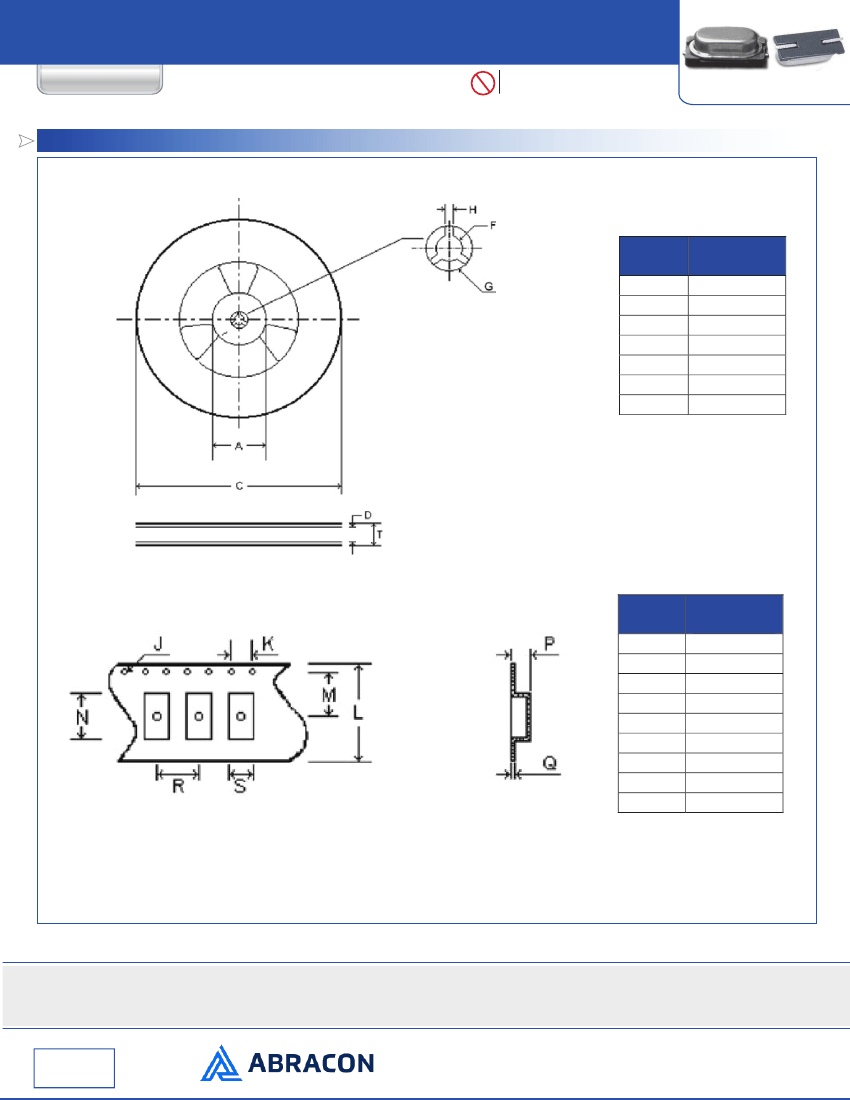

TAPE & REEL:
T = tape and reel (3000pcs/reel)
Pb
RoHS / RoHS II Compliant
7.0 x 4.1 x 2.0mm
No.
A
C
D
T
F
G
H
Dimensions
(mm)
100 ± 1.0
330 ± 2.0
16.4 ± 1.0
20.4 ± 0.5
13.0 ± 0.2
20.2 min.
1.5 min.
No.
J
K
L
M
N
P
Q
R
S
Dimensions
(mm)
Ø1.5
4.0 ± 0.1
16.0 ± 0.3
7.5 ± 0.1
9.4 ± 0.1
2.5 ± 0.1
0.3 ± 0.05
8.0 ± 0.1
4.4 ± 0.1
Dimensions: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where
designated,
Automotive
Applications. Abracon’s products are not specifically
designed
for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high
reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environ-
ment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2015
CE R TIFIED
Revised:07.29.2021
Headquarters: 5101 Hidden Creek Ln Spicewood TX 78669
