Type 550
105 °C High Ripple, Long-life, Inverter Grade, Aluminum
High Ripple, Long Life, Computer Grade
High Value, High Ripple Current
Type 550 is the original Inverter Grade capacitor for continuous
operation at up to 105 °C and it now is available in low voltages too.
For best value its load life test is 2000 hours instead of the 5000
hours of the Type 550C. While less than half the life capability of
the Type 550C, it is lower cost and easily lasts more than 10 years
in typical industrial applications.
Highlights
•
•
•
2,000 hour load life
Ripple current to >50 amps
ESRs to 2.5 mΩ
–40 °C to +105 °C
6.3 to 450 Vdc
90 µF to 1.5 F
Vdc ≤ 150 V: –10 +75%, Vdc > 150 V: –10 +50%
≤3√CV µA (4 mA max.)
Ambient Temperature
45 °C
1.73
55 °C
1.58
65 °C
1.41
75 °C
1.22
85 °C
1.00
95 ºC
0.71
105 ºC
0.57
Specifications
Operating Temperature:
Rated Voltage:
Capacitance:
Capacitance Tolerance:
DCLeakage Current:
Ripple Current Multipliers:
Frequency
10 kHz
50 Hz 60 Hz 120 Hz 360 Hz 1 kHz 5 kHz @ up
1⅜ and 2 inch diameter
≤ 50 V
51–299 V
≥300 V
2½ and 3 inch diameter
≤ 50 V
51–299 V
≥300 V
Load Life:
Shelf Life:
Vibration:
Complies with the EU Directive
2002/95/EC requirement restricting
the use of Lead (Pb), Mercury (Hg),
Cadmium (Cd), Hexavalent chromium
(Cr(VI)), PolyBrominated Biphenyls
(PBB) and PolyBrominated Diphenyl
Ethers (PBDE).
0.77
0.75
0.72
0.81
0.81
0.72
0.85
0.83
0.80
0.90
0.90
0.80
1.00
1.00
1.00
1.00
1.00
1.00
1.05
1.15
1.30
1.02
1.07
1.25
1.08
1.20
1.40
1.02
1.07
1.35
1.08
1.20
1.40
1.02
1.07
1.35
1.08
1.20
1.40
1.02
1.07
1.35
2,000 h at full load @ 105 °C
500 h @ 105 °C, Capacitance, ESR and DCL, initial
requirements.
0 to 55 Hz, 0.06” and 10 g max, 1.5 h each of 2 axis
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Type 550
105 °C High Ripple, Long-life, Inverter Grade, Aluminum
Outline Drawing
For bare can subtract 0.024” (0.61 mm) from D and 0.03” (0.76 mm) from L
Typical
Diameter (D)
Length (L)
Terminals (S)
Weight
Case ±0.031 ±0.78 ±0.062 ±1.57 ±0.015
±0.38
Code
(in)
(mm)
(in)
(mm)
(in)
(mm)
(oz)
(g)
AK
1.399
35.53 1.655 42.04
0.500
12.70
1.90
54
AA
1.399
35.53 2.155 54.74
0.500
12.70
2.00
57
AH
1.399
35.53 2.655 67.44
0.500
12.70
2.70
77
AB
1.399
35.53 3.155 80.14
0.500
12.70
3.30
94
AJ
1.399
35.53 3.655 92.84
0.500
12.70
3.80 108
AC
1.399
35.53 4.155 105.54 0.500
12.70
4.40 125
AD
1.399
35.53 4.655 118.24 0.500
12.70
5.10 145
AE
1.399
35.53 5.155 130.94 0.500
12.70
6.80 193
AF
1.399
35.53 5.655 143.64 0.500
12.70
8.10 230
BA
2.024
51.41 2.155 54.74
0.875
22.23
5.40 153
BH
2.024
51.41 2.655 67.44
0.875
22.23
6.10 173
BB
2.024
51.41 3.155 80.14
0.875
22.23
6.80 193
BJ
2.024
51.41 3.655 92.84
0.875
22.23
8.20 232
BC
2.024
51.41 1.155 29.34
0.875
22.23
9.50 269
BD
2.024
51.41 4.655 118.24 0.875
22.23 10.30 292
NOTE:With the stud-mount fea-
BE
2.024
51.41 5.155 130.94 0.875
22.23 10.70 303
ture, a thermally-conductive disk
BF
2.024
51.41 5.655 143.64 0.875
22.23 13.00 369
can be inserted in the bottom
CB
2.524
64.11 3.155 80.14
1.125
28.58 10.40 295
flush with the outer insulating
CJ
2.524
64.11 3.655 92.84
1.125
28.58 12.73 361
sleeve.This reduces the thermal
CC
2.524
64.11 4.155 105.54 1.125
28.58 15.00 425
resistance through the can bottom
CD
2.524
64.11 4.655 118.24 1.125
28.58 17.20 488
by 0.3 °C/W. Can Style P.
CE
2.524
64.11 5.155 130.94 1.125
28.58 19.30 547
Insulated Case Dimensions
Stud Dimensions
Case
Stud
Thread
M8
M8
M12
M12
M12
P± 0.039”
(±1.0 mm)
0.470” (12.0)
0.470” (12.0)
0.630” (16.0)
0.630” (16.0)
0.630” (16.0)
Diam.
1.38
1.75
2.00
2.50
3.00
CF
DJ
DC
DD
DE
DF
DP
DG
2.524
3.024
3.024
3.024
3.024
3.024
3.024
3.024
64.11
76.81
76.81
76.81
76.81
76.81
76.81
76.81
5.655
3.655
4.155
4.655
5.155
5.655
5.905
8.655
143.64
92.84
105.54
118.24
130.94
143.64
149.99
219.84
1.125
1.250
1.250
1.250
1.250
1.250
1.250
1.250
28.58
31.75
31.75
31.75
31.75
31.75
31.75
31.75
For Case
Diameters
1⅜ to 3
1⅜ to 3
2½ & 3
2½ & 3
1⅜ & 2
2½ & 3
2½ & 3
2½ & 3
21.40 607
20.00 567
22.20 629
25.50 723
30.00 850
31.90 904
32.85 931
43.30 1227
Terminal Style
Low Post
High Post
High Current, Low
High Current, High
Small M5 Post
M5 Post
M6 Low Post
M6 High Post
Post Diameter
Code (in) (mm)
A
0.314 8.0
B
0.314 8.0
D
0.684 17.4
E
0.684 17.4
M
0.314 8.0
F
0.512 13.0
G
0.684 17.4
H
0.684 17.4
H Maximum
min Full Thread
(in) (mm) Thread (in)
(mm)
0.094 2.4 10-32 0.218
5.5
0.281 7.1 10-32 0.375
9.5
0.125 3.2
¼-28 0.344
8.7
0.281 7.1
¼-28 0.469
11.9
0.281 7.1
M5
0.375
9.5
0.23
5.8
M5
0.344
8.7
0.125 3.2
M6
0.344
8.7
0.281 7.1
M6
0.469
11.9
Click here
to see
Hardware &
Mounting
Options
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Type 550
105 °C High Ripple, Long-life, Inverter Grade, Aluminum
Part Numbering System
550
Type
542
Capacitance
542 = 5400 µF
T
450
DG
2
D
S

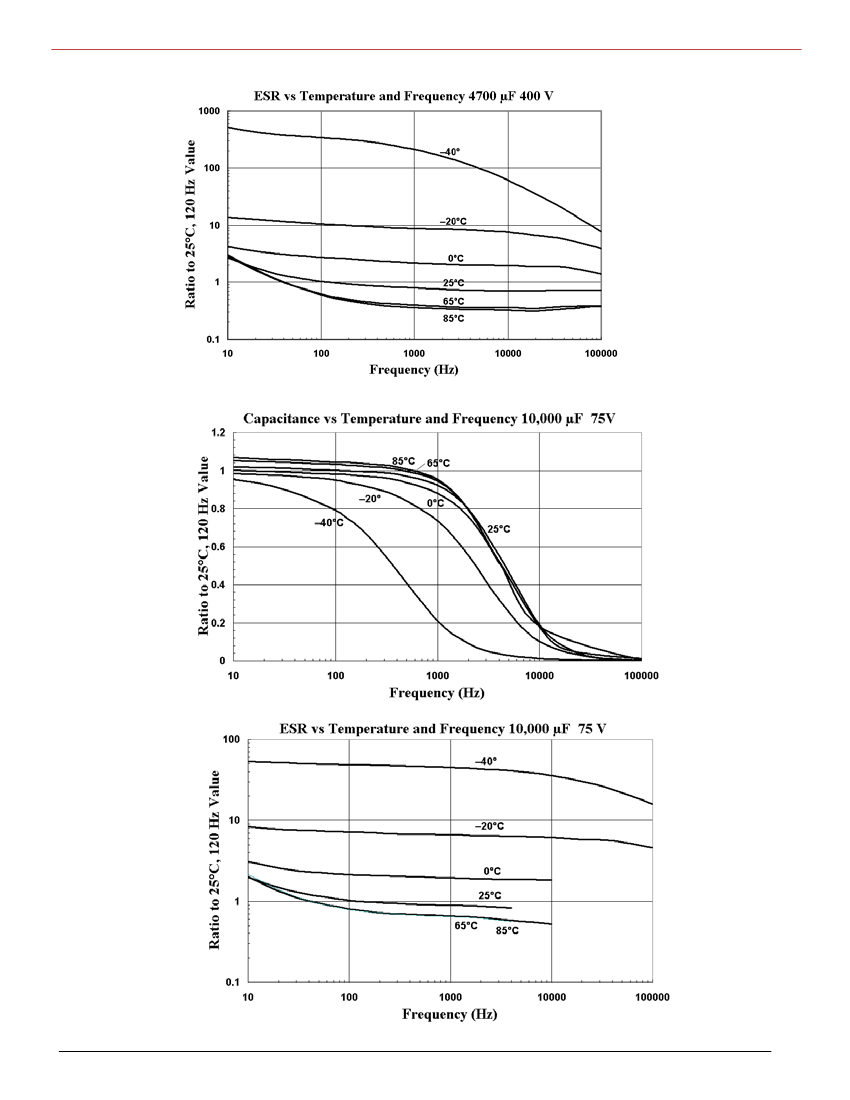

Typical Performance Curves
Tolerance
Voltage Case Code Insulation
Terminal Can Style
M= ±20%
450 = 450 Vdc
0= None
A= Low Post
Blank=
U= 10%+75% 016 = 16 Vdc
1= Polyester B= High Post
Standard
T= 10%+50% 6R3 = 6.3 Vdc
2= PVC
D= High Current,
Can
Low Post
E= High Current, S= Stud
Bottom
High Post
P= Stud
F= M5 Post
Standard insulation is 0.008-in PVC sleeve with 0.01-in polypropylene end disk. M= M5 Post,
with
Thermal
small
Pad
G= M6 Low Post
H= M6 High Post
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
