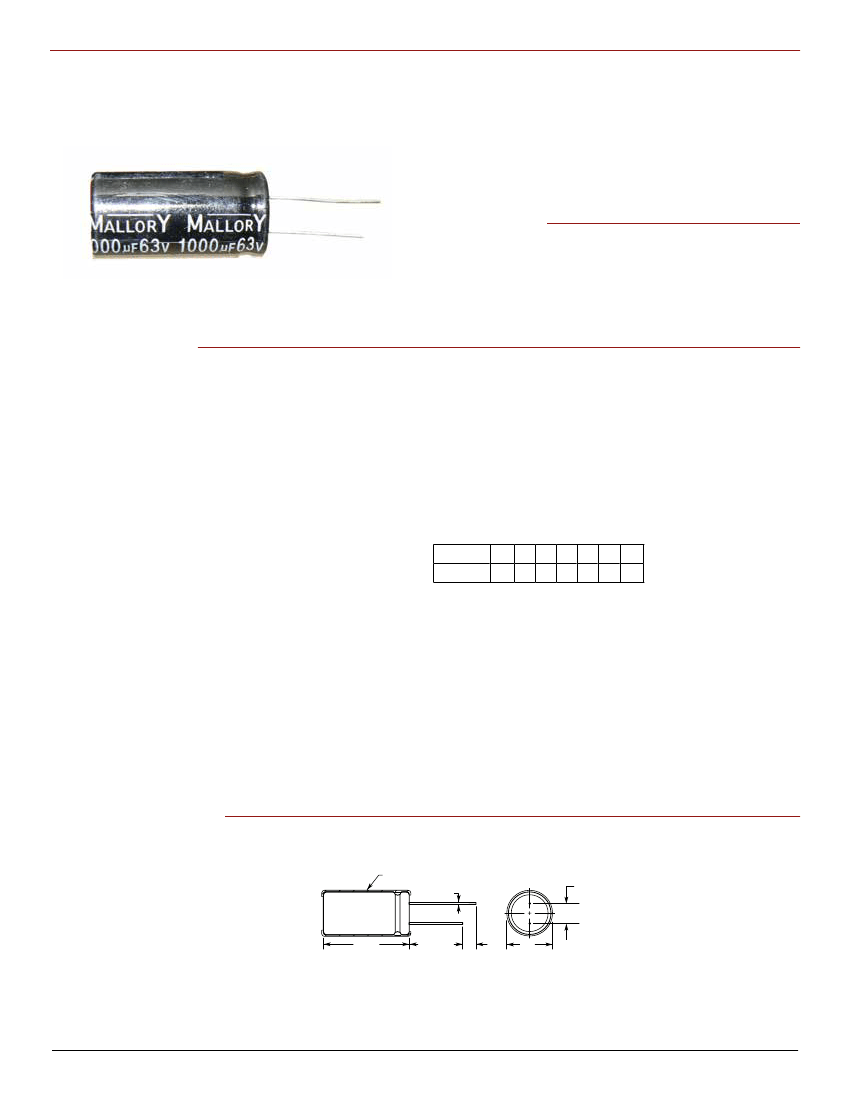

Type SN
85 ºC Non-Polar Aluminum Electrolytic Capacitors
85 ºC, Radial Leaded Non-Polar Aluminum Electrolytic
Type SN is a non-polar radial leaded aluminum elec-
trolytic capacitor with a +85 ºC, 1000 hours life rating.
The SN is ideal for applications where the polarity is
unknown or reversed such as signal coupling circuits
and speakers.
Highlights
•
•
•
•
Non-polar
+85 ºC
Good for unknown polarity applications
Available in T&R and ammo pack
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
DC Leakage Current:
Dissipation Factor @ 120 Hz, +25 ºC:
0.47 to 2200 µF
6.3 to 100 WVNP
±20%
–40 ºC to +85 ºC
After 2 minutes, +20 ºC at rated voltage
I = .03CV + 4 µA Max
C = Capacitance in (µF)
V = Rated voltage
I = Leakage current in µA
WV (V)
6.3 10 16 25 35 50 100
DF(%)
24 20 17 15 14 12 10
For capacitance values > 1000 µF, the DF (%) value
is increased 2% for every additional 1000 µF
Load Life:
Apply WVNP for 1,000 hours at +85 ºC with
polarity inverted every 250 hours
Shelf Life:
500 hrs with no voltage applied at +85 ºC
Cap change within 25% from initial limits
DC leakage ≤ 200% of initial value
ESR ≤ 200% of initial value
Capacitance change within 20% of initial limit
DC leakage current meets initial limits
ESR ≤ 200% of initial value
Outline Drawing
PVC Sleeve
d
0.05
S
0.5
L
15 Min.
5
D
Case vented on diameters 6.3 and greater.
Vinyl sleeve adds .5 Max. to diameter and 2.0 Max. to length.
Dimensions in (millimeters)
Dimensions in (millimeters)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type SN
85 ºC Non-Polar Aluminum Electrolytic Capacitors
Ratings
Max ESR Max Ripple
Catalog
Cap
(µF)
0.47
1.0
2.2
3.3
4.7
10.0
22
33
47
100
SNR47M100ST
SN010M100ST
SN2R2M100ST
SN3R3M100ST
SN4R7M100ST
SN100M100ST
SN220M100ST
SN330M100ST
SN470M100ST
SN101M100ST
Part Number
120 Hz
+25 ºC
(Ω)
282.33
132.70
60.32
40.21
28.23
13.27
6.03
4.02
2.82
1.33
120 Hz
+85 ºC
(mA)
14
21
34
49
58
100
180
220
285
510
Diameter
(D)
Size in. (mm)
Length
(L)
Lead Space Lead Dia.
(S)
.079 (2.0)
.098 (2.5)
.098 (2.5)
.138 (3.5)
.138 (3.5)
.197 (5.0)
.197 (5.0)
.197 (5.0)
.197 (5.0)
.295 (7.5)
(d)
.0197 (0.5)
.0197 (0.5)
.0197 (0.5)
.0197 (0.5)
.0197 (0.5)
.0236 (0.6)
.0236 (0.6)
.0236 (0.6)
.0236 (0.6)
.0315 (0.8)
100 WVNP (125 VNP Surge)
.197 (5.0) .433 (11.0)
.197 (5.0) .433 (11.0)
.236 (6.0) .433 (11.0)
.315 (8.0) .453 (11.5)
.315 (8.0) .453 (11.5)
.394 (10.0) .472 (12.0)
.512 (13.0) .787 (20.0)
.512 (13.0) .787 (20.0)
.512 (13.0) .984 (25.0)
.630 (16.0) 1.26 (32.0)
