SXR472M025A4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> SXR472M025A4

SXR472M025A4: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 4700uF,; CategoryPassive components capacitor; File Size551KB，4 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

SXR472M025A4 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 4700uF,

SXR472M025A4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	844661830
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	4700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	18 mm
dielectric materials	ALUMINUM
ESR	60 mΩ
JESD-609 code	e3
length	40 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	Ammo Pack; Tape
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	2460 mA
series	SXR
Terminal surface	Tin (Sn)

Preview

Download Datasheet

View All

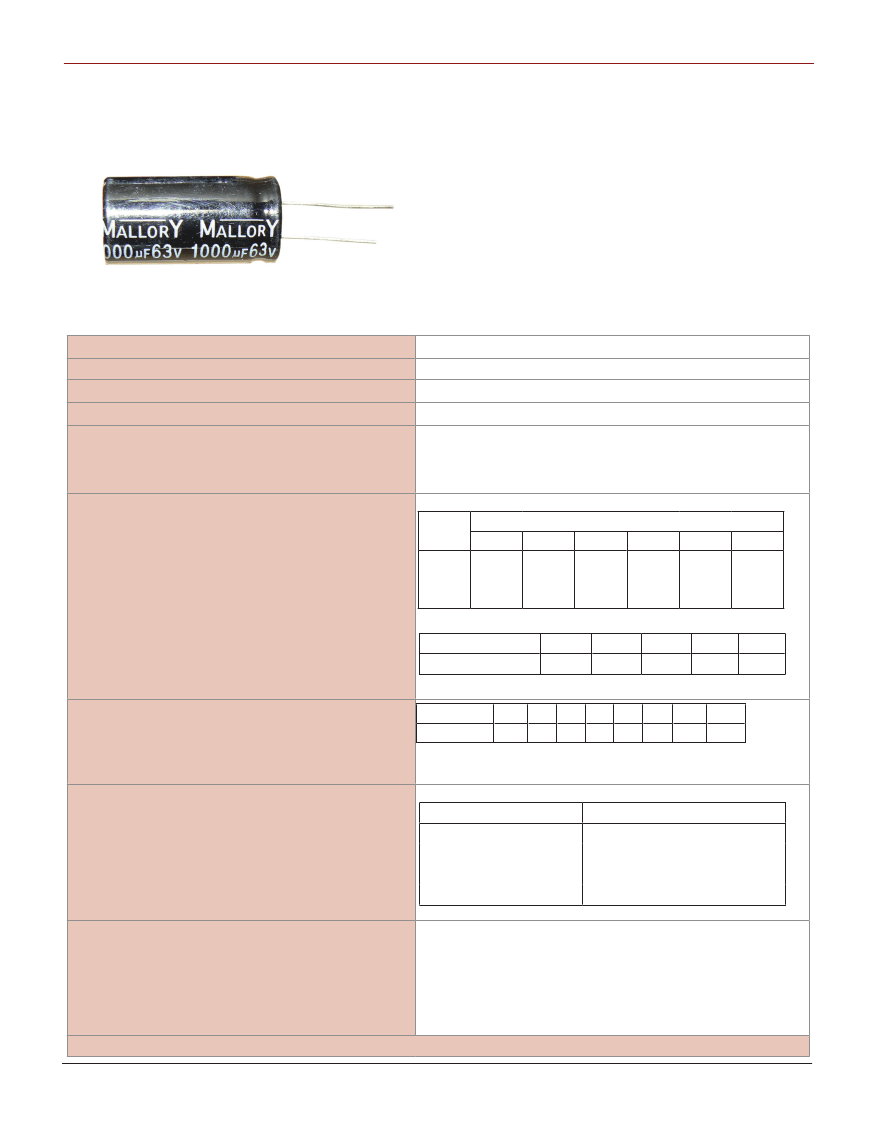

Type SXR 105 ºC Long Life Aluminum Electrolytic Capacitors

Low ESR, High Ripple, Radial Leaded Aluminum Electrolytic Capacitors

Type SXR is a radial leaded aluminum electrolytic capacitor with a

+105 ºC, 2000 to 5000 hours long life ratings. The low ESR and high

ripple current ratings make it ideal for output filtering applications in

switching power supplies.

Highlights

- +105 ºC

- 2000 to 5000 hours - long life

- Low ESR

- High ripple current

- Available in T & R and ammo pack

–40 ºC to +105 ºC

6.3 to 100 Vdc

22 to 15,000 µF

± 20%

I = .01CV or 3 µA after 2 minutes @ +20 ºC, whichever is greater

C = Capacitance in (µF)

V = Rated voltage

I = Leakage current in µA

Rated

WVDC

60Hz

120Hz

Ripple Multipliers

400 Hz

1 kHz

10 kHz

100 kHz

1.00

Specifications

Temperature Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

DC Leakage Current

Ripple Current Multipliers

10 - 16

25 - 35

50 - 100

0.45

0.38

0.36

0.60

0.50

0.46

+65

2.12

0.83

0.75

0.70

+75

1.92

0.94

0.90

0.88

+85

1.69

0.98

0.97

0.94

+95

1.50

Temperature (ºC)

Multiplier

Dissipation Factor @ 120 Hz, +25 ºC

+105

1.00

WV (V)

DF(%)

6.3

100

For capacitors whose capacitance value exceeds 1000 µF, the value of DF

(%) is increased 2% for every additional 1000 µF

Load Life Test

Apply WVDC for:

Case Dia.

≤ 6.3 mm

8.0 mm

10.0 mm

≥13.0 mm

Shelf Life

Capacitance change within 25% of initial limit

DC leakage current meets initial limits

DF ≤ 200% of initial value

1000 hrs with no voltage applied at +105 ºC

Cap change within 20% of initial values

ESR ≤ 200% of initial value

DC leakage current meets initial limits

RoHS Compliant

Lifetime (Hours)

2000

3000

4000

5000

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
