CFPC-050-PG15001Z2-16-RUT-GD-C datasheet, PDF

Datasheet> All Categories > The connector> The connector> CFPC-050-PG15001Z2-16-RUT-GD-C

CFPC-050-PG15001Z2-16-RUT-GD-C: DescriptionHeaders and Edge Type Connector,; CategoryThe connector The connector; File Size144KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CFPC-050-PG15001Z2-16-RUT-GD-C Overview

Headers and Edge Type Connector,

CFPC-050-PG15001Z2-16-RUT-GD-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145117870258
Reach Compliance Code	unknown
ECCN code	EAR99
Contact completed and terminated	Gold (Au)
JESD-609 code	e4

Preview

Download Datasheet

View All

SPECIFICATIONS

Current Rating:

Voltage Rating:

Terminal:

Fitting Nail:

Housing:

Slider:

Withstanding:

Contact Resistance:

Insulation Resistance:

Relative Humidity:

Temperature Range:

0.5A AC/DC

100V AC/DC

Phosphor Bronze, Gold Plated

Brass, Tin Plated

Thermoplastic UL94V-0

200V AC/Minute

≤

20mW

500mW

93% +40C

-25C ~ +85C

RoHS compliant

Rev.

Description

Pn table

Date

1/27/08

Series

CFPC

FPC/FFC connector

(Flat Printed Circuit/

Flat Flex Cable)

Zero insertion Force

Approved

Pitch (mm)

050

050=0.5

Type

Positions

Style

Plating

PG15001Z2

Side entry

04-59

VX=Vertical

GD=Gold

upper con-

RUX=Upper Contact R/A

tact ZIF

RBX=Bottom Contact R/A

X: S=SMT

T=Thru Hole

Option

TR=Tape

& Reel

TB=Tube

C=Pick Cap

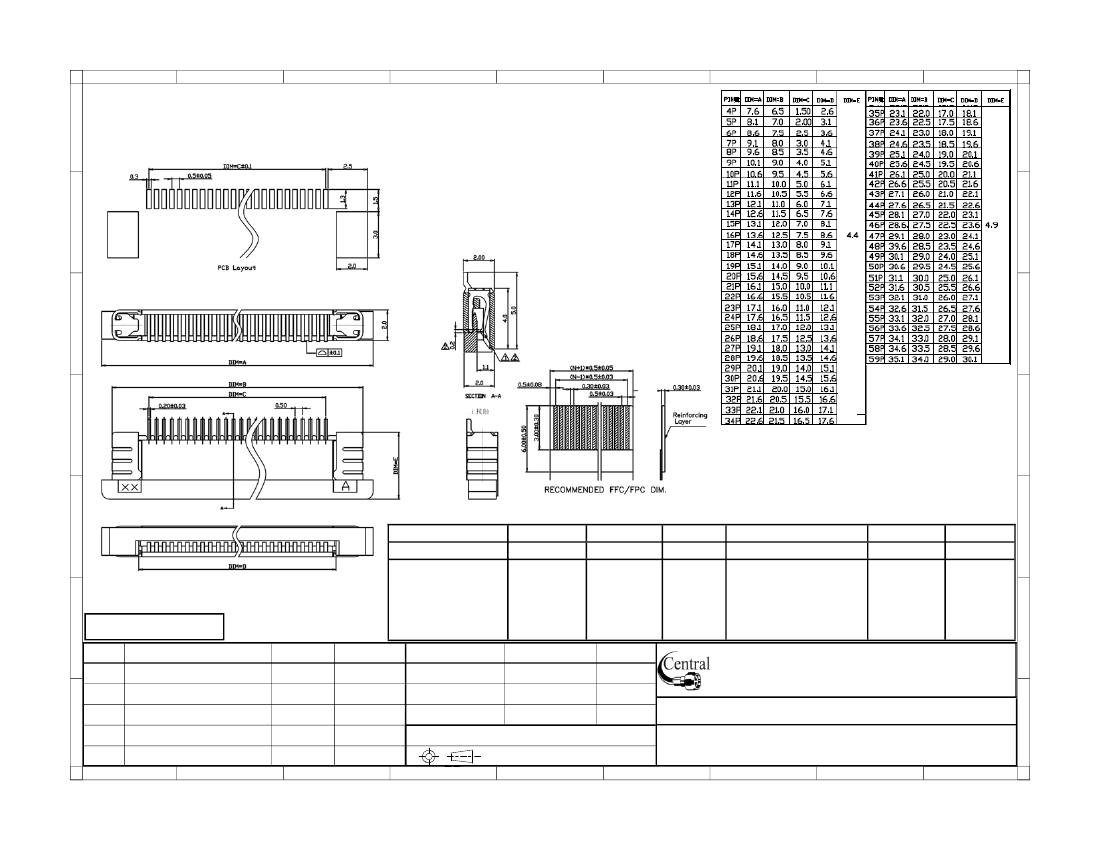

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

Central Components Manufacturing

08/10/02

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

08/10/02

08/10/02 Part No.:

CFPC-050-PG15001Z2-RUS-XX-XX

Description: FPC/FFC connector, 0.5mm pitch, ZIF, upper contact

0.00 ± 0.20 Angles ± 3’

UNIT: mm
