Miniature Waterproof Plastic Connectors
HR30 Series
Mated dimensions
32.3
3 and 6 pos.
Ø12.6
42.1
10 and 12 pos.
Ø15.5

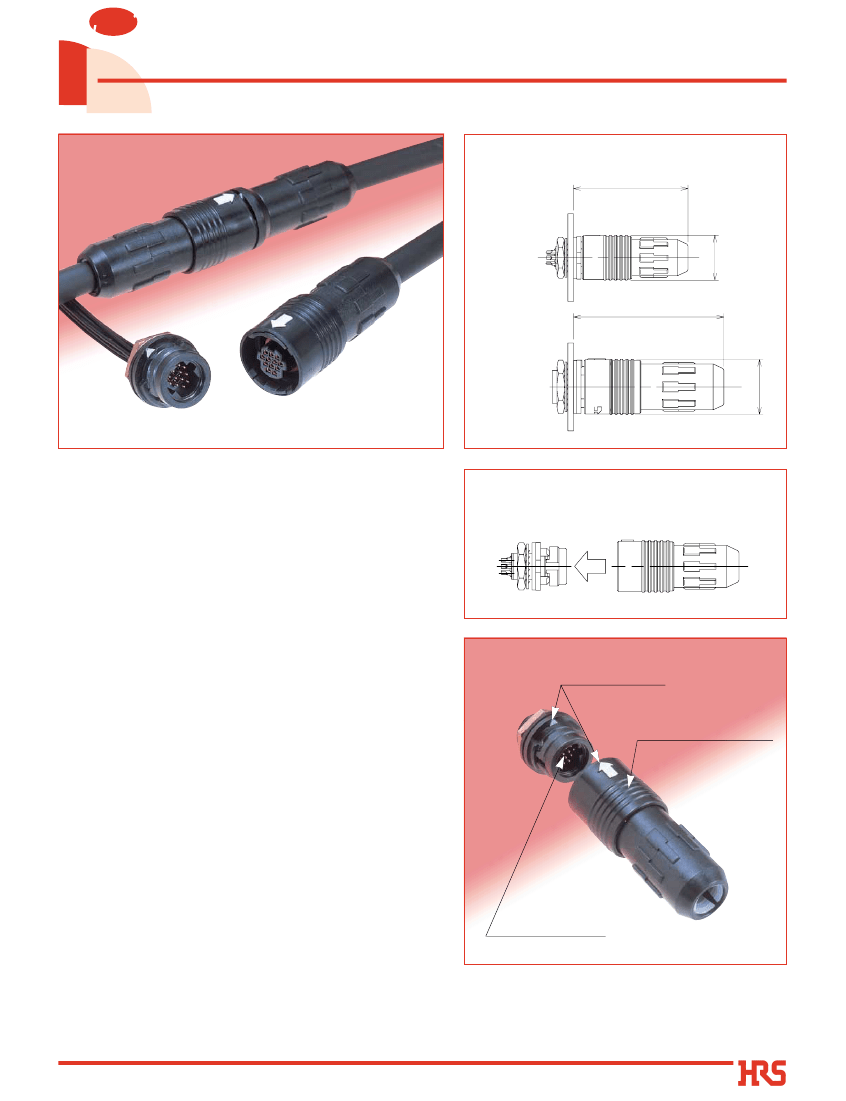

sFeatures
1. Small size
Short in length when fully terminated and mated.
Lock/release operation
Push-pull- single action lock
2. Water and dust protected
IP67 protection rating: Complete protection against dust
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Current rating
Ratings
Voltage rating
100V AC,140V DC(3,6 pos.)
30V AC,42V DC(10,12 pos.)
StorageTemperature Range
-25
ç to
+85
ç
5A (3 pos.)
2A (6,10,12 pos.)
Operation Temperature Range
-25
ç to
+85
ç
Characteristic
1.Contact resistance
2.Insulation resistance
3.Withstanding voltage
4.Vibration
Specification
5m ohms max. (3 pos.)
15m ohms max. (Solder type: 6, 10, and 12 pos.)
30m ohms max. (Through hole type: 6 and 12 pos.)
1000M ohms min.
No flashover or insulation breakdown
No electrical discontinuity of 10 µs or more
Contact resistance 10m ohms min.(3 pos.)
Contact resistance 30m ohms min. (Solder type: 6, 10, and 12 pos.)
Contact resistance 100m ohms min. (Through hole type: 6 and 12 pos.)
Insulation resistance 100 M ohms min.
Insulation resistance
10M
ohms
min. (when humidity high)
100M
ohms
min. (when dry)
No penetration inside.
1A DC
Conditions
100 V DC
300 V AC / one minute
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
1 cycle= 5min, 10 cycles in each of the 3 directions.
1000 cycles
(-55
ç
: 30 minutes
¡
Room temperature: 10 to 15 minutes
¡
+85
ç
: 30
minutes
¡
Room temperature: 10 to 15 minutes) for 5 cycles
96 hours at temperature of 40ohmsC and humidity of 90% to 95%
5.Durability (mating/un-mating)
6.Temperature cycle
7.Humidity resistance
8.Waterproof performance
9.Dust protection
While mated with corresponding or protective cap submerged at
depth of 1m for half hour.
sMaterial
Assembly
Component
PPS
Insulator
Plug
PBT
Polyacetal
Gasket
Contacts
Spring
Insulator
Gasket
Receptacles
Contacts
Hexagonal nut
Washer
Crimp contact
(male/female)
Contacts
Silicone rubber, chloroprene rubber
Brass, phosphor bronze
Stainless steel
PPS
Chloroprene rubber
Brass, phosphor bronze
Zinc alloy
Phosphor bronze
Phosphor bronze
Black
Black
Gold plated
Chromate
Nickel plated
Selective gold plated
Material
Black
Black
Natural
Finish
Remarks
UL94V-0
UL94V-0
----------
----------
----------
----------
UL94V-0
----------
----------
----------
----------
----------
Red/Black
Gold plated
----------
sOrdering
information
HR 3 0 - 6 P A - 6 S C (
* *
)
1
2
3
4
5
6
7
8
1
Series name
: HR30
2
Shell size
: Outside diameter/plug mating side
3
Connector type : P : Plug
Connector type
Connector type
4
Variation
Blank
A
:
R : Receptacle
:
J : Jack
: Standard
: Fine wire
5
Number of Contacts : 3, 6, 10 and 12
6
Contact type S
: Female contact
P
: Male contact
7
Contact wiring type
Blank : Solder
C
: Crimping
D
: Through hole
(71) : Gold plated (Except caps)
8
Plating
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

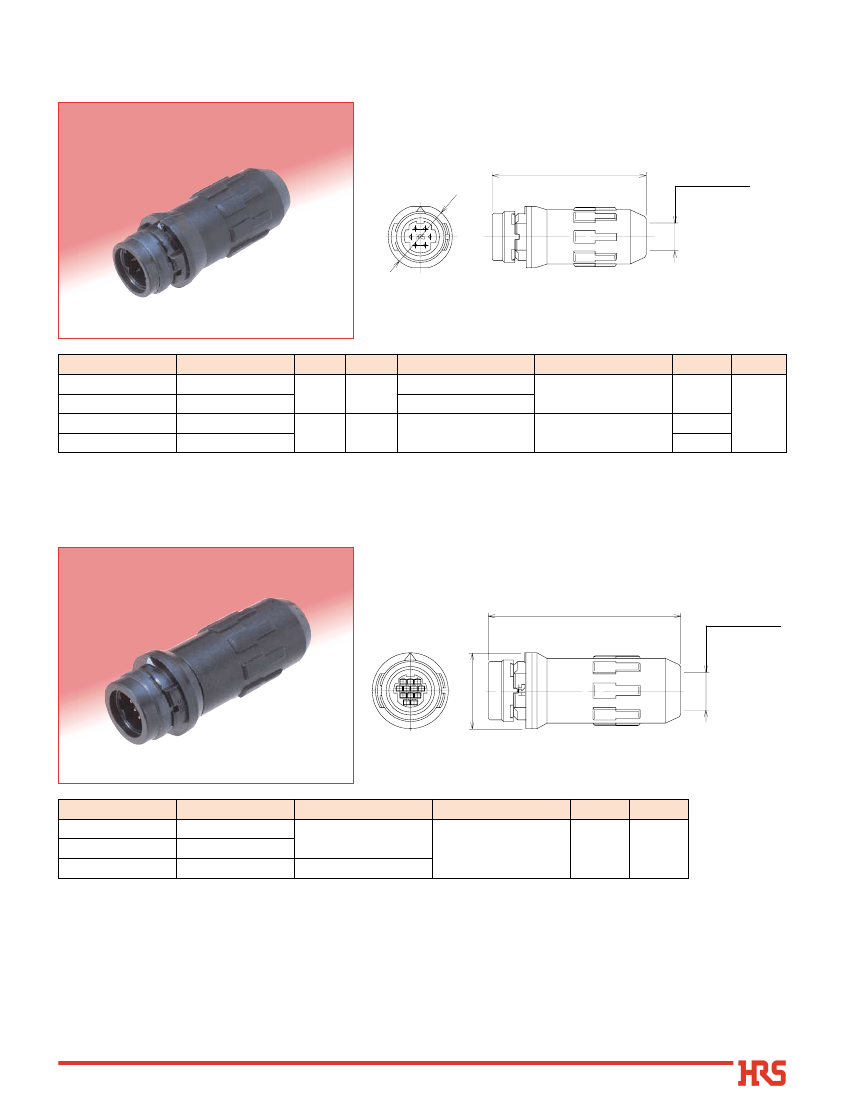

sPlugs
qSolder
Type
HR30-6P-6S (Shown)
A(Fully tightened)
Applicable
cable diameter
6
5
4 3
1
2
Part Number
HR30-6P-3S(71)
HR30-6P-6S(71)
HR30-6P-6P(71)
HR30-6PA-3S(71)
HR30-6PA-6S(71)
HR30-6PA-6P(71)
HR30-7P-12S(71)
HR30-8P-12P(71)
CL No.
130-0004-1-71
130-0010-4-71
130-0009-5-71
130-0021-0-71
130-0019-9-71
130-0020-8-71
130-0027-7-71
130-0026-4-71
A
29.8
30.3
29.8
30.3
39.8
B
Solder pot inner diameter
1.1 mm
Applicable cable diameter range
4.2 to 5
Weight
B
RoHS
4g
3.5 to 4.3
YES
6.2 to 7
6.7g
A(Fully tightened)
Applicable
cable diameter
Applicable cable diameter range
6.2 to 7
Weight
6g
RoHS
YES
Ø15.5
0.8 mm
12.6
1.1 mm
0.8 mm
15.5
0.6 mm
qCrimp
Type
HR30-7P-12SC (Shown)
Shown with terminated and installed contacts.
Part Number
HR30-7P-10SC(71)
HR30-7P-12SC(71)
HR30-8P-12PC(71)
CL No.
130-0013-2-71
130-0014-5-71
130-0015-8-71
39.8
HR30-PC-211
A
Crimp contact
HR30-SC-211
Note: Crimp contacts are not included. Please order applicable contacts separately.
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

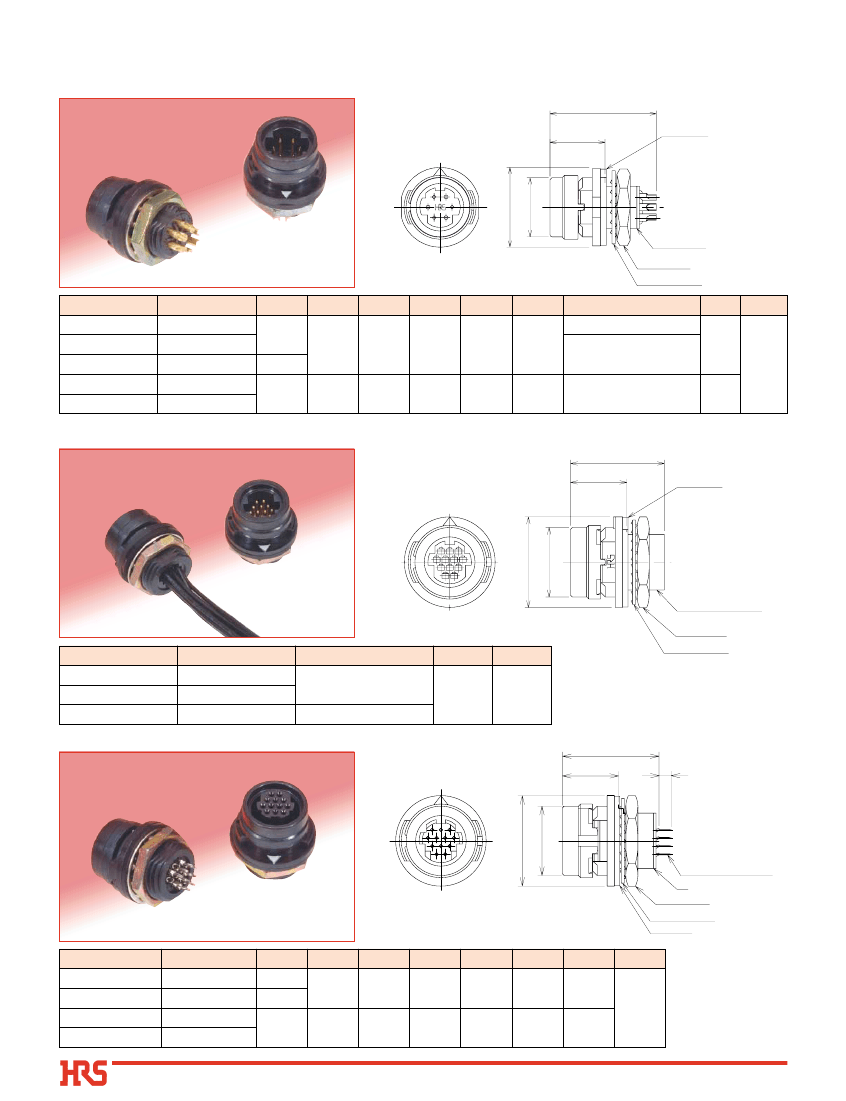

sReceptacles
qSolder
Type
HR30-6R-6P (Shown)
B
A
Gasket
1
2
6
C
5
3
4
D
E(Thread)
F(Hex nut)
Lock washer
Part Number
HR30-6R-3P
(71)
HR30-6R-6P
(71)
HR30-6R-6S
(71)
HR30-7R-12P
(71)
HR30-8R-12S
(71)
CL No.
130-1003-4-71
130-1009-0-71
130-1008-8-71
130-1016-6-71
130-1018-1-71
A
16
18.4
18.6
B
8.3
C
12
D
8.9
E
M8∞0.75
F
10
Solder pot inner diameter Weight
1.1mm
2g
0.8mm
RoHS
YES
3.4g
9.3
15
11.5
M11∞1
13
0.6mm
qCrimp
Type
HR30-7R-12PC (Shown)
9.3
15.5
Gasket
Ø11.5
Ø15
M11X1(Thread)
Shown with terminated and installed contacts.
Shown with terminated and installed contacts.
Shown with terminated and installed contacts.
Shown with terminated and installed contacts.
Shown with terminated and installed contacts.
Shown with terminated and installed contacts.
Part Number
HR30-7R-10PC(71)
HR30-7R-12PC(71)
HR30-8R-12SC(71)
CL No.
130-1012-5-71
130-1013-8-71
130-1014-0-71
HR30-SC-211
Crimp contact
HR30-PC-211
Weight
3g
RoHS
YES
13(Hex nut)
Lock washer
qThrough
hole Type
HR30-8R-12SD (Shown)
B
A
2
C
D
Through hole post
(0.2∞0.5)
E
F(Hex
nut)
Lock washer
Gasket
Part Number
HR30-6R-6PD
(71)
HR30-6R-6SD
(71)
HR30-7R-12PD
(71)
HR30-8R-12SD
(71)
CL No.
130-1020-3-71
130-1021-6-71
130-1017-9-71
130-1019-4-71
A
14.9
15.2
16
B
8.3
C
12
D
8.9
E
M8∞0.75
F
10
Weight
2g
RoHS
YES
9.3
15
11.5
M11∞1
13
3.4g
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

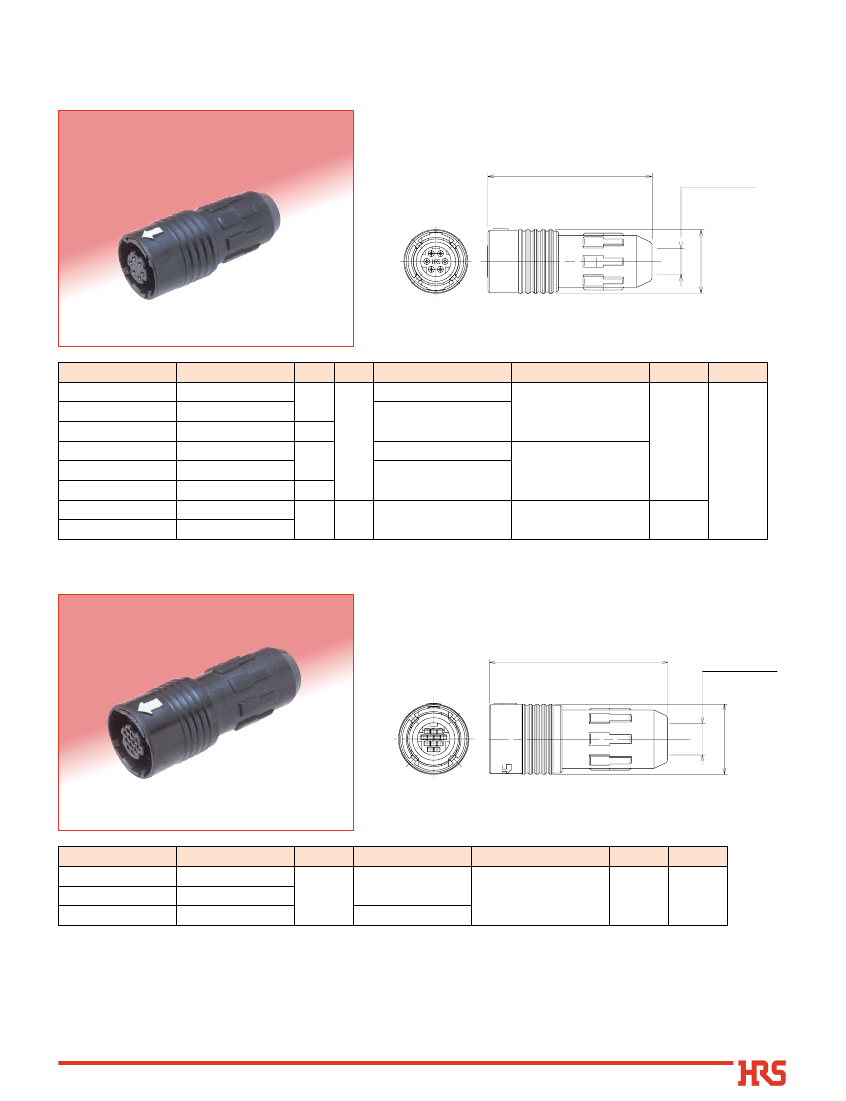

sJacks
qSolder
Type
HR30-6J-6P (Shown)
B(Fully tightened)
Applicable
cable diameter
1
6
2
5
3
4
Part Number
HR30-6J-6P(71)
HR30-6JA-6P(71)
HR30-7J-12P(71)
HR30-8J-12S(71)
CL No.
130-2009-6-71
130-2018-7-71
130-2020-9-71
130-2019-0-71
A
12
B
28.9
Applicable cable diameter range
4.2 to 5
3.5 to 4.3
A
Solder pot inner diameter
0.8 mm
Weight
3g
5.7g
5.9g
RoHS
YES
15
37.3
6.2 to 7
0.6 mm
qCrimp
Type
HR30-7J-12PC (Shown)
37.3
(Fully tightened)
Applicable
cable diameter
Shown with terminated and installed contacts.
Part Number
HR30-7J-10PC(71)
HR30-7J-12PC(71)
HR30-8J-12SC(71)
CL No.
130-2015-9-71
130-2017-4-71
130-2016-1-71
HR30-SC-211
Crimp contact
HR30-PC-211
Applicable cable diameter range
6.2 to 7
Weight
5g
RoHS
YES
Note: Crimp contacts are not included. Please order applicable contacts separately.
