CMD009P-2DH121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> CMD009P-2DH121

CMD009P-2DH121: DescriptionD Microminiature Connector, 9 Contact(s), Male, Plug,; CategoryThe connector The connector; File Size675KB，4 Pages; ManufacturerCristek Interconnects Inc

Download Datasheet Parametric View All

CMD009P-2DH121 Overview

D Microminiature Connector, 9 Contact(s), Male, Plug,

CMD009P-2DH121 Parametric

Parameter Name	Attribute value
Objectid	8072932574
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	8.68
body width	0.308 inch
subject depth	0.233 inch
body length	0.785 inch
Body/casing type	PLUG
Cable type	WIRE, STRANDED
Connector type	D MICROMINIATURE CONNECTOR
Contact point gender	MALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	YES
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#2-56
Installation option 2	JACKSCREW
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Housing size	A
Termination type	WIRE
Total number of contacts	9
Maximum wire diameter	28 AWG

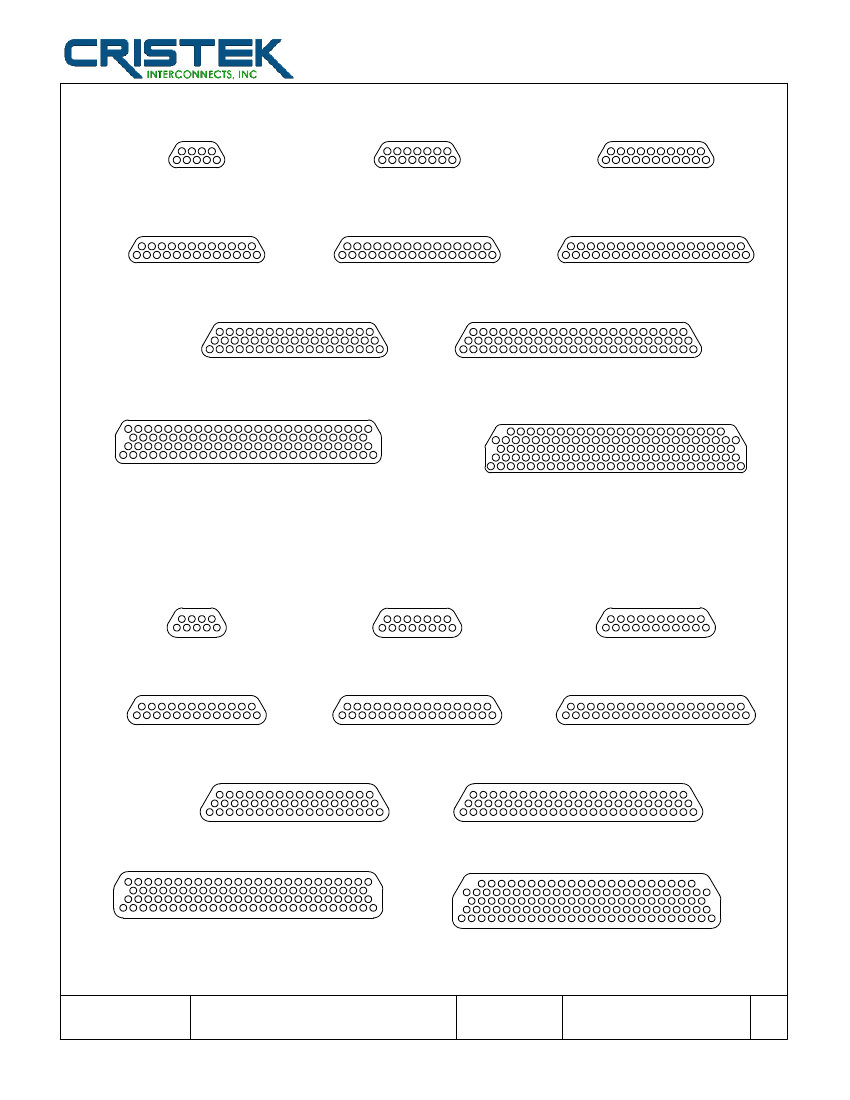

Preview

Download Datasheet

View All

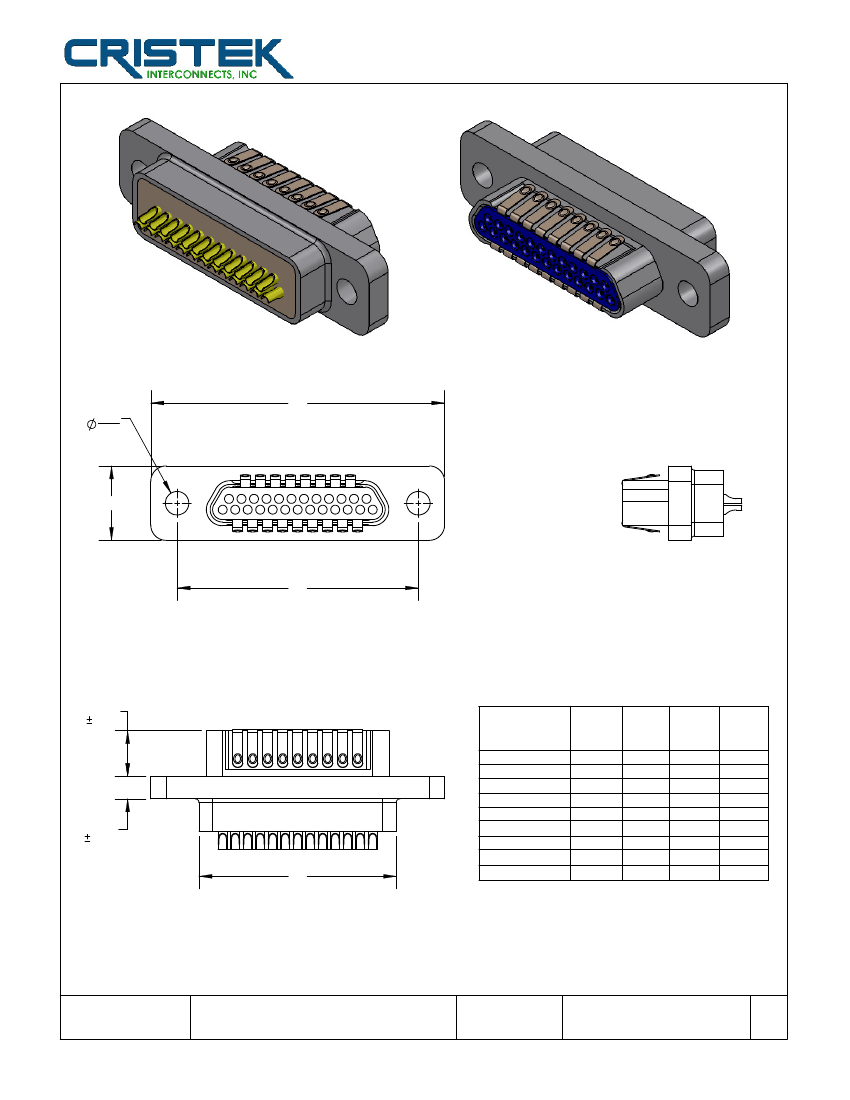

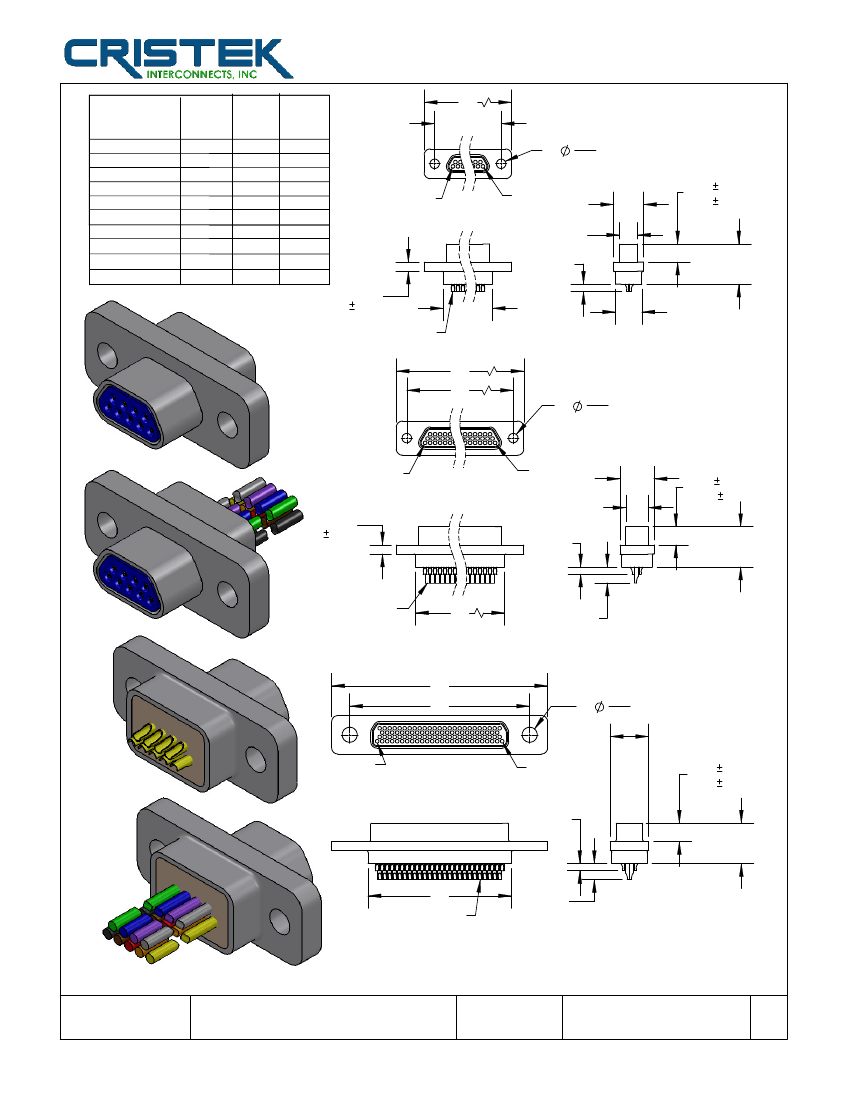

SERIES

CMD

MICRO-D METAL SHELL

NO. OF

CONTACTS

100

122

MAX

.785

.935

1.085

1.185

1.335

1.485

1.435

1.737

2.170

BSC

.565

.715

.865

.965

1.115

1.265

1.215

1.515

1.800

MAX

.400

.550

.700

.800

.950

1.100

1.050

1.350

1.442

.096

.088

.308

MAX

.195 .003 RECEPT

.183 .003 PLUG

RECEPTACLE

SOCKET #1

PLUG

PIN #1

(.239)

RECEPTACLE

.110

MAX

.429 MAX RECEPT

.416 MAX PLUG

.270

MAX

.093

.003

ID (.023) TYP

9-37 CONTACTS

.096

.088

RECEPTACLE

SOCKET #1

.093

.003

PLUG

PIN #1

(.281)

RECEPTACLE

.110

MAX

.351

MAX

.195 .003 RECEPT

.183 .003 PLUG

.429 MAX RECEPT

.416 MAX PLUG

ID (.023) TYP

.200

MAX

51-69 CONTACTS

.150

.145

SIZE 100 .394 MAX

SIZE 122 .475 MAX

RECEPTACLE

SOCKET #1

PLUG

PIN #1

.110

MAX

.195 .003 RECEPT

.183 .003 PLUG

.429 MAX RECEPT

.416 MAX PLUG

ID (.023) TYP

.200

MAX

100 - 122 CONTACTS

TOLERANCE: .XXX ±.005

.XX ±.01

ANGLE ±1°

TITLE

DWG. NO.

MICRO-D METAL SHELL

REV

SHT

CMD

888.265.9162

CRISTEK.COM
