FTX12.000M7A6-20/50D datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FTX12.000M7A6-20/50D

FTX12.000M7A6-20/50D: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size164KB，2 Pages; ManufacturerFronter Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

FTX12.000M7A6-20/50D Overview

Parallel - Fundamental Quartz Crystal,

FTX12.000M7A6-20/50D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7200933505
package instruction	DIP-2
Reach Compliance Code	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL

Preview

Download Datasheet

View All

FRONTER ELECTRONICS CO., LTD.

深圳市福浪电子有限公司

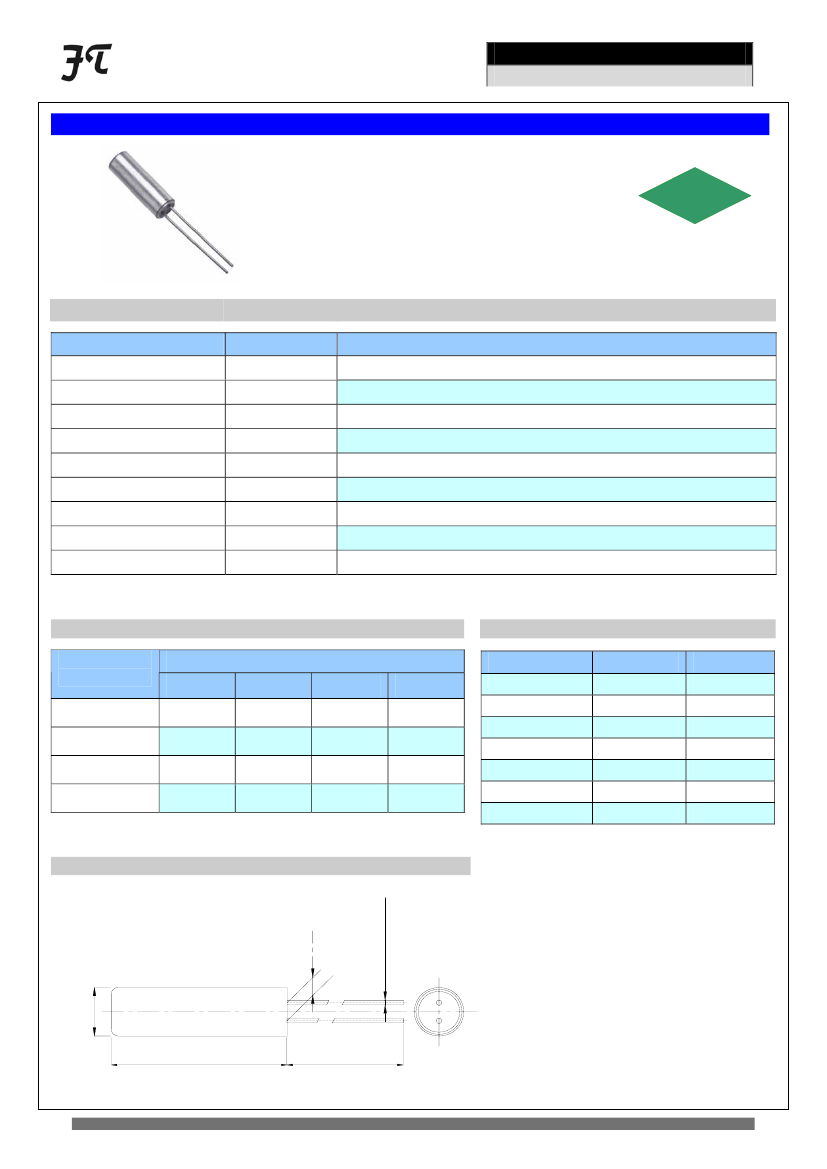

DIP QUARTZ CRYSTAL RESONATOR

石英晶 ½ 谐振器

DIP Cylindrical Crystal MHzφ2×6 mm

2 x 6 mm cylinder type

Small size

±20 ppm Standard

With Insulation Sleeve Available

RoHS compliant

RoHS

2002/95/EC

★

PARAMETERS

技术参数

参数

频率范围

负½½电容

激励电平

频率偏差

谐振电阻

频率稳定性

工½温度范围

储存温度范围

年老化率

SPECIFICATION

规格

6.000½50.000MHz

20pF Std. 7pF~33pF available

10μW（300μW Max）

±10ppm / ±20ppm（at 25℃）

See Below

±10ppm½±30ppm

0½+50℃ to -40½+85℃

-40½+85℃

±5ppm max

PARAMETERS

Frequency Range

Loading Capacitance

Drive Level

Frequency Tolerance

Equivalent Resistance

Frequency Stability

Operating Temp. Range:

Storage Temp. Range:

Aging（25℃，First Year）

☉All

specification subject change without notice.

规格变化，恕不另行通知。

★

FREQUENCY STABILITY VS. TEMPERATURE

Operation

频率温度特性

★

ESR（SERIES RESISTANCE RS）

Frequency

Vibration Mode

AT CUT/FUND.

AT 3rd /OT

ESR

150Ω(MAX)

100Ω(MAX)

80Ω(MAX)

60Ω(MAX)

50Ω(MAX)

40Ω(MAX)

100Ω(MAX)

Frequency Stability

±10ppm

○

±20ppm

●

○

±30ppm

○

●

○

±50ppm

○

●

Temperature Range

0℃~+50℃

-10℃~+60℃

-20℃~+70℃

-40℃~+85℃

●

★

6.000-7.999MHz

8.000-9.999MHz

10.000-11.999MHz

12.000-15.999MHz

16.000-19.999MHz

20.000-33.000MHz

30.000-50.000MHz

standard

○

available

DIMENSIONS& LAND PATTERN LAYOUT (Unit: mm)

外½尺寸

2.1 max

6.2 max

6.5 min

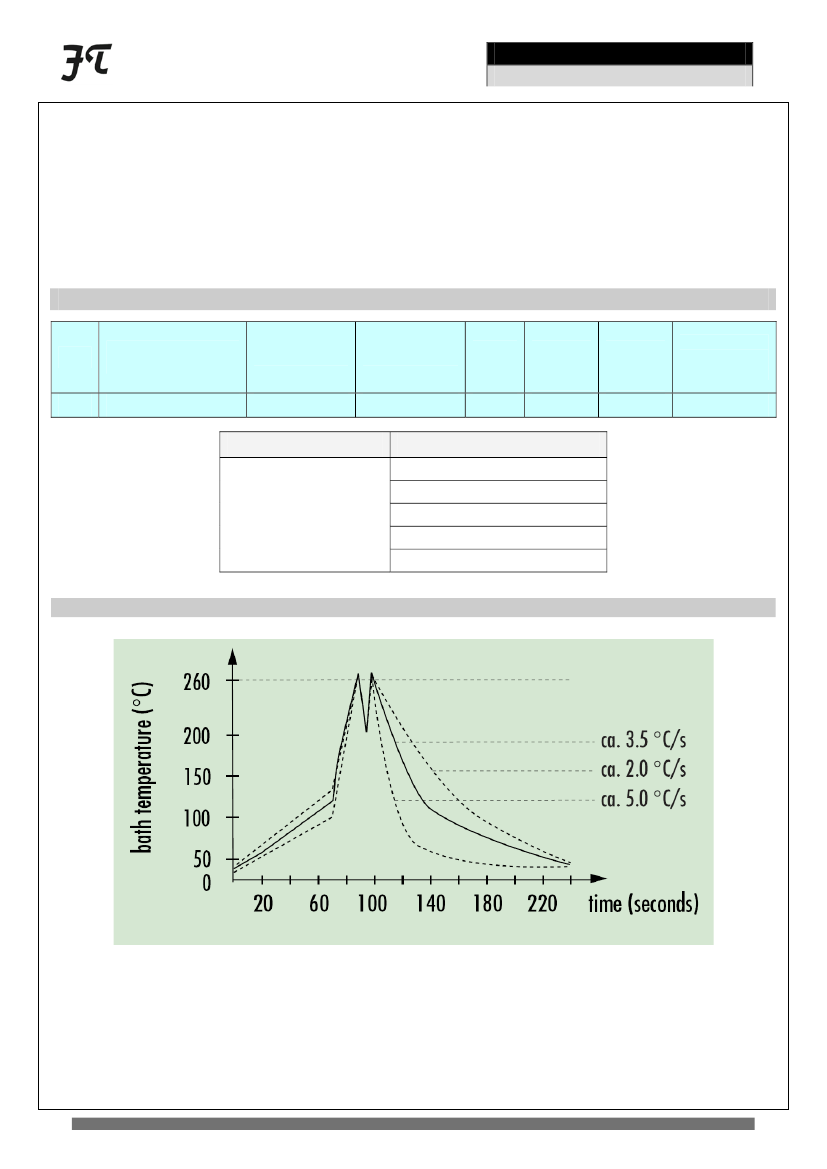

Address:Rm 1112-1117., Xinian Center. NO. 6021, Shennan Rd. Shenzhen Gaungdong 518040, China Tel:(86)755-83458718 Fax: (86)755-83459818 E-mial: sales@chinafronter.com

0.20

0.05
