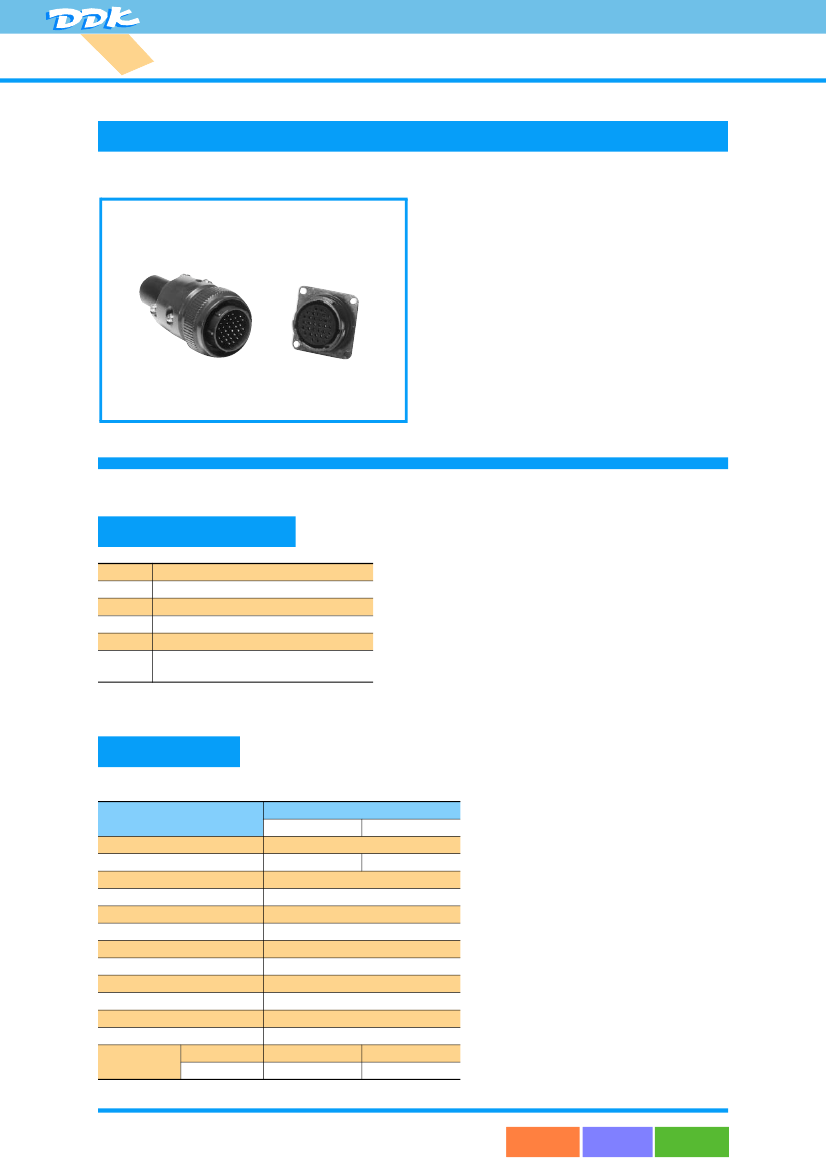

EB Series
Moistureproof Type Bayonet Lock Coupling
EB series connectors meet the performance crite
-
ria of most factory automation applications.
They withstand exposure to moisture, oil and
vibration.
Resilient insulator provides improved environmen
-
tal sealing.
MATERIAL/FINISH
Insulator
Contact
Shell
Hood
Bushing
Cap
Chloroprene synthetic rubber/Black
Copper alloy/Silver or Gold plating
Zinc alloy/Olive drab chromate finish
Aluminum alloy/Olive drab chromate finish
Chloroprene synthetic rubber/Black
Chloroprene synthetic rubber/Black
or Metal/Olive drab chromate finish
Specification
Contact size
Voltage rating (max.)
Current rating (max.)
Operating temperature
Insulation resistance
Dielectric withstanding voltage
Contact resistance
Vibration
Shock
Durability
Humidity (Steady state)
Tempertaure cycle
Salt spray
Contact
Wire size
Wire size
#20
#16
250V AC (rms), 350V DC
5A
10A
－25℃ to ＋85℃
1000MΩ min. at 500V DC
1000V AC (rms) at sea level
5mΩ max. at 1A
10-55Hz, Amplitude: 1.5mm
Acceleration 50G
500 cycles
40℃, 90 to 95%, 96 hours
－40℃ to ＋ 100℃, 5 cycles
5%, 35℃, 48 hours
AWG #20
AWG #16
AWG #20 or Less AWG #16 or Less
●
●
1
<BACK
NEXT>
MENU
EB Series
Unit : mm
Alternate Insert Positions
Y
X
1
Z
3
2
4
1
5
8
2
6
3
7

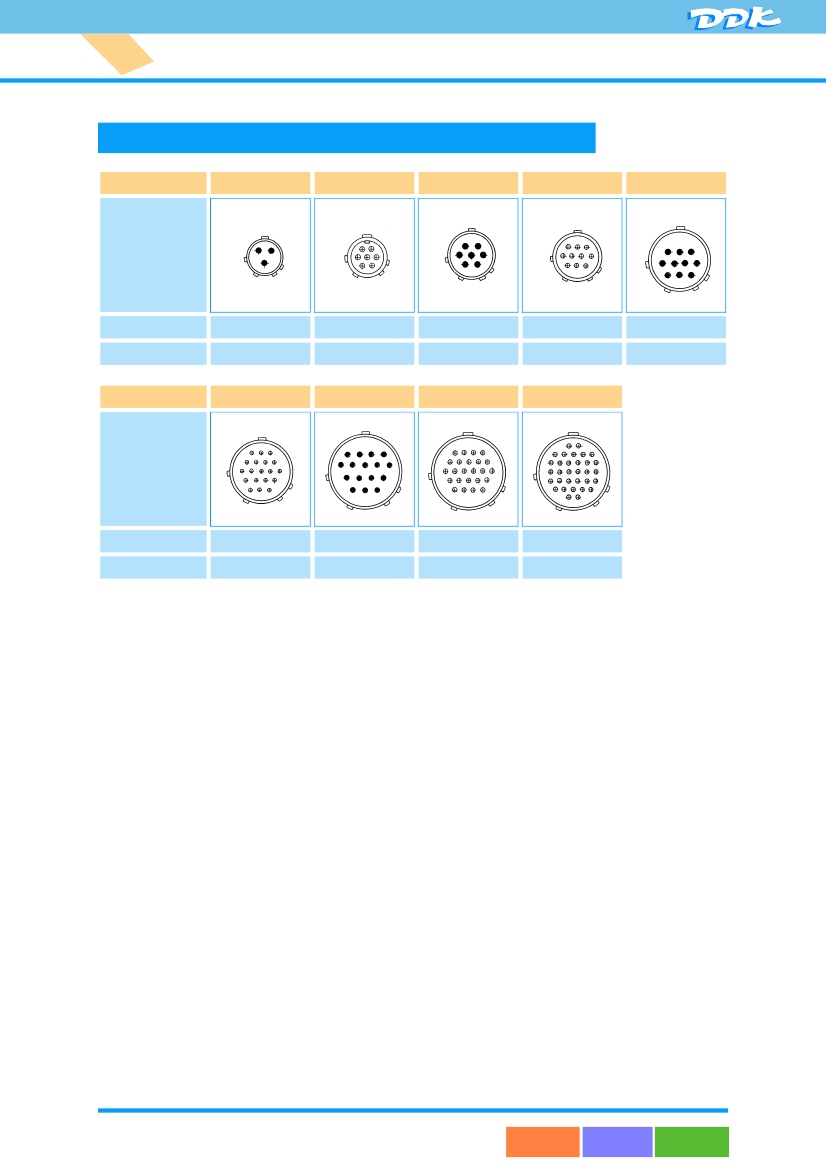

Insert
No.
1303
1307
1607
1610
2110
2119
2516
2524
2532
Contact Size/
No. of Contacts
#16/3
#20/7
#16/7
#20/10
#20/10
#20/19
#16/16
#20/24
#20/32
X
－
－
30°
45°
45°
45°
45°
45°
45°
Y
－
90°
－
90°
90°
90°
90°
90°
90°
Z
180°
－
－
－
－
－
－
－
－
9 10
Front view of pin insert

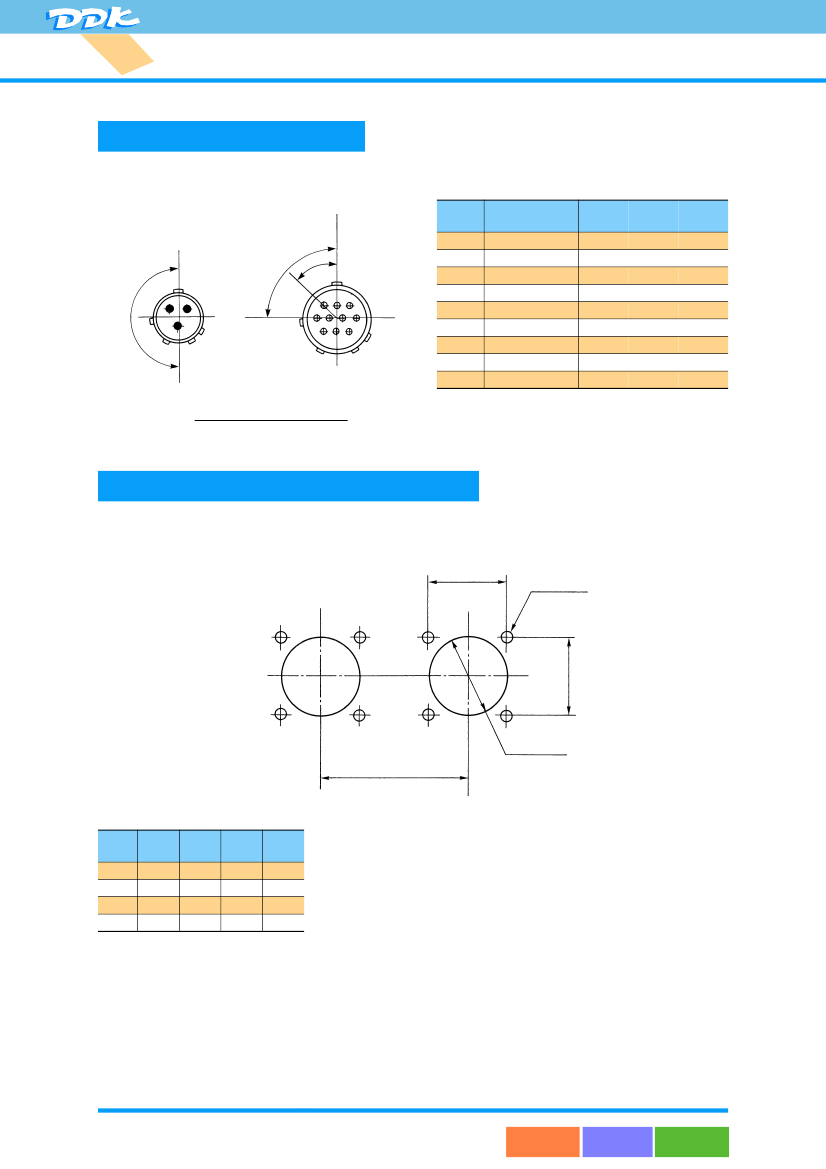

Panel Cut-out (for EBR/EBWR/EBEL)
F
± 0.2
φ3.5
± 0.2
M1.M2
Y
min
Shell
Size
13
16
21
25
F
20
23
26
29
M
1
17
21
25
29
M
2
19
23
27
31
Y
42
46
50
54
M
1
: Front mounting holes dia. (Shell style “R” only)
M
2
: Rear mouting holes dia.
●
●
3
<BACK
F
± 0.2
NEXT>
MENU
EB Series
Unit : mm

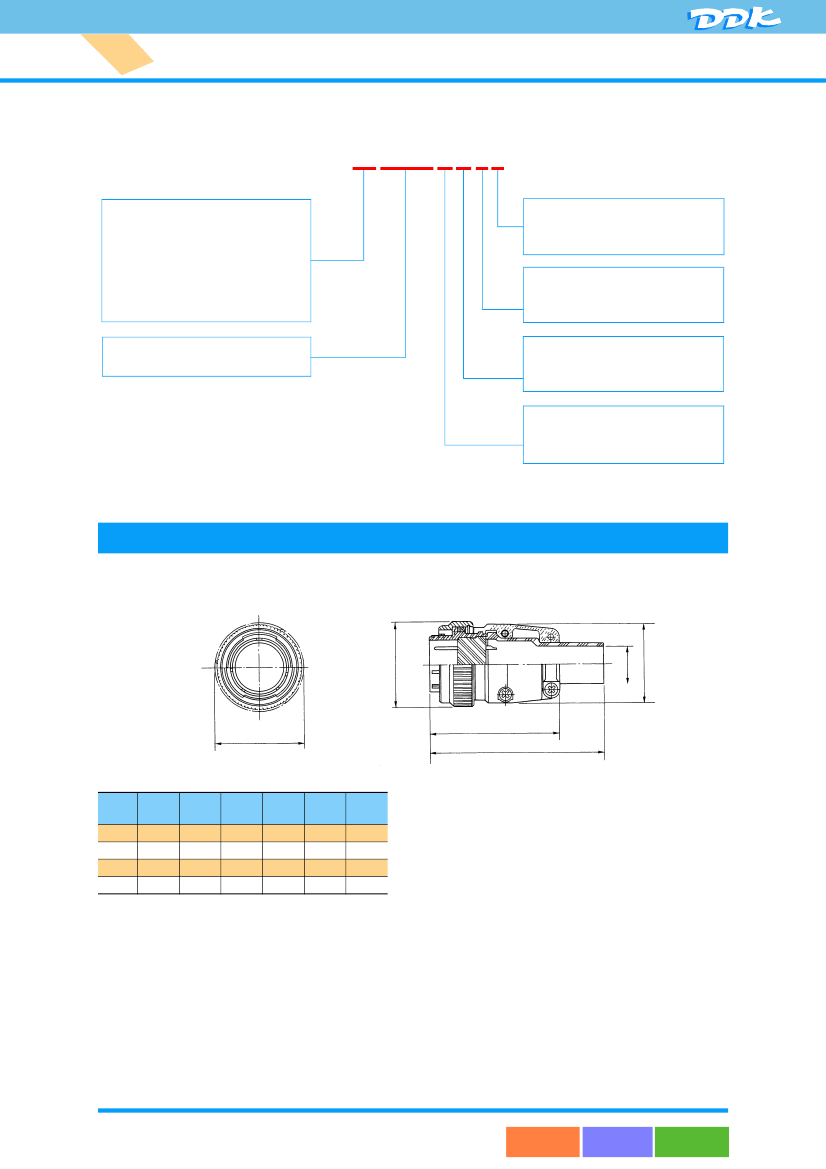

EBSP2524MXGS
SHELL STYLE
SP: Straigt Plug

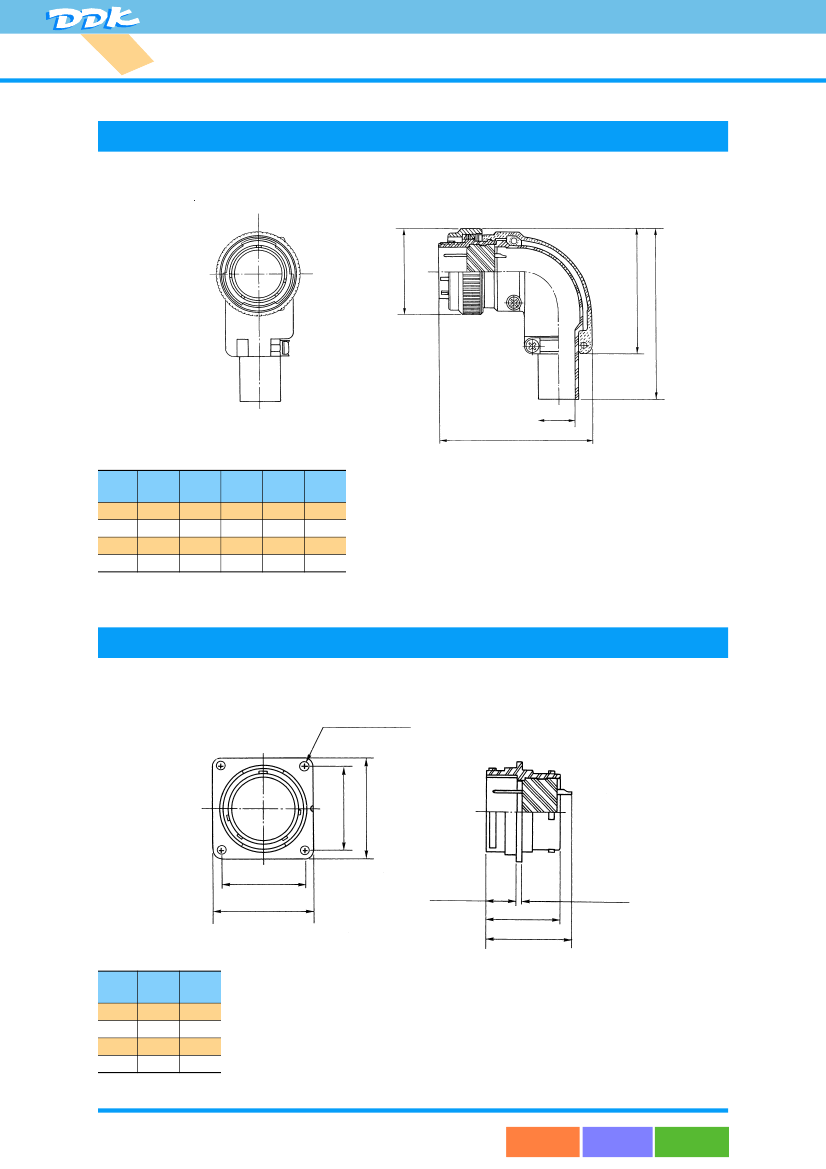

LP: Angle Plug
R: Box Mounting Receptacle
WR: Wall Mounting Receptacle
CR: Cable Connecting Receptacle
WL: Angle Wall Mounting Receptacle
CL: Angle Cable Connecting Receptacle
FLANGE GASKET
Omit: Less Gasket
S: With Gasket
CONTACT PLATING
Omit: Silver plating
G: Gold plating
INSERT ARRANGEMENT
See table
ALTERNATE INSERT POSITION
Omit: Standard position
X, Y, Z: Alternate position
CONTACT STYLE
M: Male (pin)
F: Female (Socket)
■Straight Plug
EBSP□□□□□□□□
φE
(A)
φJ
(B)
Shell
Size
13
16
21
25
A
51.6
53.6
55.6
57.6
B
71.6
73.6
75.6
77.6
C
23.5
27.4
31.6
34.8
D
8.2
9.2
12.2
15.0
E
25.5
29.5
33.5
37.4
J
27.0
31.0
35.5
38.7
●
●
4
<BACK
NEXT>
φD
φC
MENU
