RLX107016M: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 100uF,; CategoryPassive components capacitor; File Size104KB，2 Pages; ManufacturerTaiwan Ostor Corporation

Download Datasheet Parametric View All

RLX107016M Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 100uF,

RLX107016M Parametric

Parameter Name	Attribute value
Objectid	828935828
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM
length	11 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
series	RLX(16V)
Terminal pitch	2.5 mm

Preview

Download Datasheet

View All

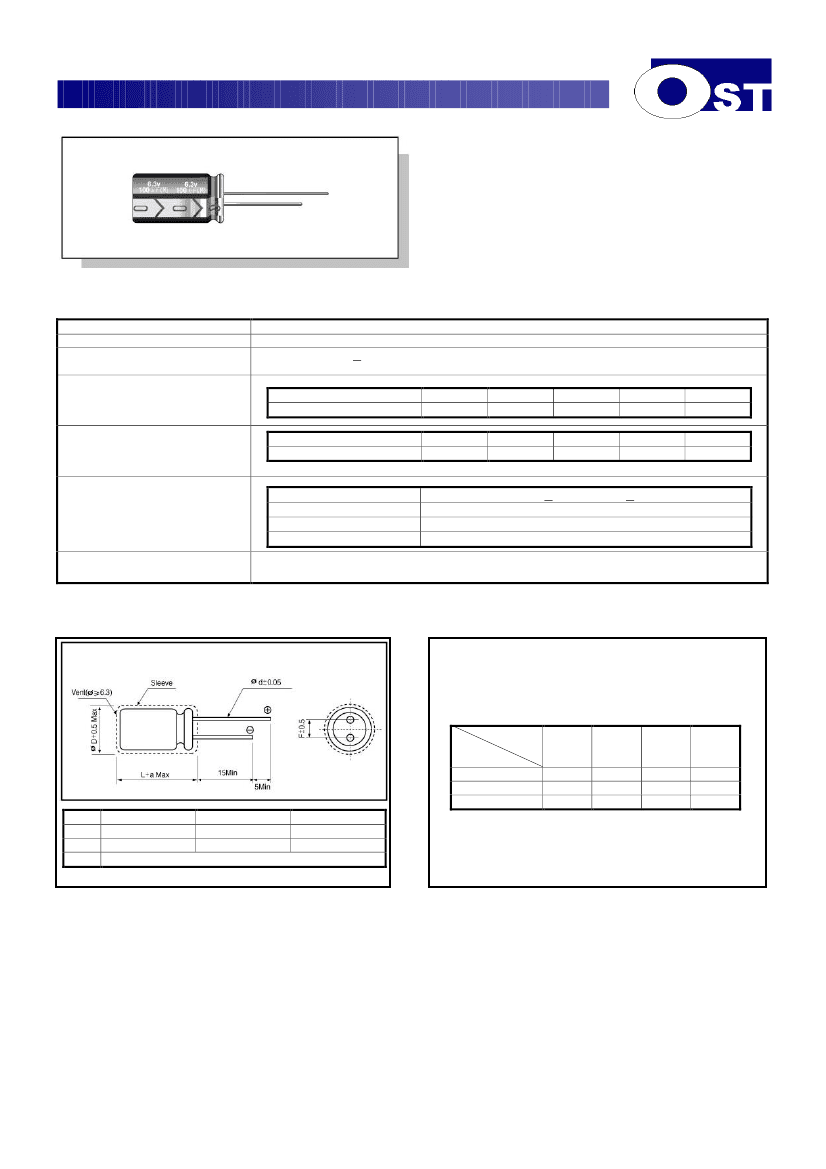

RLX Series

Ultra Low Impedance

Reduced Impedance at High Frequency

For Miniaturized and High Performance

Equipments

SPECIFICATIONS

Operating Temperature Range

Capacitance Tolerance

Leakage Current

Dissipation Factor

(At 20°C, 120Hz)

Temperature Characteristics

(Impedance Ratio at 120Hz)

-40~+105°C

±20% (at 20°C, 120Hz)

I < 0.01CV or 3 uA whichever is greater (at 20°C, after 2 minutes)

C: Nominal Capacitance (uF)

V: Rated Voltage (V)

Rated Voltage (V)

tan

δ

W.V

Z(-40°C)/Z(+20°C)

6.3

0.15

6.3

6

10

0.13

10

4

16

0.12

16

4

25

0.10

25

3

35

0.10

35

2

Load Life (+105°C)

Time

Capacitance Change

Dissipation Factor

Leakage Current

2,000 Hours (Ø<8: 1,000Hrs; Ø>10: 2,000Hrs)

Within ±20% of the initial value

200% of the initial specified value or less

Initial specified value or less

Shelf Life (+105°C)

500 hours. No voltage applied. After Test: U

R

to be applied for 30 minutes, 24 to 48 hours before

measurement.

DIMENSION

MULTIPLIER FOR RIPPLE CURRENT

Frequency Coefficient

Freq(Hz)

Rated

Voltage(V)

4.7 ~ 33

47 ~ 330

470 ~ 1000

ΦD

F

Φd

a

6.3

2.5

0.5

8

3.5

0.6

1.5

10

5.0

0.6

120

0.40

0.45

0.55

1K

0.65

0.75

0.80

10K

0.90

0.95

100K

1.0
