DIN 41612 Connectors
Series 8477 – Female Style Q - 2 Rows (2 x 32) Inverted -
.100 Pitch

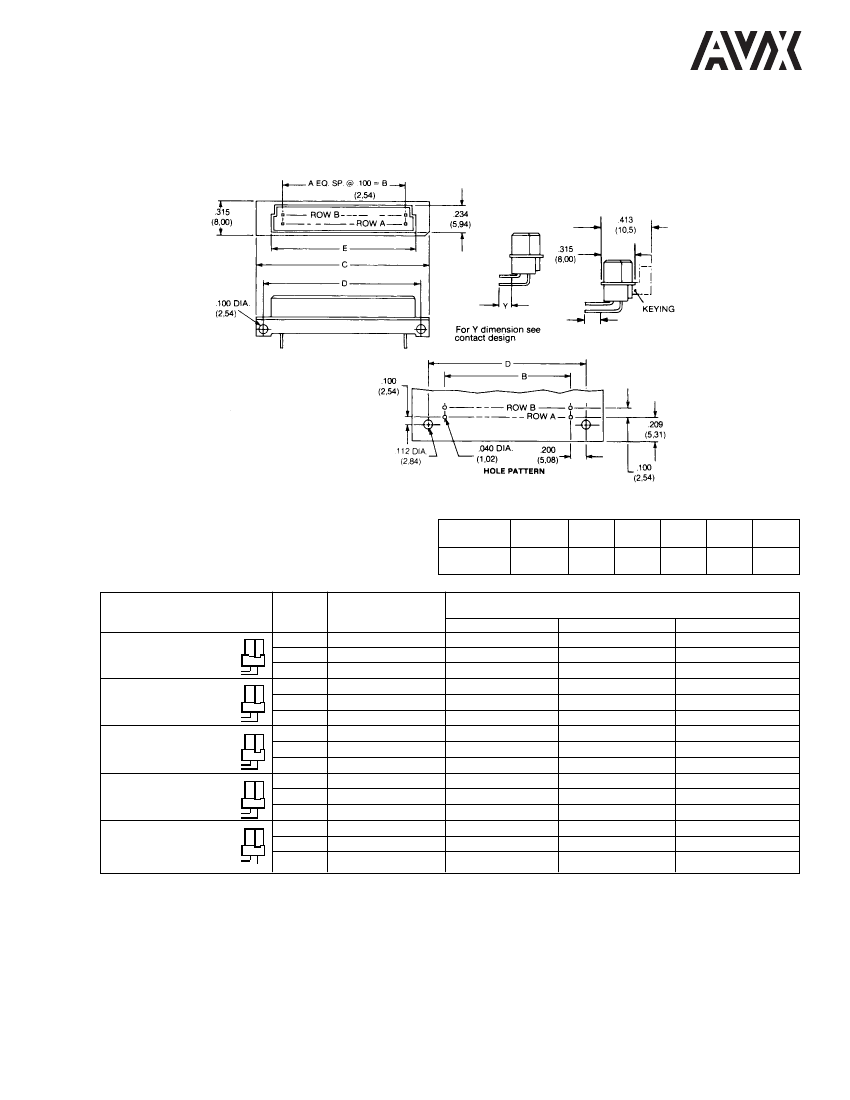

Dimensions
Inches (mm)
No. Contact
Positions
064
Contact
Rows
2 (2 x 32)
A
31
B
3.100
(78.74)
C
3.697
(93.90)
D
3.500
(88.90)
E
3.343
(84.91)
Contact Design
and
Termination Length
0.6 x 0.6 mm Post Profile
3.0 mm (Y) Right Angled
0.3 x 0.79 mm Post Profile
3.0 mm (Y) Right Angled
0.6 x 0.6 mm Post Profile
11.43 mm (Y) Right Angled
0.3 x 0.79 mm Post Profile
4.5 mm (Y) Right Angled
0.6 x 0.6 mm Post Profile
4.5 mm (Y) Right Angled
Number
of
Positions
64
32
32
64
32
32
64
32
32
64
32
32
64
32
32
Loading
Description
a + b fully loaded
a + b all even loading
a loading only
a + b fully loaded
a + b all even loading
a loading only
a + b fully loaded
a + b all even loading
a loading only
a + b fully loaded
a + b all even loading
a loading only
a + b fully loaded
a + b all even loading
a loading only
Part Number
Performance classes according to DIN 41612
III
II
I
20 8477 064 002 001 20 8477 064 002 025
20 8477 064 002 049
20 8477 064 002 007 20 8477 064 002 031
20 8477 064 002 055
20 8477 064 002 003 20 8477 064 002 027
20 8477 064 002 051
20 8477 064 006 001 20 8477 064 006 025
20 8477 064 006 049
20 8477 064 006 007 20 8477 064 006 031
20 8477 064 006 055
20 8477 064 006 003 20 8477 064 006 027
20 8477 064 006 051
20 8477 064 008 001 20 8477 064 008 025
20 8477 064 008 049
20 8477 064 008 007 20 8477 064 008 031
20 8477 064 008 055
20 8477 064 008 003 20 8477 064 008 027
20 8477 064 008 051
20 8477 064 009 001 20 8477 064 009 025
20 8477 064 009 049
20 8477 064 009 007 20 8477 064 009 031
20 8477 064 009 055
20 8477 064 009 003 20 8477 064 009 027
20 8477 064 009 051
20 8477 064 012 001 20 8477 064 012 025
20 8477 064 012 049
20 8477 064 012 007 20 8477 064 012 031
20 8477 064 012 055
20 8477 064 012 003 20 8477 064 012 027
20 8477 064 012 051
Additional information on this product is available from AVX’s catalog or AVX’s FAX Service.
Call 1-800-879-1613 and request document
#209.
Visit our website http://www.avxcorp.com
