9914-V02-11-90-MR datasheet, PDF

Datasheet> All Categories > The connector> The connector> 9914-V02-11-90-MR

9914-V02-11-90-MR: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size196KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9914-V02-11-90-MR Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Plug

9914-V02-11-90-MR Parametric

Parameter Name	Attribute value
Objectid	1292975375
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT, METALPAD,REEL
Board mount options	LOCATING POSTS
body width	0.248 inch
subject depth	0.13 inch
body length	0.346 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	99
Plug contact pitch	0.02 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	14

9914-V02-11-90-MR Preview

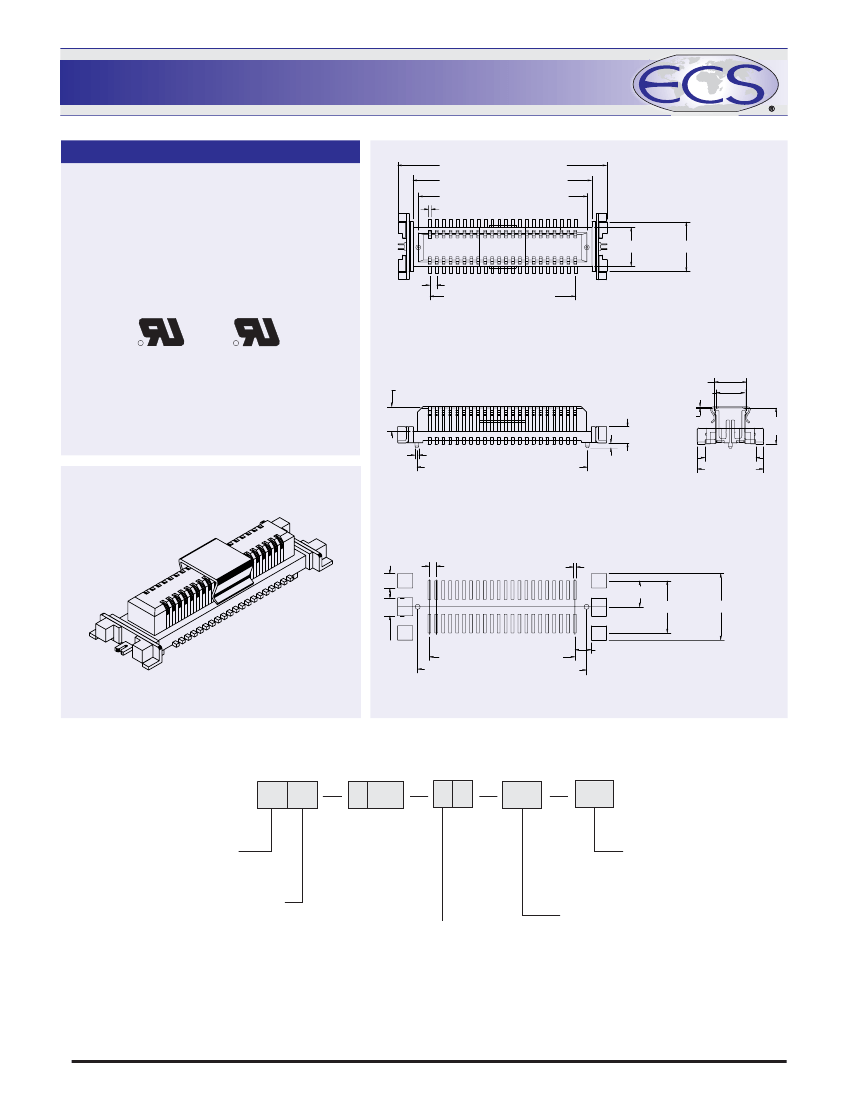

.020

[0.50] BOARD TO BOARD SMT PLUG

Specifications

.209 + .0197 X No of Positions

Current Rating:

0.3 Amps

Insulator Resistance: 100 Megohms min

Contact Resistance:

60m ohm max

Dielectric Withstanding: AC 500V

Operating Temperature: -40° ~± 85° C

Max Processing Temp: 230° C to 60 seconds

Contact Material:

Phosphor Bronze

Insulator Material:

High Temperature

Thermoplastic. UL 94V-0

Actuator:

LCP, UL 94V-0

.106 + .0197 X No of Positions

.058 + .0197 X No of Positions

.008 [.20]

.150 [3.80]

.185 [4.70]

.0197 [.50]

.0197 X (No of contacts/2-1)

Recognized under the recognized component

Program of Underwriters Laboratories, Inc.

.055 [1.40]

.020 [.50]

.059 [1.50] + .0197 [.50] X No of Positions

.018 [.45]

.130 [5.00]

.197 [6.30]

.059

[1.50]

.0197 [.50]

.012 [.30]

.079 [2.00]

.236 [6.00]

.287 [7.30]

.079

[2.00]

.0197 [.50] X (No of contacts/2-1)

.059 [1.50] + .0197 [.50] X No of Positions

Recommended P.C.B Layout

.063 [1.60]

Dimensions are in inches [mm]

PART NUMBERING

99 XX

SERIES CODE

NO. OF CONTACTS

100 Contacts =

120 Contacts =

V 02

PACKAGING

= Metal Pad + Tube

= Metal Pad + Reel

CONTACT PLATING

LOCATING PEG OPTIONS

= w/o Locating Peg

= with Locating Peg

Lead Free & RoHS Compliant

.000050” Nickel underplate

CONTACT

= Gold Flash

= 15µ” Gold

= 30µ” Gold

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR DESIGN

WWW.ECSCONN.COM

.130

[3.30]

Products specifications are subject to be changed

without notice.

.091

[2.30]

.104 [2.65]

.095 [2.40]

.006 [.15]

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
