ECS-500-20-23ACEU-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-500-20-23ACEU-TR

ECS-500-20-23ACEU-TR: DescriptionParallel - 3Rd Overtone Quartz Crystal; CategoryPassive components Crystal/resonator; File Size157KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-500-20-23ACEU-TR Overview

Parallel - 3Rd Overtone Quartz Crystal

ECS-500-20-23ACEU-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1496304082
package instruction	SMD, 2 PIN
Reach Compliance Code	compliant
YTEOL	7.13
Other features	TR
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	50 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	L6.0XB3.5XH1.1 (mm)/L0.236XB0.138XH0.043 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Compact and low profile

Industry Std. Footprint

Extended Temp Range Option

RoHS Compliant

ECX-64A

SMD QUARTZ CRYSTAL

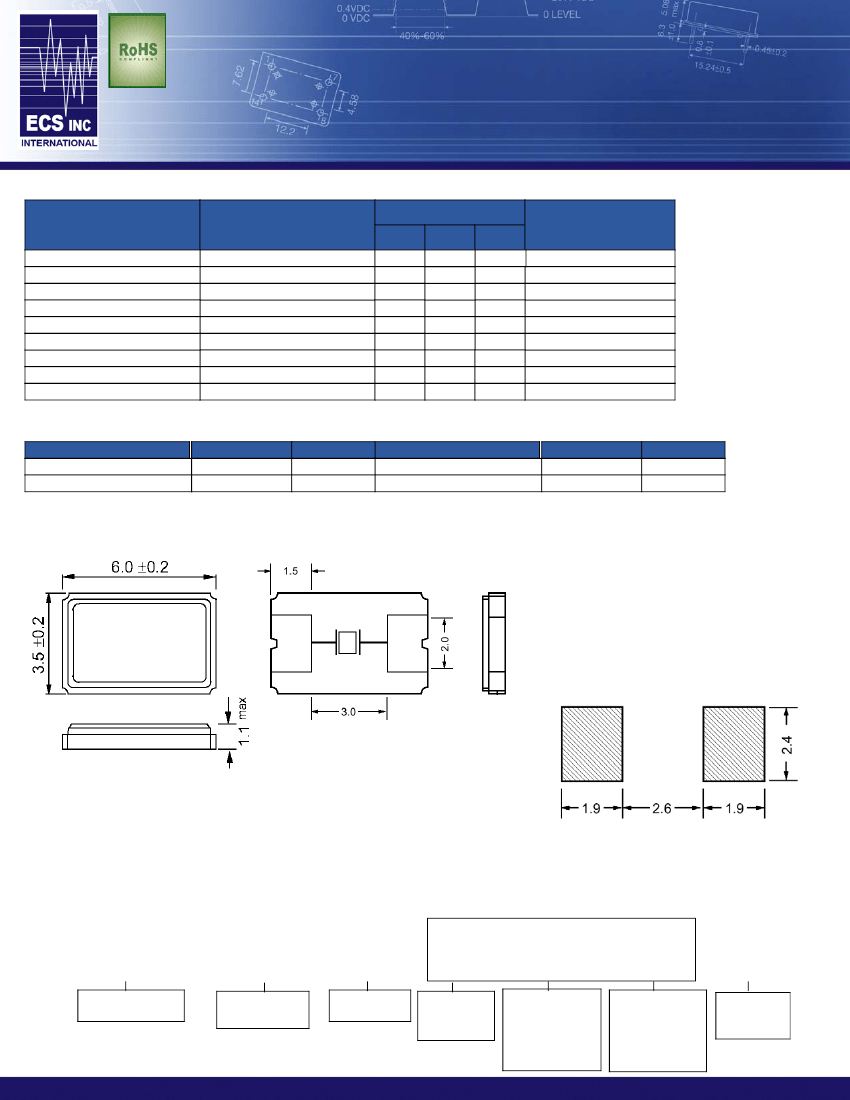

The ECX-64A is a miniature SMD Crystal with a 3.5 x 6 mm

footprint. This cost effective with a height of 1.1 mm which

is ideal for densely populated PCB applications.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (Per Year)

CONDITIONS

ECX-64A

MIN

8.000

TYP

MAX

100.000

± 30 *

± 50 *

Series

100

+70

+125

±5

UNITS

MHz

ppm

µW

°C

ppm

at +25°C

-10 to +70°C

Specify in P/N

-10

-55

@ +25°C ±3°C

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

8.00 ~ 15.999

Fundamental

20.000 ~ 49.999

Fundamental

16.000 ~ 19.999

Fundamental

50.000 ~

100.000

3rd Overtone

100

DIMENSIONS (mm)

Figure 1) Top, Side, Bottom and End views

Figure 2) Suggested Land Pattern

PART NUMBERING GUIDE: Example ECS-200-20-23A-TR

ECS - Frequency Abbreviation - Load Capacitance - Package

200 = 20.000 MHz

See P/N Guide

20 =20 pF

S=Series

23A =

ECX-64A

Custom Options

Tolerance

Blank = Std

A = ± 25 ppm

C = ± 10 ppm

Stability

Blank = Std

D = ± 100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

K = ± 10 ppm

Temp Range

Blank = Std

M = -20 ~ +70°C

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

U = -55 ~ +125°C

- Packaging

TR= Tape

& Reel

1K/Reel

Rev 11/07

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
