ACEX7RHTR224K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> ACEX7RHTR224K

ACEX7RHTR224K: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.22uF, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size78KB，4 Pages; ManufacturerKOA; Environmental Compliance

Download Datasheet Parametric View All

ACEX7RHTR224K Overview

CAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.22uF, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

ACEX7RHTR224K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1896358598
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.22 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	AC
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	TR
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
surface mount	NO
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

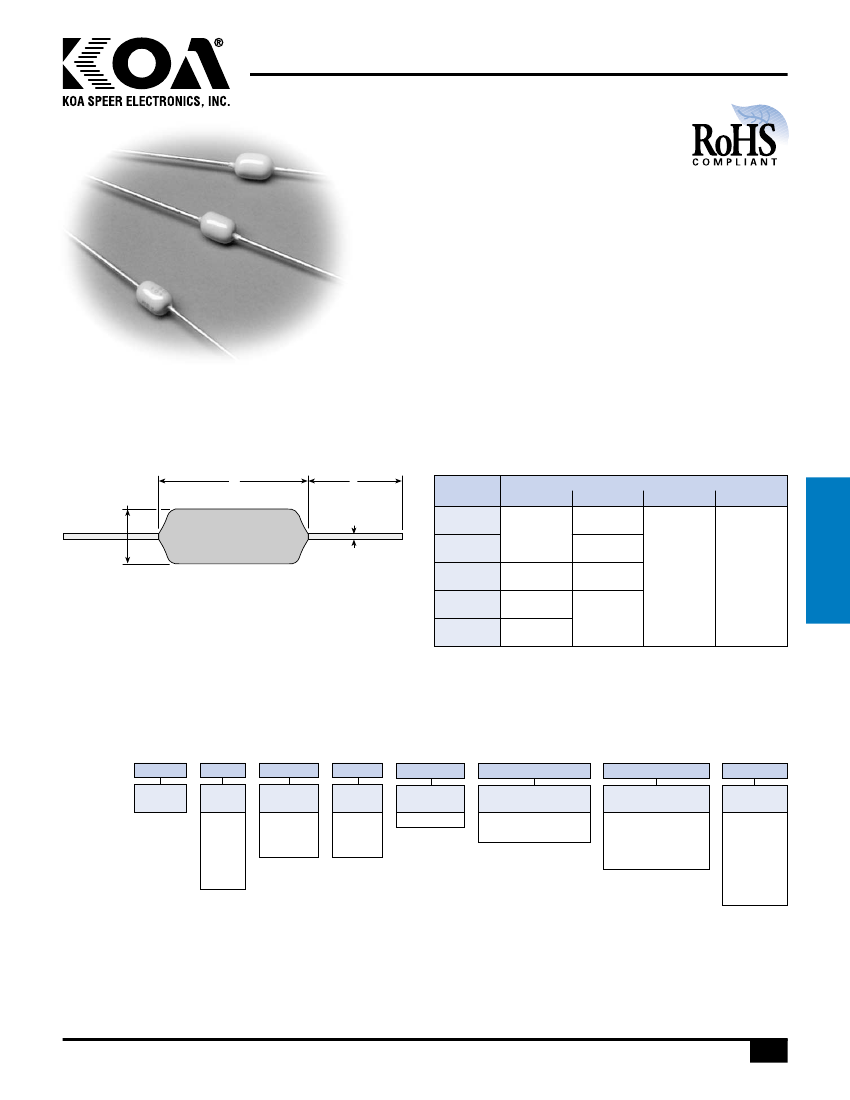

axial ceramic

features

•

Conformal coated axial MLC’s

NPO, X7R, Z5U temperature coefficients

Epoxy construction with UL492 flame retardant coating

Marking: Orange-brown body color with black marking

Products with lead-free terminations meet RoHS

requirements

dimensions and construction

Type

ACB

ACC

ACD

ACE

ACF

L (max.)

.170

(4.32)

.260

(6.60)

.290

(7.37)

.400

(10.16)

Dimensions

inches

(mm)

D (max.)

.100

(2.54)

.120

(3.05)

.100

(2.54)

.150

(3.81)

.019±.002

(.483±.05)

1.00

(25.4)

l (min.)

capacitors

ordering information

New Part #

Type

Style

NPO

Dielectric

NPO

X7R

Z5U

Voltage

H: 50V

I: 100V

J: 200V

Termination

Material

T: Sn

Packaging

No Designation: Bulk

R: Leaded Reel

102

Capacitance

2 significant figures

+ 1 multiplier

“R” indicates decimal

on value <10pF

Tolerance

C: ±0.25pF

D: ±0.5pF

J: ±5%

K: ±10%

M: ±20%

Z: +80, -20%

For further information on packaging,

please refer to Appendix C.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

1/11/06

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

.O.

263
