2N6072A datasheet, PDF - EEWORLD Datasheet

2N6072A: DescriptionTRIAC,300V V(DRM),4A I(T)RMS,TO-126; CategoryAnalog mixed-signal IC Trigger device; File Size357KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

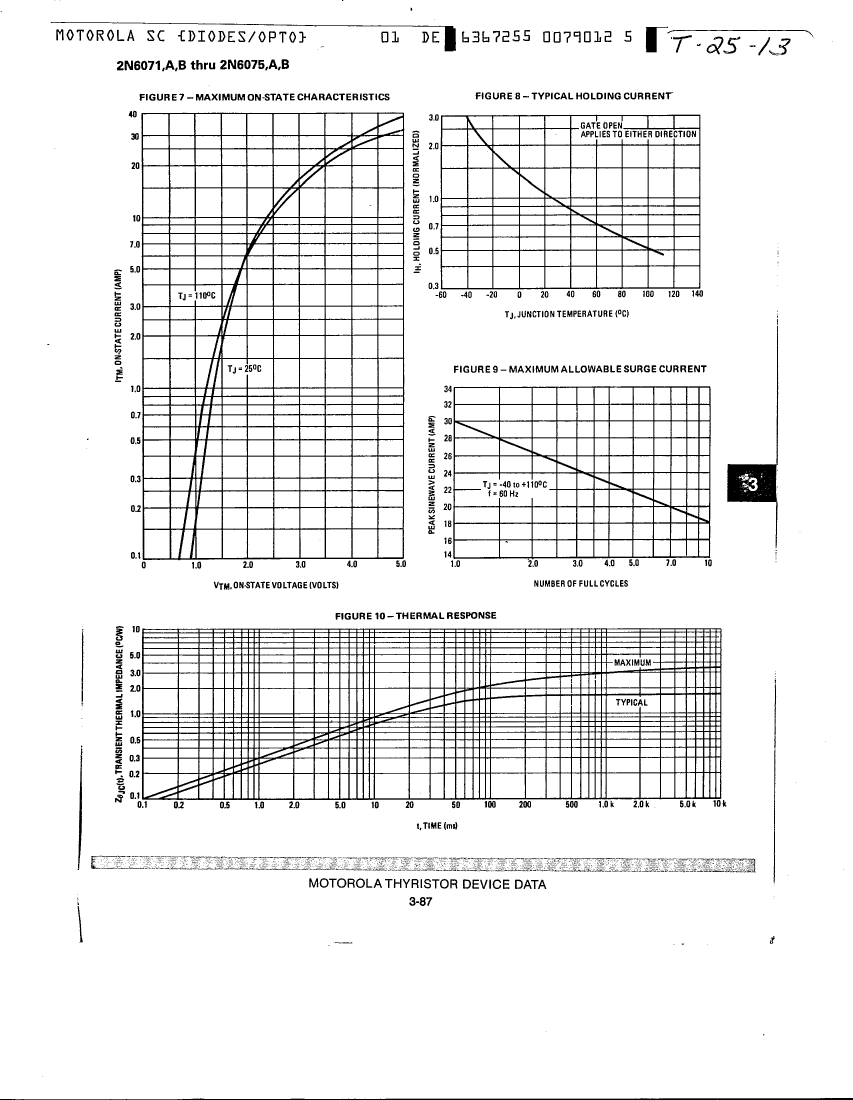

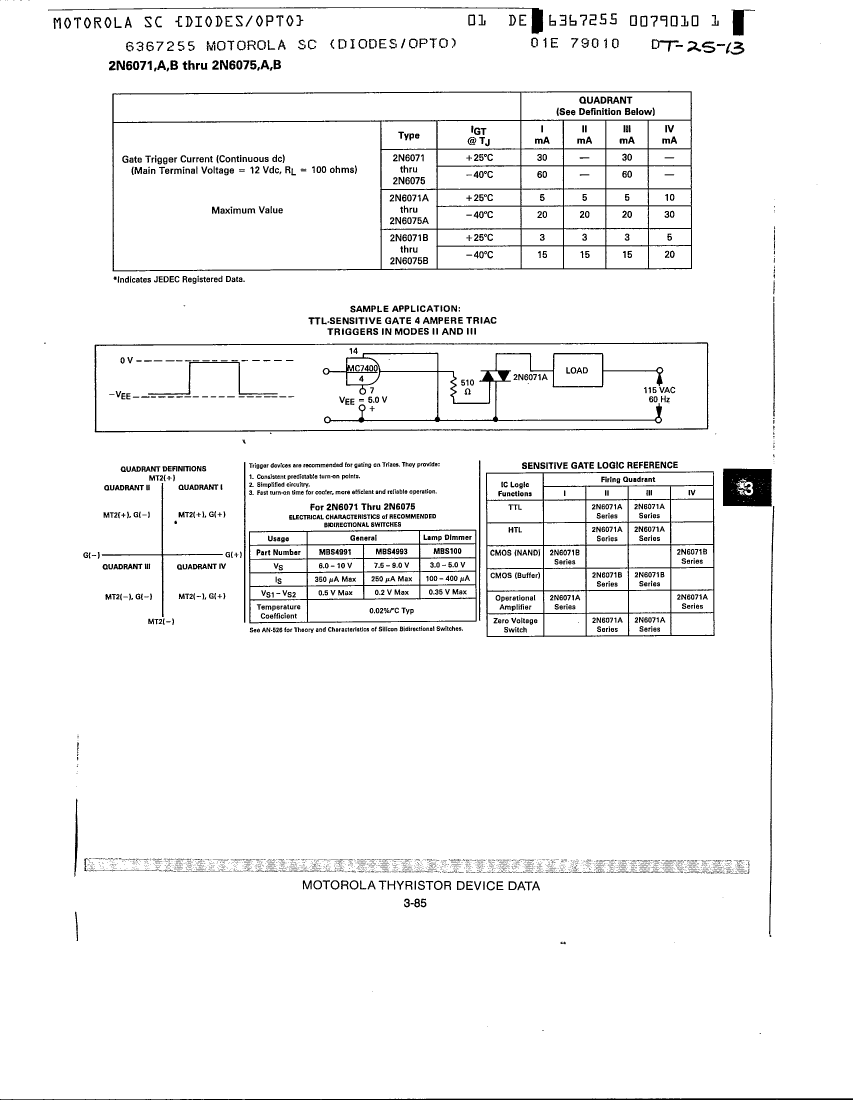

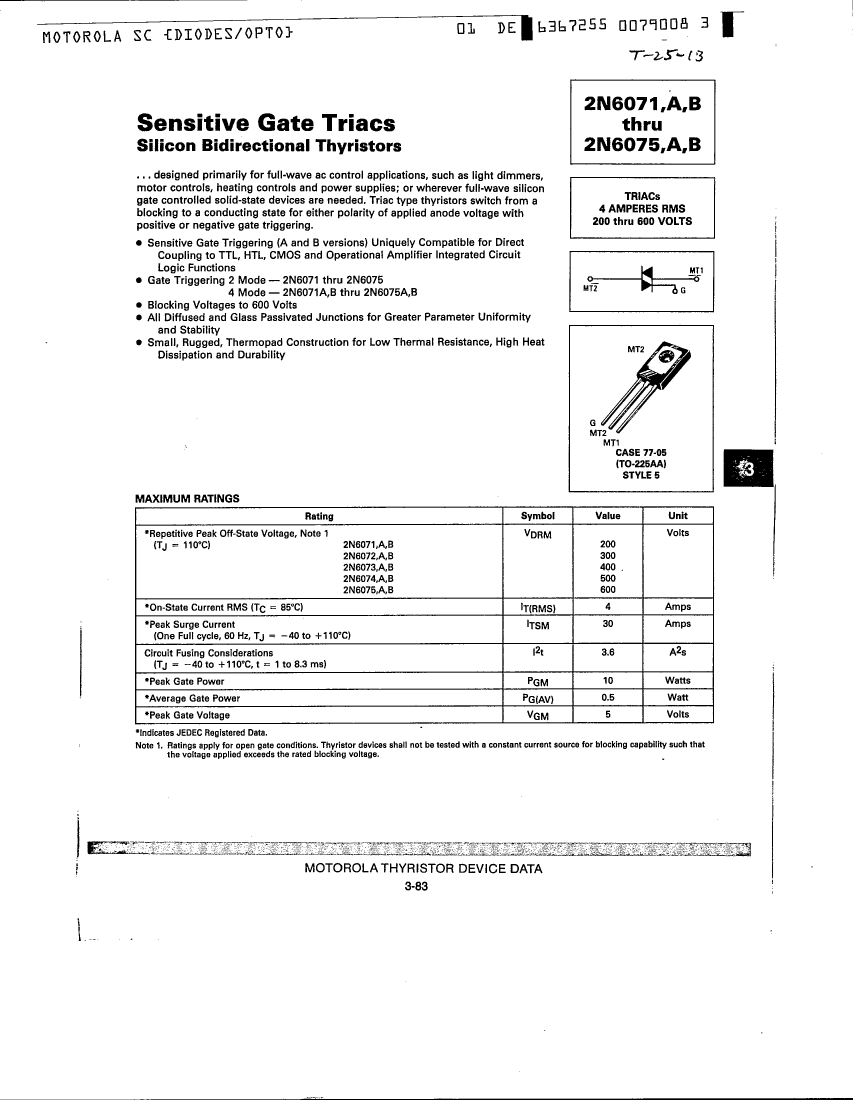

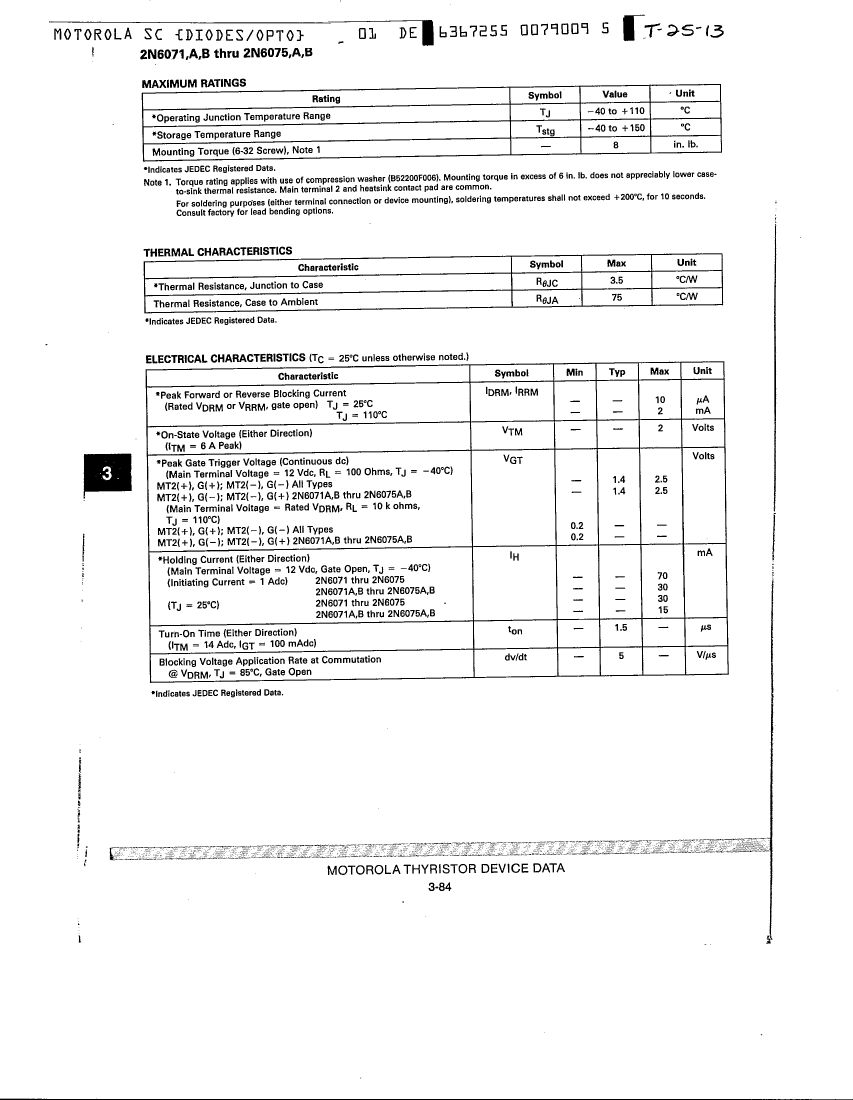

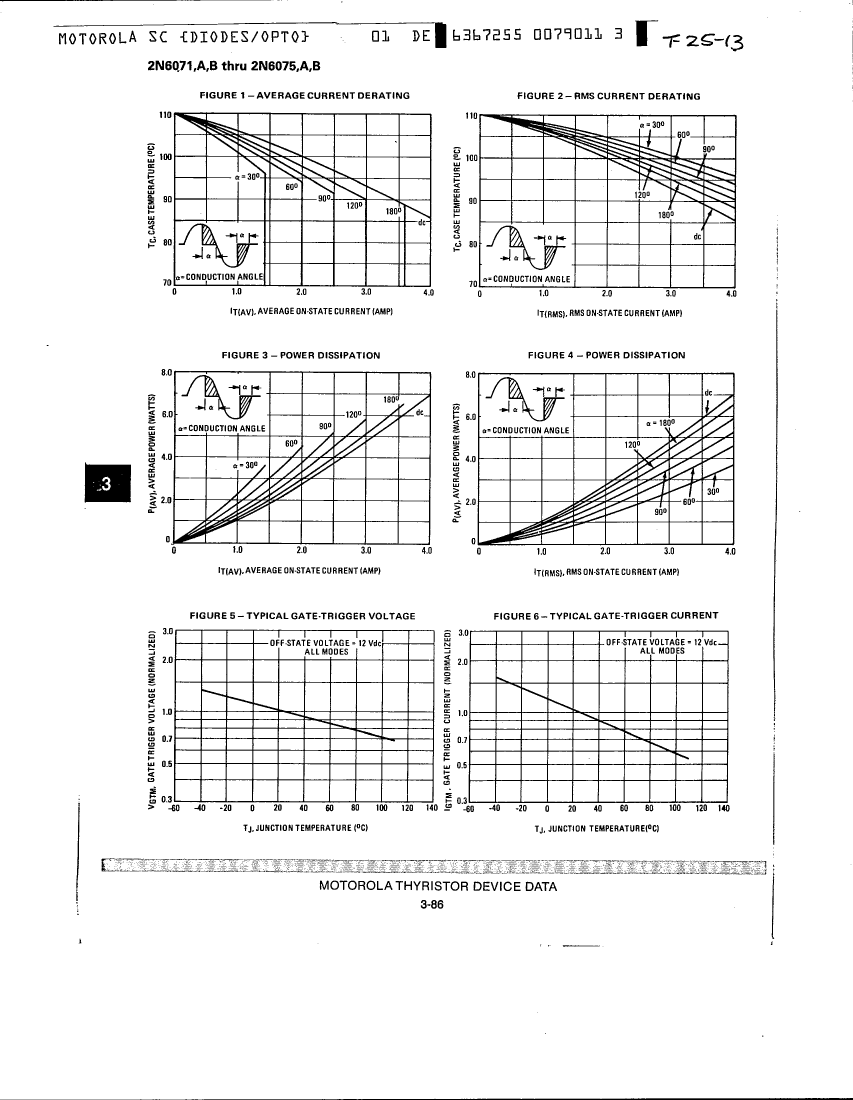

2N6072A Overview

TRIAC,300V V(DRM),4A I(T)RMS,TO-126

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	,
Reach Compliance Code	unknown
Maximum DC gate trigger current	20 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	30 mA
JESD-609 code	e0
Maximum leakage current	2 mA
Maximum on-state voltage	2 V
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Maximum rms on-state current	4 A
Off-state repetitive peak voltage	300 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC
Base Number Matches	1

	2N6072A	2N6074	2N6074A
Description	TRIAC,300V V(DRM),4A I(T)RMS,TO-126	TRIAC,500V V(DRM),4A I(T)RMS,TO-126	TRIAC,500V V(DRM),4A I(T)RMS,TO-126
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown
Maximum DC gate trigger current	20 mA	60 mA	20 mA
Maximum DC gate trigger voltage	2.5 V	2.5 V	2.5 V
Maximum holding current	30 mA	70 mA	30 mA
JESD-609 code	e0	e0	e0
Maximum leakage current	2 mA	2 mA	2 mA
Maximum on-state voltage	2 V	2 V	2 V
Maximum operating temperature	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Maximum rms on-state current	4 A	4 A	4 A
Off-state repetitive peak voltage	300 V	500 V	500 V
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC
ECCN code	-	EAR99	EAR99
