180-091 (S7) Square Flange Wall Mount Receptacle
Advanced Fiber Optic Connector
MIL-DTL-38999 Series III Type with Slotted Holes
MIL-DTL-38999
Series III Type
D38999
Series III
B
MIL-DTL-38999 type advanced fiber optic receptacle connector

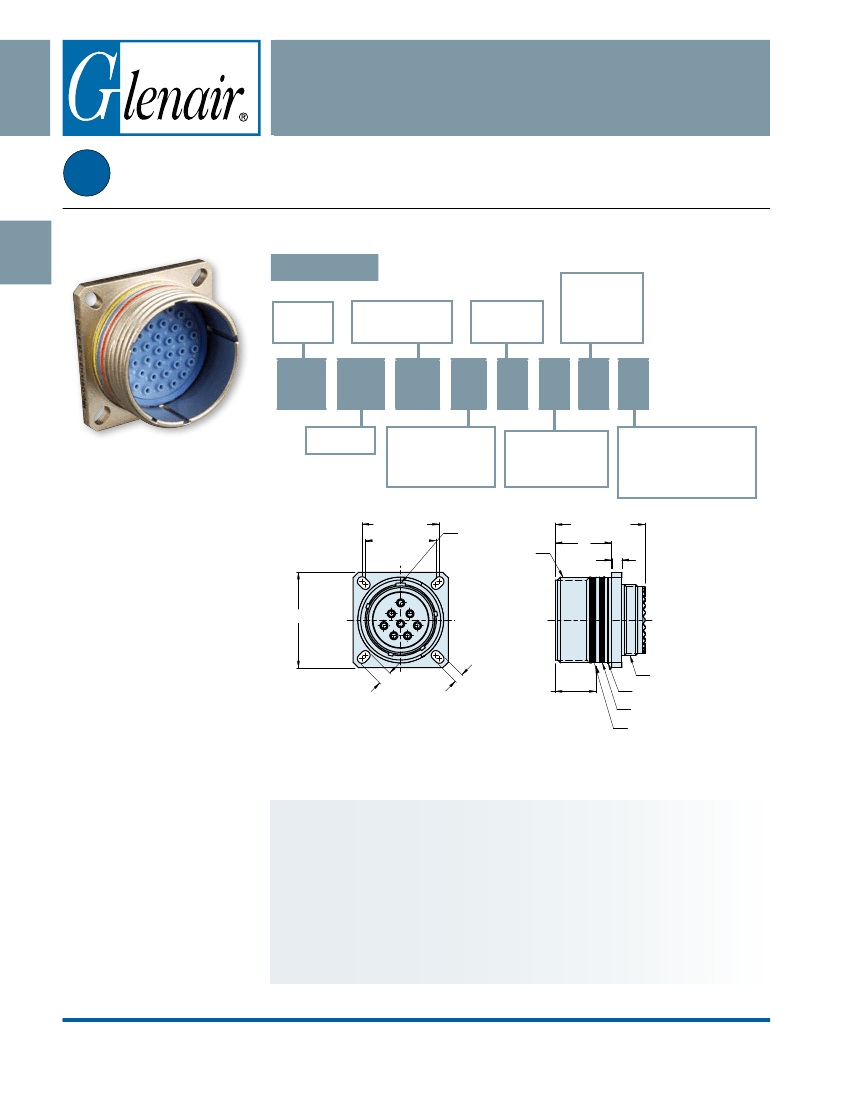

How To Order
Product
Series
Material/Finish
(Table II)
Shell Size
(Table I)
Insert
Designation
P
= Pin
S
= Socket
180
-
091 XW S7
-
17
-
8
Basic No.
S7 = Wall Mount
Receptacle with
Slotted Holes
P
N
Alternate Key Position
per MIL-DTL-38999
A, B, C, D,
or
E
N
= Normal
Insert
Arrangement
(See Page B-12)
2X C BSC
2X D BSC
Master Keyway
A Thread
1.240 (31.5)
Max
H
G
B SQ
4XF
4XE
.510 (13.0) Max
Full Mate Indicator
J Thread
Yellow Color Band
Blue Color Band
Red Color Band
Full Mate Indicator
S7 - WALL MOUNT RECEPTACLE
WITH SQUARE FLANGE AND SLOTTED HOLES
Material and Finish
Shell: See Table II
Insulator: High Grade Rigid Dielectric
Seals: Fluorosilicone
Notes
Insert arrangement in accordance with MIL-STD-1560, See Page B-12.
Blue Color Band indicates rear release retention system.
For appropriate Glenair Terminus part numbers, see Glenair Drawing 181-001 and 181-002.
For recommended panel cutout, See Page B-13
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-22
E-Mail: sales@glenair.com
MIL-DTL-38999 Series III Type with Slotted Holes
Table I
Shell
Shell
Size
Size
Code
A
B
C
D
E
F
G
H
J
9
11
13
15
17
19
21
23
25
A
Thread
.6250-.1P-.3L-TS-2A
.7500-.1P-.3L-TS-2A
.8750-.1P-.3L-TS-2A
1.0000-.1P-.3L-TS-2A
1.1875-.1P-.3L-TS-2A
1.2500-.1P-.3L-TS-2A
1.3750-.1P-.3L-TS-2A
1.5000-.1P-.3L-TS-2A
1.6250-.1P-.3L-TS-2A
B
SQ
.949 (24.1)
.929 (23.6)
1.043 (26.5)
1.019 (25.9)
1.138 (28.9)
1.114 (28.3)
1.232 (31.3)
1.208 (30.7)
1.323 (33.6)
1.299 (33.0)
1.449 (36.8)
1.425 (36.2)
1.575 (40.0)
1.551 (39.4)
1.701 (43.2)
1.677 (42.6)
1.823 (46.3)
1.799 (45.7)
C
BSC
.719
(18.3)
.812
(20.6)
.906
(23.0)
.969
(24.6)
1.062
(27.0)
1.156
(29.4)
1.250
(31.8)
1.375
(34.9)
1.500
(38.1)
D
BSC
.594 (15.1)
.719 (18.3)
.812
(20.6)
.906
(23.0)
.969
(24.6)
1.062
(27.0)
1.156
(29.4)
1.250
(31.8)
1.375
(34.9)
E
.136 (3.5)
.120 (3.0)
.136 (3.5)
.120 (3.0)
.136 (3.5)
.120 (3.0)
.136 (3.5)
.120 (3.0)
.136 (3.5)
.120 (3.0)
.136 (3.5)
.120 (3.0)
.136 (3.5)
.120 (3.0)
.162 (4.1)
.146 (3.7)
.162 (4.1)
.146 (3.7)
F
.216 (5.5)
.202 (5.1)
.186 (4.7)
.202 (5.1)
.186 (4.7)
.181 (4.6)
.165 ( 4.2)
.202 (5.1)
.186 (4.7)
.202 (5.1)
.186 (4.7)
.202 (5.1)
.186 (4.7)
.250 (6.4)
.234 (5.9)
.250 (6.4)
.234 (5.9)
G
.144 (3.7)
.083 (2.1)
.144 (3.7)
.083 (2.1)
.144 (3.7)
.083 (2.1)
.144 (3.7)
.083 (2.1)
.144 (3.7)
.083 (2.1)
.144 (3.7)
.083 (2.1)
.171 (65.2)
.083 (39.8)
.171 (65.2)
.083 (39.8)
.171 (65.2)
.083 (39.8)
H
.823 (20.9)
.768 (19.5)
.823 (20.9)
.768 (19.5)
.823 (20.9)
.768 (19.5)
.823 (20.9)
.768 (19.5)
.823 (20.9)
.768 (19.5)
.823 (20.9)
.768 (19.5)
.791 (20.0)
.736 (18.7)
.791 (20.0)
.736 (18.7)
.791 (20.0)
.736 (18.7)
J
Thread
M12 x 1.0-6g 0.100R
M15 x 1.0-6g 0.100R
M18 x 1.0-6g 0.100R
M22 x 1.0-6g 0.100R
M25 x 1.0-6g 0.100R
M28 x 1.0-6g 0.100R
M31 x 1.0-6g 0.100R
M34 x 1.0-6g 0.100R
M37 x 1.0-6g 0.100R
Table II: Material and Finish
Code
M
MT
NF
ZN
ZNU
XM
XMT
XW
XZN
MS
ZL
Z1
Aluminum Alloy
Material
Finish Description
Electroless Nickel
Nickel - PTFE, Grey
Cadmium, Olive Drab
Zinc-Nickel, Olive Drab
Zinc-Nickel, Black
Electroless Nickel
Nickel - PTFE, Grey
Cadmium, Olive Drab
Zinc-Nickel, Black
Electroless Nickel
Electro-Deposited Nickel
Passivate
Composite
Stainless Steel
Refer to Appendix for material/finish details
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-23
E-Mail: sales@glenair.com
MIL-DTL-38999
Series III Type
180-091 (S7) Square Flange Wall Mount Receptacle
Advanced Fiber Optic Connector
B
180-091
MIL-DTL-38999 Series III Type
Fiber Optic Connection System

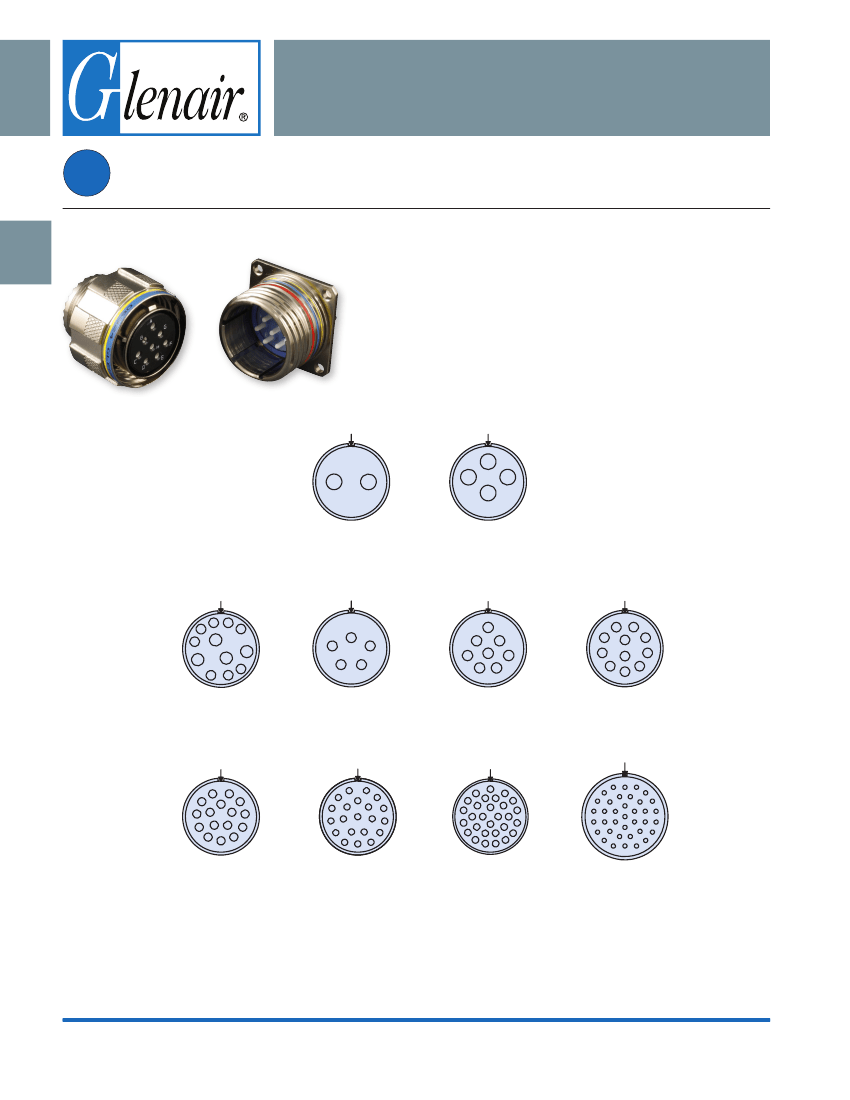

Contact Arrangements
D38999
Series III
MIL-DTL-38999
Series III Type
B
MIL-DTL-38999 type advanced fiber optic connectors
A
B
A
D
B
C
Shell Size 11
Arrangement 2
Shell Size 13
Arrangement 4
K
A
B
A
E
C
A
J
H
G
L
M
B
G
H
F
B
H
G
C
J
K
L
A
B
C
D
D
E
D
C
F
E
D
F
E
Shell Size 15
Arrangement 97
Shell Size 15
Arrangement 5
Shell Size 17
Arrangement 8
Shell Size 19
Arrangement 11
L
K
J
S
M
A
B
N
C
L
N
M
W
V
K
D
E
J
H
U
G
X
P
A
B
R
S
T
E
F
D
C
N
M
P
A
R
b
S
c
T
B
U
C
U
T
S
D
E
A
g
V
h
r
B
W
k
m
C
D
X
Y
Z
G
H
E
F
f
e
d
p
c
M
L
n
b
a
Z
f
e
Y
d
V
W
R
P
N
q
H
G
R
F
P
X
F
L
K
J
H
G
a
K
J
Shell Size 21
Arrangement 16
Shell Size 23
Arrangment 21
Shell Size 25
Arrangement 29
Shell Size 25
Arrangement 37
Mating face of pin insert shown
Contact Arrangements per MIL-STD-1560
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-12
E-Mail: sales@glenair.com

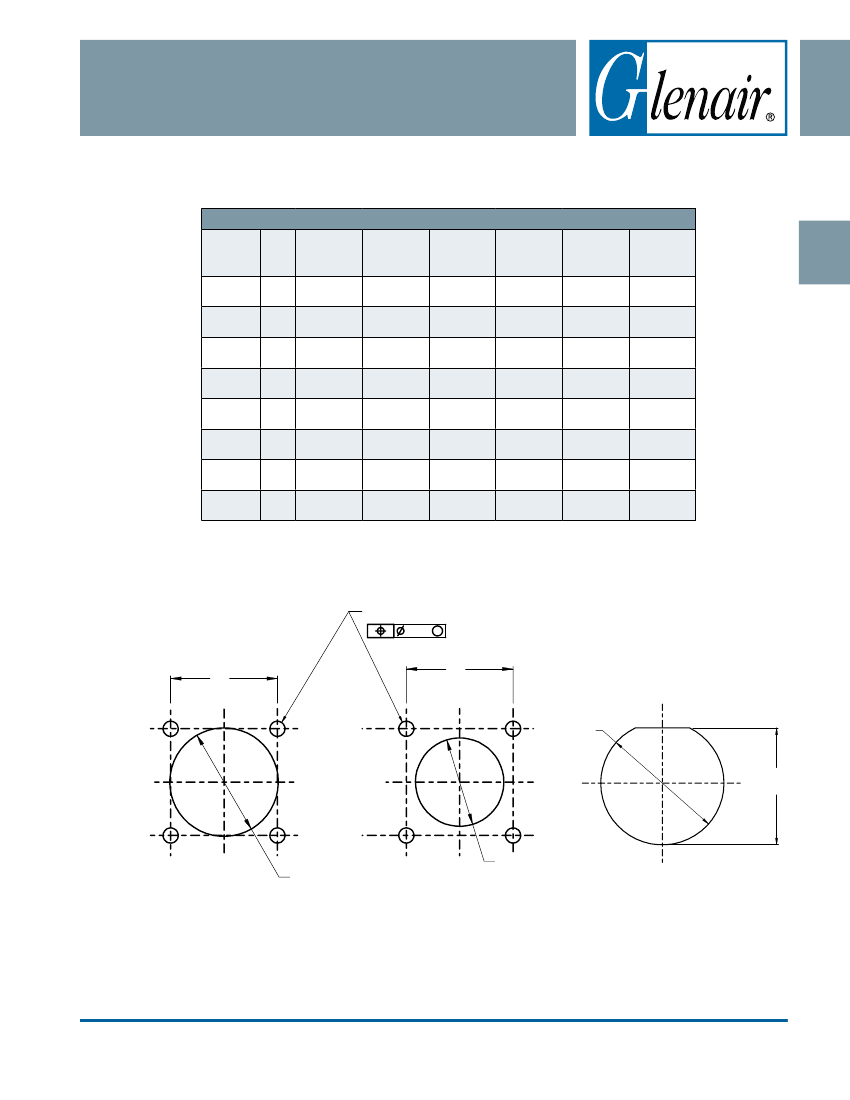

Panel Cutouts
Table I
Shell Size
Code
B
C
D
E
F
G
H
J
Shell
Size
11
13
15
17
19
21
23
25
Ø AA
.835 (21.2)
.825 (21.0)
1.020 (25.9)
1.010 (25.7)
1.145 (29.1)
1.135 (28.8)
1.270 (32.3)
1.260 (32.0)
1.395 (35.4)
1.385 (35.2)
1.520 (38.6)
1.510 (38.4)
1.645 (41.8)
1.635 (41.5)
1.770 (45.0)
1.760 (44.7)
BB Flat
.771 (19.6)
.761 (19.3)
.955 (24.3)
.945 (24.0)
1.085 (27.6)
1.075 (27.3)
1.210 (30.7)
1.200 (30.5)
1.335 (33.9)
1.325 (33.7)
1.460 (37.1)
1.450 (36.8)
1.585 (40.3)
1.575 (40.0)
1.710 (43.4)
1.700 (43.2)
ØM
Min
.796 (20.2)
.922 (23.4)
1.047 (26.6)
1.219 (31.0)
1.297 (32.9)
1.422 (36.1)
1.547 (39.3)
1.672 (42.5)
ØN
Min
.625 (15.9)
750 (19.1)
.906 (23.0)
1.016 (25.8)
1.141 (29.0)
1.266 (32.2)
1.375 (34.9)
1.484 (37.7)
ØP
Holes
.133
.123
.133
.123
.133
.123
.133
.123
.133
.123
.133
.123
.159
.149
.155
.145
(3.4)
(3.1)
(3.4)
(3.1)
(3.4)
(3.1)
(3.4)
(3.1)
(3.4)
(3.1)
(3.4)
(3.1)
(4.0)
(3.8)
(3.9)
(3.7)
R
BSC
.812 (20.6)
.906 (23.0)
.969 (24.6)
1.062 (27.0)
1.156 (29.4)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
4X Ø P Holes
.005
M
R
R
ØAA
BB
Flat
ØN Min
Back Panel
Front Panel
Mounting
Mounting
Recommended Panel Cutout
Wall Mount Receptacle
ØM Min
Recommended Panel Cutout
Jam Nut Receptacle
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-13
E-Mail: sales@glenair.com
MIL-DTL-38999
Series III Type
180-091
MIL-DTL-38999 Series III Type
Fiber Optic Connection System
B
