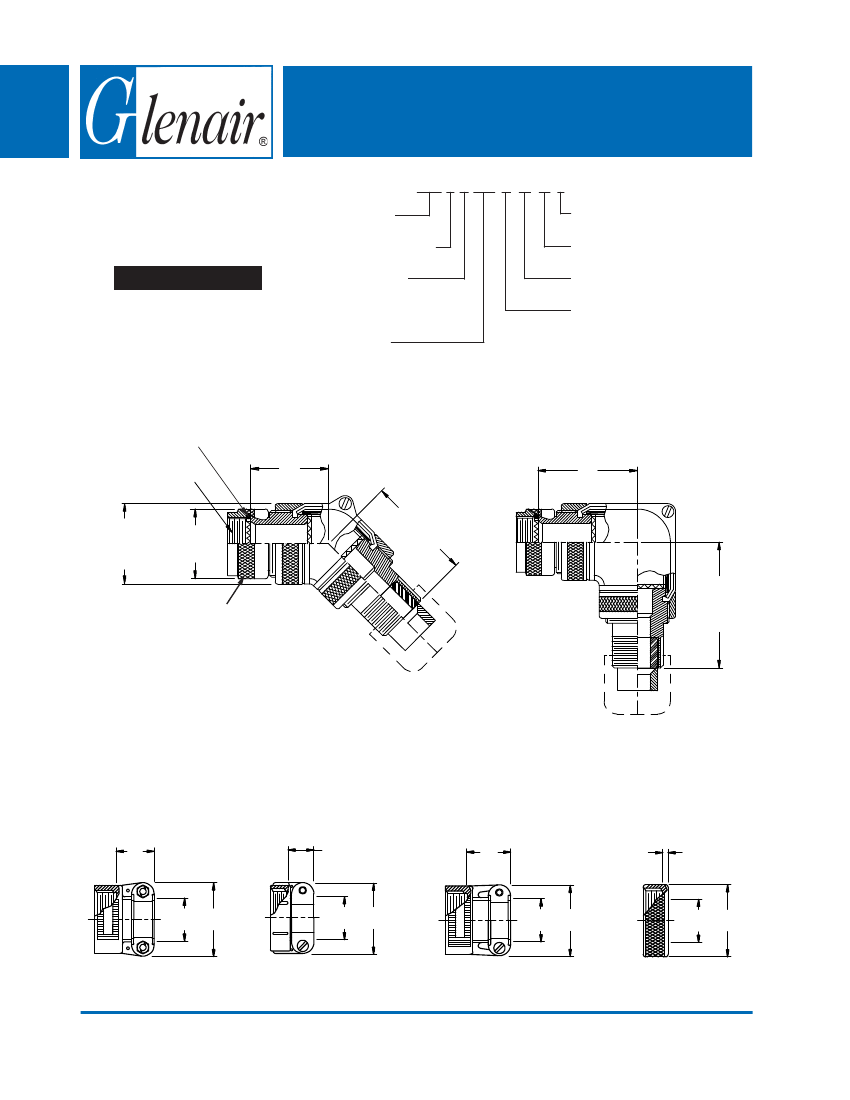

370-024
Submersible Split Shell Cable Sealing Backshell
with Strain Relief
Low Profile - Self-Locking - Rotatable Coupling
37
CONNECTOR
DESIGNATORS
370 F P 024 M 16 10 H
Product Series
Connector Designator
Angle and Profile
P = 45°
R = 90°
Basic Part No.
Strain Relief Style (H, A, M, D)
Cable Entry (Tables X, XI)
Shell Size (Table I)
Finish (Table II)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
O-Ring
A Thread
(Table I)
F (Table III)
or
L (Table IV)
G (Table III)
or
M (Table IV)
H (Table III)
or
N (Table IV)
J (Table III)
or
P (Table IV)
E Typ
(Table I)
Anti-Rotation
Device Typ.
K (Table III)
or
R (Table IV)
Use Table IV data
when E diameter
exceeds F diameter.
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 37 - Page 26
with Strain Relief
Low Profile - Self-Locking - Rotatable Coupling
TABLE III: DIMENSIONS
Shell Size
Conn. Desig.
A-F-L-S H
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
F
Max
1.188 (30.2)
1.188 (30.2)
1.188 (30.2)
1.188 (30.2)
1.438 (36.5)
1.438 (36.5)
1.438 (36.5)
1.688 (42.9)
1.688 (42.9)
G
Max
1.938 (49.2)
1.938 (49.2)
1.938 (49.2)
1.938 (49.2)
2.062 (52.4)
2.062 (52.4)
2.062 (52.4)
2.188 (55.6)
2.188 (55.6)
H
Max
2.156 (54.8)
2.156 (54.8)
2.156 (54.8)
2.156 (54.8)
2.281 (57.9)
2.281 (57.9)
2.281 (57.9)
2.406 (61.1)
2.406 (61.1)
J
Max
1.938 (49.2)
1.938 (49.2)
1.938 (49.2)
1.938 (49.2)
2.062 (52.4)
2.062 (52.4)
2.062 (52.4)
2.188 (55.6)
2.188 (55.6)
R
Max
2.281 (57.9)
2.406 (61.1)
2.406 (61.1)
2.406 (61.1)
2.656 (67.5)
2.656 (67.5)
2.906 (73.8)
K
Max
2.156 (54.8)
2.156 (54.8)
2.156 (54.8)
2.156 (54.8)
2.281 (57.9)
2.281 (57.9)
2.281 (57.9)
2.406 (61.1)
2.406 (61.1)
See inside
back cover
fold-out or
pages 13 and
14 for
unabridged
Tables
I and II.
L
Dash
Max
No.
08 1.438 (36.5)
10 1.688 (42.9)
12 1.688 (42.9)
16 1.688 (42.9)
20 2.188 (55.6)
24 2.188 (55.6)
28 2.688 (68.3)
Dash
No.
04
06
08
10
12
16
20
24
28
T
Max
.780 (19.8)
.780 (19.8)
.780 (19.8)
.780 (19.8)
.811 (20.6)
.905 (23.0)
1.092 (27.7)
1.124 (28.5)
1.399 (35.5)
TABLE IV: DIMENSIONS
M
P
N
Max
Max
Max
2.062 (52.4) 2.281 (57.9) 2.062 (52.4)
2.188 (55.6) 2.406 (61.1) 2.188 (55.6)
2.188 (55.6) 2.406 (61.1) 2.188 (55.6)
2.188 (55.6) 2.406 (61.1) 2.188 (55.6)
2.438 (61.9) 2.656 (67.5) 2.438 (61.9)
2.438 (61.9) 2.656 (67.5) 2.438 (61.9)
2.688 (68.3) 2.906 (73.8) 2.688 (68.3)
1. Metric dimensions (mm) are
indicated in parentheses.
2. Cable range is defined as the
accommodations range for
the wire bundle or cable.
Dimensions shown are not
intended for inspection criteria.
3. Interface O-Ring not supplied
with connector designator A.
TABLE X: CABLE ENTRY
Cable Range
V
Min
Max
Max
.125 (3.2) .312 (7.9)
.957 (24.3)
.250 (6.4) .437 (11.1)
1.145 (29.1)
.387 (9.8) .562 (14.3)
1.332 (33.8)
.350 (8.9) .625 (15.9)
1.332 (33.8)
.500 (12.7) .750 (19.1)
1.551 (39.4)
.625 (15.9) .937 (23.8)
1.770 (45.0)
.875 (22.2) 1.250 (31.8)
2.113 (53.7)
2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
C
G
M
NF
FINISH
Cadmium Plate, Olive Drab
Anodize, Black
Hard Coat, Anodic
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
TABLE XI: CABLE ENTRY
Dash
W
Z
Y
X
Cable Range
No. Max
Max
Max
Max
Max
Min **
03* .437 (11.1) .760 (19.3) .843 (21.4)
.630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0)
.755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
281.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32*
1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
* Not available in Style M clamp.
** Not Applicable Style D
