801-009-02ZR21-12UXBF-688 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-009-02ZR21-12UXBF-688

801-009-02ZR21-12UXBF-688: DescriptionCircular Connector; CategoryThe connector The connector; File Size343KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

801-009-02ZR21-12UXBF-688 Overview

Circular Connector

801-009-02ZR21-12UXBF-688 Parametric

Parameter Name	Attribute value
Objectid	1947352964
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	CIRCULAR CONNECTOR
Manufacturer's serial number	801-009

Preview

Download Datasheet

View All

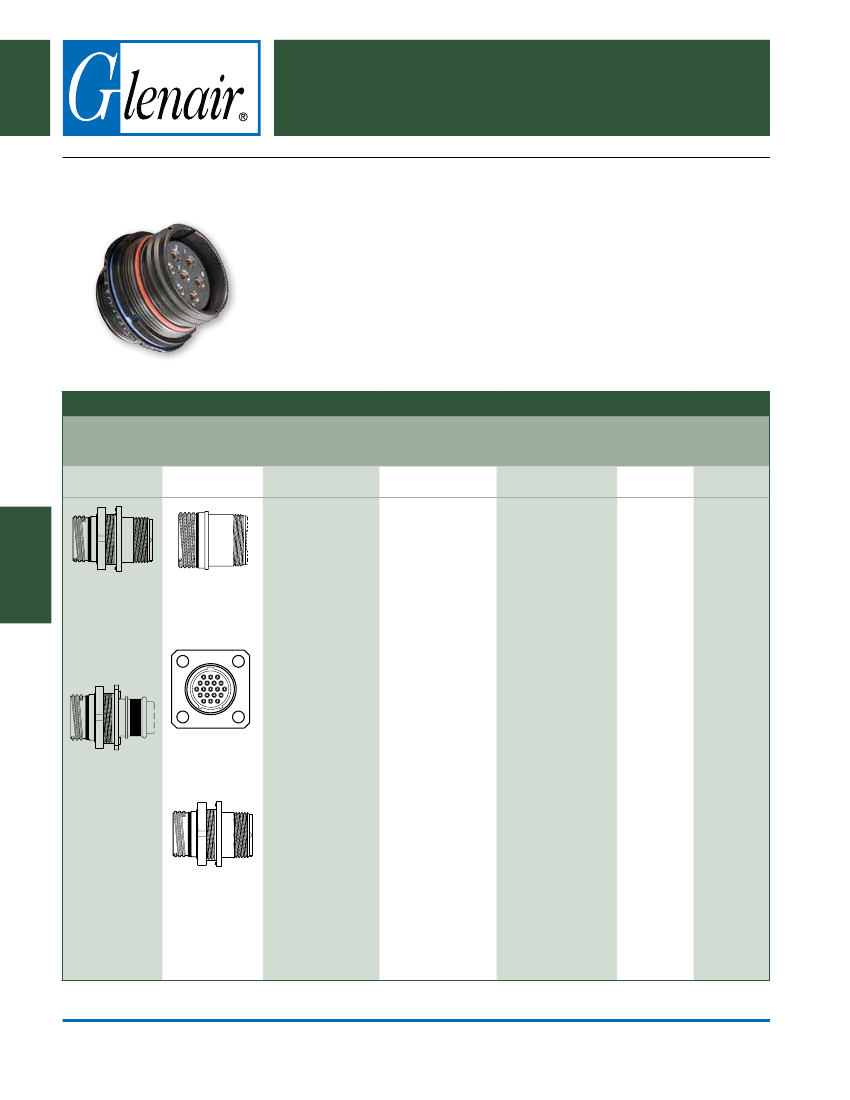

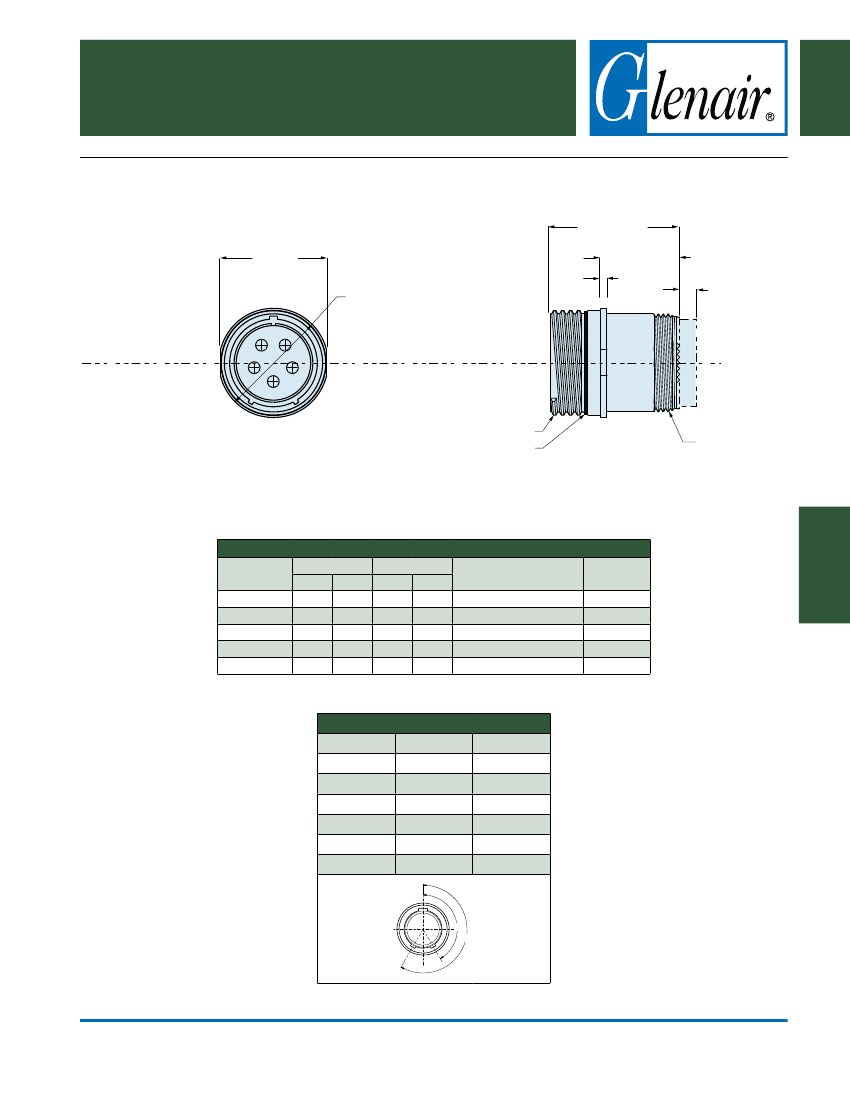

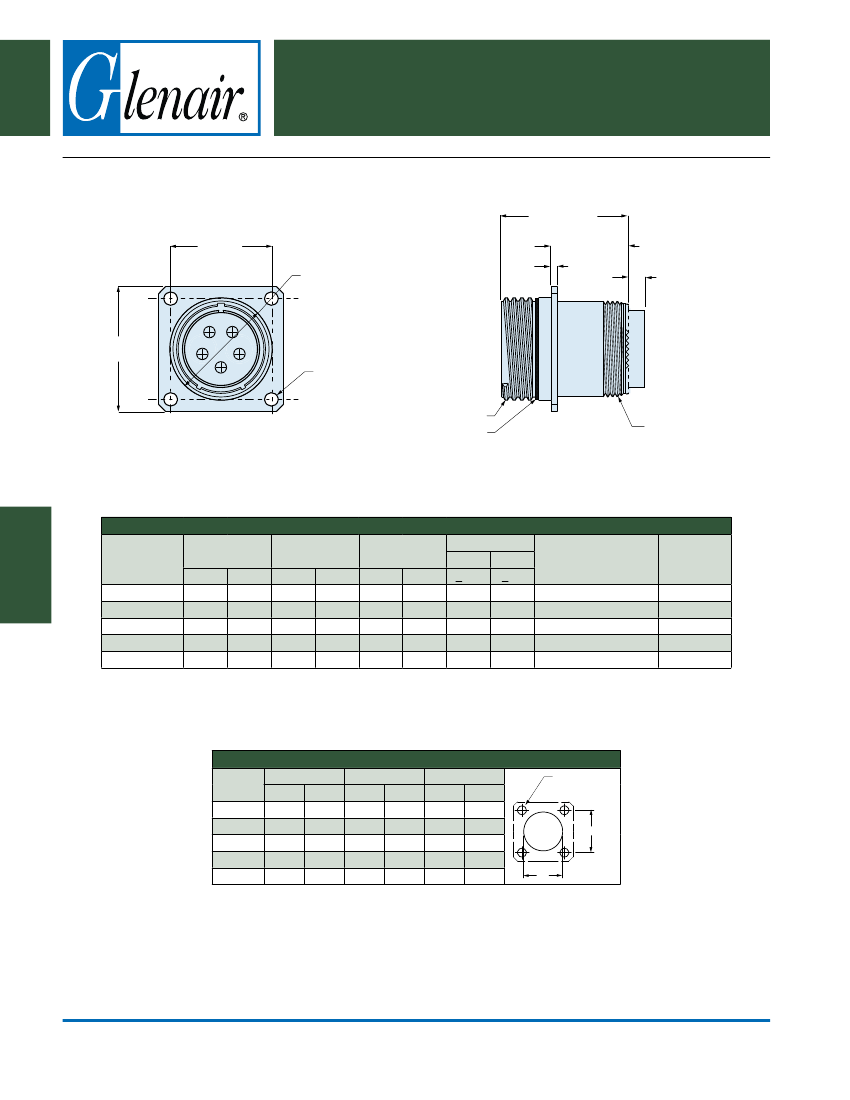

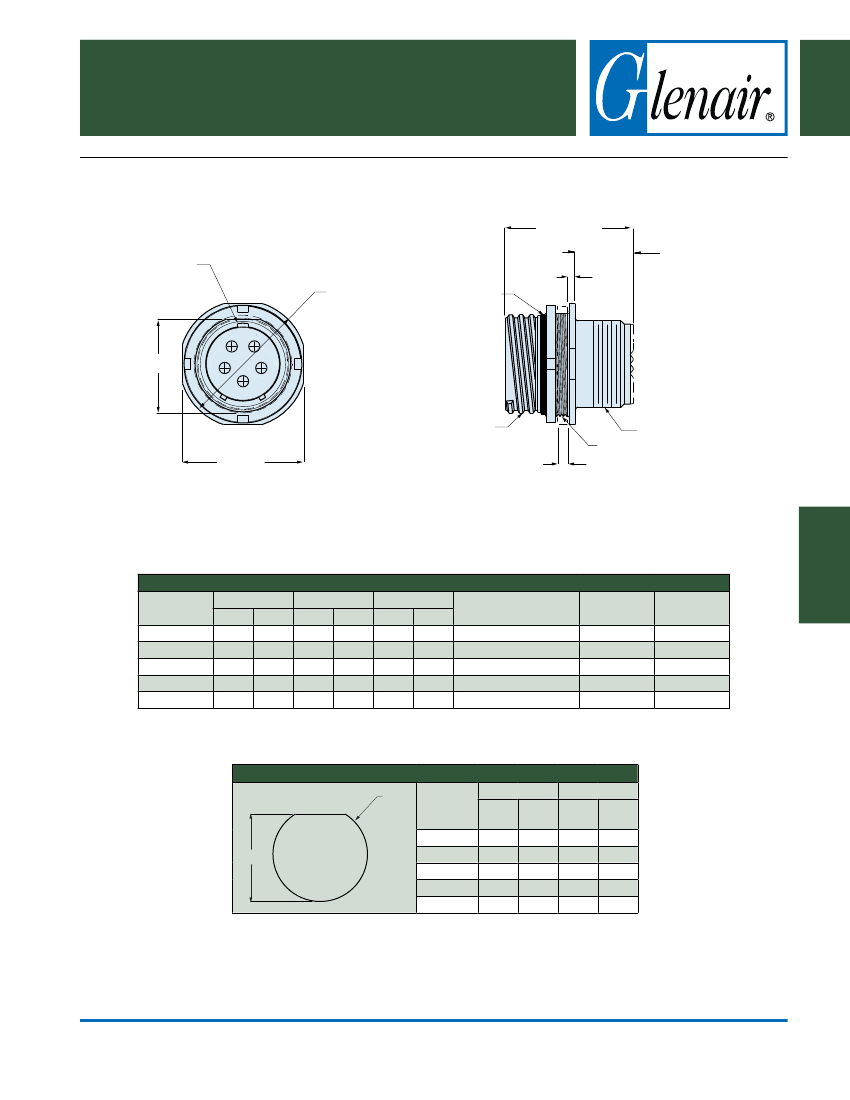

Series 80 Miniature Connectors

with Size #12 Ultra-Twinax Contacts

Series 801 Receptacles

801-010

Receptacle

with Accessory

Thread

Ultra-Twinax

SERIES 801 RECEPTACLE CONNECTORS wITH SIZE #12 CONTACTS

New Mighty Mouse contact arrangements accept size #12 Ultra-Twinax contacts for

multi-gigabit datarate applications. Series 801 Mighty Mouse receptacles feature

damage-resistant double-start ACME mating threads. Available for rear panel jam

nut mounting, in-line or square flange styles, these receptacles are supplied with #12

Twinax contacts (contact types UXP or UXS). Or, specify contact types UXA or UXB

for connectors supplied contacts for use with twinax contacts purchased separately.

Connector shells are aluminum or stainless steel, with thermoplastic insulators and

fluorosilicone rubber seals.

How to Order

Sample Part Number

801-010

Series

-02

Shell Style

Shell Material / Finish

17-7

Shell Size- Insert

Arrangement

UXS

Contact Type

Shell Key

Position

-688

Mod Code

Aluminum /

Electroless Nickel

RoHS Compliant

7-1

10-2

16-5

17-7

21-12

10-201

10-200

13-201

13-200

Connector supplied

with size #12 Ultra-

Twinax contacts

Normal

Alternate

Key

Positions:

UXP

Pin, with #12 Ultra-

Twinax contacts

-01

For Free-Hanging

Cables

Aluminum /

Cadmium with

Olive Drab

Chromate

In-Line

UXS

Socket, with #12

Ultra-Twinax

contacts

Connector supplied

without contacts.

(Order twinax

contacts separately.)

Connector

insulators

supplied

with

keyways

for use

with keyed

contacts

Aluminum /

Zinc-Nickel with

Non-Reflective

Black Chromate

RoHS Compliant

-02

801-009

Receptacle with

Banding

Termination

Porch

For Front or Rear

Mounting

Square Flange

Aluminum / Nickel-

PTFE

RoHS Compliant

UXA

Pin connector, less

contacts

UXB

Socket connector,

less contacts

-07

For Rear Panel

Mounting

Jam Nut

Stainless Steel /

Passivated

RoHS Compliant

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com
