O137.00000-JSO21C2LC-G-3.0-T0-T-D datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> O137.00000-JSO21C2LC-G-3.0-T0-T-D

O137.00000-JSO21C2LC-G-3.0-T0-T-D: DescriptionHCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size1MB，4 Pages; ManufacturerJauch; Websitehttp://www.jauchusa.com/; Environmental Compliance

Download Datasheet Parametric View All

O137.00000-JSO21C2LC-G-3.0-T0-T-D Overview

HCMOS Output Clock Oscillator,

O137.00000-JSO21C2LC-G-3.0-T0-T-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7251025706
Reach Compliance Code	compliant
Country Of Origin	Taiwan
YTEOL	6.38
Other features	STANDBY; TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7 INCH; ALSO COMPATIBLE WITH LVCMOS O/P
maximum descent time	3.3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	30%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	137 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	2.0mm x 1.6mm x 0.75mm
longest rise time	3.3 ns
Maximum supply voltage	3.3 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

MEMS Oscillator

JSO LC series · 3.0 V

actual size

2011/65/EC

RoHS

RoHS compliant

Pb free

2016

2520

3225

5032

7050

- low power oscillator with HCMOS/LVCMOS output

- compatible to industry standard packages 2016 – 7050

- extended shock & vibration resistance & temperature range

- configured to customer's specification

- very fast delivery service

REACH

compliant

Conflict

mineral free

GENERAL DATA

TYPE

frequency range

JSOxxCxLC 3.0 V

1.0 ~ 110.0 MHz

115.0 ~ 137.0 MHz

frequency stability over all

current consumption

supply voltage V

temperature

operating

±20 ppm ~ ±50 ppm (see table 1)

see table 2

3.0 V ± 10%

T0 = -20°C ~ +70°C

T1 = -40°C ~ +85°C

T2 = -40°C ~ +105°C

T3 = -40°C ~ +125°C

T8 = -55°C ~ +125°C

storage

output

logic

rise & fall time

load max.

-55°C ~ +150°C

HCMOS/LVCMOS

3.3 ns max. at 15 pF / 6.2 ns max. at 30 pF

(see table 4)

30 pF max. recommended (≤81.0 MHz)

15 pF max. recommended (>81.0 MHz)

other load capacitances possible,

see supplementary

document

current max.

low level max.

high level min.

standby function (e/d)

output enable time max.

output disable time max.

start-up time max.

standby current max.

phase jitter 12 kHz ~ 20 MHz

symmetry at 0.5 x V

4 mA

0.1 x V

0.9 x V

stop (S), tristate-only (T) or none (N),

see table 3

5 ms (S) / 150 ns (T)

150 ns

5 ms

5 µA (for stop (S), see table 3)

< 3.0 ps RMS

45% ~ 55% (standard)

TABLE 1: FREQUENCY STABILITY CODE

stability code /

temp. code*

-20°C ~ +70°C

-40°C ~ +85°C

-40°C ~ +105°C

-40°C ~ +125°C

-55°C ~ +125°C

±50 ppm



±30 ppm



±25 ppm



±20 ppm



available

* includes stability at 25°C, operating temp. range, supply voltage change,

shock and vibration, aging 1st year.

TABLE 2: CURRENT CONSUMPTION TYP. (FOR MAX. ADD 30%)

current at load

output disabled

1.0 ~ 19.9 MHz

20.0 ~ 29.9 MHz

30.0 ~ 49.9 MHz

50.0 ~ 79.9 MHz

80.0 ~ 110.0 MHz

115.0 ~ 137.0 MHz

5 pF

3.9

4.1

4.5

4.9

6.1

7.3

(9.5)

15 pF

3.9

4.5

5.4

6.3

8.4

10.5

(14.0)

30 pF

3.9

5.4

6.9

8.6

12.2

15.5

60 pF

3.9

7.2

10.1

13.2

unit

note: current at default edge control setting “D”, also refer to table 4.

TABLE 3: CONFIGURABLE STANDBY FUNCTION OPTIONS (E/D)

pin #1 (e/d control)

low “0” (V

≤ 0.2 V

)

option

S = Stop

functionality

output weakly pulled down,

oscillator in sleep mode

output high impedance,

oscillator operates

oscillator output active

T = TriState

N = None

high “1” (V

≥ 0.8 V

)

open*

all

* a pull up resistor is recommended in EMI stressed circuit environments.

note: some frequencies can‘t be configured, see table 5.

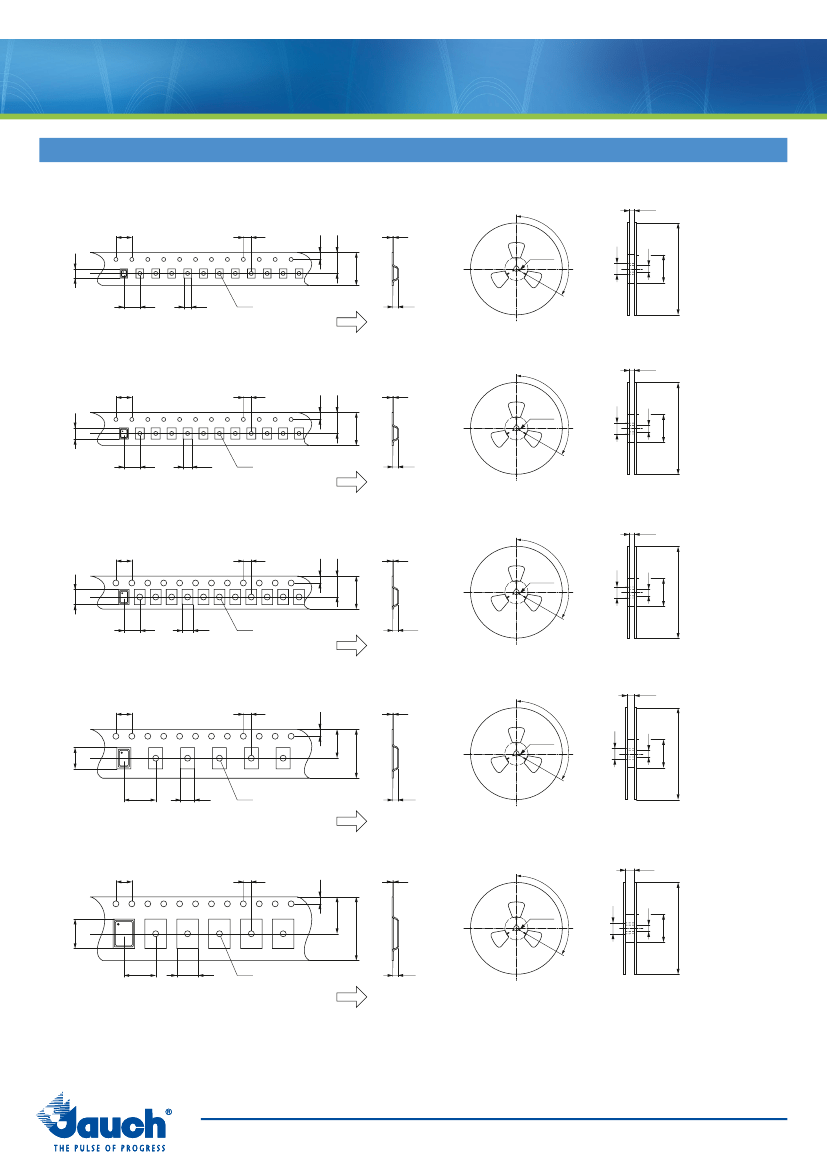

PACKAGING NOTE / MARKING

QTY < 250 pcs. → cut tape

QTY 250/500/1K/3K pcs. → tape and reel

Marking: lot code only

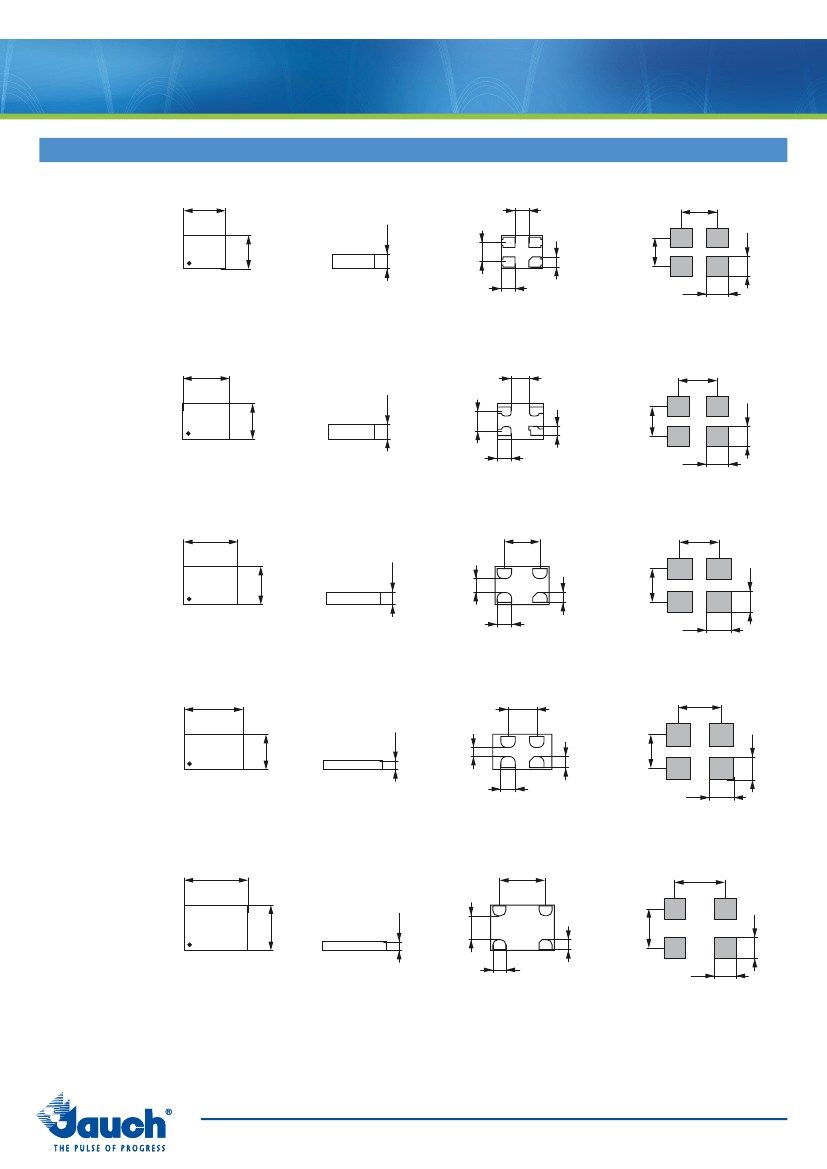

PIN CONNECTION

# 4: V

# 1: e/d

# 3: output

# 2: GND

Jauch MEMS – Uses SiTime’s MEMS First™ technology

Jauch Quartz GmbH • e-mail: info@jauch.com • full data can be found under: www.jauch.com

All specifications are subject to change without notice

07092018
