Radial Leaded Multilayer Ceramic Capacitors
High Voltage Goldmax, 600 Series, Conformally Coated,
C0G Dielectric, 500 – 3,000 VDC (Commercial Grade)
Overview
KEMET’s 600 Series High Voltage Goldmax conformally
coated radial leaded ceramic capacitors meet special lead
spacing requirements per MIL–PRF–49467. Offered in
C0G dielectric, these capacitors feature a 125°C maximum
operating temperature. The Electronics Industries
Alliance (EIA) characterizes C0G dielectric as a Class I
"stable" material. Components of this classification are
temperature compensating and are suited for resonant
circuit applications or those where Q and stability of
capacitance characteristics are required. C0G exhibits no
change in capacitance with respect to time and voltage and
boasts a negligible change in capacitance with reference to
ambient temperature. Capacitance change is limited to ±30
ppm/ºC from −55°C to +125°C.
These devices exhibit low ESR at high frequencies and find
conventional use as snubbers or filters in applications such
as switching power supplies and lighting ballasts. Their
exceptional performance at high frequencies has made them
a preferred choice of design engineers worldwide. In addition
to their use in power supplies, these capacitors are widely
used in industries related to telecommunications, medical,
military, aerospace, semiconductors and test/diagnostic
equipment.
Benefits
• Radial leaded form factor
• Conformally coated
• Lead spacing per MIL–PRF–49467
• Operating temperature range of −55°C to +125°C
• RoHS and REACH compliant
• DC voltage ratings of 500 V, 1 KV, 1.5 KV, 2 KV, 2.5 KV, and 3 KV
• Capacitance offerings ranging from 12 pF up to 0.1 μF

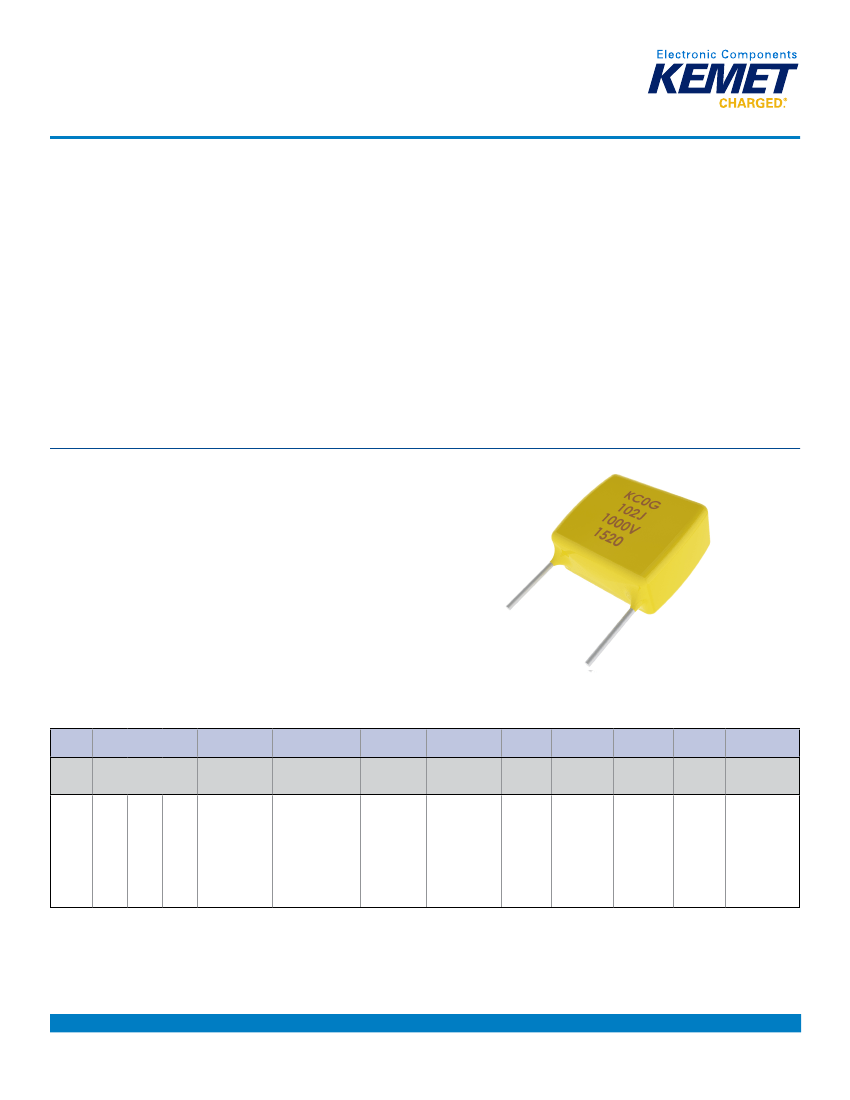

Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Ordering Information
C
Ceramic
627
Style/Size
617
622
623
627
628
630
631
637
638
640
641
642
643
647
648
657
658
667
668
C
Specification/
Series
C=
Standard
224
Capacitance
Code (pF)
First two digits
represent
significant
figures. Third
digit specifies
number of
zeros.
K
C
G
5
Design
5=
Multilayer
T
Lead
Finish
2
T = 100%
Matte Sn
H = SnPb
(60/40)
A
Failure
Rate
A = N/A
7301
Packaging
(C-Spec)
See
“Packaging
C-Spec
Ordering
Options
Table”
below
Capacitance Rated Voltage
Dielectric
Tolerance
1
(VDC)
K = ±10%
M = ±20%
Z = +80%,
−20%
C = 500
D = 1,000
F = 1,500
G = 2,000
Z = 2,500
H = 3,000
G=
C0G
1
2
Additional capacitance tolerance offerings may be available. Contact KEMET for details.
Lead materials:
Standard: 100% matte tin (Sn) with nickel (Ni) underplate and steel core ( “T” designation).
Alternative 1: 60% Tin (Sn)/40% Lead (Pb) finish with copper-clad steel core ( “H” designation).
Alternative 2: 60% Tin (Sn)/40% Lead (Pb) finish with 100% copper core (available with “H” designation code with C-Spec). Contact KEMET for
C-Spec details.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1056_HV_GOLDMAX_600_C0G • 11/11/2016
1
Radial Leaded Multilayer Ceramic Capacitors
High Voltage Goldmax, 600 Series, Conformally Coated, C0G Dielectric, 500 – 3,000 VDC (Commercial Grade)
Benefits cont'd
•
•
•
•
•
•
Available capacitance tolerances of ±5%, ±10% and ±20%
High temperature solder lead attach
Extremely low ESR and ESL
High thermal stability
High ripple current capability
Negligible capacitance change with respect to temperature
from −55°C to +125°C
• No capacitance change with respect to applied rated DC
voltage
• No capacitance decay with time
• Non-polar device, minimizing installation concerns
• 100% pure matte tin-plated lead finish allowing for
excellent solderability
• SnPb-plated lead finish option available upon request
(Sn60/Pb40)
• Encapsulation meets flamability standard UL 94V–0
Applications
Typical applications include switch mode power supplies (input filters, resonators, tank circuits, snubbed circuits, output
filters), high voltage coupling and DC blocking, lighting ballasts, voltage multiplier circuits, DC/DC converters and coupling
capacitors in Ćuk converters. Markets include power supply, LCD fluorescent backlight ballasts, HID lighting, telecom
equipment, industrial and medical equipment/control, LAN/WAN interface, analog and digital modems, and automotive.
Application Notes
These devices are not recommended for use in overmold applications and/or processes.
Packaging C-Spec Ordering Options Table
Packaging Type
1
Bulk Bag
12" Reel/16.0 mm ±0.5 lead length
12" Reel/18.0 mm minimum lead length
1
Packaging/Grade
Ordering Code (C-Spec)
Not required (Blank)
7301
7303
Default packaging is “Bulk Bag”. An ordering code C-Spec is not required for “Bulk Bag” packaging.
For more information see "Tape & Reel Packaging Information".
Qualification/Certification
Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are
referenced in Table 2, Performance & Reliability.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1056_HV_GOLDMAX_600_C0G • 11/11/2016
2
Radial Leaded Multilayer Ceramic Capacitors
High Voltage Goldmax, 600 Series, Conformally Coated, C0G Dielectric, 500 – 3,000 VDC (Commercial Grade)
Dimensions – Inches (Millimeters)
L
C617
C622
C627
C630
C637
0.100
max
(2.54
mm)
Straight
C640
C642
C647
C657
C667
T
L
Inside Kink
T
H
C641
C623
C643
C628
C648
C631
C658
C638
C668
H
LL
F
S
Seating Plane
F
S
LL
Series
C61X
C62X
Style/Size
617
622
623
627
628
630
631
637
638
640
641
642
643
647
648
657
658
667
668
S
Lead
Spacing
Nominal
0.170 (4.32)
0.220 (5.59)
0.220 (5.59)
0.275 (6.98)
0.275 (6.98)
0.300 (7.62)
0.300 (7.62)
0.375 (9.52)
0.375 (9.52)
0.400 (10.16)
0.400 (10.16)
0.400 (10.16)
0.400 (10.16)
0.475 (12.06)
0.475 (12.06)
0.575 (14.60)
0.575 (14.60)
0.675 (17.14)
0.675 (17.14)
L
Length
Maximum
0.250 (6.35)
0.320 (8.13)
0.320 (8.13)
0.370 (9.40)
0.370 (9.40)
0.450 (11.40)
0.450 (11.40)
0.470 (11.90)
0.470 (11.90)
0.550 (14.00)
0.550 (14.00)
0.500 (12.70)
0.500 (12.70)
0.570 (14.50)
0.570 (14.50)
0.670 (17.02)
0.670 (17.02)
0.770 (19.56)
0.770 (19.56)
H
Height
Maximum
0.220 (5.59)
0.280 (7.11)
0.500 (12.70)
0.300 (7.62)
0.520 (13.20)
0.220 (5.59)
0.440 (11.17)
0.400 (10.20)
0.620 (15.74)
0.280 (7.11)
0.780 (19.81)
0.560 (14.22)
0.780 (19.81)
0.500 (12.70)
0.720 (18.28)
0.600 (15.24)
0.820 (20.82)
0.720 (18.29)
0.940(23.87)
T
Thickness
Maximum
0.200 (5.08)
0.250 (6.35)
0.250 (6.35)
0.250 (6.35)
0.250 (6.35)
0.200 (5.08)
0.200 (5.08)
0.270 (6.89)
0.270 (6.89)
0.250 (6.35)
0.250 (6.35)
0.200 (5.08)
0.200 (5.08)
0.270 (6.89)
0.270 (6.89)
0.270 (6.89)
0.270 (6.89)
0.270 (6.89)
0.270 (6.89)
F
Lead
Diameter
Nominal
LL
Lead Length
Minimum
C63X
0.025 (0.64)
0.276 (7.00)
C64X
C65X
C66X
Environmental Compliance
REACH and RoHS compliant with exemption when ordered with a 100% tin (Sn) wire lead finish. Product ordered with tin/
lead (Sn60/Pb40) wire lead finish do not meet RoHS criteria.
Series
600 (C6XX)
1
Termination
Finish
(Wire Lead)
100% Matte Sn
Sn60/Pb40
RoHS
Compliant
Yes
No
RoHS
Exemption
Code
1
7(c)-II
n/a
REACH
Compliant
2
Yes
Yes
Halogen
Free
Yes
Yes
7(c)-II: Lead in dielectric ceramic in capacitors for a rated voltage of 125 VAC or 250 VDC or higher
2
REACH compliance indicates product does
not contain Substance/s of Very High Concern (SVHC)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1056_HV_GOLDMAX_600_C0G • 11/11/2016
3
Radial Leaded Multilayer Ceramic Capacitors
High Voltage Goldmax, 600 Series, Conformally Coated, C0G Dielectric, 500 – 3,000 VDC (Commercial Grade)
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to
+25°C and 0 VDC Applied (TCC)
Aging Rate (Maximum % Cap Loss/Decade Hour)
Dielectric Withstanding Voltage
Dissipation Factor (DF) Maximum Limit at 25ºC
Insulation Resistance (IR) Limit at 25°C
−55°C to +125°C
±30 ppm/ºC
0%
150% of rated voltage for voltage rating of < 1,000 V
120% of rated voltage for voltage rating of ≥ 1,000 V
(5±1 second and charge/discharge not exceeding 50 mA)
0.1%
1,000 megohm microfarads or 100 GΩ
(500 VDC applied for 120±5 seconds at 25°C)
Parameters/Characteristics
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and dissipation factor (DF) measured under the following conditions:
1 MHz ±100 kHz and 1.0 V
rms
±0.2 V if capacitance ≤ 1,000 pF
1 kHz ±50 Hz and 1.0 V
rms
±0.2 V if capacitance > 1,000 pF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known
as Automatic Level Control (ALC). The ALC feature should be switched to "ON."
Post Environmental Limits
High Temperature Life, Biased Humidity and Storage Life
Style/Size
C0G
Rated DC
Voltage
All
Capacitance
Value
All
Dissipation Factor
(Maximum %)
0.5
Capacitance
Shift
0.3% or ±0.25 pF
Insulation
Resistance
10% of Initial
Limit
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1056_HV_GOLDMAX_600_C0G • 11/11/2016
4
Radial Leaded Multilayer Ceramic Capacitors
High Voltage Goldmax, 600 Series, Conformally Coated, C0G Dielectric, 500 – 3,000 VDC (Commercial Grade)
Table 1A – C617 Style/Size, Capacitance Range Waterfall
C617 Style/Size (0.170" Lead Spacing)
Rated Voltage (VDC)
Voltage Code
500
C
1000
D
1500
F
2000
G
3000
H
Capacitance
12pF
15pF
18pF
22pF
27pF
33pF
39pF
47pF
56pF
68pF
82pF
100pF
120pF
150pF
180pF
220pF
270pF
330pF
390pF
470pF
560pF
680pF
820pF
1000pF
1200pF
1500pF
1800pF
2200pF
2700pF
3300pF
3900pF
4700pF
Capacitance
Tolerance
Capacitance Code (Available Capacitance)
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
J = ±5%
K = ±10%
M = ±20%
Rated Voltage (VDC)
Voltage Code
500
C
1000
D
1500
F
2000
G
3000
H
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1056_HV_GOLDMAX_600_C0G • 11/11/2016
5
