assy plug,50 posn, action pin
| Parameter Name | Attribute value |
| Datasheets | |

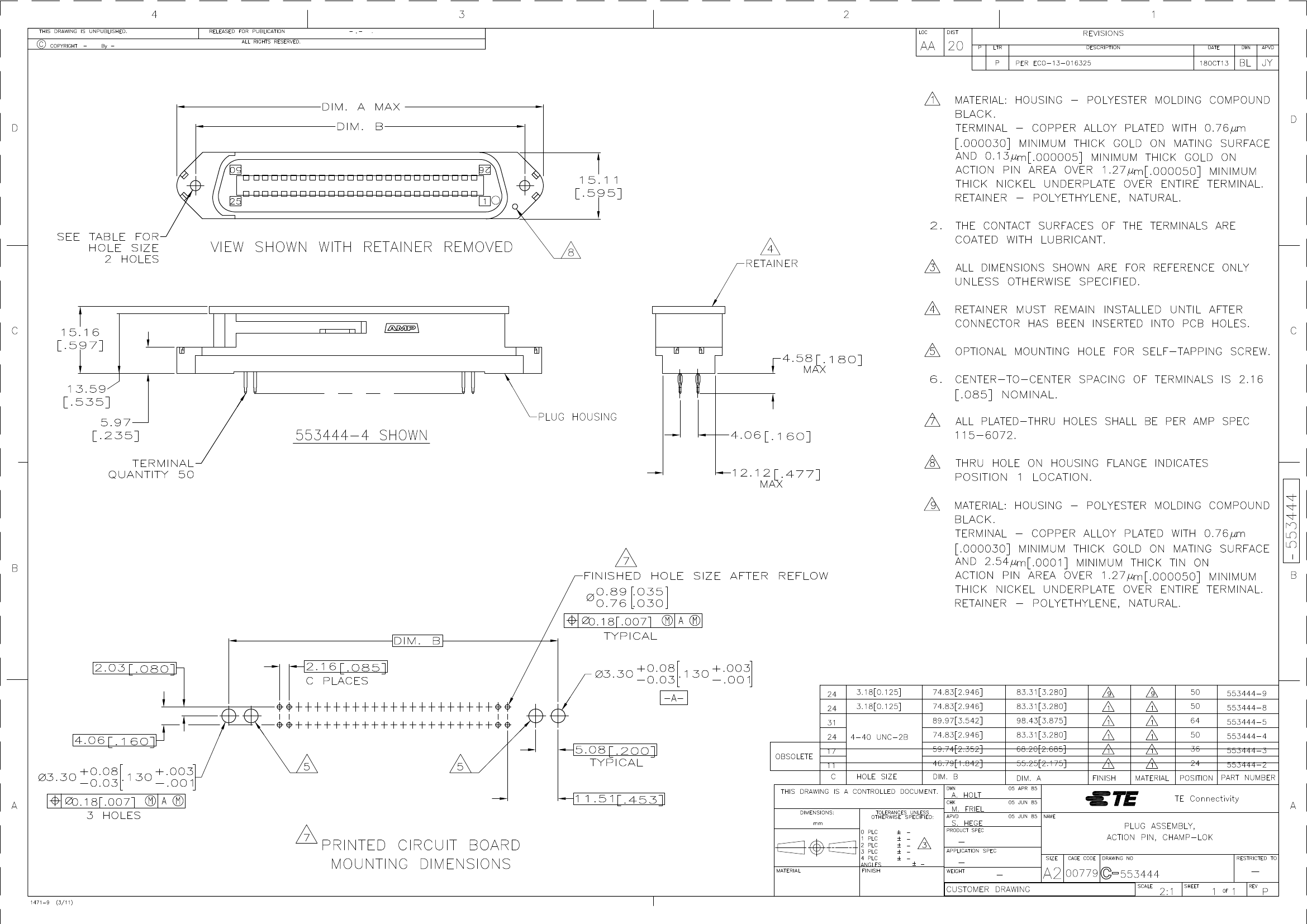

| 553444 Drawing | |
| Product Photos | |
| 553444-4, 554758-1 | |
| RoHS Informati | |
| 553444-4 Statement of Compliance | |
| RoHS 2 Stateme | |
| Catalog Drawings | |
| CHAMP Edge Mt 50-Positi | |
| CHAMP Edge Mt End | |
| 3D Model | |
| 553444-4.pdf | |
| Standard Package | 20 |
| Category | Connectors, Interconnects |
| Family | D-Shaped Connectors - Centronics |
| Connector Style | Center Strip Contacts |
| Connector Type | Plug |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Terminati | Press-Fi |
| Flange Feature | Insert, Threaded (4-40) |
| Type | - |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 30µin (0.76µm) |
| Dynamic Catalog | CHAMP .085 Series |
| Mating Products | 554342-1-ND - CONN CHAMP RCPT 50POS .085 IDC6-5229913-3-ND - CONN RCPT 50POS 24-26AWG BLACK6-5229913-1-ND - CONN RCPT 50POS 24-26AWG BLACK5553212-3-ND - RCPT KIT 50 POS B SLOT C/LOCKA33622-ND - KIT, RCPT, 50 POS, CHAMP-LOKA33620-ND - KIT, RCPT, 50 POS, B SLOTA33618-ND - KIT, RCPT, 50 POS, B SLOTA33616-ND - KIT, RCPT, 50 POS, B SLOTA33614-ND - KIT, RCPT, 50 POS, B SLOTA33612-ND - CONNECTOR KITSA33610-ND - KIT, RCPT, 50 POSN, C SLOTA24259-ND - RCPT ASSY,50 POSN,F SLOT,C/LOK553912-1-ND - KIT, RCPT, 50 POSN, B SLOTA24240-ND - ASSY, RCPT, 50 POS, C SLOTA113180-ND - ASSY,RCPT,50POS,B SLOT,GRY HSGA1545-ND - CONN CHAMP 50 POS RECEPT SCREWA1543-ND - CONN CHAMP 50 POS RECEPT BAILA1541-ND - CONN CHAMP 50 POS RCPT FLANGA1572-ND - CONNECTOR KITS |
| For Use With | A24329-ND - KIT, RCPT, 50 POS, B SLOT |
| Other Names | 553444-4-ND5534444A24392 |
| 553444-4 | 553444-3 | 553444-2 | |
|---|---|---|---|
| Description | assy plug,50 posn, action pin | assy plug,36 posn, action pin | conn champ plug 24pos .085 vert |
| Standard Package | 20 | 210 | 210 |
| Category | Connectors, Interconnects | Connectors, Interconnects | Connectors, Interconnects |
| Family | D-Shaped Connectors - Centronics | D-Shaped Connectors - Centronics | D-Shaped Connectors - Centronics |
| Connector Style | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts |
| Connector Type | Plug | Plug | Plug |
| Number of Positions | 50 | 36 | 24 |
| Number of Rows | 2 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Terminati | Press-Fi | Press-Fi | Press-Fi |
| Flange Feature | Insert, Threaded (4-40) | Insert, Threaded (4-40) | Insert, Threaded (4-40) |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30µin (0.76µm) | 30µin (0.76µm) | 30µin (0.76µm) |
| Mating Products | 554342-1-ND - CONN CHAMP RCPT 50POS .085 IDC6-5229913-3-ND - CONN RCPT 50POS 24-26AWG BLACK6-5229913-1-ND - CONN RCPT 50POS 24-26AWG BLACK5553212-3-ND - RCPT KIT 50 POS B SLOT C/LOCKA33622-ND - KIT, RCPT, 50 POS, CHAMP-LOKA33620-ND - KIT, RCPT, 50 POS, B SLOTA33618-ND - KIT, RCPT, 50 POS, B SLOTA33616-ND - KIT, RCPT, 50 POS, B SLOTA33614-ND - KIT, RCPT, 50 POS, B SLOTA33612-ND - CONNECTOR KITSA33610-ND - KIT, RCPT, 50 POSN, C SLOTA24259-ND - RCPT ASSY,50 POSN,F SLOT,C/LOK553912-1-ND - KIT, RCPT, 50 POSN, B SLOTA24240-ND - ASSY, RCPT, 50 POS, C SLOTA113180-ND - ASSY,RCPT,50POS,B SLOT,GRY HSGA1545-ND - CONN CHAMP 50 POS RECEPT SCREWA1543-ND - CONN CHAMP 50 POS RECEPT BAILA1541-ND - CONN CHAMP 50 POS RCPT FLANGA1572-ND - CONNECTOR KITS | A24250-ND - ASSY, RCPT, 36 POS, B SLOTA1537-ND - 36 CONTACTS, CHAMP RECEPTACLEA1509-ND - 36 CONTACTS, RECEPT,CHAMP, PANEL | A33601-ND - CONN CHAMP 24 POS RECEPTACLEA1558-ND - CONN CHAMP 24 POS RECEPTACLE |
| Other Names | 553444-4-ND5534444A24392 | 553444-3-NDA24388 | - |
