1-213825-5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 1-213825-5

Preview

1-213825-5: Descriptionconn cpc rcpt 14pos; CategoryThe connector; File Size484KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-213825-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-213825-5	-	-	View	Buy Now

1-213825-5 Overview

conn cpc rcpt 14pos

1-213825-5 Parametric

Parameter Name	Attribute value
Datasheets
213825
3D Model
1-213825-5.pdf
Standard Package	24
Category	Connectors, Interconnects
Family	Circular Connectors
Packaging	Tray
Connector Type	Receptacle, Female Sockets
Number of Positions	14
Shell Size - Inse	17-14
Shell Size, MIL	-
Mounting Type	Panel Mount, Flange
Through Hole
Terminati	Solde
Fastening Type	Threaded
Orientati	A
Ingress Protecti	-
Shell Material, Finish	Nyl
Contact Finish	Ti
Features	-
Contact Finish Thickness	100µin (2.54µm)
Current Rating	13A
Voltage - Rated	600VAC/DC
Operating Temperature	-40°C ~ 105°C

Preview

Download Datasheet

View All

8

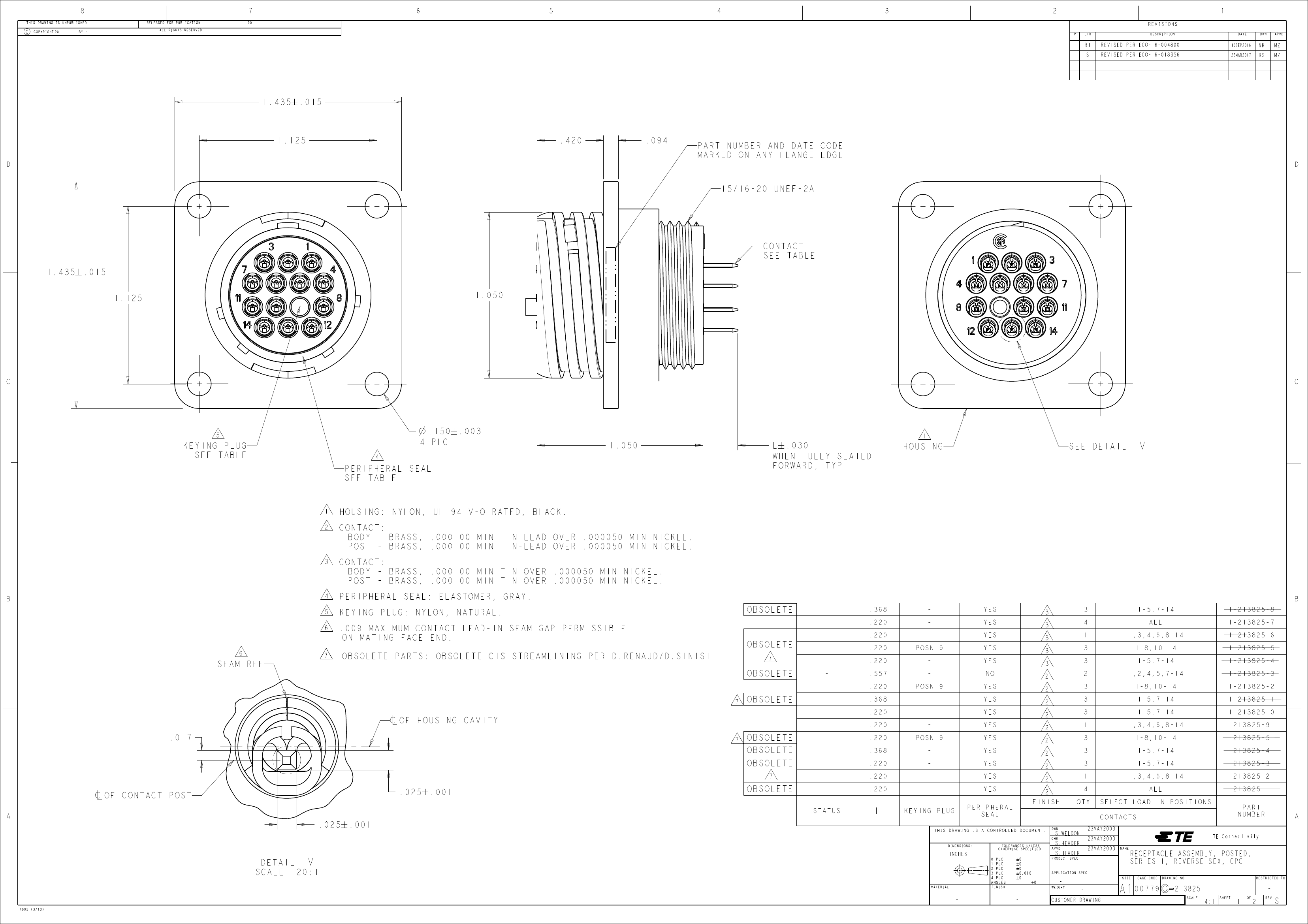

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

R1

S

REVISED PER ECO-16-004800

REVISED PER ECO-16-018356

10SEP2016

23MAR2017

NK

RS

MZ

1.435

.015

1.125

D

.420

.094

PART NUMBER AND DATE CODE

MARKED ON ANY FLANGE EDGE

D

15/16-20 UNEF-2A

CONTACT

SEE TABLE

1.435

.015

1.125

1.050

C

KEYING PLUG

SEE TABLE

5

.150

4 PLC

4

.003

1.050

L # .030

WHEN FULLY SEATED

FORWARD, TYP

HOUSING

1

SEE DETAIL

V

PERIPHERAL SEAL

SEE TABLE

1

2

HOUSING: NYLON, UL 94 V-O RATED, BLACK.

CONTACT:

BODY - BRASS, .000100 MIN TIN-LEAD OVER .000050 MIN NICKEL.

POST - BRASS, .000100 MIN TIN-LEAD OVER .000050 MIN NICKEL.

CONTACT:

BODY - BRASS, .000100 MIN TIN OVER .000050 MIN NICKEL.

POST - BRASS, .000100 MIN TIN OVER .000050 MIN NICKEL.

PERIPHERAL SEAL: ELASTOMER, GRAY.

KEYING PLUG: NYLON, NATURAL.

.009 MAXIMUM CONTACT LEAD-IN SEAM GAP PERMISSIBLE

ON MATING FACE END.

OBSOLETE PARTS: OBSOLETE CIS STREAMLINING PER D.RENAUD/D.SINISI

OBSOLETE

.368

.220

-

YES

3

B

4

5

6

3

2

FINISH

2

13

14

1-5.7-14

ALL

1,3,4,6,8-14

1-8,10-14

1-5.7-14

1,2,4,5,7-14

1-8,10-14

1-5.7-14

1,3,4,6,8-14

1-8,10-14

1-5.7-14

1,3,4,6,8-14

ALL

SELECT LOAD IN POSITIONS

CONTACTS

1- 213825 -8

1- 213825 -7

1- 213825 -6

B

SEAM REF

6

7

OBSOLETE

7

.220

-

.557

.220

YES

NO

YES

PERIPHERAL

SEAL

11

13

12

13

11

13

11

14

QTY

POSN 9

-

POSN 9

-

POSN 9

-

KEYING PLUG

1- 213825 -5

1- 213825 -4

1- 213825 -3

1- 213825 -2

1- 213825 -1

1- 213825 -0

213825 -9

213825 -5

213825 -4

213825 -3

213825 -2

213825 -1

PART

NUMBER

TE Connectivity

OBSOLETE

7

OBSOLETE

.368

.220

.017

7

OBSOLETE

7

OBSOLETE

.220

.368

.220

STATUS

.025 # .001

A

OBSOLETE

L

.025 # .001

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

S.WELDON

S.HEADER

-

23MAY2003

NAME

DETAIL

V

SCALE

20:1

MATERIAL

INCHES

APVD

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0

0.010

0

PRODUCT SPEC

APPLICATION SPEC

0

-

WEIGHT

-

CUSTOMER DRAWING

A1

00779

SIZE

RECEPTACLE ASSEMBLY, POSTED,

SERIES 1, REVERSE SEX, CPC

-

CAGE CODE

DRAWING NO

RESTRICTED TO

213825

SCALE

4805 (3/13)

4:1

SHEET

1

OF

2

REV

-

S

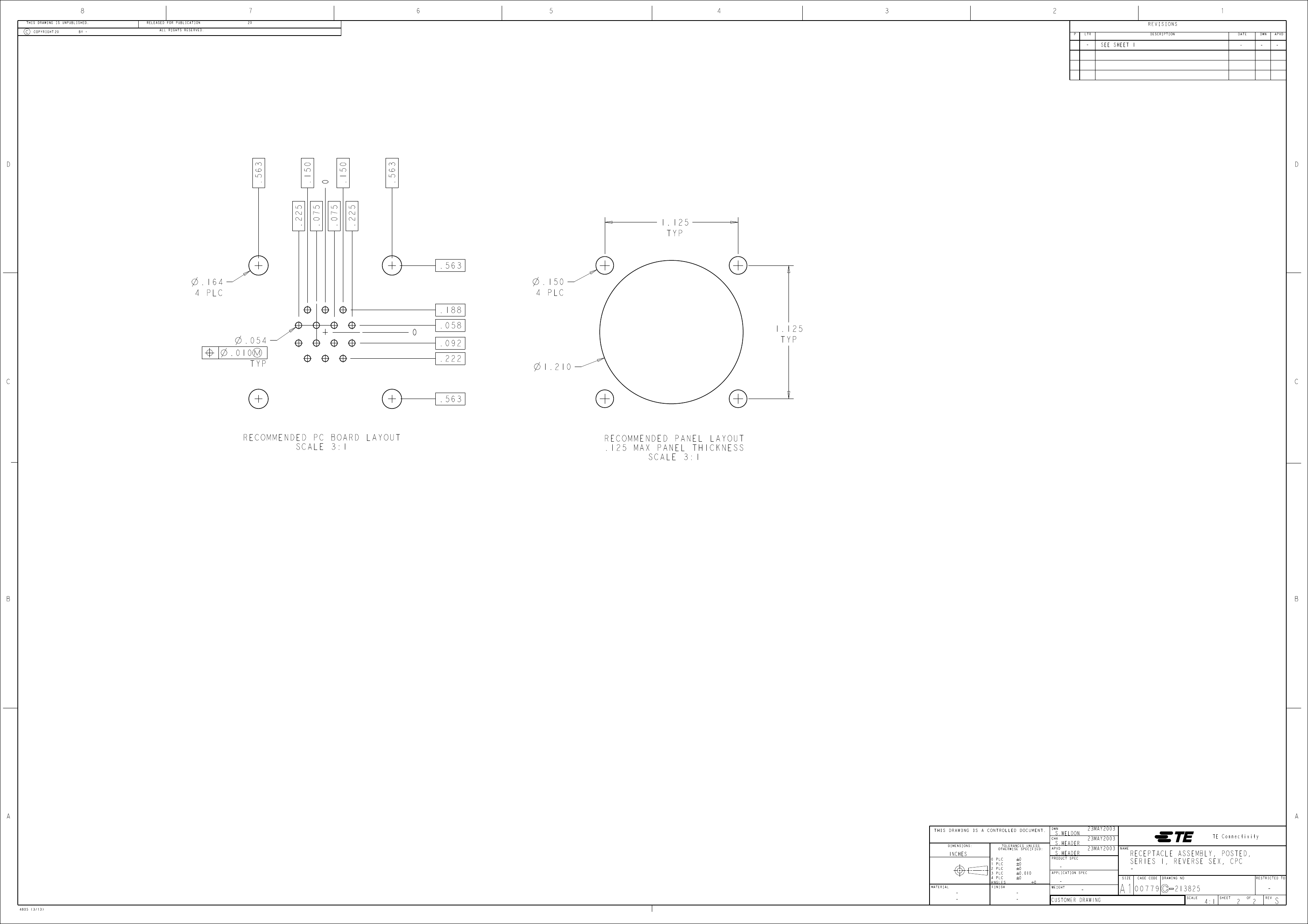

1-213825-5 Related Products

	1-213825-5	1-213825-7	213825-1	213825-4	1-213825-4
Description	conn cpc rcpt 14pos	conn cpc rcpt 14pos	conn rcpt 14pos tin rev	conn rcpt 14pos tin rev	conn cpc rcpt 14pos
Standard Package	24	192	24	96	96
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Circular Connectors	Circular Connectors	Circular Connectors	Circular Connectors	Circular Connectors
Packaging	Tray	Tray	Tray	Tray	Tray
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	14	14	14	14	14
Shell Size - Inse	17-14	17-14	17-14	17-14	17-14
Mounting Type	Panel Mount, Flange	Panel Mount, Flange	Panel Mount, Flange	Panel Mount, Flange	Panel Mount, Flange
Terminati	Solde	Solde	Solde	Solde	Solde
Fastening Type	Threaded	Threaded	Threaded	Threaded	Threaded
Orientati	A	A	A	A	A
Shell Material, Finish	Nyl	Nyl	Nyl	Nyl	Nyl
Contact Finish	Ti	Ti	Tin-Lead	Tin-Lead	Ti
Contact Finish Thickness	100µin (2.54µm)	100µin (2.54µm)	100µin (2.54µm)	100µin (2.54µm)	100µin (2.54µm)
Current Rating	13A	13A	13A	13A	13A
Voltage - Rated	600VAC/DC	600VAC/DC	600VAC/DC	600VAC/DC	600VAC/DC
Operating Temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Mating Products	-	A99538-ND - CONN PLUG CPC 14POS FREE HANGINGA1358-ND - CONN PLUG CPC 14POS REV SER 1	A99538-ND - CONN PLUG CPC 14POS FREE HANGINGA1358-ND - CONN PLUG CPC 14POS REV SER 1	A99538-ND - CONN PLUG CPC 14POS FREE HANGINGA1358-ND - CONN PLUG CPC 14POS REV SER 1	-
