173-E25-211-001 datasheet, PDF

173-E25-211-001: Descriptionconn db25 fmale .283" R/A chrome; CategoryThe connector; File Size163KB，2 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

173-E25-211-001 Overview

conn db25 fmale .283" R/A chrome

Parameter Name	Attribute value
Datasheets

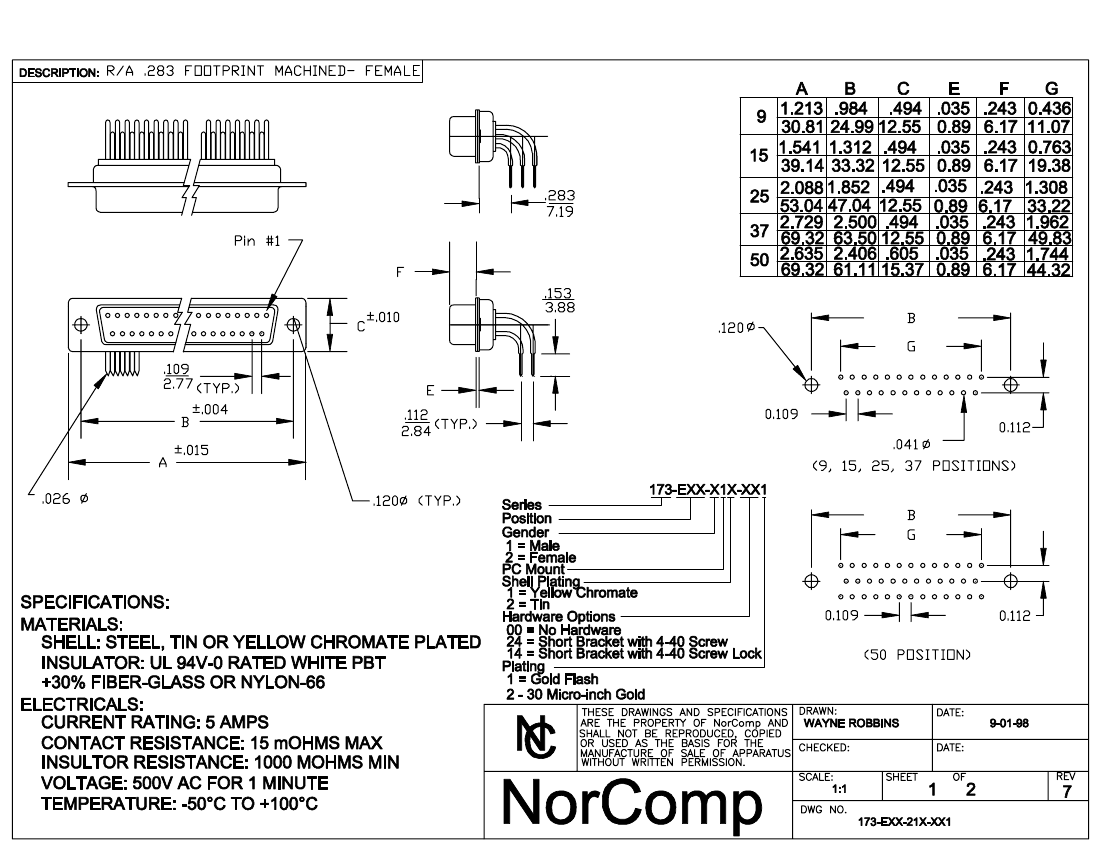

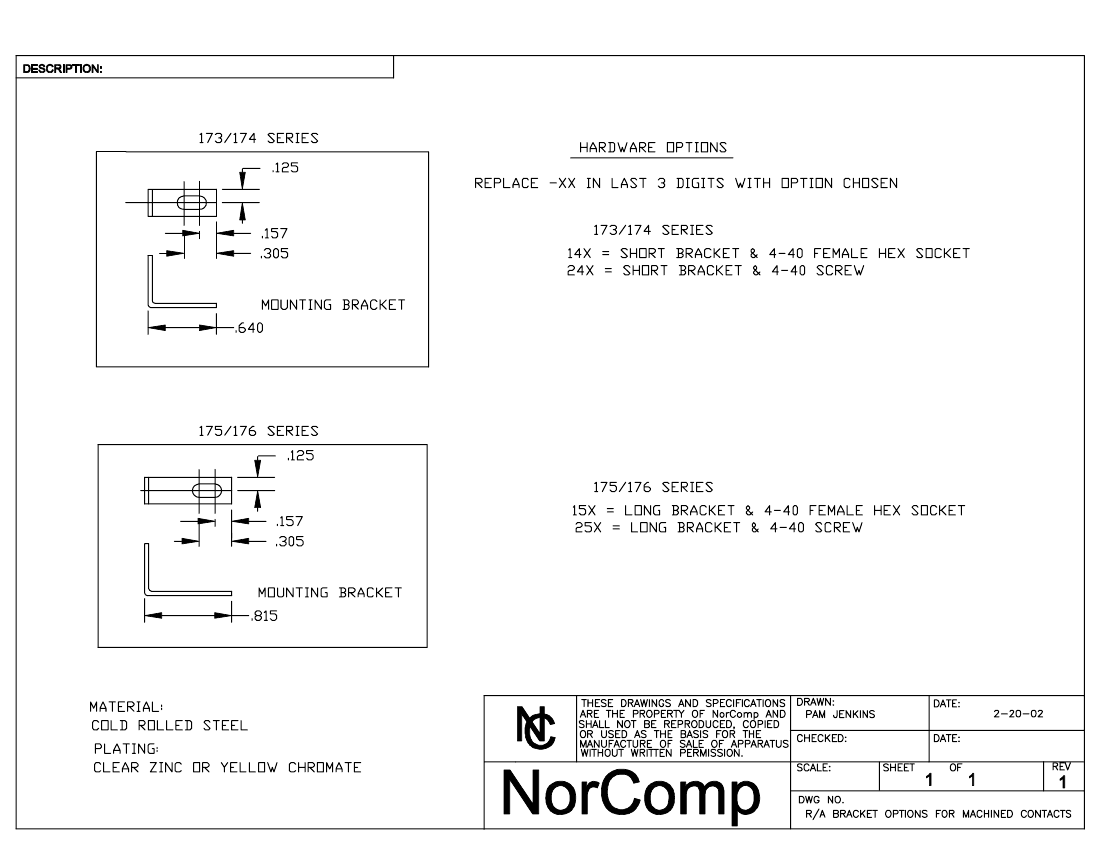

173-Exx-21x-xx1
Product Photos
174-E25-211R001, 174-E25-211-001,
PCN Obsolescence/ EOL
173/174/175 Series 20/Aug/2014
Standard Package	50
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	-
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	25
Number of Rows	2
Shell Size, Connector Layou	3 (DB, B)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Housing/Shell (Unthreaded)
Terminati	Solde
Features	-
Shell Material, Finish	Steel, Yellow Chromate Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-50°C ~ 100°C
Voltage Rating	-
Current Rating	5A
Housing Material	Polybutylene Terephthalate (PBT)
Col	White
Other Names	1173-25FE142E09F142E09F-ND

	173-E25-211-001	173-E15-211-141
Description	conn db25 fmale .283" R/A chrome	conn db15 fmale .283" R/A chrome
Standard Package	50	28
Category	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	25	15
Number of Rows	2	2
Shell Size, Connector Layou	3 (DB, B)	2 (DA, A)
Contact Type	Signal	Signal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Flange Feature	Housing/Shell (Unthreaded)	Mating Side
Terminati	Solde	Solde
Shell Material, Finish	Steel, Yellow Chromate Plated	Steel, Yellow Chromate Plated
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Operating Temperature	-50°C ~ 100°C	-50°C ~ 100°C
Current Rating	5A	5A
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Col	White	White
Other Names	1173-25FE142E09F142E09F-ND	138E09F138E09F-ND173-15FE
