Phycomp
Product specification
Surface-mount ceramic
multilayer antennas
FEATURES
Designed for 2.45 GHz ISM-band
Simplifies antenna circuitry
NiSn lead-free terminations
suitable for wave and reflow
soldering
Supplied in tape on reel.
APPLICATIONS
Telecommunications
Computing (PCs, printers, PDAs)
Wireless office data
communications including WLAN
Consumer electronics (wireless
headphones).
2.45 GHz ISM-band antenna for Bluetooth
and WLAN IEEE 802.11b (Long Shape)
DESCRIPTION
This 2.45 GHz ceramic multilayer
antenna has been designed to meet
the requirements of the Bluetooth
TM(1)
and IEEE 802.11b wireless
communications protocol. It consists
of a rectangular block of low-dielectric
ceramic material and is fabricated in a
water-based non-toxic process. The
antenna is capable of providing good
connectivity using near 50
W
microstrip directly onto the PC board.
ENVIRONMENTAL CARE
The foil making process
uses an environment-
friendly aqueous-solvent
technology that fully
complies with today’s green-product
design requirements. All terminations
are lead-free. Packing materials can
be recycled.
(1) Bluetooth is a trademark owned by
Telefonieaktiebolaget L M Ericsson,
Sweden.
QUICK REFERENCE DATA
DESCRIPTION
Center frequency
Bandwidth
Gain
VSWR
Polarization
Azimuth beamwidth
Impedance
Power dissipation
Operating temperature
Terminations
Resistance to soldering heat
Weight
100 MHz
0 dBi max.
2 max.
Linear
Omni-directional
50
W
1W
-55
to
+125 C
NiSn
260
C
for 10 s
0.16 g
VALUE
2.45, 2.60 and 2.70 GHz
2002 July 08 Rev.0
2
www.phycomp-components.com
Phycomp
Product specification
Surface-mount ceramic
multilayer antennas
MECHANICAL DATA
2.45 GHz ISM-band antenna for Bluetooth and
WLAN IEEE 802.11b (Long Shape)
W
S1
S1
C
L
C
F
T
F
Dimensions in mm
For dimensions see Table 1.
HBK100
Fig.1 Dimensional outline.
Physical dimensions
Table 1
L
–
Antenna dimensions
W
–
T
–
F
feed
termination
C
–
S
1
NC
solder
termination
Dimensions in millimetres
8.0
0.25
3.5
0.2
0.9
0.2
1.25
0.25
0.5 ±0.3
1.25
0.35
Device marking
CENTER
FREQUENCY
(GHZ)
2.45
2.60
2.70
MARKING
CODE
no marking
6
7
2002 July 08 Rev.0
3
www.phycomp-components.com
Phycomp
Product specification
Surface-mount ceramic
multilayer antennas
ELECTRICAL CHARACTERISTICS
DESCRIPTION
Center frequency
Bandwidth
Gain
VSWR
Polarization
Azimuth beamwidth
Impedance
Power dissipation
Operating temperature
Terminations
Resistance to soldering heat
FOOTPRINT DIMENSIONS
2.45 GHz ISM-band antenna for Bluetooth and
WLAN IEEE 802.11b (Long Shape)
VALUE
2.45, 2.60 and 2.70 GHz
100 MHz
0 dBi max.
2 max.
Linear
Omni-directional
50
W
1W
-55
to
+125 C
NiSn
260
C,
10 sec.
L
C
C
ANTENNA
F
S1
Dimensions in mm
HBK101
For dimensions see Table 2.
Fig.2 Recommended dimensions of solder lands.
Physical dimensions
Table 2
L
–
Recommended solder land pattern
F
feed pad
C
–
S
1
NC
mounting pad
Dimensions in millimetres
9.0
0.10
1.40
0.10
0.90
0.10
1.40
0.10
2002 July 08 Rev.0
4
www.phycomp-components.com
Phycomp
Product specification
Surface-mount ceramic
multilayer antennas
2.45 GHz ISM-band antenna for Bluetooth and
WLAN IEEE 802.11b (Long Shape)

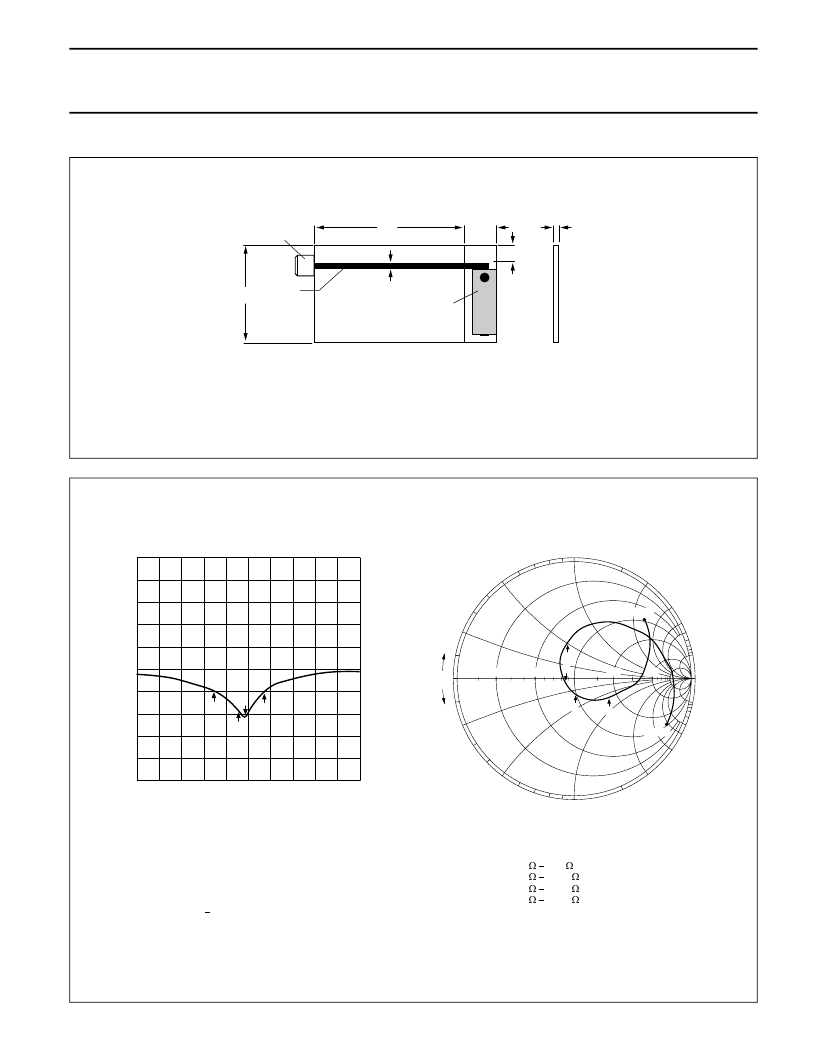

STANDARD TEST BOARD FOR RADIATION PATTERN AND SWR MEASUREMENTS
SMA
connector
23
5
2.6
0.8
15
50
Ω
transmisson
line
1.2
antenna
chip
Dimensions in mm
HBK104
Fig.3 Typical FR4 test board.
50
insertion loss (dB)
40
30
HBK105
50
25
100
2 GHz
20
10
0
−10
−20
−30
−40
−50
2.0
3
2
1
+
j
Ω
10
250
4
0
−
j
Ω
10
25
1
100
250
∞
4
Ω
10
2
3
3 GHz
250
25
100
HBK106
2.2
2.4
2.6
2.8
3.0
f (GHz)
50
CH1 Marker data:
Min.
BW: .225952238 GHz
Cent: 2.4551577144 GHz
Q: 10.866
1 loss:
-
21.413 dB.
Marker data:
1: 42.73
W
/
-
3.05
W
; f = 2.485 GHz
2: 47.69
W
/
-
11.76
W
; f = 2.455 GHz
3: 82.08
W
/
-
28.19
W
; f = 2.34 GHz
4: 37.24
W
/
-
25.78
W
; f = 2.568 GHz.
Fig.4 Typical SWR and characteristic impedance measurements.
2002 July 08 Rev.0
5
www.phycomp-components.com
