534245-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 534245-2

Preview

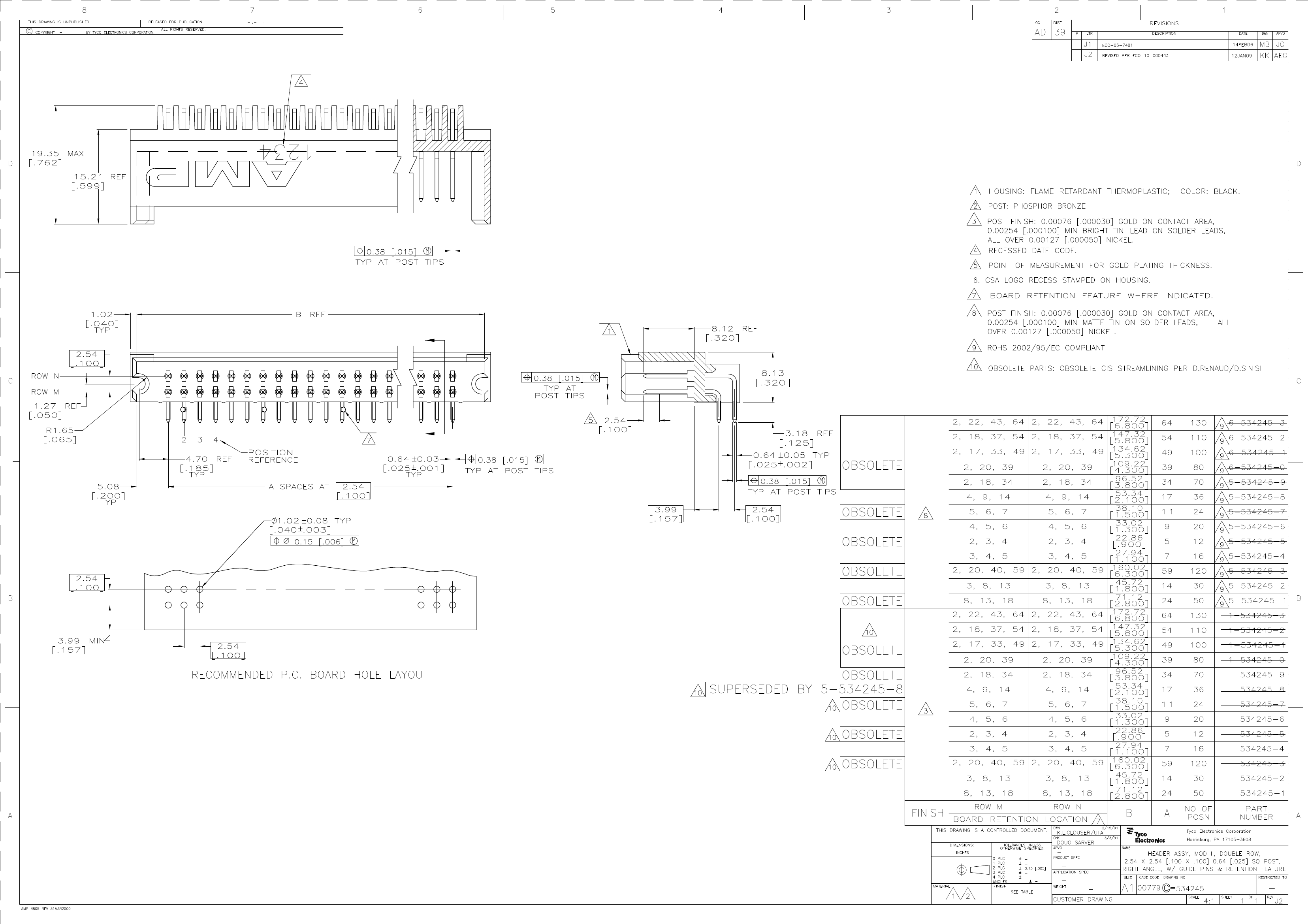

534245-2: Descriptionconn header 30pos R/A dual gold; CategoryThe connector; File Size177KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

534245-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	534245-2	-	-	View	Buy Now

534245-2 Overview

conn header 30pos R/A dual gold

534245-2 Parametric

Parameter Name	Attribute value
Datasheets
534245
RoHS Informati
534245-2 Statement of Compliance
3D Model
534245-2.pdf
Standard Package	11
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Tube
Connector Type	Shrouded
Number of Positions	30
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Height Stacking (Mating)	-
Molding Height Above Board	0.320" (8.11mm)
Contact Mating Length	0.320" (8.13mm)
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Features	-
Col	Black
Mating Products	A34325-ND - CONN RECEPT 30POS .100 RT/A DUALA34308-ND - CONN RECEPT 30POS .100 RT/A DUALA34307-ND - CONN RECEPT 30POS .100 RT/A DUALA26351-ND - CONN RECEPT 30POS .100 RT/A DUALA26352-ND - CONN RECEPT 30POS .100 RT/A DUALA26350-ND - CONN RECEPT 30POS .100 RT/A DUAL
Other Names	534245-2-NDA115360

Preview

Download Datasheet

View All

534245-2 Related Products

	534245-2	5-534245-4	5-534245-2	534245-4	534245-6
Description	conn header 30pos R/A dual gold	conn header .100" 16pos R/A AU	conn header .100" 30pos R/A AU	conn header .100" 16pos R/A AU	conn header 20pos DL R/A gold
Standard Package	11	408	264	136	105
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Tube	Tube	Tube	Tube	Tube
Connector Type	Shrouded	Shrouded	Shrouded	Shrouded	Shrouded
Number of Positions	30	16	30	16	20
Number of Positions Loaded	All	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Molding Height Above Board	0.320" (8.11mm)	0.320" (8.11mm)	0.320" (8.11mm)	0.320" (8.11mm)	0.320" (8.11mm)
Contact Mating Length	0.320" (8.13mm)	0.320" (8.13mm)	0.320" (8.13mm)	0.320" (8.13mm)	0.320" (8.13mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde	Solde
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black	Black
Mating Products	A34325-ND - CONN RECEPT 30POS .100 RT/A DUALA34308-ND - CONN RECEPT 30POS .100 RT/A DUALA34307-ND - CONN RECEPT 30POS .100 RT/A DUALA26351-ND - CONN RECEPT 30POS .100 RT/A DUALA26352-ND - CONN RECEPT 30POS .100 RT/A DUALA26350-ND - CONN RECEPT 30POS .100 RT/A DUAL	6-534975-5-ND - CONN RECEPT 16POS .100 R/A DUALA34302-ND - CONN RECEPT 16POS .100 RT/A DUAL	A34325-ND - CONN RECEPT 30POS .100 RT/A DUALA34308-ND - CONN RECEPT 30POS .100 RT/A DUALA34307-ND - CONN RECEPT 30POS .100 RT/A DUAL	A34302-ND - CONN RECEPT 16POS .100 RT/A DUAL1-534975-5-ND - CONN RECEPT 16POS .100 R/A DUALA26343-ND - CONN RECEPT 16POS .100 RT/A DUAL	A34323-ND - CONN RECEPT 20POS .100 RT/A DUALA34304-ND - CONN RECEPT 20POS .100 RT/A DUALA34303-ND - CONN RECEPT 20POS .100 RT/A DUALA26346-ND - CONN RECEPT 20POS .100 RT/A DUALA26344-ND - CONN RECEPT 20POS .100 RT/A DUALA26345-ND - CONN RECEPT 20POS .100 RT/A DUAL
