HTHG12062K4300AW

Description
RES,SMT,METAL FOIL,2.43K OHMS,.05% +/-TOL,-2.5,2.5PPM TC,1206 CASE
CategoryPassive components    The resistor
File Size2MB,7 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

HTHG12062K4300AW Overview

RES,SMT,METAL FOIL,2.43K OHMS,.05% +/-TOL,-2.5,2.5PPM TC,1206 CASE

HTHG12062K4300AW Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1222290479
package instructionSMT, 1206
Reach Compliance Codeunknown
Country Of OriginIsrael
ECCN codeEAR99
YTEOL10
structureChip
Manufacturer's serial numberHTHG
Number of terminals2
Maximum operating temperature240 °C
Minimum operating temperature-55 °C
Package height0.5 mm
Package length3.2 mm
Package formSMT
Package width1.57 mm
method of packingWaffle Pack
Rated power dissipation(P)0.033 W
resistance2430 Ω
Resistor typeFIXED RESISTOR
seriesHTHG
size code1206
technologyMETAL FOIL
Temperature Coefficient2.5 ppm/°C
Tolerance0.05%
HTHG (Z1 Foil Technology)
Ultra High Precision Z1 Foil Technology Gold Wire Bondable Chip
Resistor for Hybrid Circuits for High Temperature Applications up to
+240°C, Long Term Stability of 0.05%
FEATURES
Temperature coefficient of resistance (TCR):
±3 ppm/°C typical (- 55 °C to + 220 °C, + 25 °C ref.)
Resistance range: 5 to 100 k(for higher
or lower values, please contact VFR's application
engineering department)
Resistance tolerance: to ± 0.02 %
Connection method: gold wire bonding
Working power: to 150mW at + 220°C
Long term stability: to ± 0.05 % at + 240°C for 2000h, no
power
Load life stability: to 0.05% at + 220°C for 2000h at
working power
Bulk Metal Foil resistors are not restricted to standard
values; specific "as required" values can be supplied at no
extra cost or delivery (e.g. 1K2345 vs. 1K)
Thermal stabilization time < 1 s (nominal value achieved
within 10 ppm of steady state value)
Electrostatic discharge (ESD) at least to 25 kV
Non inductive, non capacitive design
Rise time: 1 ns effectively no ringing
Current noise: 0.010 µV (RMS)/Volt of applied voltage
(< - 40 dB)
Voltage coefficient: < 0.1 ppm/V
Non inductive: < 0.08 µH
Non hot spot design
Terminal finish: gold plated (lead (Pb)-free alloy)
quantities
available,
please
contact
Prototype
foil@vpgsensors.com
INTRODUCTION
Vishay Foil Resistors (VFR) introduces a new line of Ultra
Precision Bulk Metal
®
Z1 Foil Technology: hybrid chip
resistors, connected using gold wire bonding. The HTHG
series features two different layouts of chip designs
according to the sizes (see figure 3 and table 4). These new
types of hybrid chips were especially designed for high
temperature applications up to + 240°C
(1)
(working power: to
150mW at + 220°C), and include gold plated terminals.
The HTHG series is available in any value within the
specified resistance range. VFR's application engineering
department is available to advise and make
recommendations.
For non-standard technical requirements and special
applications, please contact
foil@vpgsensors.com.

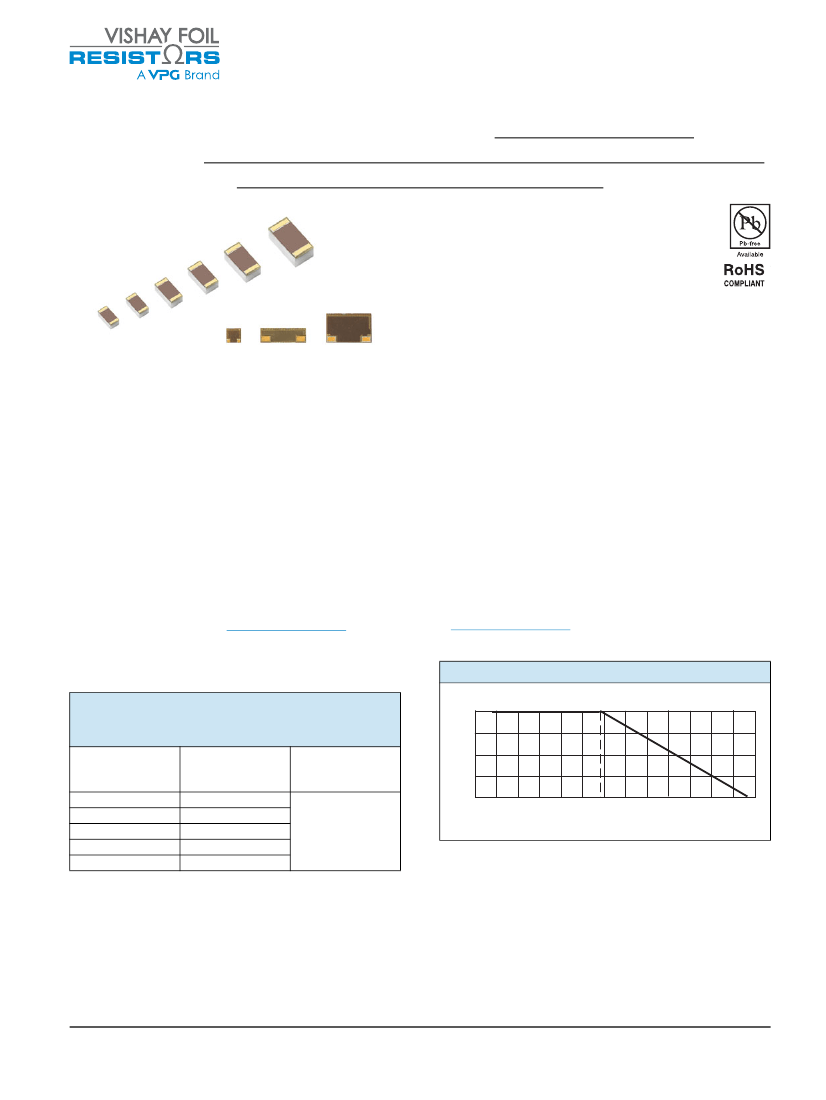

FIGURE 1 - POWER DERATING CURVE
TABLE 1 - TOLERANCE AND TCR VS.
RESISTANCE VALUE
(1)(2)
(- 55 °C to + 220 °C, + 25 °C Ref.)
RESISTANCE
VALUE
()
100to 100K
50to < 100
25to < 50
10to < 25
5to 10
(1)
(2)
Percent of Rated Power
-55°C
100
75
50
25
0
-75
+70°C
TOLERANCE
(%)
± 0.02
± 0.05
± 0.1
± 0.25
± 0.5
TCR Typical
(ppm/°C)
-50
-25
0
+25
+50
+240
+75 +100 +125 +150 +175 +200 +225 +250
±3
Ambient Temperature (°C)
Notes
Performances obtained with ceramic PCB.
For tighter performances or non-standard values up to 150 k,
please contact VFR's application engineering department by
sending an e-mail to the address in the footer below.
Document Number: 63221
Revision: 13-Oct-15
For any questions, contact
foil@vpgsensors.com
www.vishayfoilresistors.com
1
