RJHSE508108 datasheet, PDF - EEWORLD Datasheet

RJHSE508108: Descriptionconn mod jack R/A 8p8c; CategoryThe connector; File Size312KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RJHSE508108 Overview

conn mod jack R/A 8p8c

Parameter Name	Attribute value
Datasheets

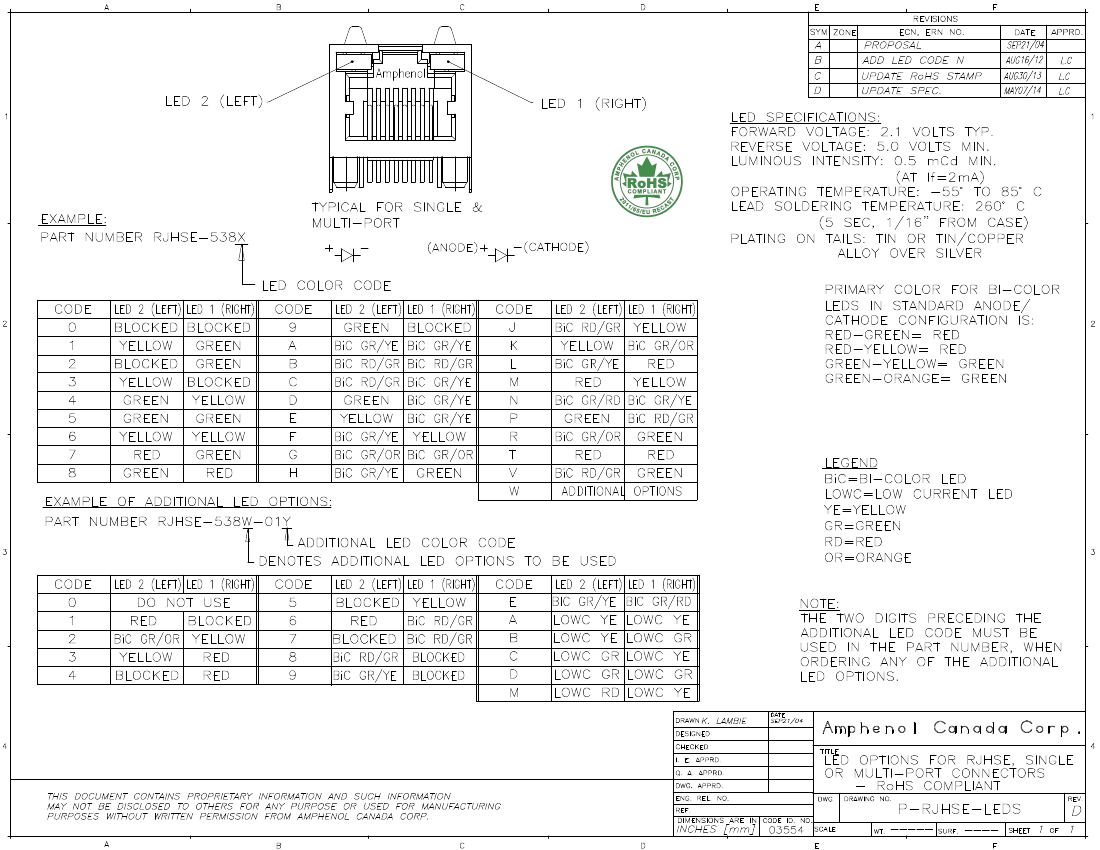

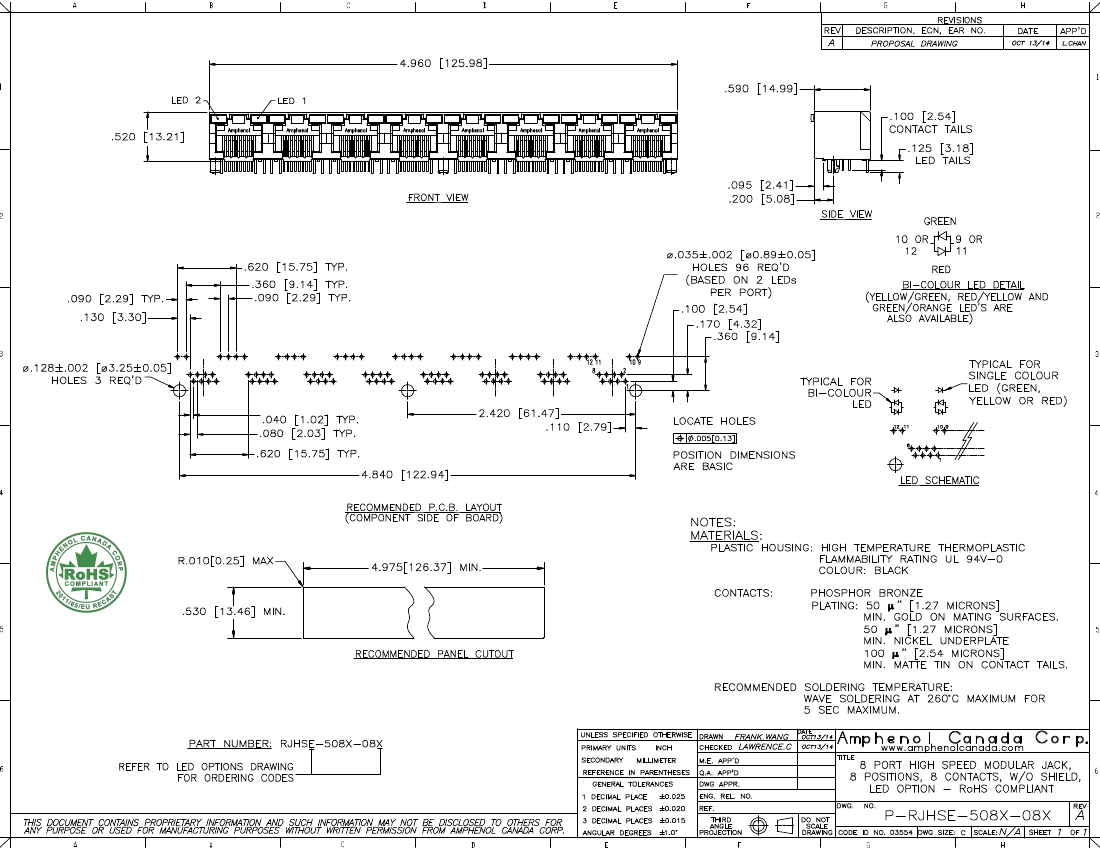

RJHSE-508x-08 Drawing
Product Photos
RJHSE508108
Catalog Drawings
RJ45 Series Right Angle
Standard Package	4
Category	Connectors, Interconnects
Family	Modular Connectors - Jacks
Packaging	Tray
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Ports	8
Number of Rows	1
Mounting Type	Through Hole
Orientati	90° Angle (Right)
Terminati	Solde
Shielding	Unshielded
Ratings	Cat5
Features	Board Lock
LED Col	Yellow - Gree
Ingress Protecti	-
Tab Directi	U
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Housing Material	Thermoplastic
Operating Temperature	-55°C ~ 85°C
Other Names	RJHSE-5081-08

	RJHSE508108	RJHSE508B08
Description	conn mod jack R/A 8p8c	conn mod jack R/A 8p8c
Standard Package	4	4
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Modular Connectors - Jacks	Modular Connectors - Jacks
Packaging	Tray	Tray
Connector Type	Jack	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Number of Ports	8	8
Number of Rows	1	1
Mounting Type	Through Hole	Through Hole
Orientati	90° Angle (Right)	90° Angle (Right)
Terminati	Solde	Solde
Shielding	Unshielded	Unshielded
Ratings	Cat5	Cat5
Features	Board Lock	Board Lock
LED Col	Yellow - Gree	Red, Green - Red, Gree
Tab Directi	U	U
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Finish	Gold	Gold
Contact Finish Thickness	50µin (1.27µm)	50µin (1.27µm)
Housing Material	Thermoplastic	Thermoplastic
Operating Temperature	-55°C ~ 85°C	-55°C ~ 85°C
Other Names	RJHSE-5081-08	RJHSE-508B-08
