1-1933476-3: Descriptioninsert rj45 jack TO idc conn; CategoryThe connector; File Size1MB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1933476-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1933476-3	-	-	View	Buy Now

1-1933476-3 Overview

insert rj45 jack TO idc conn

1-1933476-3 Parametric

Parameter Name	Attribute value
Datasheets
1933476 Drawing
Standard Package	12
Category	Connectors, Interconnects
Family	Keystone - Inserts
Style	Modul
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Interior Type (Adapter End)	IDC, Pressdown, Punchdown Block
Exterior Housing Material	Polycarbonate (PC)
Interior Housing Material	Polycarbonate (PC)
Exterior Housing Col	Viole
Interior Housing Col	-
Exterior Contact Material	Beryllium Coppe
Interior Contact Material	-
Exterior Contact Finish	Gold
Interior Contact Finish	-
Operating Temperature	-10°C ~ 60°C
Ratings	Cat5e
Specifications	-
Features	-
Exterior Contact Finish Thickness	50µin (1.27µm)
Interior Contact Finish Thickness	-
Other Names	A118208

Preview

Download Datasheet

View All

8

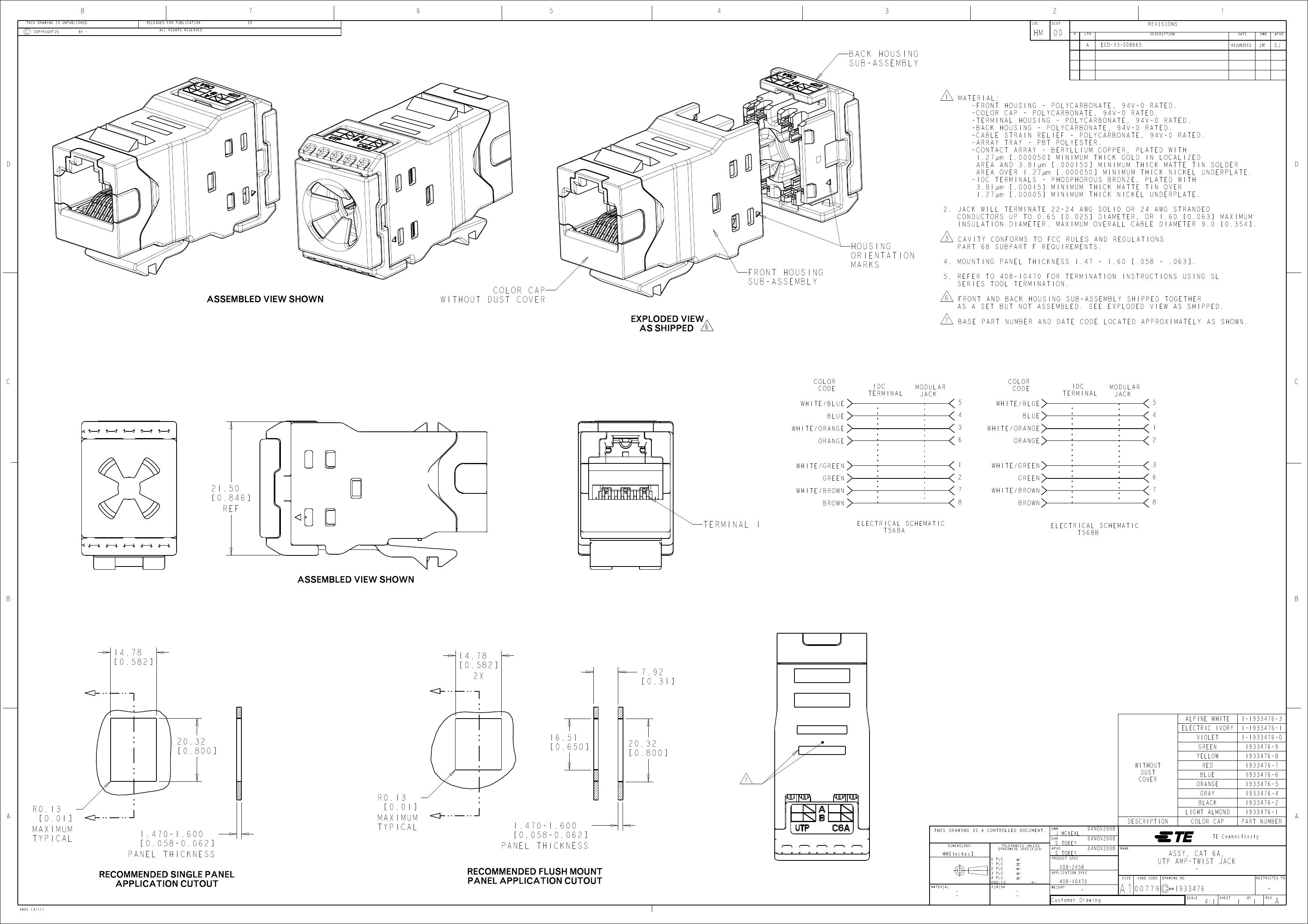

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

HM

BACK HOUSING

SUB-ASSEMBLY

00

A

ECO-13-008665

04JUN2013

JM

SJ

1

D

MATERIAL:

-FRONT HOUSING - POLYCARBONATE, 94V-0 RATED.

-COLOR CAP - POLYCARBONATE, 94V-0 RATED.

-TERMINAL HOUSING - POLYCARBONATE, 94V-0 RATED.

-BACK HOUSING - POLYCARBONATE, 94V-0 RATED.

-CABLE STRAIN RELIEF - POLYCARBONATE, 94V-0 RATED.

-ARRAY TRAY - PBT POLYESTER.

-CONTACT ARRAY - BERYLLIUM COPPER, PLATED WITH

1.27µm [.000050] MINIMUM THICK GOLD IN LOCALIZED

AREA AND 3.81µm [.000150] MINIMUM THICK MATTE TIN SOLDER

AREA OVER 1.27µm [.000050] MINIMUM THICK NICKEL UNDERPLATE.

-IDC TERMINALS - PHOSPHOROUS BRONZE, PLATED WITH

3.81µm [.00015] MINIMUM THICK MATTE TIN OVER

1.27µm [.00005] MINIMUM THICK NICKEL UNDERPLATE.

D

2. JACK WILL TERMINATE 22-24 AWG SOLID OR 24 AWG STRANDED

CONDUCTORS UP TO 0.65 [0.025] DIAMETER, OR 1.60 [0.063] MAXIMUM

INSULATION DIAMETER. MAXIMUM OVERALL CABLE DIAMETER 9.0 [0.354].

ASSEMBLED VIEW SHOWN

COLOR CAP

WITHOUT DUST COVER

FRONT HOUSING

SUB-ASSEMBLY

HOUSING

ORIENTATION

MARKS

3

CAVITY CONFORMS TO FCC RULES AND REGULATIONS

PART 68 SUBPART F REQUIREMENTS.

4. MOUNTING PANEL THICKNESS 1.47 - 1.60 [.058 - .063].

5. REFER TO 408-10470 FOR TERMINATION INSTRUCTIONS USING SL

SERIES TOOL TERMINATION.

6

FRONT AND BACK HOUSING SUB-ASSEMBLY SHIPPED TOGETHER

AS A SET BUT NOT ASSEMBLED. SEE EXPLODED VIEW AS SHIPPED.

BASE PART NUMBER AND DATE CODE LOCATED APPROXIMATELY AS SHOWN.

EXPLODED VIEW

AS SHIPPED

6

7

C

COLOR

CODE

WHITE/BLUE

BLUE

WHITE/ORANGE

ORANGE

WHITE/GREEN

IDC

TERMINAL

MODULAR

JACK

COLOR

CODE

5

4

3

6

1

2

7

8

WHITE/BLUE

BLUE

WHITE/ORANGE

ORANGE

WHITE/GREEN

GREEN

WHITE/BROWN

BROWN

IDC

TERMINAL

MODULAR

JACK

C

5

4

1

2

3

6

7

8

21.50

[ 0.846 ]

REF

TERMINAL 1

GREEN

WHITE/BROWN

BROWN

ELECTRICAL SCHEMATIC

T568A

ELECTRICAL SCHEMATIC

T568B

ASSEMBLED VIEW SHOWN

B

14.78

[ 0.582 ]

14.78

[ 0.582 ]

2X

7.92

[ 0.31 ]

20.32

[ 0.800 ]

16.51

[ 0.650 ]

ELECTRIC IVORY

ALPINE WHITE

VIOLET

1-1933476-3

1-1933476-1

1-1933476-0

1933476-9

1933476-8

1933476-7

1933476-6

1933476-5

1933476-4

1933476-2

1933476-1

20.32

[ 0.800 ]

7

WITHOUT

DUST

COVER

YELLOW

GREEN

RED

ORANGE

BLACK

GRAY

BLUE

A

R 0.13

[ 0.01 ]

MAXIMUM

TYPICAL

1.470 -1.600

[ 0.058 -0.062 ]

PANEL THICKNESS

R 0.13

[ 0.01 ]

MAXIMUM

TYPICAL

1.470 -1.600

[ 0.058 -0.062 ]

PANEL THICKNESS

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

J MCNEAL

S TOBEY

04NOV2008

NAME

DESCRIPTION

LIGHT ALMOND

COLOR CAP

PART NUMBER

A

TE Connectivity

MM[Inches]

APVD

RECOMMENDED SINGLE PANEL

APPLICATION CUTOUT

4805 (3/11)

RECOMMENDED FLUSH MOUNT

PANEL APPLICATION CUTOUT

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

PRODUCT SPEC

APPLICATION SPEC

108-2458

-

WEIGHT

408-10470

-

Customer Drawing

A1

00779

SIZE

CAGE CODE

ASSY, CAT 6A,

UTP AMP-TWIST JACK

-

DRAWING NO

RESTRICTED TO

1933476

SCALE

4:1

SHEET

1

OF

1

REV

-

A

1-1933476-3 Related Products

	1-1933476-3	1933476-4	1933476-5	1-1933476-0	1933476-2	1933476-9	1933476-7	1933476-1
Description	insert rj45 jack TO idc conn	insert rj45 jack TO idc conn	insert rj45 jack TO idc conn	insert rj45 jack TO idc conn	insert rj45 jack TO idc conn	insert rj45 jack TO idc conn	insert rj45 jack TO idc conn	insert rj45 jack TO idc conn
Standard Package	12	12	12	12	12	12	12	12
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Keystone - Inserts	Keystone - Inserts	Keystone - Inserts	Keystone - Inserts	Keystone - Inserts	Keystone - Inserts	Keystone - Inserts	Keystone - Inserts
Style	Modul	Modul	Modul	Modul	Modul	Modul	Modul	Modul
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)	Modular Jack 8p8c (RJ45, Ethernet)	Modular Jack 8p8c (RJ45, Ethernet)	Modular Jack 8p8c (RJ45, Ethernet)	Modular Jack 8p8c (RJ45, Ethernet)	Modular Jack 8p8c (RJ45, Ethernet)	Modular Jack 8p8c (RJ45, Ethernet)	Modular Jack 8p8c (RJ45, Ethernet)
Interior Type (Adapter End)	IDC, Pressdown, Punchdown Block	IDC, Pressdown, Punchdown Block	IDC, Pressdown, Punchdown Block	IDC, Pressdown, Punchdown Block	IDC, Pressdown, Punchdown Block	IDC, Pressdown, Punchdown Block	IDC, Pressdown, Punchdown Block	IDC, Pressdown, Punchdown Block
Exterior Housing Material	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)
Interior Housing Material	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)
Exterior Housing Col	Viole	Gray	Orange	Viole	Black	Gree	Red	Almond
Exterior Contact Material	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe
Exterior Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Operating Temperature	-10°C ~ 60°C	-10°C ~ 60°C	-10°C ~ 60°C	-10°C ~ 60°C	-10°C ~ 60°C	-10°C ~ 60°C	-10°C ~ 60°C	-10°C ~ 60°C
Ratings	Cat5e	Cat6	Cat6	Cat5e	Cat6	Cat6	Cat6	Cat6
Exterior Contact Finish Thickness	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)
Other Names	A118208	A118314	A118315	A118206	A118313	A118319	A118317	A118312
