3-176891-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-176891-6

3-176891-6: Descriptionconn headr .049" 6pos smt tin; CategoryThe connector; File Size144KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-176891-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-176891-6	-	-	View	Buy Now

3-176891-6 Overview

conn headr .049" 6pos smt tin

3-176891-6 Parametric

Parameter Name	Attribute value
Datasheets

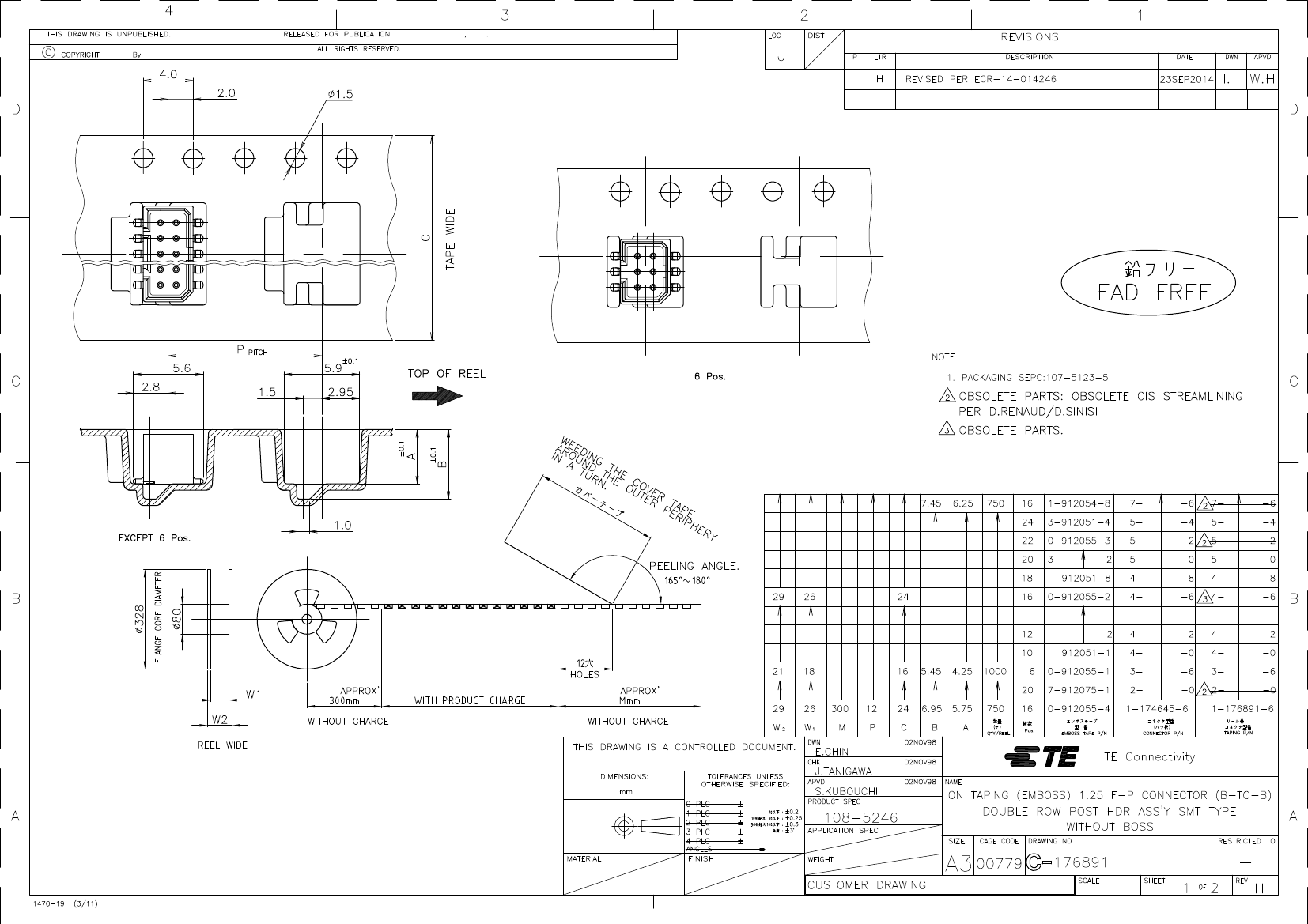

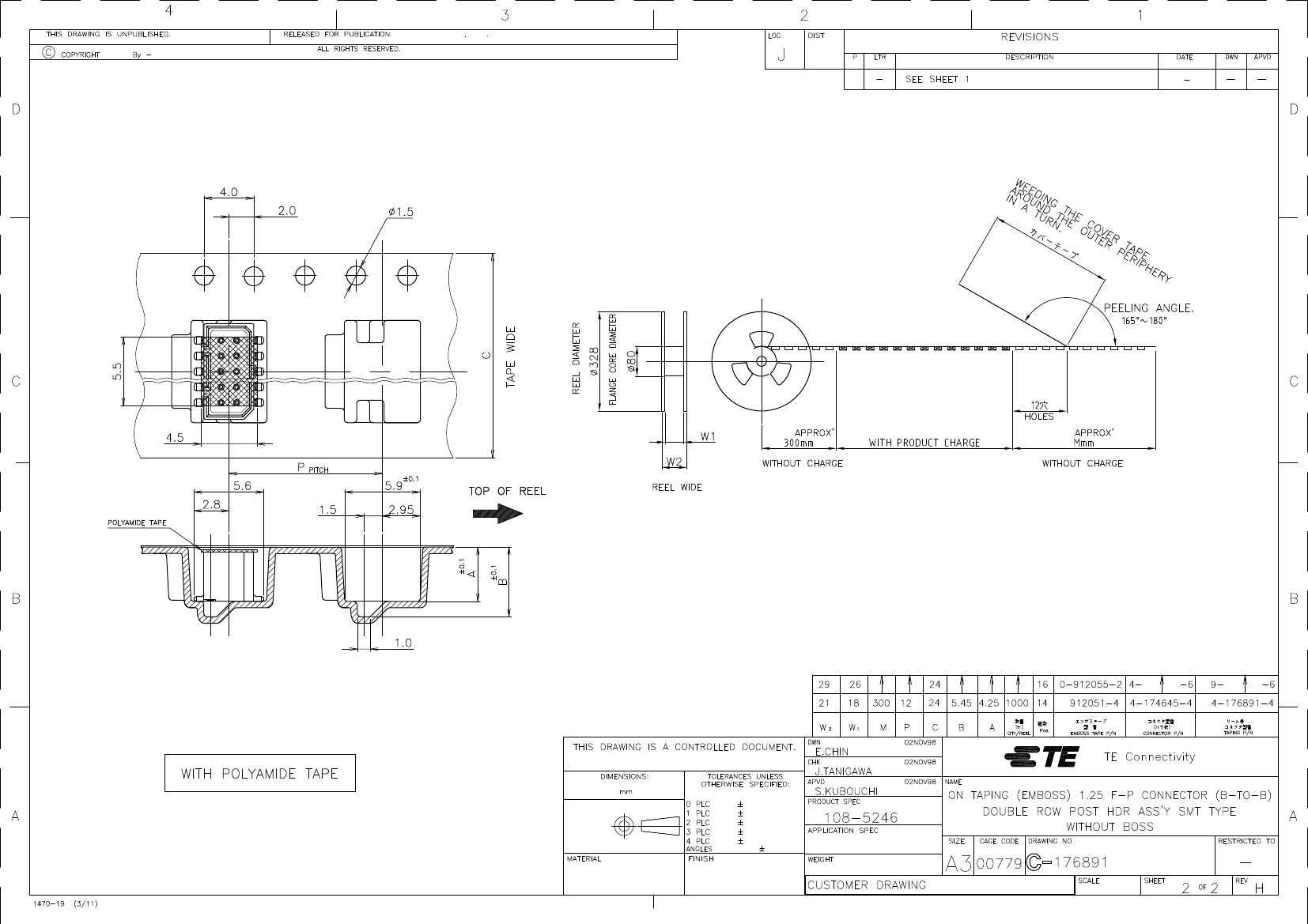

176891 Package Drawing
1.25mm FP Series Spec
Standard Package	10,000
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Tape & Reel (TR)
Connector Type	Shrouded
Number of Positions	6
Number of Positions Loaded	All
Pitch	0.049" (1.25mm)
Number of Rows	2
Row Spacing	0.049" (1.25mm)
Height Stacking (Mating)	-
Molding Height Above Board	0.156" (3.95mm)
Contact Mating Length	-
Mounting Type	Surface Mou
Terminati	Solde
Contact Finish	Ti
Contact Finish Thickness	-
Features	-
Col	Black

Preview

Download Datasheet

View All

3-176891-6 Related Products

	3-176891-6	4-176891-2	4-176891-4	5-176891-4	1-176891-6	4-176891-8	5-176891-0
Description	conn headr .049" 6pos smt tin	conn headr .049" 12pos smt tin	conn headr .049" 14pos smt tin	conn headr .049" 24pos smt tin	conn headr .049" 16pos smt tin	conn headr .049" 18pos smt tin	conn headr .049" 20pos smt tin
Standard Package	10,000	5,000	5,000	12,000	12,000	12,000	4,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Connector Type	Shrouded	Shrouded	Shrouded	Shrouded	Shrouded	Shrouded	Shrouded
Number of Positions	6	12	14	24	16	18	20
Number of Positions Loaded	All	All	All	All	All	All	All
Pitch	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)
Number of Rows	2	2	2	2	2	2	2
Row Spacing	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)
Molding Height Above Board	0.156" (3.95mm)	0.156" (3.95mm)	0.156" (3.95mm)	0.156" (3.95mm)	0.214" (5.45mm)	0.156" (3.95mm)	0.156" (3.95mm)
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Contact Finish	Ti	Ti	Ti	Ti	Ti	Ti	Ti
Col	Black	Black	Black	Black	Black	Black	Black
