0.65mm Pitch SMT Board to Board Connector
DF15 Series
Corresponding to automatic mounting
The vacuum area is secured the automatic mounting
machine for vacuum.
Figure 1
sFeatures
1. Compatibility of Miniaturization with Service Efficiency
This series considers the service efficiency to set the pitch to 0.65mm, corresponding to the 0.5mm pitch DF12 series. This connector
widely covers the definition of the mounting space or the board to board size together with the DF12 series.
2. Broad Variations in Board to Board Size
The board to board size is specified at 1mm step between 4mm and 8mm.
Header/Receptacle
DF15#(3.2)-*DP-0.65V
DF15#(4.2)-*DP-0.65V
DF15#(6.2)-*DP-0.65V
DF15#(0.8)-*DS-0.65V
4
5
7
DF15#(1.8)-*DS-0.65V
5
6
8
Combinnation with H size Combinnation with H size
Note1: The stacking height is determined by adding the header and receptacle to the figures followed by the product name
DF15#.
Note2: The stacking height (H size) doesn't include the soldering paste thickness.

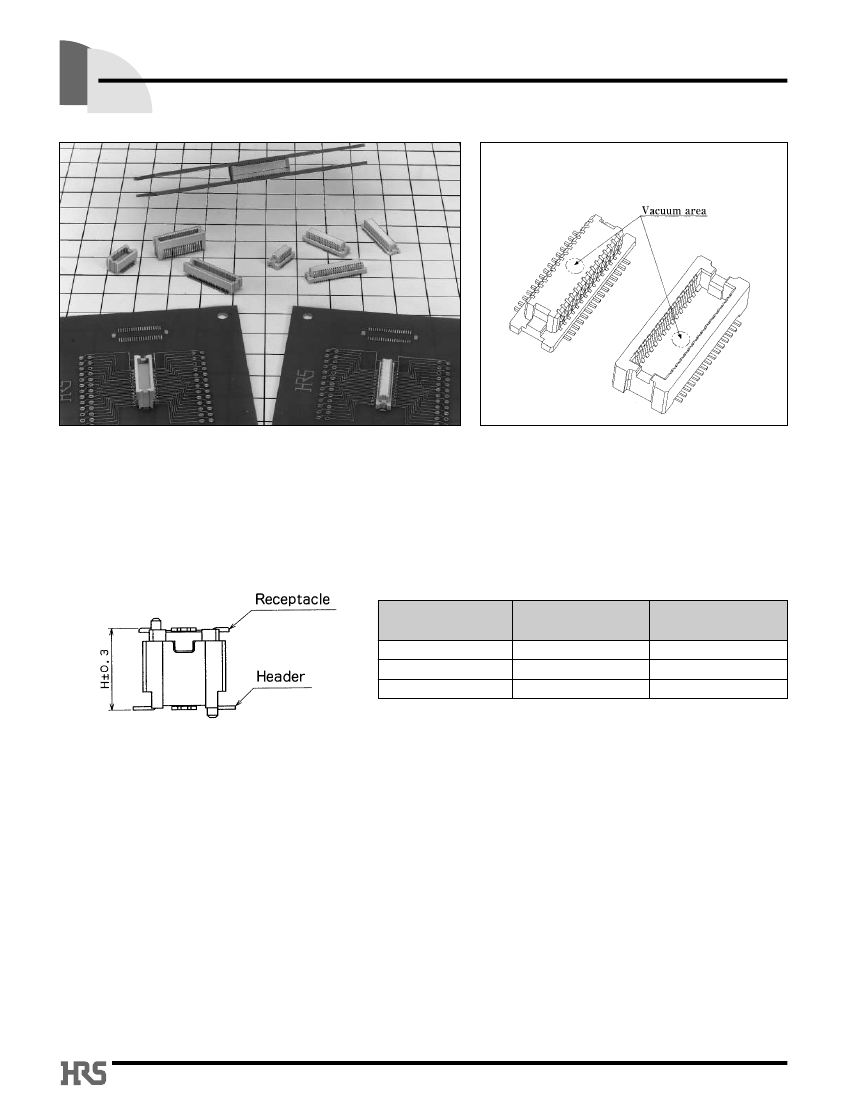

3. Correspond to Automatic Mounting
The connector has the vacuum area, which enables the automatic mounting by the embossed tape packaging.
4. Metal Fitting Available
The product including the metal fitting to prevent solder peeling is prepared, considering the mounting on FPC.
sApplications
Mobile phone, LCD(Liquid Crystal Display), MO(Optical Disk), Note PC
A286
sProduct
Specifications
Rating
Current rating : 0.3A
Operating Temperature Range :
–35 to +85ç
(Note 1.) Storage Temperature Range :
–10 to +60ç
(Note 2.)
Storage Humidity Range : 40
to
70% (Note 2.)
Condition
100V DC
150V AC/1 minute
100mA
Voltage rating : 50V AC Operating Humidity Range : 40
to
80%
Item
1. Insulation Resistance
2. Withstanding Voltage
3. Contact Resistance
4. Vibration
500M
ohms
min.
Specification
No flashover or insulation breakdown.
50m
ohms
max
No electrical discontinuity of 1µs or more
Contact resistance : 50m
ohms
max.
Insulation resistance: 500M
ohms
min.
Contact resistance: 50m
ohms
max.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
(-55ç: 30 minutes 5
to
35ç: 10 minutes
(-85ç:
30 minutes 5
to
35ç: 10 minutes) 5 cycles
50 cycles
5.
Humidity (Steady state)
Contact resistance: 50m
ohms
max. Insulation resistance:250M
ohms
min.
96 hours at temperature of 40ç and humidity of 90% to 95%
6. Temperature Cycle
7. Operating Life
8. Resistance to Soldering heat
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
sMaterial
Product
Receptacle
Part
Insulator
Contact
Metal fitting
Insulator
Header
Contact
Metal fitting
Material
Polyamide
Phosphor copper
Brass
Polyamide
Phosphor copper
Brass
Finish
Beige
Gold plating
Solder plating
Beige
Gold plating
Solder plating
Remarks
UL94V-0
–––––––
–––––––
UL94V-0
–––––––
–––––––
Note: The gold plated product of pin herder consists of a contact area of gold plating and lead of solder plating.
sOrdering
Information
Please determine the specific product. If needed, please select and order products from the product No. as listed on catalog page
A280~A284.
qReceptacle/Header
DF15
q
#
(
**
) -
*
DS - 0.65 V (
**
)
w
e
: DF15
r
t
y
u
i
r
Number of Contacts
20, 30, 40, 50
Fitting
K
Boss
K
K
t
Connector Type
DS : Double-row receptacle
DP : Double-row header
y
Contact Pitch
u
Contact type
V
: 0.8, 1.8
: 3.2, 4.2, 6.2
: Straight SMT type
i
(50) : Tube packaging
(51) : Embossed tape packaging
: 0.65mm
q
Series Name
w
Type Symbol
Symbol
None
A
B
C
e
Product height
Receptacle
Header
∞
K
∞
∞
∞
A287
sReceptacle
Without metal fitting
[Specific No.]
–
* *
,
(*
*)
(50) :Gold plating, tube packaging
(51) :Gold plating, embossed tape packaging
qProduct
Height: 0.8mm product
Part Number
CL No.
Number of Contacts
20
30
40
50
20
30
40
50
A
9.85
13.1
19.6
9.85
13.1
19.6
B
7.35
10.6
17.1
7.35
10.6
17.1
C
5.85
9.1
15.6
5.85
9.1
15.6
D
7.35
10.6
17.1
7.35
10.6
17.1
E
8.65
11.9
18.4
–
–
–
–
3
0.8
0.7
3
0.8
0.7
F
G
H
Tube Packaging Quantity( pcs.)
48
36
29
24
48
36
29
24
DF15A(0.8)-20DS-0.65V(
**
) 677-0012-4-**
DF15A(0.8)-30DS-0.65V(**) 677-0013-7-**
DF15A(0.8)-40DS-0.65V(
**
) 677-0014-0-**
DF15A(0.8)-50DS-0.65V(
**
) 677-0015-2-**
DF15C(0.8)-20DS-0.65V(
**
) 677-0032-1-**
DF15C(0.8)-30DS-0.65V(
**
) 677-0033-4-**
DF15C(0.8)-40DS-0.65V(
**
) 677-0034-7-**
DF15C(0.8)-50DS-0.65V(
**
) 677-0035-0-**
Unit: mm
Remarks
Without metal
fitting
With boss
16.35 13.85 12.35 13.85 15.15
16.35 13.85 12.35 13.85
Without metal
fitting
Without boss

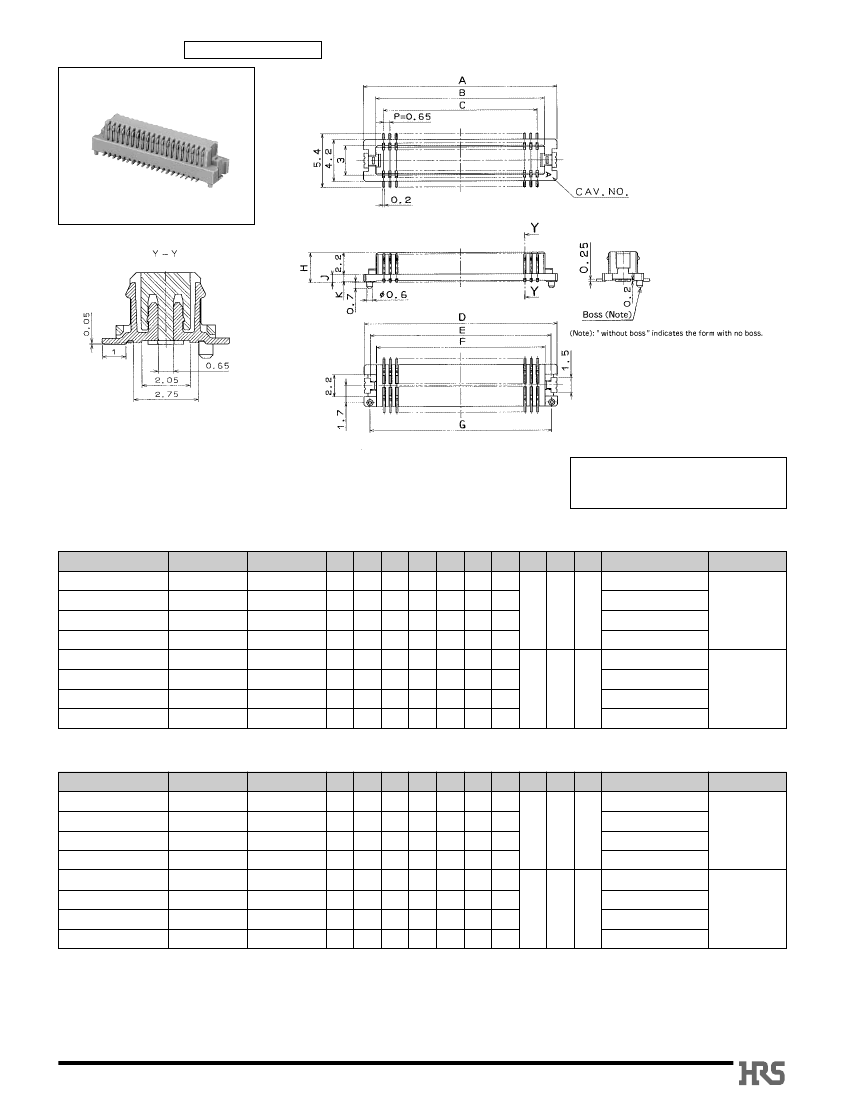

qProduct
Height: 1.8mm Product
Part Number
CL No.
Number of Contacts
20
30
40
50
20
30
40
A
9.85
13.1
19.6
9.85
13.1
B
7.35
10.6
17.1
7.35
10.6
C
5.85
9.1
15.6
5.85
9.1
D
7.35
10.6
17.1
7.35
10.6
E
8.65
11.9
18.4
–
–
–
4
1.8
1.7
4
1.8
1.7
F
G
H
Tube Packaging Quantity( pcs.)
48
36
29
24
48
36
29
24
DF15A(1.8)-20DS-0.65V(
**
) 677-0052-9-**
DF15A(1.8)-30DS-0.65V(
**
) 677-0053-1-**
DF15A(1.8)-40DS-0.65V(
**
) 677-0054-4-**
DF15A(1.8)-50DS-0.65V(
**
) 677-0055-7-**
DF15C(1.8)-20DS-0.65V(
**
) 677-0072-6-**
DF15C(1.8)-30DS-0.65V(
**
) 677-0073-9-**
DF15C(1.8)-40DS-0.65V(
**
) 677-0074-1-**
Unit: mm
Remarks
Without metal
fitting
With boss
16.35 13.85 12.35 13.85 15.15
16.35 13.85 12.35 13.85
Without metal
fitting
Without boss
–
50
19.6 17.1 15.6 17.1
DF15C(1.8)-50DS-0.65V(
**
) 677-0075-4-**
Note1: Please order the tube packaging product, multiplying the tube packaging number by an integer.
Note2: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A288
sReceptacle
With metal fitting
[Specific No.]
–
* *
,
(*
*)
(50) :Gold plating tube packaging
(51) :Gold plating embossed tape packaging
qProduct
Height: 0.8mm Product
Part Number
CL No.
Number of Contacts
20
30
40
50
20
30
40
50
A
B
C
D
E
F
G
H
J
K
Tube Packaging Quantity( pcs.)
48
3
0.8
0.7
36
29
24
48
3
0.8
0.7
36
29
24
DF15B(0.8)-20DS-0.65V(
**
) 677-0002-0-**
DF15B(0.8)-30DS-0.65V(
**
) 677-0003-3-**
DF15B(0.8)-40DS-0.65V(
**
) 677-0004-6-**
DF15B(0.8)-50DS-0.65V(
**
) 677-0005-9-**
DF15B(0.8)-20DS-0.65V(
**
) 677-0022-8-**
DF15B(0.8)-30DS-0.65V(
**
) 677-0023-0-**
DF15B(0.8)-40DS-0.65V(
**
) 677-0024-3-**
DF15B(0.8)-50DS-0.65V(
**
) 677-0025-6-**
9.85 7.35 5.85 9.65 8.45 7.35 8.65
13.10 10.6
9.1 12.9 11.7 10.6 11.9
16.35 13.85 12.35 16.15 14.95 13.85 15.15
19.60 17.1 15.6 19.4 18.2 17.1 18.4
9.85 7.35 5.85 9.65 8.45 7.35
13.10 10.6
9.1 12.9 11.7 10.6
16.35 13.85 12.35 16.15 14.95 13.85
19.60 17.1 15.6 19.4 18.2 17.1
–
–
–
–
Unit: mm
Remarks
With metal fitting
With boss
With metal fitting
Without boss
qProduct
Height: 1.8mm Product
Part Number
CL No.
Number of Contacts
20
30
40
50
20
30
40
A
B
C
D
E
F
G
H
J
K
Tube Packaging Quantity( pcs.)
48
4
1.8
1.7
36
29
24
48
4
1.8
1.7
36
29
24
DF15B(1.8)-20DS-0.65V(
**
) 677-0042-5-**
DF15B(1.8)-30DS-0.65V(
**
) 677-0043-8-**
DF15B(1.8)-40DS-0.65V(
**
) 677-0044-0-**
DF15B(1.8)-50DS-0.65V(
**
) 677-0045-3-**
DF15B(1.8)-20DS-0.65V(
**
) 677-0062-2-**
DF15B(1.8)-30DS-0.65V(
**
) 677-0063-5-**
DF15B(1.8)-40DS-0.65V(
**
) 677-0064-8-**
9.85 7.35 5.85 9.65 8.45 7.35 8.65
13.1 10.6
9.1 12.9 11.7 10.6 11.9
16.35 13.85 12.35 16.15 14.95 13.85 15.15
19.6 17.1 15.6 19.4 18.2 17.1 18.4
9.85 7.35 5.85 9.65 8.45 7.35
13.1 10.6
9.1 12.9 11.7 10.6
16.35 13.85 12.35 16.15 14.95 13.85
–
–
–
Unit: mm
Remarks
With metal fitting
With boss
With metal fitting
Without boss
50
19.6 17.1 15.6 19.4 18.2 17.1
–
DF15B(1.8)-50DS-0.65V(
**
) 677-0065-0-**
Note1: Please order the tube packaging product, by multiplying the packaging quantity by an integer.
Note2: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A289
sHeader
Without metal fitting
[Specific No.]
–
* *
,
(*
*)
(50) :Gold plating tube packaging
(51) :Gold plating embossed tape packaging

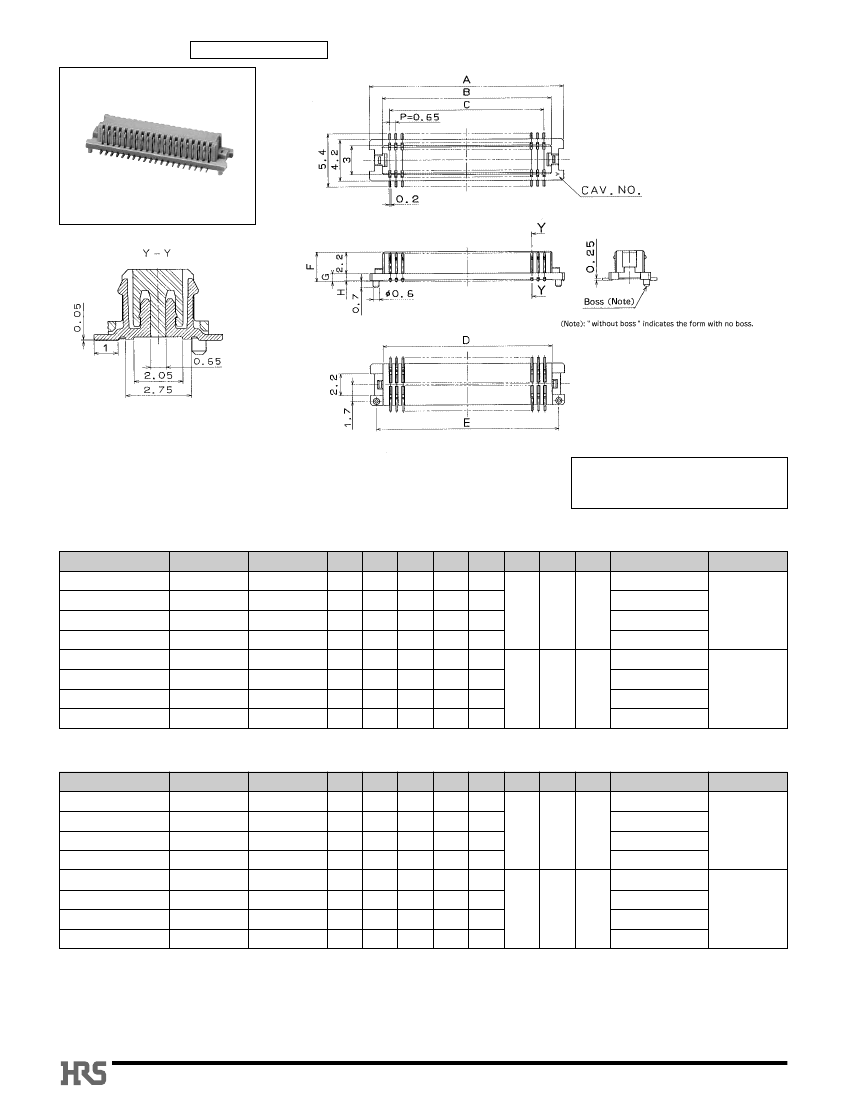

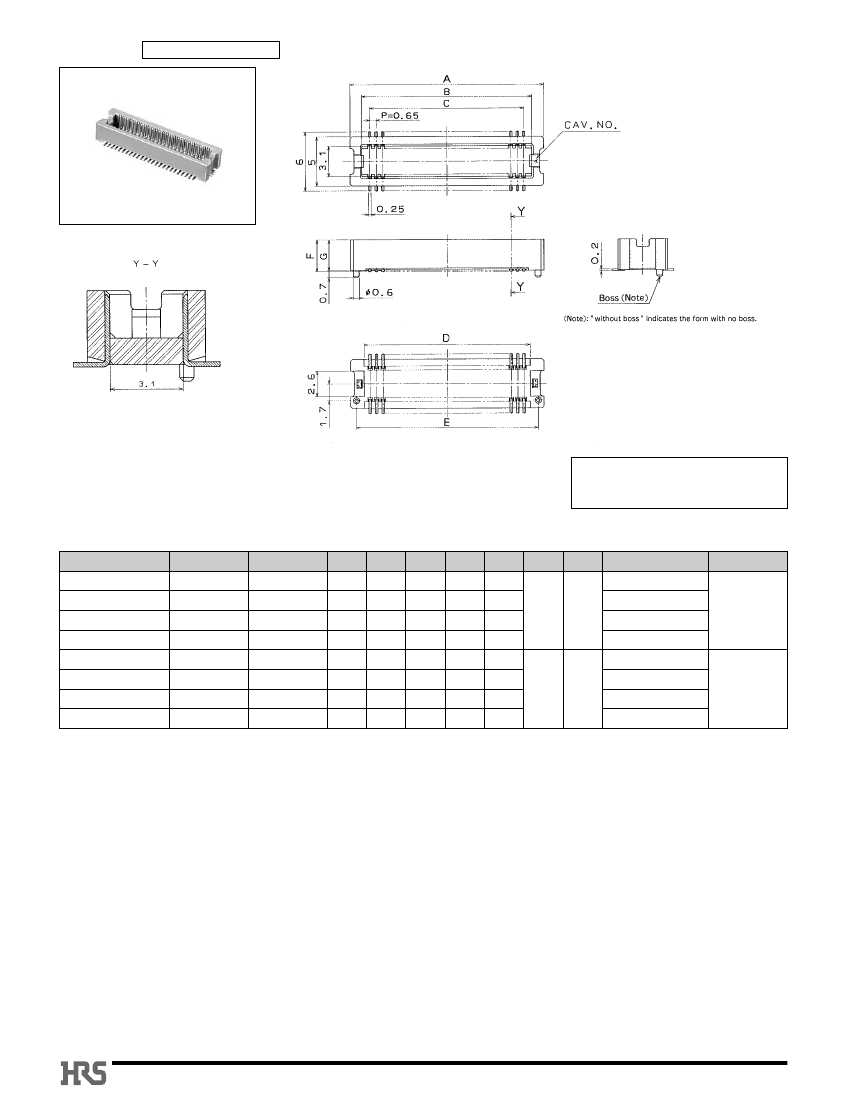

qProduct
Height: 3.2mm Product
Part Number
CL No.
Number of Contacts
20
30
40
50
20
30
40
50
A
9.85
13.1
19.6
9.85
13.1
19.6
B
7.45
10.7
17.2
7.45
10.7
17.2
C
5.85
9.1
15.6
5.85
9.1
15.6
D
7.05
10.3
16.8
7.05
10.3
16.8
E
8.65
11.9
18.4
–
–
–
–
3.2
3.1
3.2
3.1
F
G
Tube Packaging Quantity( pcs.)
48
36
29
24
48
36
29
24
DF15A(3.2)-20DP-0.65V(
**
) 677-0092-3-**
DF15A(3.2)-30DP-0.65V(
**
) 677-0093-6-**
DF15A(3.2)-40DP-0.65V(
**
) 677-0094-9-**
DF15A(3.2)-50DP-0.65V(
**
) 677-0095-1-**
DF15C(3.2)-20DP-0.65V(
**
) 677-0112-9-**
DF15C(3.2)-30DP-0.65V(
**
) 677-0113-1-**
DF15C(3.2)-40DP-0.65V(
**
) 677-0114-4-**
DF15C(3.2)-50DP-0.65V(
**
) 677-0115-7-**
Unit: mm
Remarks
Without metal
fitting
With boss
16.35 13.95 12.35 13.55 15.15
16.35 13.95 12.35 13.55
Without metal
fitting
Without boss
Note1: Please order the tube packaging product, , by multiplying the packaging quantity by an integer.
Note2: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A290
