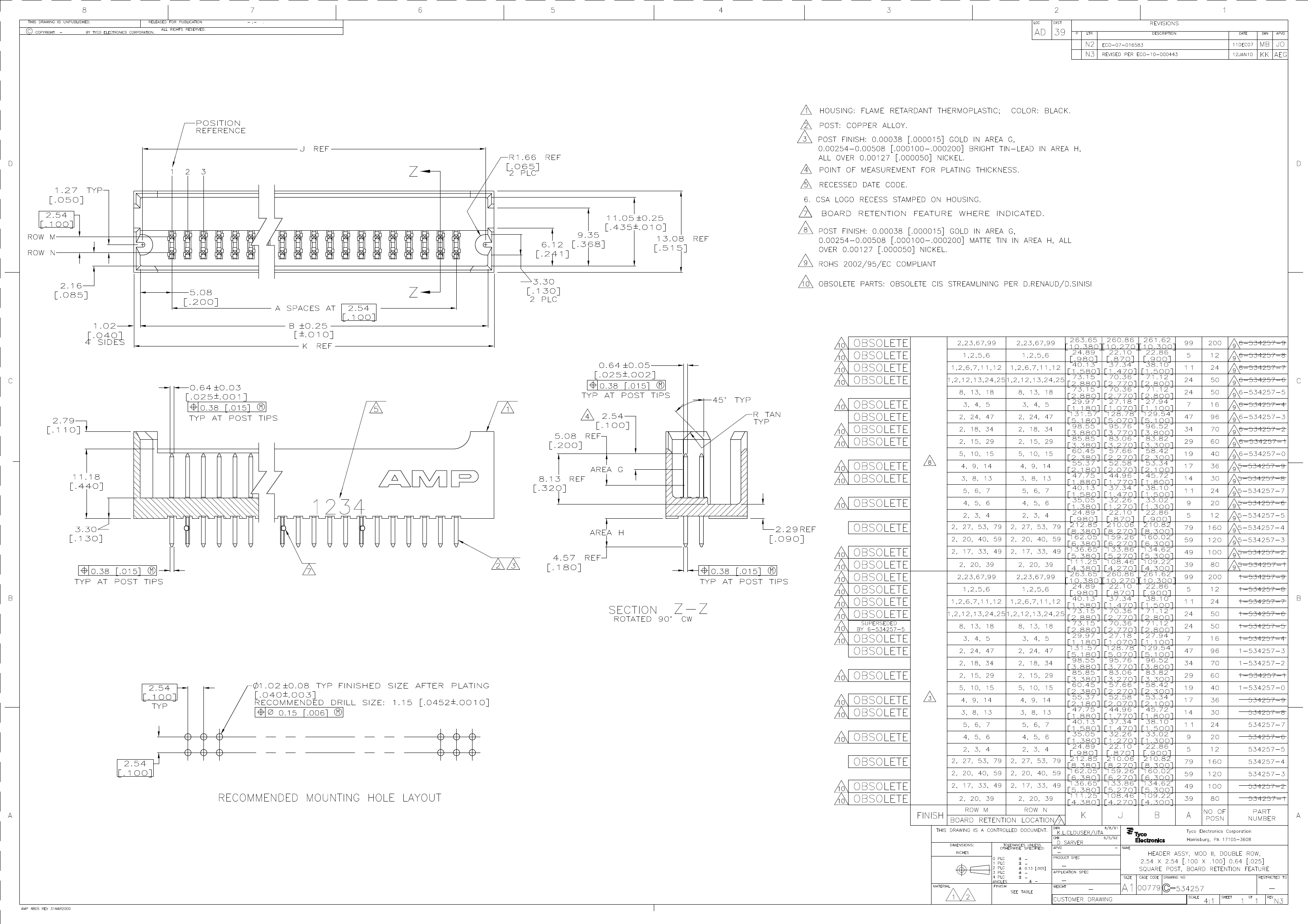

534257-7: Descriptionconn header 24pos DL vert gold; CategoryThe connector; File Size260KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

534257-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	534257-7	-	-	View	Buy Now

534257-7 Overview

conn header 24pos DL vert gold

534257-7 Parametric

Parameter Name	Attribute value
Datasheets
534257
RoHS Informati
534257-7 Statement of Compliance
Standard Package	240
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Tube
Connector Type	Shrouded
Number of Positions	24
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Height Stacking (Mating)	-
Molding Height Above Board	0.550" (13.97mm)
Contact Mating Length	-
Mounting Type	Through Hole
Terminati	Solde
Contact Finish	Gold
Contact Finish Thickness	15µin (0.38µm)
Features	-
Col	Black
Mating Products	5-532956-4-ND - CONN RECEPT 24POS .100 RT/A DUALA34324-ND - CONN RECEPT 24POS .100 RT/A DUALA34306-ND - CONN RECEPT 24POS .100 RT/A DUALA26349-ND - CONN RECEPT 24POS .100 RT/A DUAL534975-7-ND - CONN RECEPT 24POS .100 R/A DUALA26348-ND - CONN RECEPT 24POS .100 RT/A DUALA26347-ND - CONN RECEPT 24POS .100 RT/A DUAL

Preview

Download Datasheet

View All

534257-7 Related Products

	534257-7	5-534257-5	1-534257-0	6-534257-5
Description	conn header 24pos DL vert gold	conn header 12pos DL vert gold	conn header 40pos vert DL 2pc	conn header 50pos DL vert gold
Standard Package	240	400	1,280	560
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Tube	Tube	Tube	Tube
Connector Type	Shrouded	Shrouded	Shrouded	Shrouded
Number of Positions	24	12	40	50
Number of Positions Loaded	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Molding Height Above Board	0.550" (13.97mm)	0.550" (13.97mm)	0.550" (13.97mm)	0.550" (13.97mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)
Col	Black	Black	Black	Black
Mating Products	5-532956-4-ND - CONN RECEPT 24POS .100 RT/A DUALA34324-ND - CONN RECEPT 24POS .100 RT/A DUALA34306-ND - CONN RECEPT 24POS .100 RT/A DUALA26349-ND - CONN RECEPT 24POS .100 RT/A DUAL534975-7-ND - CONN RECEPT 24POS .100 R/A DUALA26348-ND - CONN RECEPT 24POS .100 RT/A DUALA26347-ND - CONN RECEPT 24POS .100 RT/A DUAL	5-534975-5-ND - CONN RECEPT 12POS .100 R/A DUAL	6-534204-2-ND - CONN RECEPT 40POS .100 RT/A DUALA34311-ND - CONN RECEPT 40POS .100 RT/A DUALA34310-ND - CONN RECEPT 40POS .100 RT/A DUAL1-534975-0-ND - CONN RECEPT 40POS .100 R/A DUALA26358-ND - CONN RECEPT 40POS .100 RT/A DUALA26357-ND - CONN RECEPT 40POS .100 RT/A DUALA26356-ND - CONN RECEPT 40POS .100 RT/A DUAL	6-534975-1-ND - CONN RECEPT 50POS .100 R/A DUALA115426-ND - CONN RCPT 50POS .100 VERT DUAL5-533009-8-ND - CONN RCPT 50POS DUAL R/A GOLD
