2-171825-7 datasheet, PDF - EEWORLD Datasheet

2-171825-7: Descriptionconn header vert 7pos pcb tin; CategoryThe connector; File Size74KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2-171825-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-171825-7	-	-	View	Buy Now

conn header vert 7pos pcb tin

Parameter Name	Attribute value
Datasheets

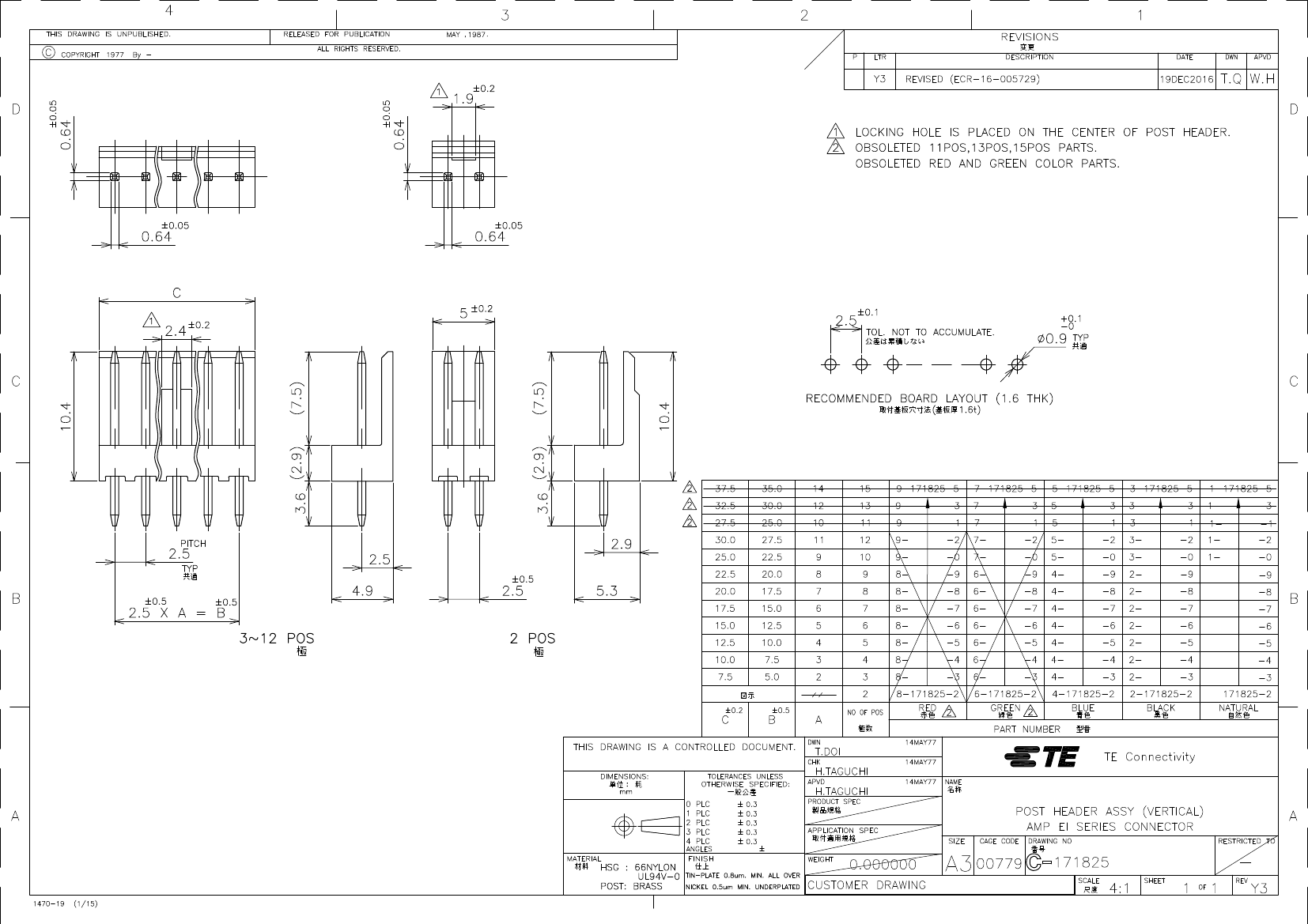

171825 Drawing
RoHS Informati
2-171825-7 Statement of Compliance
RoHS 2 Stateme
3D Model
2-171825-7.pdf
Standard Package	10,000
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded
Number of Positions	7
Number of Positions Loaded	All
Pitch	0.098" (2.50mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.295" (7.49mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Ti
Contact Finish Thickness	31.5µin (0.80µm)
Col	Black

	2-171825-7	171825-9	2-171825-3	2-171825-4	171825-6	2-171825-2
Description	conn header vert 7pos pcb tin	headers & wire housings 9P eis post hdr vert	conn header vert 3pos pcb tin	conn header vert 4pos pcb tin	post hdr assy vert amp EI conn	conn header vert 2pos pcb tin
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Number of Positions	7	9	3	4	6	2
Pitch	0.098" (2.50mm)	2.5 mm	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)
Number of Rows	1	1	1	1	1	1
Standard Package	10,000	-	24,000	20,000	500	28,000
Category	Connectors, Interconnects	-	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	-	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Contact Type	Male Pi	-	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Unshrouded	-	Header, Unshrouded	Header, Unshrouded	Header, Unshrouded	Header, Unshrouded
Number of Positions Loaded	All	-	All	All	All	All
Contact Mating Length	0.295" (7.49mm)	-	0.295" (7.49mm)	0.295" (7.49mm)	0.295" (7.49mm)	0.295" (7.49mm)
Mounting Type	Through Hole	-	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	-	Solde	Solde	Solde	Solde
Contact Finish	Ti	-	Ti	Ti	Ti	Ti
Contact Finish Thickness	31.5µin (0.80µm)	-	31.5µin (0.80µm)	31.5µin (0.80µm)	31.5µin (0.80µm)	31.5µin (0.80µm)
Col	Black	-	Black	Black	Natural	Black
