B03B-WPJSS-1(LF)(SN)

Description
conn hdr T-H vert 3pos nat 5mm
CategoryThe connector    The connector
File Size92KB,3 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric View All

B03B-WPJSS-1(LF)(SN) Overview

conn hdr T-H vert 3pos nat 5mm

B03B-WPJSS-1(LF)(SN) Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codeunknow
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN OVER COPPER
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch5 mm
Termination typeSOLDER
Total number of contacts3
UL Flammability Code94V-0
Base Number Matches1
WPJ
CONNECTOR

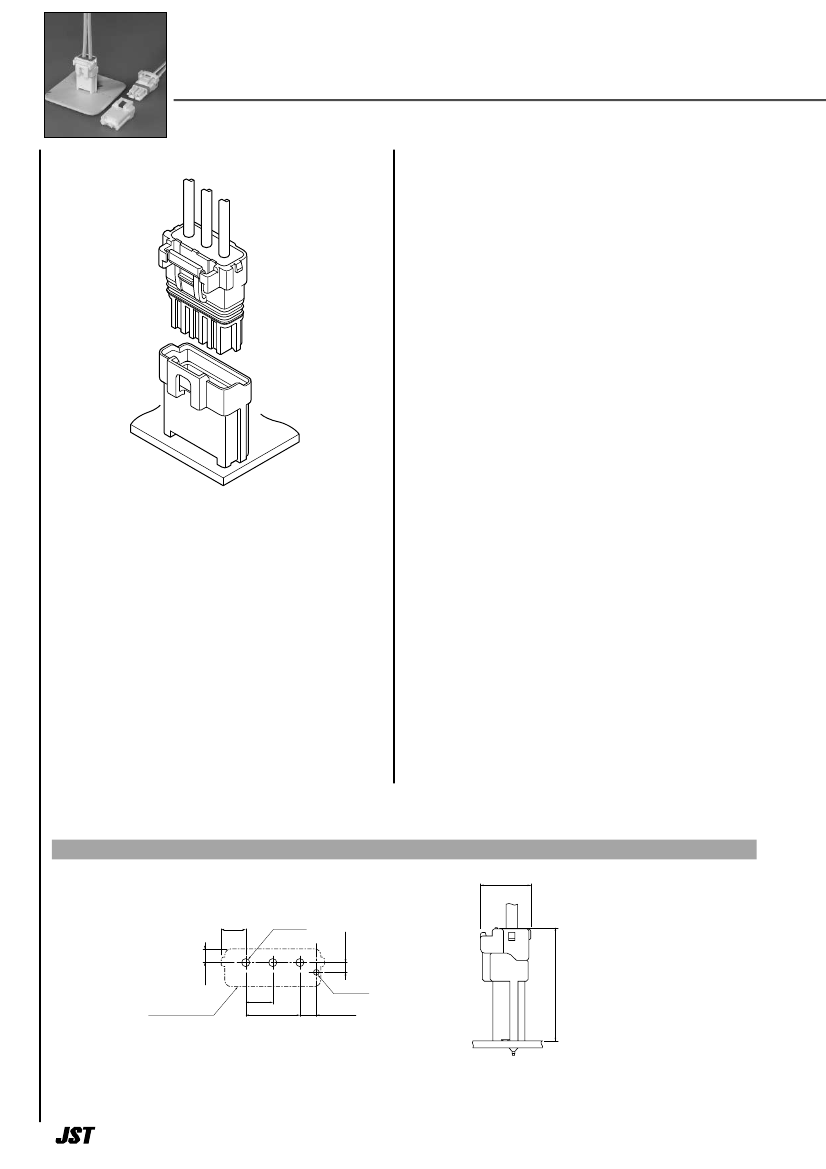

5.0mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 7 A AC, DC (AWG #18)
• Voltage rating: 300 V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,500 VAC/minute
• Applicable wire: Conductor size/ AWG #22 to #18
Insulation O.D./ 2.32 to 2.83 mm
1.52 to 2.03 mm
• Waterproof grade: Grade 7 ingress protection of JIS C 0920
(IPX7 of IEC 60529 )
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
Compact, Water Resist and Durable. This
connector for electrical connection can be
used on both waterproof and non-
waterproof conditions, depending on the
usage. Just by placing a rubber part will
change it into a water resistant connector.
Both conditions are using the same
header.
• Waterproof performance [Grade 7 ingress
protection of JIS C 0920 ( IPX7 of IEC 60529 ) ]
• Control key system
• Contacting part of contact is hardly deformed
• Inner locking system
• Compact design
Standards ––––––––––––––––––––––
1
Certified LR20812
2
R50073100
0
Recognized E60389
PC board layout and Assembly layout
11.2
(4.6)
φ1.5
+0.1
0
1.8
±0.05
(2.6)
φ1.1
+0.05
0
5
±0.05
Connector outline
10
±0.05
3.075
±0.05
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative:
±
0.05 mm for all centers.
3. The dimensions above should serve as a guideline. Contact JST for details.
1
25.3
