3-176314-0 datasheet, PDF - EEWORLD Datasheet

3-176314-0: Descriptionconn header 30pos dual vert tin; CategoryThe connector; File Size49KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-176314-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-176314-0	-	-	View	Buy Now

conn header 30pos dual vert tin

Parameter Name	Attribute value
Datasheets

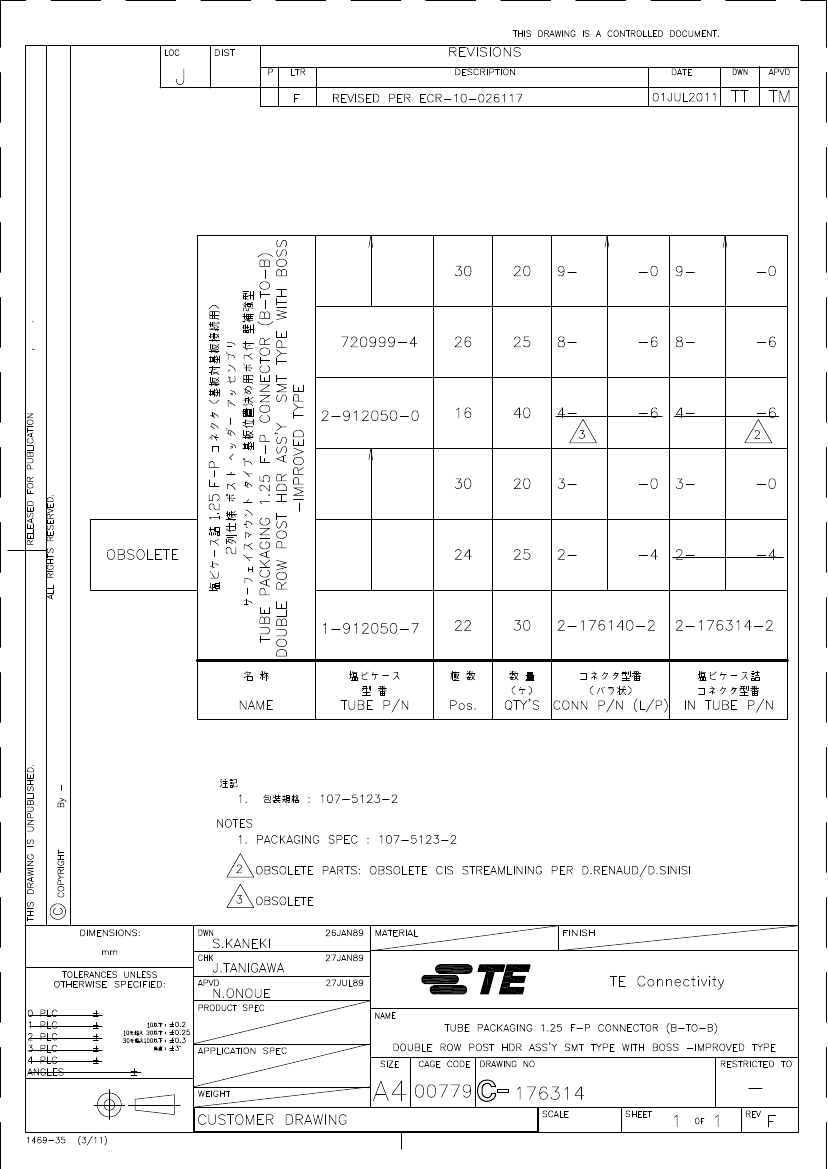

176314 Drawing
1.25mm FP Series Spec
3D Model
3-176314-0.pdf
3-176314-0.igs
3-176314-0.s
Standard Package	20
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Tube
Connector Type	Shrouded
Number of Positions	30
Number of Positions Loaded	All
Pitch	0.049" (1.25mm)
Number of Rows	2
Row Spacing	0.049" (1.25mm)
Height Stacking (Mating)	-
Molding Height Above Board	0.348" (8.85mm)
Contact Mating Length	-
Mounting Type	Surface Mou
Terminati	Solde
Contact Finish	Ti
Contact Finish Thickness	31.5µin (0.80µm)
Features	Board Guide
Col	Black

	3-176314-0
Description	conn header 30pos dual vert tin
Standard Package	20
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Tube
Connector Type	Shrouded
Number of Positions	30
Number of Positions Loaded	All
Pitch	0.049" (1.25mm)
Number of Rows	2
Row Spacing	0.049" (1.25mm)
Molding Height Above Board	0.348" (8.85mm)
Mounting Type	Surface Mou
Terminati	Solde
Contact Finish	Ti
Contact Finish Thickness	31.5µin (0.80µm)
Features	Board Guide
Col	Black
