TMS-105-01-G-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> TMS-105-01-G-D

TMS-105-01-G-D: Descriptionconn header 10pos .050" T/H gold; CategoryThe connector The connector; File Size200KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TMS-105-01-G-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TMS-105-01-G-D	-	-	View	Buy Now

TMS-105-01-G-D Overview

conn header 10pos .050" T/H gold

TMS-105-01-G-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Factory Lead Time	2 weeks
body width	0.196 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	TMS
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

F-218

HTMS–110–03–L–D–RA

HTMS–107–01–G–S

TMS–132–51–G–S

TMS–110–02–G–D

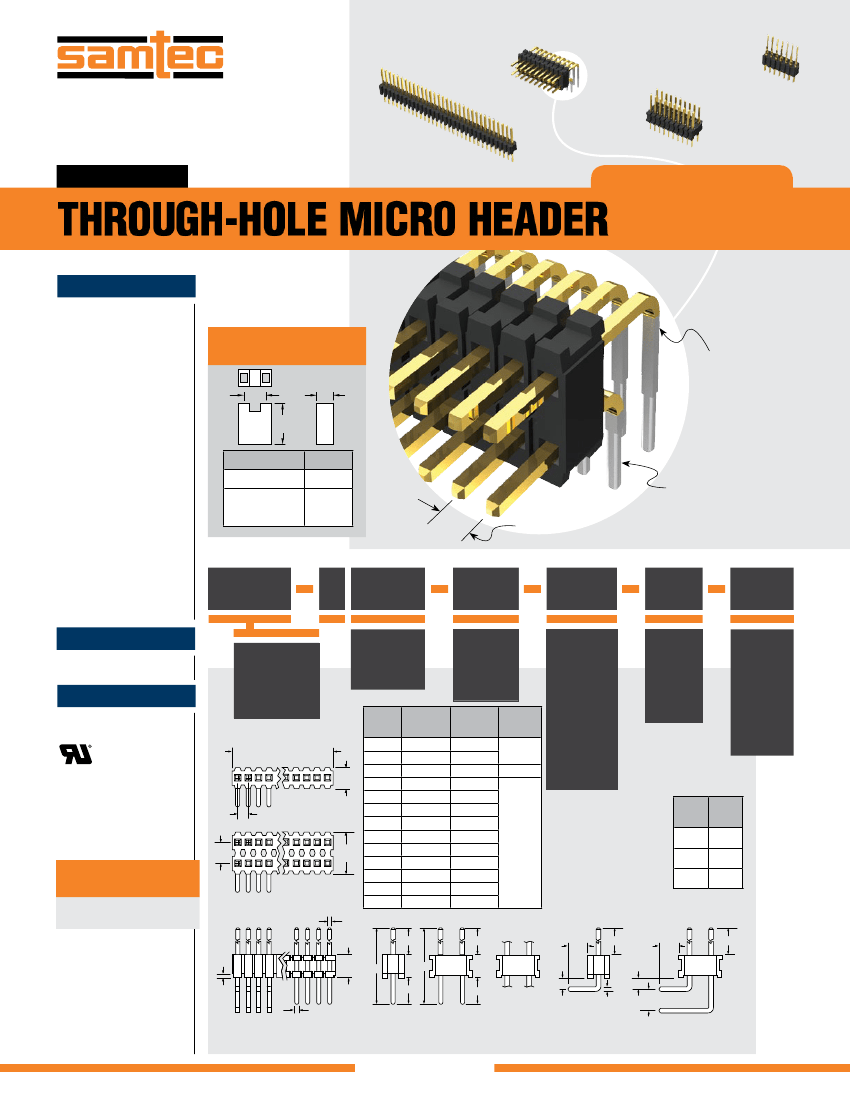

(1.27 mm) .050"

TMS, HTMS, SNM SERIES

THROUGH-HOLE MICRO HEADER

SPECIFICATIONS

For complete specifications

see www.samtec.com?TMS,

www.samtec.com?HTMS

or www.samtec.com?SNM

Insulator Material (TMS):

Black Liquid Crystal Polymer

Insulator Material (SNM):

Black Glass Filled Polyester

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating:

5 A per pin

(2 pins powered)

TMS mated with SMS

Operating Temp Range:

-55 °C to +105 °C with Tin;

-55 °C to +125 °C with Gold

Lead Size accepted (SNM):

(0.46 mm) .018" SQ

Insertion Depth (SNM):

(3.43 mm) .135" minimum

Max Processing Temp (SNM):

Not recommended for IR/VP

RoHS Compliant:

Yes

Important Note:

Style -02 does not mate

with SMS Series.

Mates with:

SMS, SLM, RSM

MICRO SHUNT

SNM SERIES

(2.54)

.100

(1.27)

.050

Choice of

through-hole

and right-angle.

See FTR Series

for surface mount

(3.30)

.130

Part No.

SNM–100–BK–T

Plating

Tin

10 µ"

SNM–100–BK–G

(0.25 µm)

Gold

Thirteen

terminal

styles

(1.27 mm x 2.54 mm)

.050" x .100" pitch

TYPE

STRIP

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

(3.05) .120

PLATING

OPTION

ROW

OPTION

PROCESSING

Lead-Free Solderable:

Yes

= Standard

TMS

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

= High Temp

HTMS

thru

T/H

LEAD

STYLE

–01

–02

–21

–51

–52

–53

–54

–55

–56

–57

–58

–59

–60

= 10 µ"

(0.25 µm)

Gold on post,

Matte Tin

on tail

= 10 µ"

(0.25 µm)

Gold on post,

Gold flash

on tail

–L

= Single

Row

= Double

Row

–S

= Right-

angle

–RA

–D

–“XXX”

= Polarized

Position

(Specify

position of

omitted pin)

–G

(1.27) .050 x No. of Positions

FILE NO. E111594

(11.43) .450 (5.84) .230

(8.13) .320 (2.54) .100

(10.41) .410 (4.83) .190

(10.80) .425 (5.21) .205

(12.83) .505 (7.24) .285

(14.10) .555 (8.51) .335

(15.49) .610 (9.91) .390

(15.88) .625 (10.29) .405

(16.51) .650 (10.92) .430

(17.91) .705 (12.32) .485

(19.18) .755 (13.59) .535

(20.96) .825 (15.37) .605

(2.48)

.098

(12.83) .505 (5.84) .230 (4.45) .175

(1.27) .050 TYP

100

LEAD

STYLE

(3.05) .120

(5.84)

.230

(2.54)

.100

(3.18)

.125

(2.54)

.100

–01

–02

–03

(4.98)

.196

ALSO AVAILABLE

(MOQ Required)

• Other platings

Contact Samtec.

(0.46)

.018

(2.54)

.100

(0.51)

.020

(0.51) .020 DIA

(3.56)

.140

(1.52)

.060

(3.56)

.140

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

SINGLE

ROW

DOUBLE

ROW

HTMS

–D

Body

Design

(1.52)

.060

(0.51) .020

DIA

(2.54)

.100

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
