PTT-104-01-S-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PTT-104-01-S-D

PTT-104-01-S-D: Descriptionconn header 8pos dual T/H; CategoryThe connector The connector; File Size171KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

PTT-104-01-S-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PTT-104-01-S-D	-	-	View	Buy Now

PTT-104-01-S-D Overview

conn header 8pos dual T/H

PTT-104-01-S-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	POLARIZED
body width	0.157 inch
subject depth	0.079 inch
body length	0.315 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	PTT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	2.9 A
reliability	COMMERCIAL
Terminal length	0.111 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	8

Preview

Download Datasheet

View All

REVISION F

DO NOT

SCALE FROM

THIS PRINT

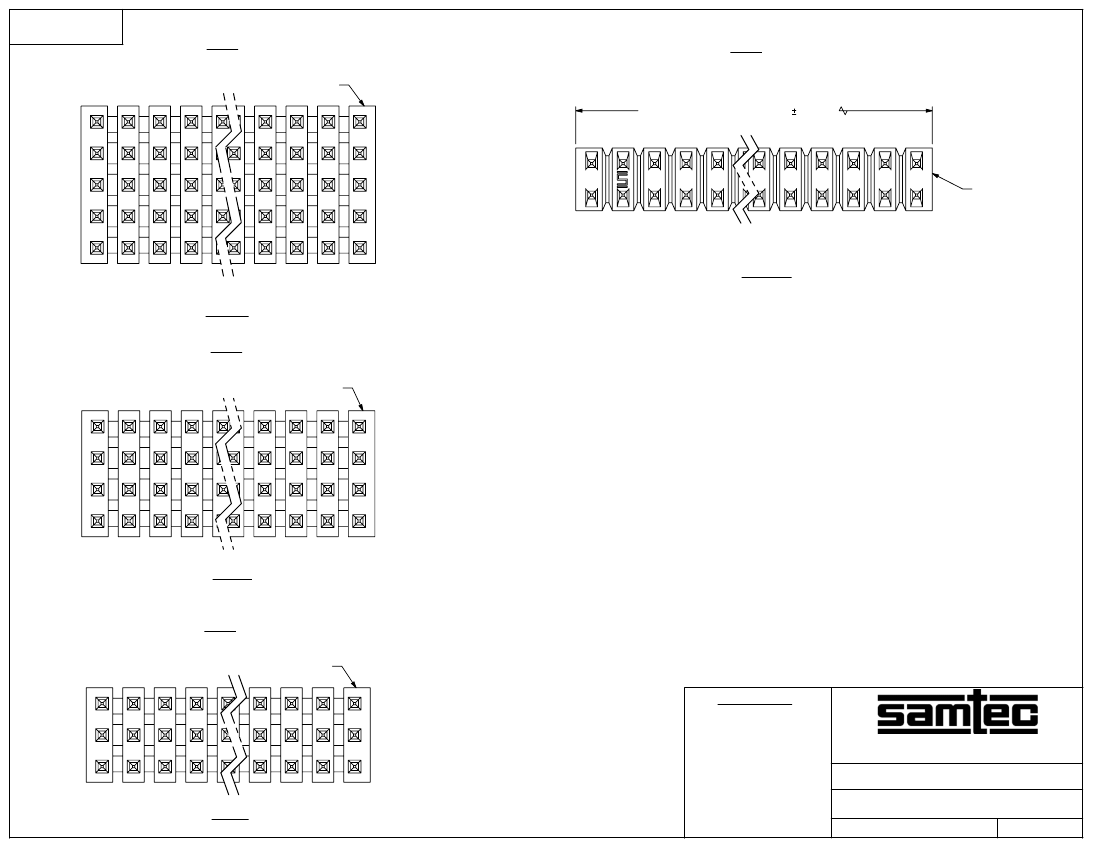

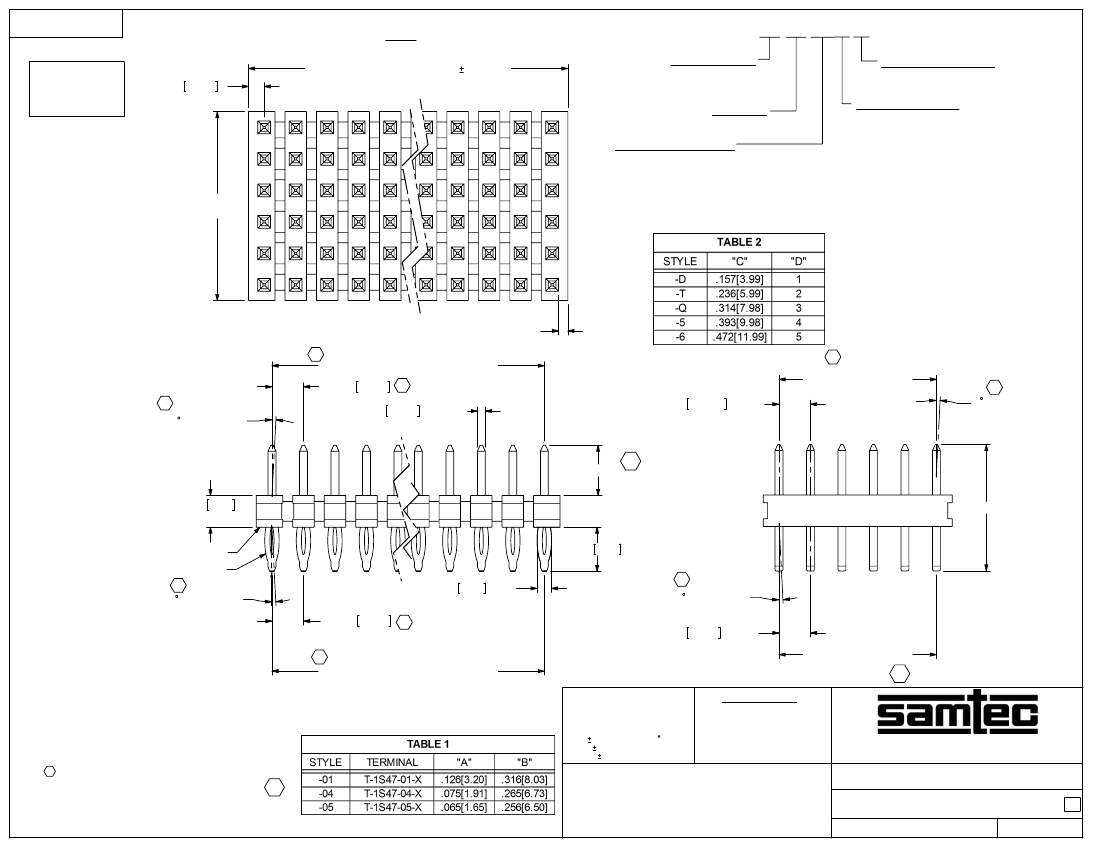

PTT-1XX-01-X-6

(No OF POS x .07874[2.000])

.0394 1.000

.000[.00]

.015[.38]

FIG 1

PTT-1XX-XX-XX-X-XXX

No OF POSITIONS

-03 THRU -50

-02 THRU -50 -D ONLY

(PER ROW)

LEAD STYLE

SEE TABLE 1

PLATING SPECIFICATION

-S: 30µ" GOLD IN CONTACT AREA,

MATTE TIN ON TAIL (USE T-1S47-XX-S)

-SM: 30µ" GOLD IN CONTACT AREA,

MATTE TIN ON TAIL (USE T-1S47-XX-S)

-L: 10µ" GOLD IN CONTACT AREA,

MATTE TIN TAIL (USE T-1S47-XX-L)

POLARIZATION OPTION

-XXX INDICATES POSITION

TO BE OMITTED

ROW SPECIFICATION

-D: DOUBLE (USE TMMC-XX-D),(SEE FIG 5)

(2 POSITION MINIMUM)

-T: TRIPLE (USE TMMH-XX-T),(SEE FIG 4)

(3 POSITION MINIMUM)

-Q: QUAD (USE TMMH-XX-Q),(SEE FIG 3)

(4 POSITION MINIMUM)

-5: 5 ROW (USE TMMH-XX-5),(SEE FIG 2)

(5 POSITION MINIMUM)

-6: 6 ROW (USE TMMH-XX-6),(SEE FIG 1)

(6 POSITION MINIMUM)

"C"

REF

SEE NOTE 5

((No OF POS - 1) x .07874[2.000])

.0787 2.000

"D" EQUAL SPACES

@ .07874[2.000]

.07874 2.0000 (TYP)

2 MAX SWAY

(EITHER DIRECTION)

.0197 0.500 SQ REF

2 MAX SWAY

(TYP)

(EITHER DIRECTION)

"A"

.079 2.01

REF

TMMH-XX-6

T-1S47-XX-X

C12

"B" REF

.111 2.82

.036 0.91 REF

.0787 2.000

2 MAX SWAY

(EITHER DIRECTION)

2 MAX SWAY

(EITHER DIRECTION)

.07874 2.000 (TYP)

"D" EQUAL SPACES

@ .07874[2.000]

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

((No OF POS - 1) x .07874[2.000])

PROPRIETARY NOTE

C10

NOTES:

1. C REPRESENTS A CRITICAL DIMENSION.

2. MAXIMUM CUT FLASH: .015.

C11

3. MINIMUM PUSHOUT FORCE: 1.0 LB PER PIN.

4. PART MAY BE CUT TO POSITION USING CARBIDE BLADES.

5. MINIMUM END WALL THICKNESS: .010[.25].

6. PARTS TO BE BULK PACKAGED.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 4:1

INSULATOR: L.C.P.

TERMINAL: PHOS BRONZE

2MM PRESS FIT TERMINAL STRIP

* = NOT TOOLED

PTT-1XX-XX-XX-X-XXX

12/17/2000

F:\DWG\MISC\MKTG\PTT-1XX-XX-XX-X-XXX-MKT.SLDDRW

BY:

CHAD F

SHEET
