NRPN101PAEN-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> NRPN101PAEN-RC

NRPN101PAEN-RC: Descriptionconn header 2mm single str 10pos; CategoryThe connector; File Size233KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

NRPN101PAEN-RC Overview

conn header 2mm single str 10pos

NRPN101PAEN-RC Parametric

Parameter Name	Attribute value
Datasheets
NRPNxx1PAEN-RC Drawing
Product Photos
NRPN101PAEN-RC
Catalog Drawings
S5800 Series T
S5800 Series F
S5800 Series Side
PCN Design/Specificati
NRPNxx(1,2)PA(E,R)N-RC 29/Dec/2010
PCN Othe
Part Number, Material 10/Dec/2009
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded
Number of Positions	10
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.142" (3.61mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	Flash
Col	Black
Dynamic Catalog	NRPN
Mating Products	S5902-10-ND - CONN RECEPT 2MM SINGLE SMD 10POSS5901-10-ND - CONN RECEPT 2MM SINGLE SMD 10POSS5752-10-ND - CONN RECEPT 2MM SINGLE R/A 10POSS5751-10-ND - CONN RECEPT 2MM SINGLE STR 10POSS2104-10-ND - CONN HEADER 2MM SINGLE R/A 10POSS2103-10-ND - CONN HEADER 2MM SINGLE STR 10POSS2102-10-ND - CONN HEADER 2MM SINGLE SMD 10POSS2101-10-ND - CONN HEADER 2MM SINGLE SMD 10POS
Other Names	PRPN101PAEN-RCS5800-10

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

2673

2828

3714

DESCRIPTION

UPDATE NOTE 4(WAS 1 AMP)

UPDATE PROCESSING TEMPERATURE FOR NYLON 6T

MATERIAL

ADD 01-POSITION ON DIMENSION TABLE

DATE

9/14/2012

04/09/2015

07/27/2017

B .020[0.50]

.079±.008 2.00±0.20

A±.008[0.20]

.079±.002 2.00±0.05

.142±.008 3.60±0.20

.079 2.00

.110±.008 2.80±0.20

.020±.002 0.50±0.05

02-20, .008[0.20] MAX.

21-30, .012[0.30] MAX.

31-40, .016[0.40] MAX.

A±.004 [ .10]

.079±.002 2.00±0.05

.031±.002 0.80±0.05

NOTES:

1. INSULATOR MATERIAL: SEE PART NUMBER CODING.

2. CONTACT MATERIAL: BRASS.

3. CONTACT PLATING: .000030" MIN NICKEL UNDERPLATE, GOLD FLASH OVERALL.

4. CURRENT RATING: 2.0 AMPS.

5. VOLTAGE RATING: 150V AC/DC.

6. INSULATOR RESISTANCE: 5000 MEGOHMS MIN.

7. CONTACT RESISTANCE: 20 MILLIOHMS MAX.

8. DIELECTRIC WITHSTANDING: 500V AC.

9. OPERATING TEMPERATURE: -40° C TO +105° C.

10. PROCESSING TEMP.: WAVE/MANUAL SOLDERING ONLY.

RECOMMENDED PCB LAYOUT

RoHS

COMPLIANT

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

ANGULAR:

DRAWN

DATE

NAME

09/17/2009 JH

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

TITLE

PART NUMBER

SIZE

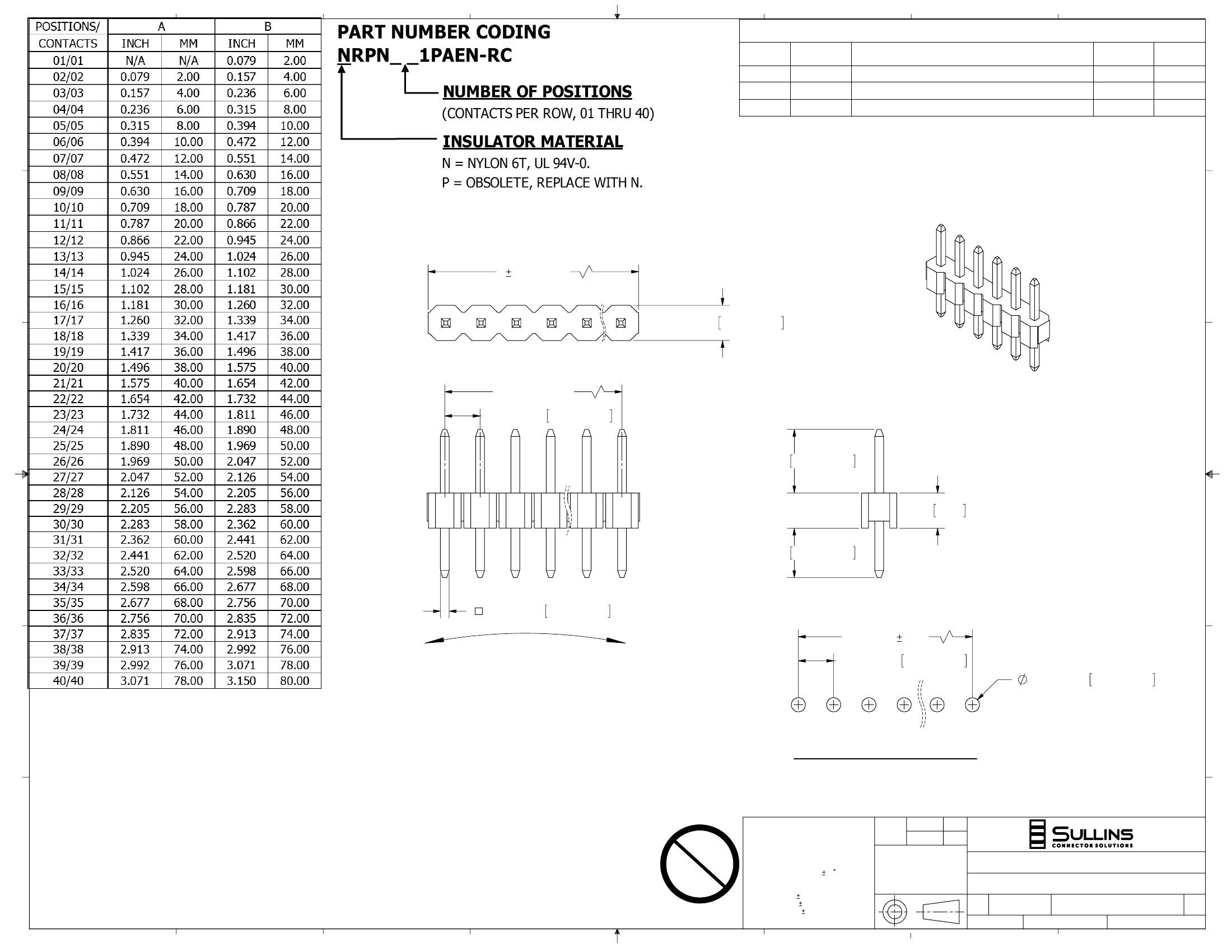

HEADER MALE 2mm CC, 1 ROW, ST

CAGE CODE

DECIMALS

.X= .012 [.30]

.XX= .008 [.20]

.XXX= .006 [.15]

SCALE: 16:1

54453

DWG. NO.

NRPNxx1PAEN-RC

10531

SHEET 1 OF 1

REV

FILE NAME: 10531, NRPN_ _1PAEN-RC
