1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9 Series
sFeatures
1. Compliant with the VESA FPDI-1 Standard Interface Connector
The 31 and 41 contact connectors comply with the standard connector specification for the flat panel display interface, which
U.S VESA. has selected as FPDI-1.
VESA: Video Electronics Standards Association
FPDI-1: Flat Panel Display Interface
2. Perfect Mis-insertion Prevention
The mating area is designed in a trapezoidal structure, and perfectly prevents the mis-insertion despite the miniature size.
3. Equipped with Easy Lock Mechanism
The easy lock mechanism assures the firm insertion and extraction properties as well as the insertion/extraction feeling touch.
4. Smooth Insertion and Extraction Feeling
The contact is constructed without the material fragible surface in the contact portion, and provides a smooth insertion and
use feeling.
5. Setting Two Type Platings as Standard
Two type platings, tin plating and gold plating, are prepared, and either appropriate plating can be selected under cost and
use conditions.

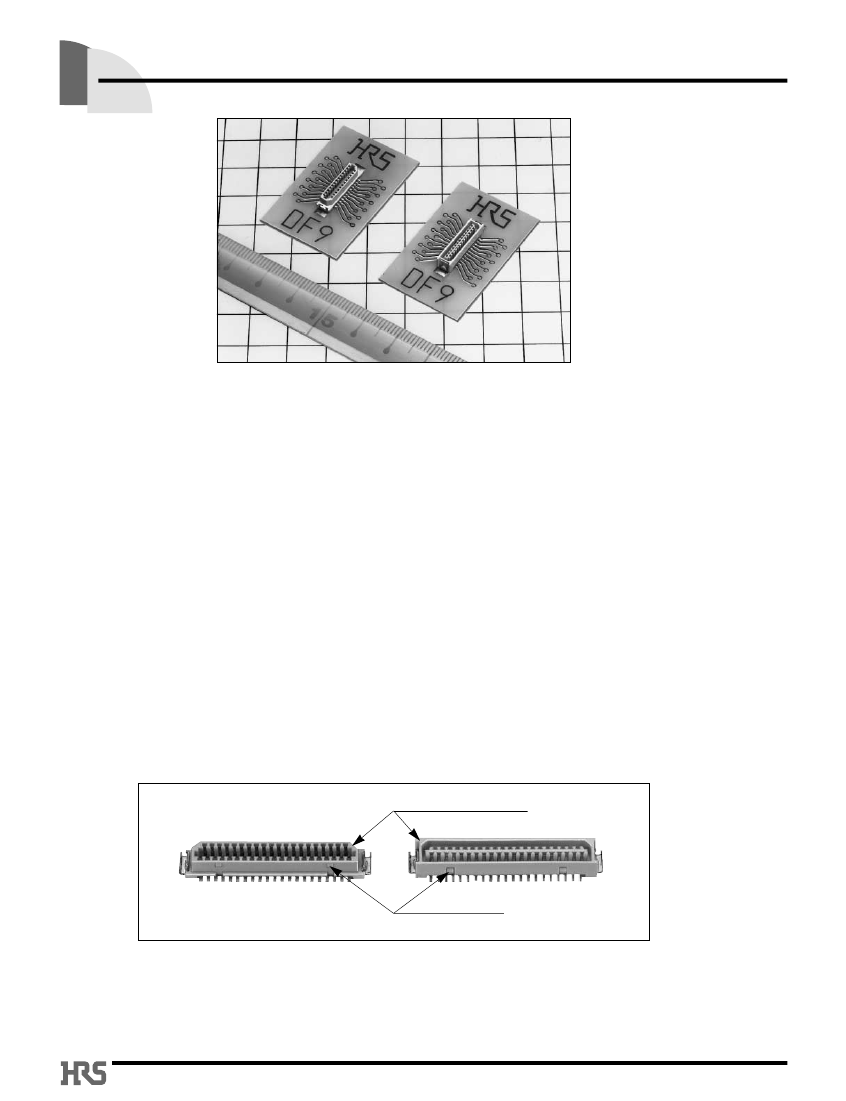

Structure to Prevent Mis-insertion
Lock Mechanism
sApplications
LCD (Liquid Crystal Display), Mobile phone, Note PC
A278
sProduct
Specifications
Rating
Current rating 0.5A
Voltage rating150V AC
Operating Temperature Range
-45 to +125ç (Note
1) Storage Temperature Range
-10 to +60ç
(Note 2)
Operating Humidity Range 40
to
80%
Storage Humidity Range 40
to
70%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
6. Temperature Cycle
7. Operating Life
500M
ohms
min.
specification
100V DC
250V AC/1 minute
100mA
Condition
No flashover or insulation breakdown.
50m
ohms
max.
No electrical discontinuity of 1µs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
5.
Humidity (Steady state)
Contact resistance: 50m
ohms
max. Insulation resistance: 500M
ohms
min.
96 hours at temperature of 40ç and humidity of 90% to 95%
Contact resistance: 50m
ohms
max. Insulation resistance: 500M
ohms
min. (-55ç: 30 minutes 5
to
35ç: 10 minutes 85ç: 30 minutes 5
to
35ç: 10 minutes) 5 cycles
Contact resistance: 50m
ohms
max:
Tin plating: 30 cycles
Gold plating: 100 cycles
8. Resistance to Soldering heat
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during
transportation.
sMaterial
Product
Receptacle/Header
Part
Insulator
Contact
Metal fitting
Material
Polyamide
Phosphor copper
Brass
Finish
Beige
Tin plating or gold plating
Tin plating
Remarks
UL94V-0
–––––––
–––––––
Note:The gold plated product contact area is plated with gold, and lead plated with tin-lead.
s
Ordering Information
Please determine the specific product. If needed, please select and order products from the product No. as listed on catalog
page A280~A284.
qReceptacle/Header
DF9
q
q
Series Name
w
Type Symbol
: DF9
#
-
*
S - 1 V
(**)
w
e
r
t
y
u
r
Connector Type
S: Receptacle
P: Header
t
Contact Pitch
y
Contact Type
V: Straight SMT
u
Contact Surface Finish/Packaging Type
(20): Tin plating, tube packaging
(54): Gold plating, tube packaging
(22): Tin plating, embossed tape packaging
(59): Gold plating, embossed tape packaging
: 1mm
Symbol Fitting Boss
None
A
B
C
e
Number of Contacts
9 to 25,31,41,51
K
∞
K
∞
K
K
∞
∞
*Refer
to page A284 for the bottom entry type (DF9L).
A279

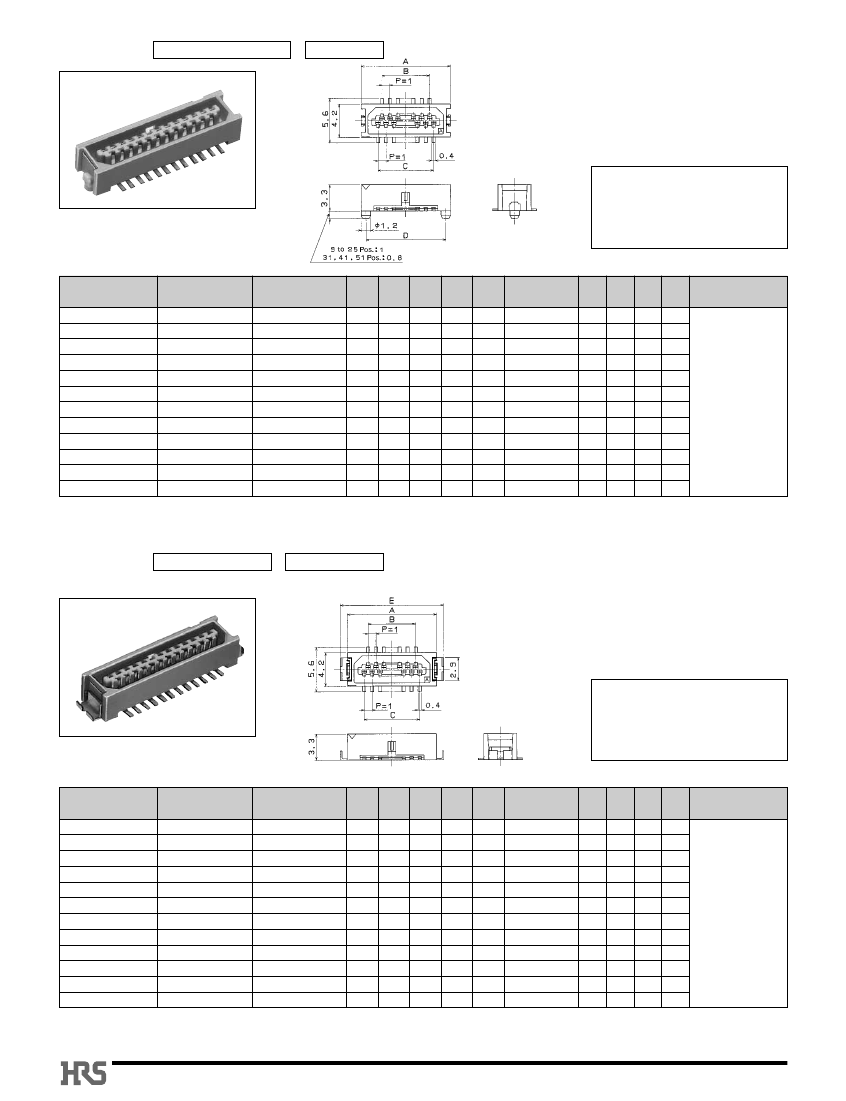

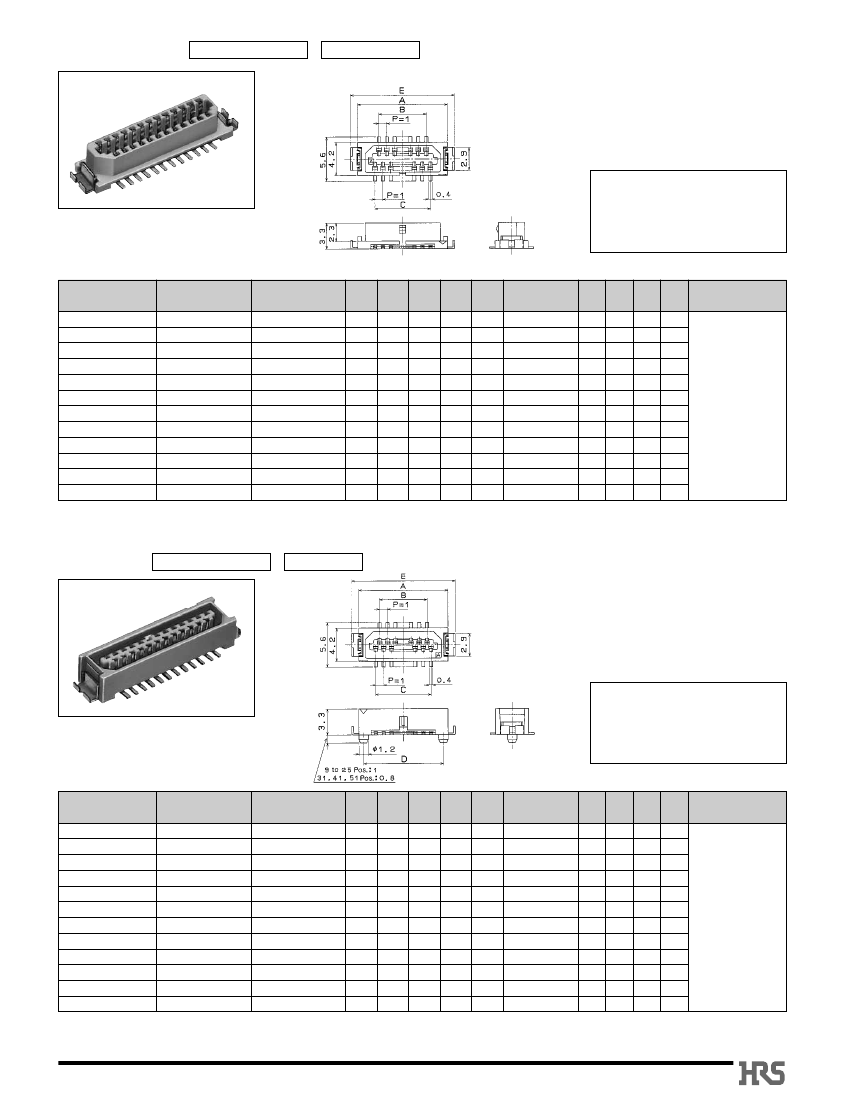

sReceptacle
With metal fitting
With boss
[Specific No.] _ **, (**)
(20)
: Tin plating, tube packaging
(54)
: Gold plating, tube packaging
(22)
: Tin plating, embossed tape packaging
(59)
: Gold plating, embossed tape packaging
Unit: mm
Part Number
CL No.
Number of Contacts
A
B
C
D
E
Tube Packaging Spec Spec. Spec. Spec.
Quantity
. (20) (54) (22) (59)
46
42
39
36
33
31
29
28
26
22
18
15
K
K
K
K
K
K
K
K
K
K
K
_
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
_
K
K
K
K
K
K
K
_
K
K
K
K
Remarks
7.1 10.1
4
3
8.3
9
DF9- 9S-1V (**) 540-0054-0-**
8.1 11.1
5
4
9.3
11
DF9-11S-1V (**) 540-0055-2-**
10.3
9.1 12.1
6
5
13
DF9-13S-1V (**) 540-0056-5-**
10.1 13.1
7
6
11.3
15
DF9-15S-1V (**) 540-0057-8-**
11.1 14.1
8
7
12.3
17
DF9-17S-1V (**) 540-0058-0-**
12.1 15.1
9
8
13.3
19
DF9-19S-1V (**) 540-0059-3-**
10 13.1 16.1
9
14.3
21
DF9-21S-1V (**) 540-0060-2-**
11 14.1 17.1
15.3 10
23
DF9-23S-1V (**) 540-0061-5-**
12 15.1 18.1
16.3 11
25
DF9-25S-1V (**) 540-0062-8-**
19.3 14
15 18.1 21.1
31
DF9-31S-1V (**) 540-0063-0-**
20 23.1 26.1
24.3 19
41
DF9-41S-1V (**) 540-0213-1-**
25 28.1 31.1
29.3 24
51
DF9-51S-1V (**) 540-0064-3-**
Note 1 : Please order the tube packaging product by multiplying the packaging quantity ( pcs.).
Note 2 : Please order the embossed tape packaging product per reel. (1000 pcs. per reel)
Note 3 :
_ are not available. Regarding blank, please contact Hirose sales representative.
With metal fitting
With boss
With pick and place
tape for embossed
tape packaging.
sReceptacle
Without metal fitting
With boss
[Specific No.] _ **, (**)
(20): Tin plating, tube packaging
(54): Gold plating, embossed tape packaging
(22): Tin plating, tube packaging
(59): Gold plating, embossed tape packaging
Unit: mm
Part Number
CL No.
Number of Contacts
A
B
C
D
E
Tube Package Quantity, Spec Spec. Spec. Spec.
Piece/Pack . (20) (54) (22) (59)
59
52
47
43
39
36
34
32
30
24
20
16
K
K
K
K
K
K
K
K
K
K
K
_
_
_
_
K
_
_
_
_
_
K
_
K
K
K
K
K
_
K
K
_
K
K
K
_
_
_
K
K
_
K
K
_
K
K
K
K
Remarks
7.1
4
3
8.3
9
_
DF9A-09S-1V (**) 540-0004-1-**
8.1
5
4
9.3
11
_
DF9A-11S-1V (**) 540-0005-4-**
9.1
6
5
10.3
13
_
DF9A-13S-1V (**) 540-0006-7-**
10.1
7
6
11.3
15
_
DF9A-15S-1V
(**)
540-0007-0-**
11.1
8
7
12.3
17
_
DF9A-17S-1V
(**)
540-0008-2-**
12.1
9
8
13.3
19
_
DF9A-19S-1V
(**)
540-0009-5-**
10 13.1
9
14.3
21
_
DF9A-21S-1V
(**)
540-0010-4-**
11 14.1
15.3 10
23
_
DF9A-23S-1V
(**)
540-0011-7-**
12 15.1
16.3 11
25
_
DF9A-25S-1V
(**)
540-0012-0-**
19.3 14
15 18.1
31
_
DF9A-31S-1V
(**)
540-0013-2-**
20 23.1
24.3 19
41
_
DF9A-41S-1V
(**)
540-0222-2-**
25 28.1
29.3 24
51
_
DF9A-51S-1V
(**)
540-0014-5-**
Note 1 : Please order the tube packaging product by multiplying the packaging quantity ( pcs.).
Note 2 : Please order the emboss packaging product per reel. (1000 pcs. per reel)
Note 3 :
_ are not available. Regarding blank, please contact Hirose sales representative.
Without metal fitting
With boss
With pick and place
tape for embossed
tape packaging.
A280
sReceptacle
With metal fitting
Without boss
[Specific No.] _ **, (**)
(20): Tin plating, tube packaging
(54): Gold plating,
embossed tape
packaging
(22): Tin plating, tube packaging
(59): Gold plating,
embossed tape
packaging
Unit: mm
Part Number
CL No.
Number of Contacts
A
B
C
D
E
Tube Package Quantity, Spec Spec. Spec. Spec.
Pcs./pack
. (20) (54) (22) (59)
46
42
39
36
33
31
29
28
26
22
18
15
_
K
K
K
_
_
K
K
K
K
K
_
K
_
_
_
_
K
_
_
_
K
K
K
K
K
K
K
_
_
K
K
K
K
K
_
K
_
_
K
K
K
_
_
_
K
_
K
Remarks
10.1
04
08.3 03
09
_
DF9B-09S-1V
(**)
540-0125-6-**
11.1
05
09.3 04
11
_
DF9B-11S-1V
(**)
540-0126-9-**
12.1
10.3
05
06
13
_
DF9B-13S-1V
(**)
540-0127-1-**
13.1
07
11.3
06
15
_
DF9B-15S-1V
(**)
540-0128-4-**
14.1
08
12.3
07
17
_
DF9B-17S-1V
(**)
540-0129-7-**
15.1
09
13.3
08
19
_
DF9B-19S-1V
(**)
540-0247-3-**
16.1
10
14.3
09
21
_
DF9B-21S-1V
(**)
540-0131-9-**
17.1
11
15.3 10
23
_
DF9B-23S-1V
(**)
540-0132-1-**
18.1
12
16.3 11
25
_
DF9B-25S-1V
(**)
540-0133-4-**
21.1
19.3 14
15
31
_
DF9B-31S-1V
(**)
540-0143-8-**
26.1
20
24.3 19
41
_
DF9B-41S-1V
(**)
540-0216-0-**
31.1
25
29.3 24
51
_
DF9B-51S-1V
(**)
540-0145-3-**
Note 1 : Please order the tube packaging product by multiplying the packaging quantity ( pcs.).
Note 2 : Please order the embossed tape packaging product per reel. (1000 pcs. per reel)
Note 3 :
_ are not available. Regarding blank, please contact Hirose sales representative.
With metal fitting
Without boss
With pick and place
tape for embossed
tape packaging.

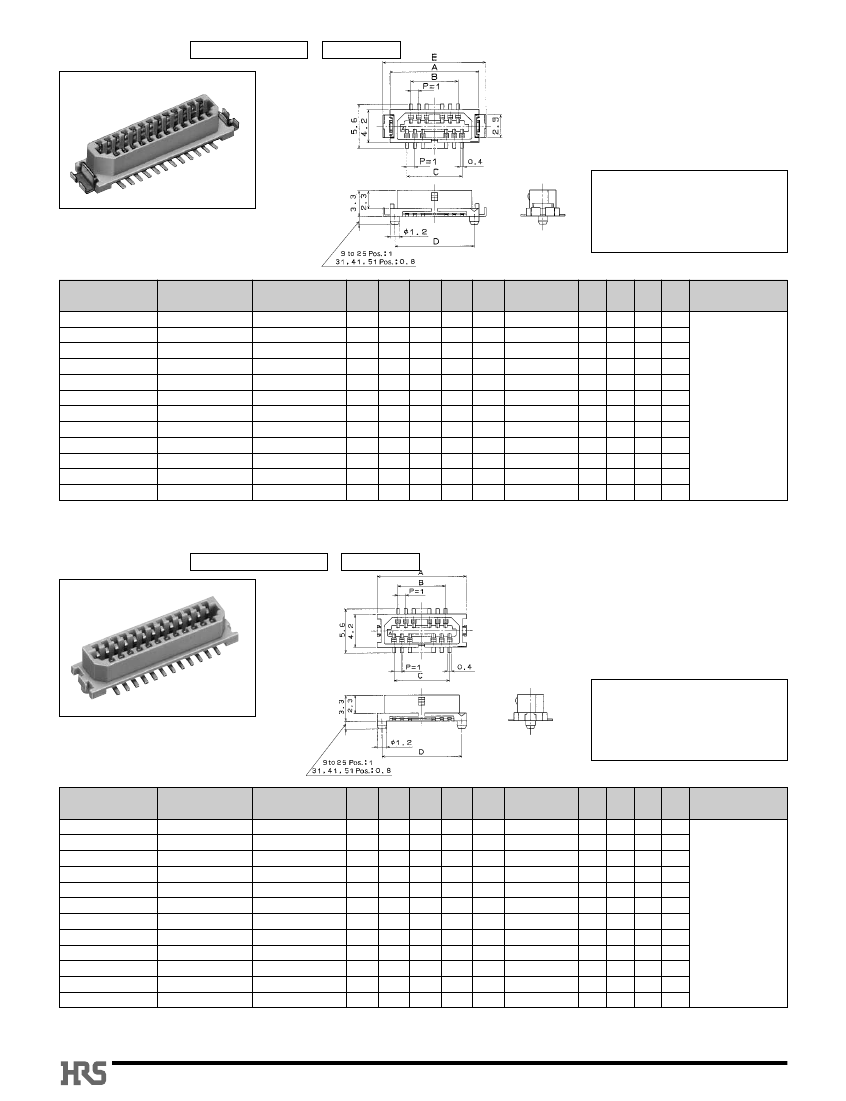

sHeader
With metal fitting
With boss
[Specific No.] _ **, (**)
(20): Tin plating, tube packaging
(54): Gold plating,
embossed tape
packaging
(22): Tin plating, tube packaging
(59): Gold plating,
embossed tape
packaging
Unit: mm
Part Number
CL No.
Number of Contacts
A
B
C
D
E
Tube Package Quantity, Spec Spec. Spec. Spec.
Piece/Pack . (20) (54) (22) (59)
46
42
39
36
33
31
29
28
26
22
18
15
K
K
K
K
K
K
K
K
K
K
K
_
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
_
K
K
K
_
K
K
K
K
K
K
K
_
K
K
K
K
Remarks
04 07.1
10.1
08.3 03
09
DF9-09P-1V
(**)
540-0066-9-**
05 08.1
11.1
09.3 04
11
DF9-11P-1V
(**)
540-0067-1-**
06 09.1
12.1
10.3
05
13
DF9-13P-1V
(**)
540-0068-4-**
07
10.1 13.1
11.3
06
15
DF9-15P-1V
(**)
540-0069-7-**
08
11.1 14.1
12.3
07
17
DF9-17P-1V
(**)
540-0070-6-**
13.3
08
09
12.1 15.1
19
DF9-19P-1V
(**)
540-0071-9-**
10 13.1 16.1
14.3
09
21
DF9-21P-1V
(**)
540-0072-1-**
11 14.1 17.1
15.3 10
23
DF9-23P-1V
(**)
540-0073-4-**
12 15.1 18.1
16.3 11
25
DF9-25P-1V
(**)
540-0074-7-**
15 18.1 21.1
19.3 14
31
DF9-31P-1V
(**)
540-0075-0-**
20 23.1 26.1
24.3 19
41
DF9-41P-1V
(**)
540-0214-4-**
25 28.1 31.1
29.3 24
51
DF9-51P-1V
(**)
540-0088-1-**
Note 1 : Please order the tube packaging product by multiplying the packaging quantity ( pcs.).
Note 2 : Please order the emboss packaging product per reel. (1000 pcs. per reel)
Note 3 :
_ are not available. Regarding blank, please contact Hirose sales representative.
With metal fitting
With boss
With pick and place
tape for embossed
tape packaging.
A281
sHeader
Without metal fitting
With boss
[Specific No.] _ **, (**)
(20)
: Tin plating, tube packaging
(54)
: Gold plating, tube packaging
(22)
: Tin plating, embossed tape packaging
(59)
: Gold plating, embossed tape packaging
Unit: mm
Part Number
CL No.
Number of Contacts
A
B
C
D
E
Tube Package Quantity,
Pcs./pack
59
52
47
43
39
36
34
32
30
24
20
16
pcs.).
Spec Spec. Spec. Spec.
. (20) (54) (22) (59)
K
K
K
K
K
K
K
K
K
K
K
_
_
K
_
K
_
_
_
_
K
K
K
K
K
K
K
K
_
K
K
_
K
K
K
_
_
_
K
K
K
_
K
_
K
K
_
K
Remarks
04 07.1
08.3 03
09
_
DF9A-09P-1V
(**)
540-0016-0-**
05 08.1
09.3 04
11
_
DF9A-11P-1V
(**)
540-0017-3-**
06 09.1
10.3
05
13
_
DF9A-13P-1V
(**)
540-0018-6-**
07
10.1
11.3
06
15
_
DF9A-15P-1V
(**)
540-0019-9-**
08
11.1
12.3
07
17
_
DF9A-17P-1V
(**)
540-0020-8-**
09
12.1
13.3
08
19
_
DF9A-19P-1V
(**)
540-0021-0-**
14.3
09
10 13.1
21
_
DF9A-21P-1V
(**)
540-0022-3-**
11 14.1
15.3 10
23
_
DF9A-23P-1V
(**)
540-0023-6-**
12 15.1
16.3 11
25
_
DF9A-25P-1V
(**)
540-0024-9-**
15 18.1
19.3 14
31
_
DF9A-31P-1V
(**)
540-0025-1-**
20 23.1
24.3 19
41
_
DF9A-41P-1V
(**)
540-0223-5-**
25 28.1
29.3 24
51
_
DF9A-51P-1V
(**)
540-0026-4-**
Note 1 : Please order the tube packaging product by multiplying the packaging quantity (
Note 2 : Please order the emboss packaging product per reel. (1000 pcs. per reel)
Note 3 :
_ are not available. Regarding blank, please contact Hirose sales representative.
Without metal fitting
With boss
With pick and place
tape for embossed
tape packaging.
sHeader
With metal fitting
Without boss
[Specific No.] _ **, (**)
(20)
: Tin plating, tube packaging
(54)
: Gold plating, tube packaging
(22)
: Tin plating, embossed tape packaging
(59)
: Gold plating, embossed tape packaging
Unit: mm
Part Number
CL No.
Number of Contacts
A
B
C
D
E
Tube Package Quantity, Spec Spec. Spec. Spec.
Pcs./pack
. (20) (54) (22) (59)
46
42
39
36
33
31
29
28
26
22
18
15
_
K
K
K
_
_
K
_
K
K
K
_
K
_
_
_
_
K
_
_
_
K
_
K
K
K
K
K
_
_
K
K
K
K
K
_
K
_
_
K
K
K
_
_
_
K
_
K
Remarks
10.1
04
08.3 03
09
_
DF9B-09P-1V
(**)
540-0134-7-**
11.1
05
09.3 04
11
_
DF9B-11P-1V
(**)
540-0135-0-**
12.1
06
10.3
05
13
_
DF9B-13P-1V
(**)
540-0136-2-**
13.1
07
11.3
06
15
_
DF9B-15P-1V
(**)
540-0137-5-**
14.1
08
12.3
07
17
_
DF9B-17P-1V
(**)
540-0138-8-**
15.1
09
13.3
08
19
_
DF9B-19P-1V
(**)
540-0248-6-**
16.1
10
14.3
09
21
_
DF9B-21P-1V
(**)
540-0140-0-**
17.1
11
15.3 10
23
_
DF9B-23P-1V
(**)
540-0141-2-**
18.1
12
16.3 11
25
_
DF9B-25P-1V
(**)
540-0142-5-**
19.3 14
21.1
15
31
_
DF9B-31P-1V
(**)
540-0144-0-**
26.1
20
24.3 19
41
_
DF9B-41P-1V
(**)
540-0221-0-**
31.1
25
29.3 24
51
_
DF9B-51P-1V
(**)
540-0146-6-**
Note 1 : Please order the tube packaging product by multiplying the packaging quantity ( pcs.).
Note 2 : Please order the emboss packaging product per reel. (1000 pcs./reel)
Note 3 :
_ are not available. Regarding blank, please contact Hirose sales representative.
With metal fitting
Without boss
With pick and place
tape for embossed
tape packaging.
A282
_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD_pdf/1.png)
_pdf/2.png)
_pdf/3.png)
_pdf/4.png)
_pdf/5.png)
_pdf/pg_0002.png)
_pdf/pg_0003.png)
_pdf/pg_0004.png)
_pdf/pg_0005.png)
