MINIATURE CERAMIC SMD CRYSTAL
ABM3
Pb in glass
(exempt per RoHS 2002/95/EC Annex (5))
RoHS
Compliant
5.0 X 3.2 X 1.30mm
Smaller package alternative for ABM7 series
FEATURES:
• AT-cut fundamental and 3rd OT mode
• IR reflow capable
• Tight Stability available.
• Ceramic package hermetically glass sealed assures high precision and reliability.
| | | | | | | | | | | | | | |
APPLICATIONS:
• Cellular telephones, Pagers.
• Communication and Test equipment.
• PCMCIA and wireless applications.
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency Range
Operation Mode
Operating Temperature
Storage Temperature
Frequency Tolerance @ 25°C
ABM3 Series
8.0MHz - 50.0MHz (Fundamental)
50.1MHz - 125MHz (3rd overtone)
Fundamental or 3rd overtone
- 10°C to + 60°C (see options)
- 40°C to + 90°C
± 50 ppm max. (see options)
TABLE 1- Standard ESR
Frequency (MHz)
ESR
( )
max Operational Mode
500
Fundamental
8.000 - 8.999
200
9.000 - 9.999
Fundamental
60
10.000 - 15.999
Fundamental
50
Fundamental
16.000 - 50.000
3rd Overtone
50.001 - 80.000
60
3rd Overtone
80.001 - 125.00
80
Frequency Stability over the
Operating Temperature
± 50ppm max.
(Blank (STD) or Z option. See options below)
(Ref to + 25°C)
Equivalent Series Resistance
See table 1
Shunt Capacitance C0
7 pF max.
Load Capacitance CL
18 pF (see options)
Drive Level
100
μ
W max., 10
μ
W typical
Aging (First Year) @ 25°C ± 3°C ± 5ppm max.
Insulation Resistance
500 MΩ min at 100Vdc ± 15 V
OPTIONS AND PART IDENTIFICATION: (Left blank if standard)
ABM3 - Frequency -
Load Capacitance (pF)
Please specify CL in pF or
S for Series (8 to 33pF)
Consult with ABRACON for
CL value under 8pF.
-R
-
-
Packaging
Blank
Bulk
Tape and
T
Reel
Custom ESR
RXXX (Value in
Ω
).
Operating Temp.
E
0°C to +70°C
-20°C to +70°C
B
C
-30°C to +70°C
N
-30°C to +85°C
D
-40°C to +85°C
J****
-40°C to +105°C
K****
-40°C to +125°C
(****) Frequency stability ±50ppm,
and ±100ppm only.
If it is custom
** Standard temp or options E and B only
*** Standard temp or options E, B, C
and N only.
Contact ABRACON for tighter freq. stability.
Freq. Tolerance
7
± 15 ppm
2
± 20 ppm
3
± 25 ppm
4
± 30 ppm
Freq. Stability
U**
± 10 ppm
G***
± 15 ppm
X
± 20 ppm
W
± 25 ppm
Y
± 30 ppm
H
± 35 ppm
Z
± 50 ppm
Q
± 100 ppm
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 06.02.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
MINIATURE CERAMIC SMD CRYSTAL
ABM3

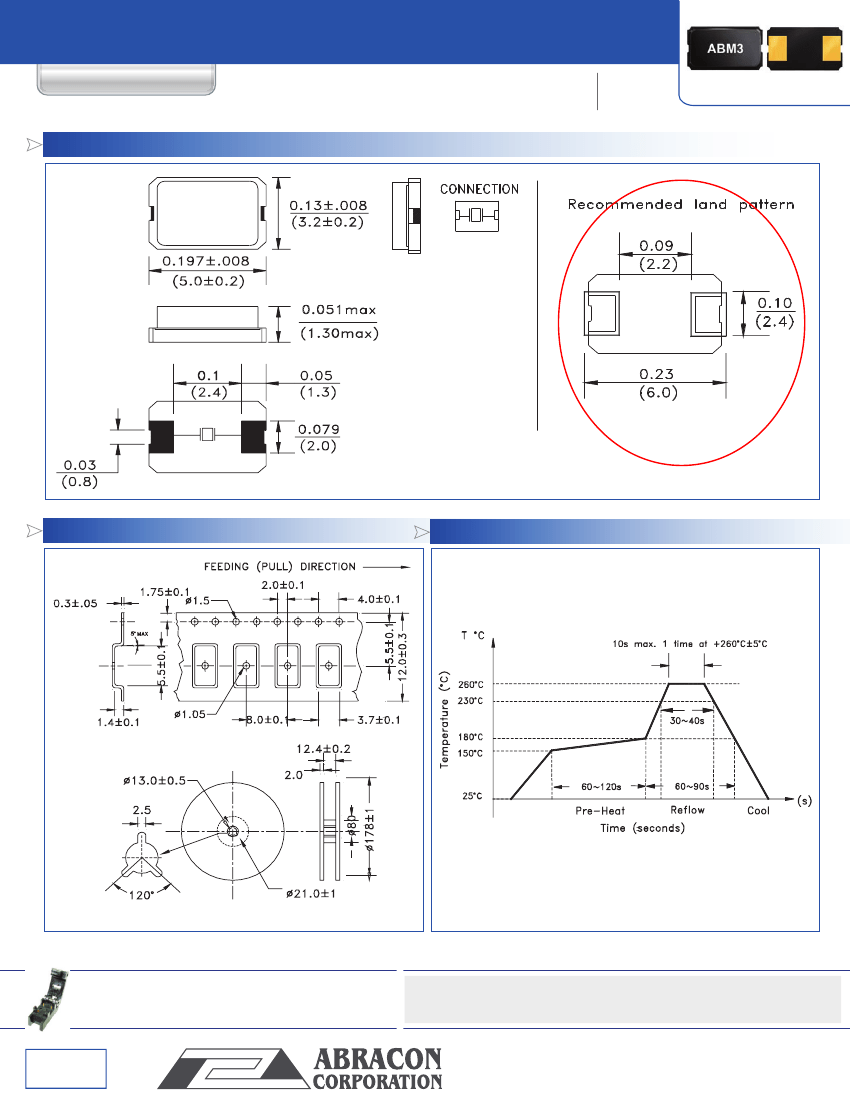

OUTLINE DRAWING:
Pb in glass
(exempt per RoHS 2002/95/EC Annex (5))
RoHS
Compliant
5.0 X 3.2 X 1.30mm
| | | | | | | | | | | | | | |
Dimensions: inch (mm)
TAPE & REEL:
Tape and reel (1,000pcs/reel)
TAPE & REEL:
Dimensions: mm
Need a test socket for the ABM3 Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here. P/N: AXS-5032-02-06
ABRACON
ABRACON ISIS
ISO 9001 / QS 9000
ISO9001:2008
CERTIFIED
CERTIFIED
NOTE:
Abracon manufactured products are intended for general commercial and
industrial use. For applications requiring high reliability and/or presenting extreme
operating environment, written consent & authorization from Abracon is required.
Revised: 06.02.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
