8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
-
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
HM
00
J
J1
REV ECO-12-019894
REV ECO-14-002629
12NOV2012
25FEB2014
JM
JM
SJ
SJ
1
D
MATERIAL: JACK HOUSING - POLYCARBONATE, 94V-0 RATED.
110 BLOCK - POLYCARBONATE.
ARRAY TRAY - PBT POLYESTER.
JACK CONTACTS ARRAY - BERYLLIUM COPPER, PLATED WITH
1.27µm [.000050] MINIMUM THICK GOLD IN LOCALIZED
AREA AND 3.81µm [.000150] MINIMUM THICK MATTE TIN IN
BOARD INTERFACE AREA OVER 1.27µm [.000050] MINIMUM THICK
NICKEL UNDERPLATE.
IDC TERMINALS - PHOSPHOROUS BRONZE, PLATED WITH
3.81µm [.00015] MINIMUM THICK MATTE TIN OVER
1.27µm [.00005] MINIMUM THICK NICKEL UNDERPLATE.
D
2. SL 110 JACK WILL TERMINATE 22-24 AWG SOLID AND 24-26 AWG
STRANDED CONDUCTORS, 1.27[.050] MAXIMUM INSULATION DIAMETER.
TERMINAL BLOCK
3
CAVITY CONFORMS TO FCC RULES AND REGULATIONS
PART 68 SUBPART F REQUIREMENTS.
4. MOUNTING PANEL THICKNESS 1.47 - 1.60 [.058 - .063].
JACK HOUSING
5
THESE TWO SUGGESTED CUTOUT OPENINGS ARE USED
IN TANDEM WITH DUAL FRONT AND BACK CUTOUTS.
ONE MODULAR JACK ASSEMBLY PER POLYBAG.
REFER TO 408-8858 FOR TERMINATION INSTRUCTIONS USING SL
SERIES TOOL TERMINATION. REFER TO 408-8602 FOR TERMINATION
INSTRUCTIONS USING 110 PUNCH DOWN TOOL.
6
7
C
SEE DETAIL
A
GREEN
C
3
CATEGORY
PERFORMANCE
SYMBOL
TERMINAL
NUMBER 1
-
DATE CODE
WHITE/GREEN
WHITE/BLUE
B
ORANGE
B
BLUE
14.78
[ .582 ]
R 0.13
[ .01 ]
MAXIMUM
TYPICAL
20.07
[ .790 ]
R 0.13
[ .01 ]
MAXIMUM
TYPICAL
16.51
[ .650 ]
14.78
[ .582 ]
WHITE/ORANGE
7.92
[ .31 ]
DETAIL
SCALE
10:1
A
COLOR
CODE
WHITE/BLUE
BLUE
WHITE/ORANGE
ORANGE
WHITE/GREEN
GREEN
A
WHITE/BROWN
BROWN
110
BLOCK
MODULAR
JACK
4
3
2
5
20.32
[ .800 ]
ALPINE WHITE
1
6
1.22 - 1.54
[.048 - .061]
PANEL THICKNESS
SINGLE PANEL CUTOUT
1.22 - 1.54
[.048 - .061]
PANEL THICKNESS
SUGGESTED FLUSH MOUNT
PANEL APPLICATION CUTOUT
6
5
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
ELECTRICAL SCHEMATIC
(USOC)
T.PITTS
L.SMITH
C.DOOLEY
-
-
05NOV01
15NOV01
15NOV01
NAME
PACKAGE
HOUSING COLOR
LIGHT ALMOND
BLACK
GRAY
BLUE
1-1375192-3
1375192 -6
1375192 -4
1375192 -2
1375192 -1
PART NUMBER
A
TE Connectivity
MM[Inches]
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
-
-
-
PRODUCT SPEC
108-131001
APPLICATION SPEC
-
7
-
-
1
-
-
WEIGHT
-
CUSTOMER DRAWING
A1
00779
SIZE
CAGE CODE

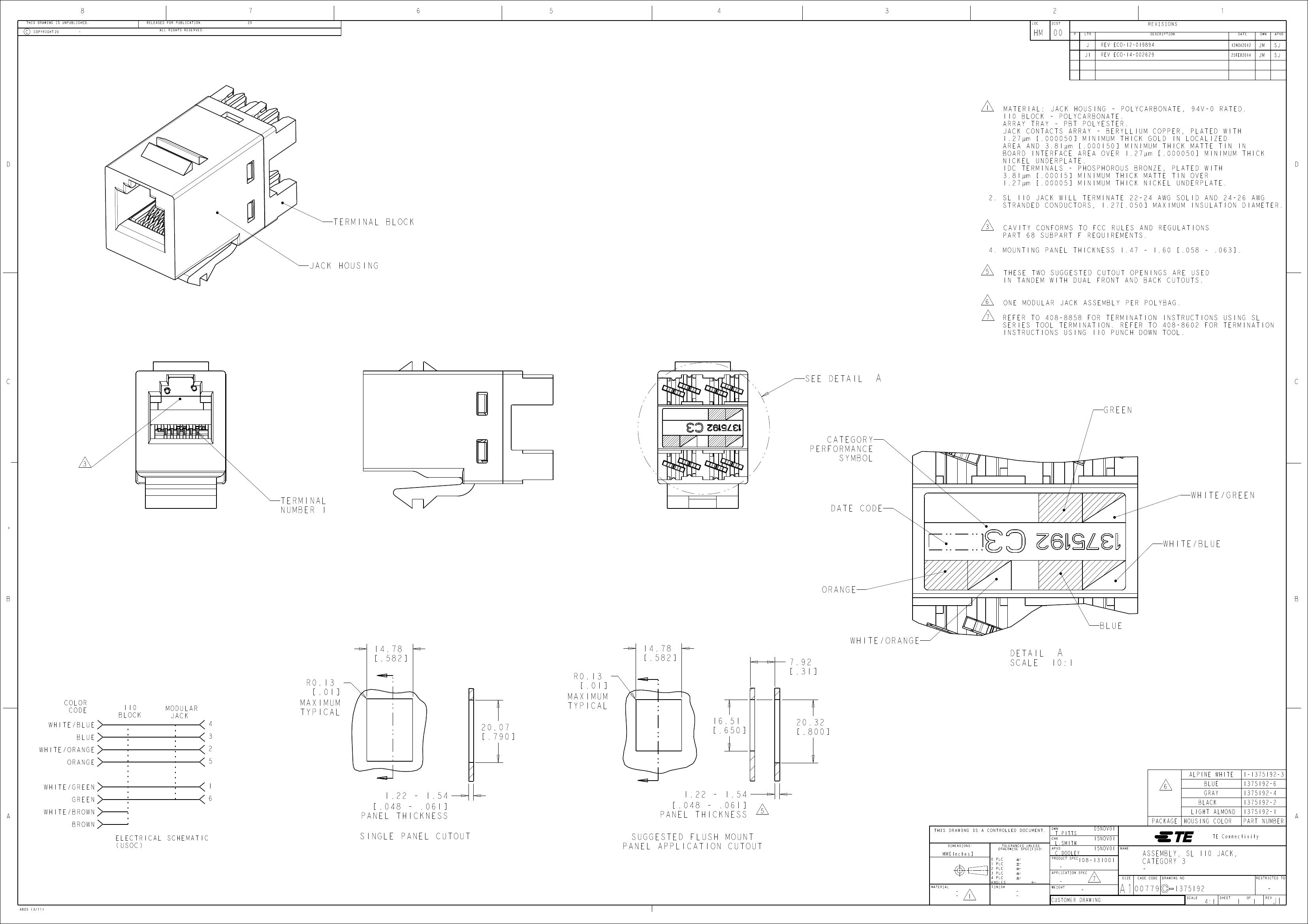

ASSEMBLY, SL 110 JACK,
CATEGORY 3
-
DRAWING NO
RESTRICTED TO
1375192
SCALE
4805 (3/11)
4:1
SHEET
1
OF
1
REV
-
J1
