3-917657-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-917657-5

3-917657-5: Descriptionconn headr 10pos str key-XY tin; CategoryThe connector; File Size101KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-917657-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-917657-5	-	-	View	Buy Now

3-917657-5 Overview

conn headr 10pos str key-XY tin

3-917657-5 Parametric

Parameter Name	Attribute value
Datasheets

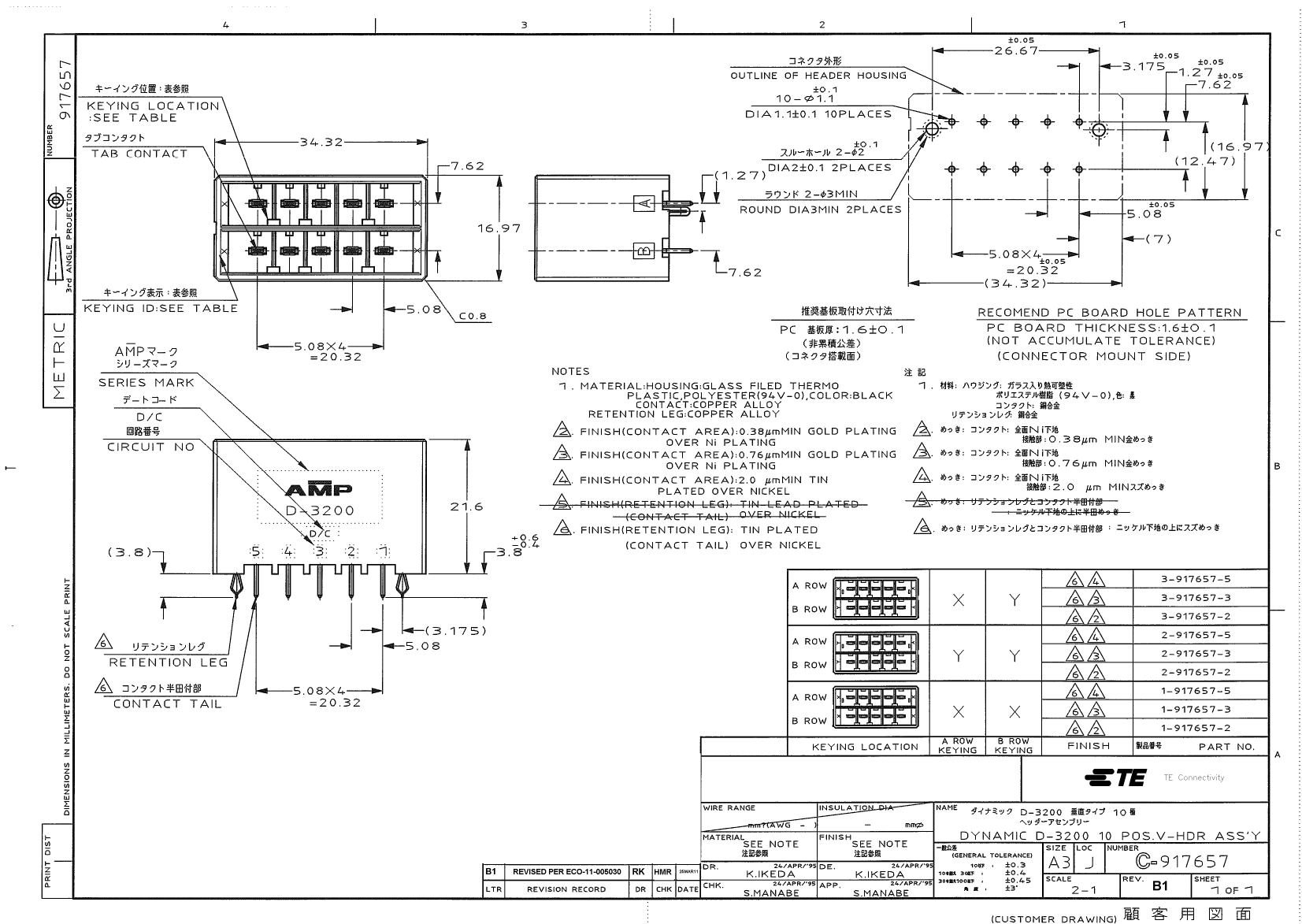

917657 Drawing
Product Photos
3-917657-5
Product Training Modules
Dynamic Series Connector Solutions
RoHS Informati
3-917657-5 Statement of Compliance
RoHS 2 Stateme
Featured Produc
AMP Dynamic Series Connectors
3D Model
3-917657-5.pdf
Standard Package	980
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	10
Number of Positions Loaded	All
Pitch	0.200" (5.08mm)
Number of Rows	2
Row Spacing	0.300" (7.62mm)
Contact Mating Length	-
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	-
Features	Board Lock, Polarizing Key
Contact Finish	Ti
Contact Finish Thickness	78.7µin (2.00µm)
Col	Black
Mating Products	A29735-ND - CONN RCPT 5.08 10POS DUAL KEY-XY
Other Names	A29723

Preview

Download Datasheet

View All

3-917657-5 Related Products

	3-917657-5	1-917657-2	3-917657-3	1-917657-5	2-917657-5	2-917657-2
Description	conn headr 10pos str key-XY tin	conn headr 10pos str key-XX 15au	conn headr 10pos str key-XY 30au	conn headr 10pos str key-XX tin	conn headr 10pos str key-YY tin	conn headr 10pos str key-YY 15au
Standard Package	980	4,900	4,900	4,900	4,900	980
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	10	10	10	10	10	10
Number of Positions Loaded	All	All	All	All	All	All
Pitch	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)
Number of Rows	2	2	2	2	2	2
Row Spacing	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde	Solde	Solde
Features	Board Lock, Polarizing Key	Board Lock, Polarizing Key	Board Lock, Polarizing Key	Board Lock, Polarizing Key	Board Lock, Polarizing Key	Board Lock, Polarizing Key
Contact Finish	Ti	Gold	Gold	Ti	Ti	Gold
Contact Finish Thickness	78.7µin (2.00µm)	15µin (0.38µm)	30µin (0.76µm)	78.7µin (2.00µm)	78.7µin (2.00µm)	15µin (0.38µm)
Col	Black	Black	Black	Black	Black	Black
Mating Products	A29735-ND - CONN RCPT 5.08 10POS DUAL KEY-XY	A29733-ND - CONN RCPT 5.08 10POS DUAL KEY-XX	A29735-ND - CONN RCPT 5.08 10POS DUAL KEY-XY	A29733-ND - CONN RCPT 5.08 10POS DUAL KEY-XX	A29734-ND - CONN RCPT 5.08 10POS DUAL KEY-YY	A29734-ND - CONN RCPT 5.08 10POS DUAL KEY-YY
Other Names	A29723	A29715	A29722	A29717	A29720	A29718
