The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
1.27mm Pitch Connector
FX1 Series

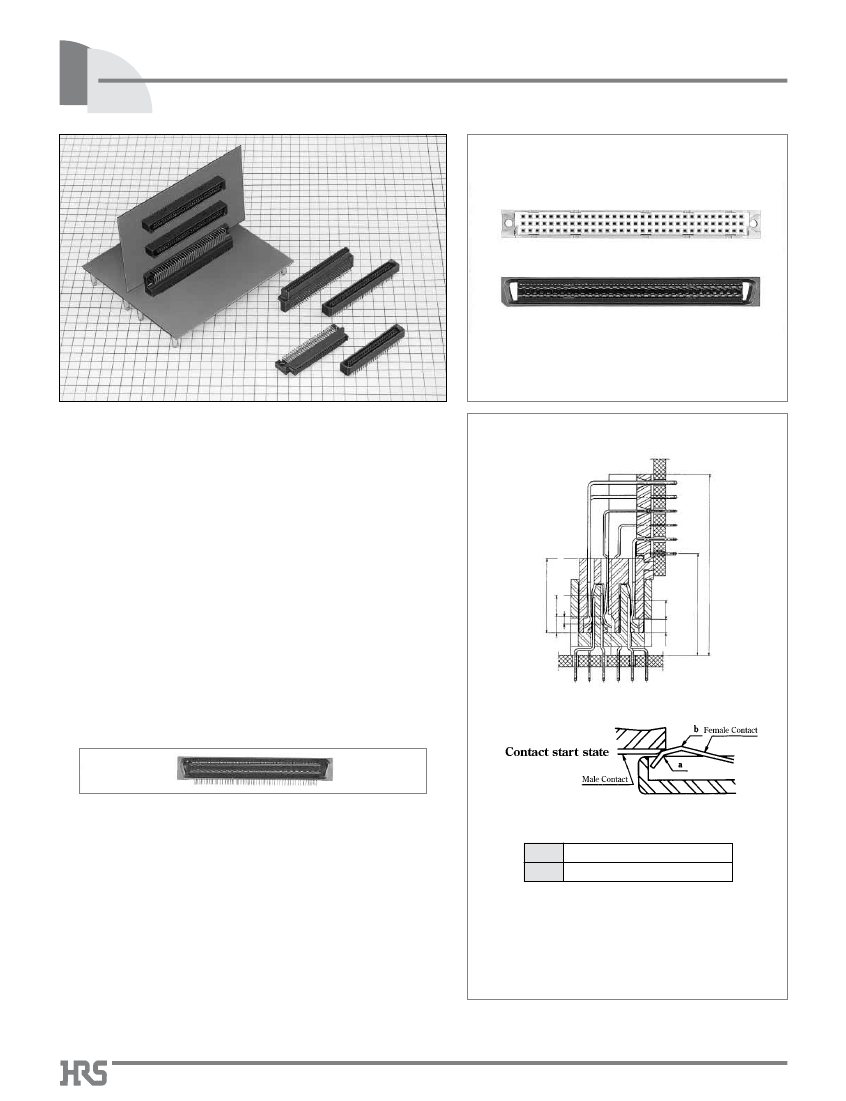

DIN duplex density mount has been achieved.
(DIN 96 contacts and FX1 192 (96x2)
Photo 1
■Features
1. High density and space saved-DIN Duplex Mount Achieved
The alignment of the mating area in 4-row allows to duplex the
number of contacts in the nearly equivalent mount square as for
the conventional DIN connector.(Refer to photo (1).)
Sequence Structure
(Pin contact sequence)
Figure 2
C2
C1
B2
B1
(Contact start position)
2. High Current and High Voltage
Two-thirds of total contact numbers are used for half pitch
signaling contact, while the other one-third thereof is used for the
power ground contact. Power ground contact corresponds to
high current (1A) and high voltage (250V).
10
2.8
A2
A1
(Effective contact length)
Considering insertion/extraction in active power mode and
maintenance on the end user side, the FX1 series is designed in
a mechanism that can afford the time different contact at two
steps. (For details, refer to Figure (2) as shown on the right.)
2.2
1
4. Mis-insertion Prevent
Provide the insertion guide on both ends of connector, and widen
an inductive area in order to prevent mis-insertion.
C2 C1 B2 B1 A2 A1
*FX1 Series (2 step sequence)
1
2
Row B
Row A, row C
Setting row B to ground, if active cable insertion and
extraction are performed as power supply, arc will
occur between contact and contact. The row B
contact structure is constructed to separate arc
occurrence point a and normal contact point b, and
minimizes affects on the contact.
A78
1.8
2.5
3. Sequence Structure
13.69
24.4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose
Connector
FX1 Series●1.27mm Pitch
sales representative.
■Product
Specifications
Current rating
Voltage rating
0.5A Signal Contact:
125V AC Operating Temperature Range-55
to
85ç (Note 1) Storage Temperature Range -10
to
+60ç(Note 2)
Rating Signal Contact:
Power Supply Contact: 1A Power Supply Contact: 250V AC Operating Humidity Range
-40
to
80%
Operating Humidity Range
-40
to
70% (Note 2)
Item
1. Insulation Resistance
2. Withstanding Voltage
3. Contact Resistance
4. Vibration
5.
Humidity (Steady state)
6. Temperature Cycle
1000M
ohms
min.
Specification
250V DC
1 minute
100mA
Condition
No flashover or insulation breakdown.
60m
ohms
max. (conductor resistance included)
Signal contact
Power supply contact
300V AC
600V AC
No electrical discontinuity of 1μs or more
Contact resistance: 70m
ohms
max.
Insulation resistance: 1000M
ohms
min.
Contact resistance: 70m
ohms
max.
Insulation resistance: 1000M
ohms
min.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes→15-
to
35ç: 5 minutes max.→
(-85ç:
30 minutes→15-
to
35ç: 5 minutes max.) 5 cycles
500 cycles
7. Durability (Mating/un-mating) Contact resistance: 70 m
ohms
max.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
■Material
●FX1
Series
Parts
Insulator
Header
Receptacle
Straight header
Contact
Right angle header
Receptacle
Prefixed pin
Material
PPS
PPS/ PTB
Brass
Phosphor bronze
Phosphor bronze
Phosphor bronze
Finish
Black
Remarks
UL94V-0
Contact area:Tin plated
Lead area:Tin plated
Tin plated
________
________
A79
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
FX1 Series●1.27mm Pitch Connector
■Ordering
Information
●FX1
Series
FX1
q
- 192 P - 1.27 DSA L
w
e
r
t
y
q
Series Name
: FX1
r
Contact pitch: 1.27mm
t
Contact type: DS : Right angle
DSA : Straight
y
L: Board prefixed pin
w
Number of contacts: 144, 192, 216
e
Connector type : P-header
: S-receptacle
Note: The cleaning type only is applied on the header side to FX1 series.

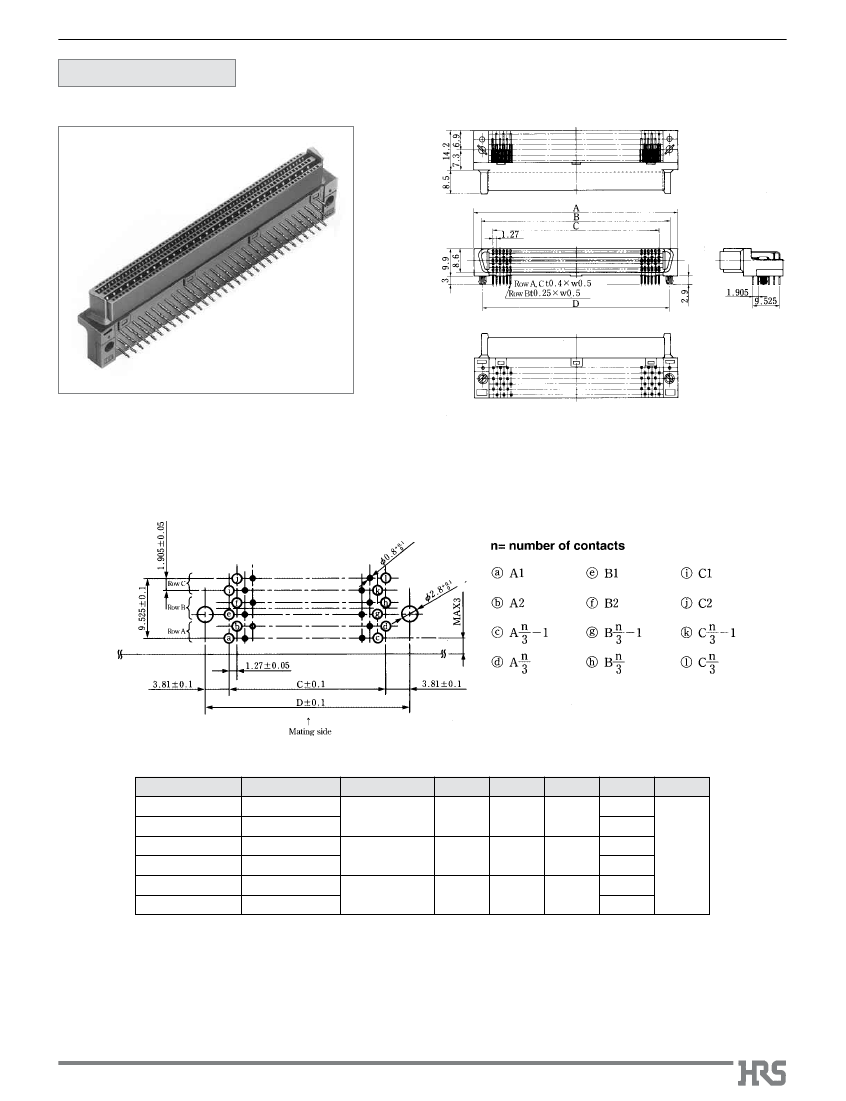

BApplication
Pattern

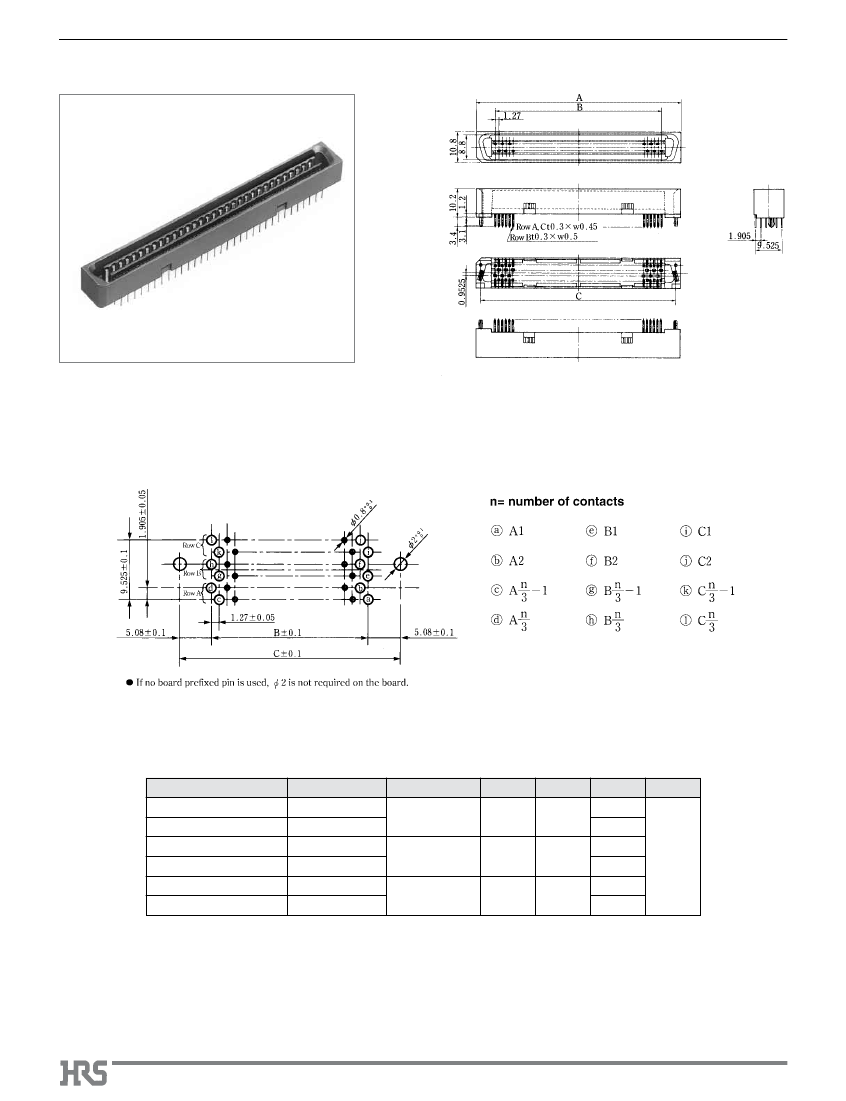

A80
