388CPSOX-1-24VDC datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> 388CPSOX-1-24VDC

388CPSOX-1-24VDC: DescriptionMulti-Delay Relay, DPDT, Momentary, 0.083A (Coil), 24VDC (Coil), 2000mW (Coil), 12A (Contact), 28VDC (Contact), 0.1s Adj Min, 10s Adj Max, DC Input, AC/DC Output, Socket Mount; CategoryMechanical and electronic products relay; File Size182KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

388CPSOX-1-24VDC Overview

Multi-Delay Relay, DPDT, Momentary, 0.083A (Coil), 24VDC (Coil), 2000mW (Coil), 12A (Contact), 28VDC (Contact), 0.1s Adj Min, 10s Adj Max, DC Input, AC/DC Output, Socket Mount

388CPSOX-1-24VDC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RELAY FUNCTION 3PDT ALSO AVAILABLE
Maximum adjustable time delay	10 s
Minimum adjustable time delay	0.1 s
Maximum coil current (DC)	0.083 A
Coil operating voltage (DC)	19.2 V
Coil power	2000 mW
Coil resistance	289.16 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	12A@240VAC
Maximum contact current (AC)	12 A
Maximum contact current (DC)	12 A
Contact (DC) maximum rated R load	12A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	388
Installation features	SOCKET MOUNT
Maximum operating temperature	55 °C
Minimum operating temperature	-20 °C
Relay action	MOMENTARY
Relay function	DPDT
Relay type	MULTI-DELAY RELAY
surface mount	NO
Termination type	SNAP-ON
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

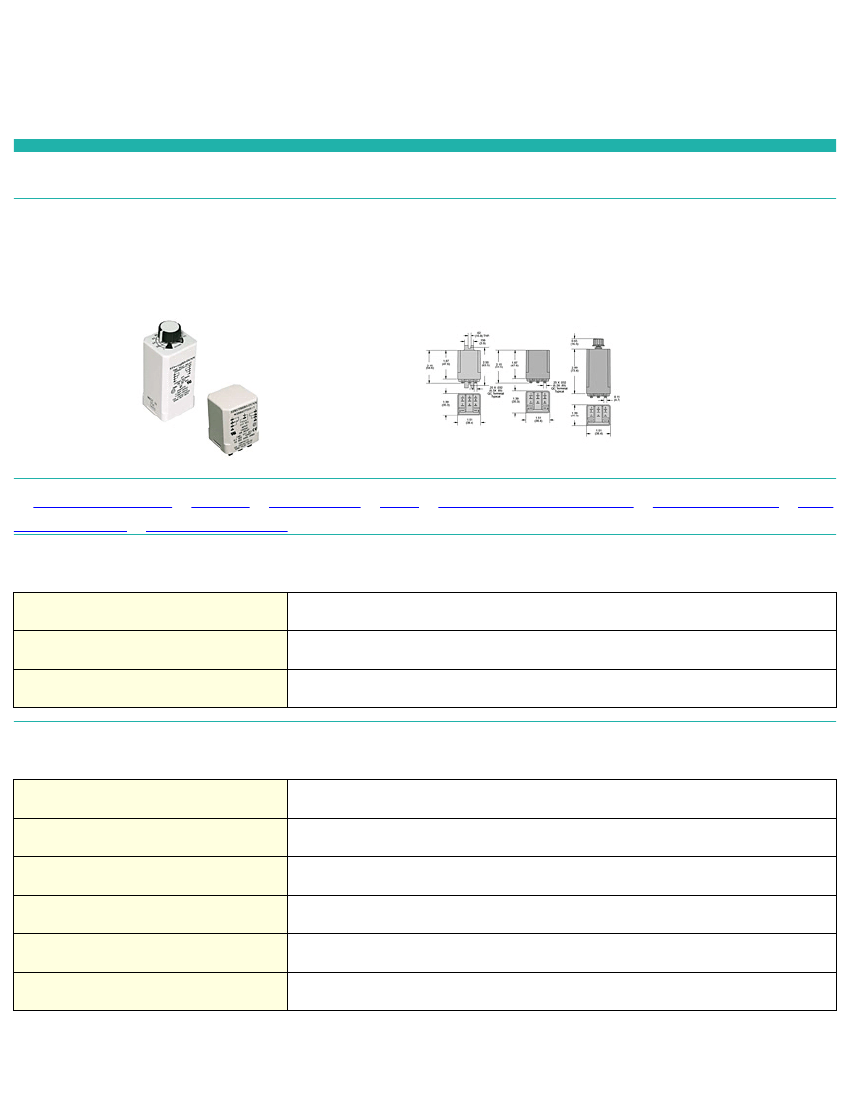

Item # 388CPSOX-1-24VDC, 388 Series - Time Delay Relays

The 388 timers are square base, bladed versions of time delay relays. On delay, off delay and interval functions are all available with either AC or DC inputs. On delay

and interval products can have up to three poles. Off delays have two poles. The timing circuit is oscillator based. Fixed time and externally adjustable versions. Both

socket and flange mount versions are available.

For Additional Configuration please contact the manufacturer.

SPECIFICATIONS

TIMING

CONTACTS

COIL

DIELECTRIC STRENGTH

TEMPERATURE

LIFE

EXPECTANCY

MISCELLANEOUS

SPECIFICATIONS

Series

388

Type

On delay plug-in

Nominal Input Voltage

24 VDC

TIMING

Functions Available

On-delay, Off-delay, Interval

Timing Range

0.1 to 10 s

External Resistor

16,000 ohms/s

Timing Adjustment

Timing Repeatability (Constant voltage and

temperature)

Reset Time maximum

Knob or external R

0.1%

150

7/31/2013 | Page 1 of 3
