8363-13-16-1: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8363-13-16-1 Overview

Board Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator

8363-13-16-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307784371
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.087 inch
subject depth	0.217 inch
body length	0.816 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
maximum insertion force	2.4464 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8363
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	16
Evacuation force-minimum value	.29468 N

Preview

Download Datasheet

View All

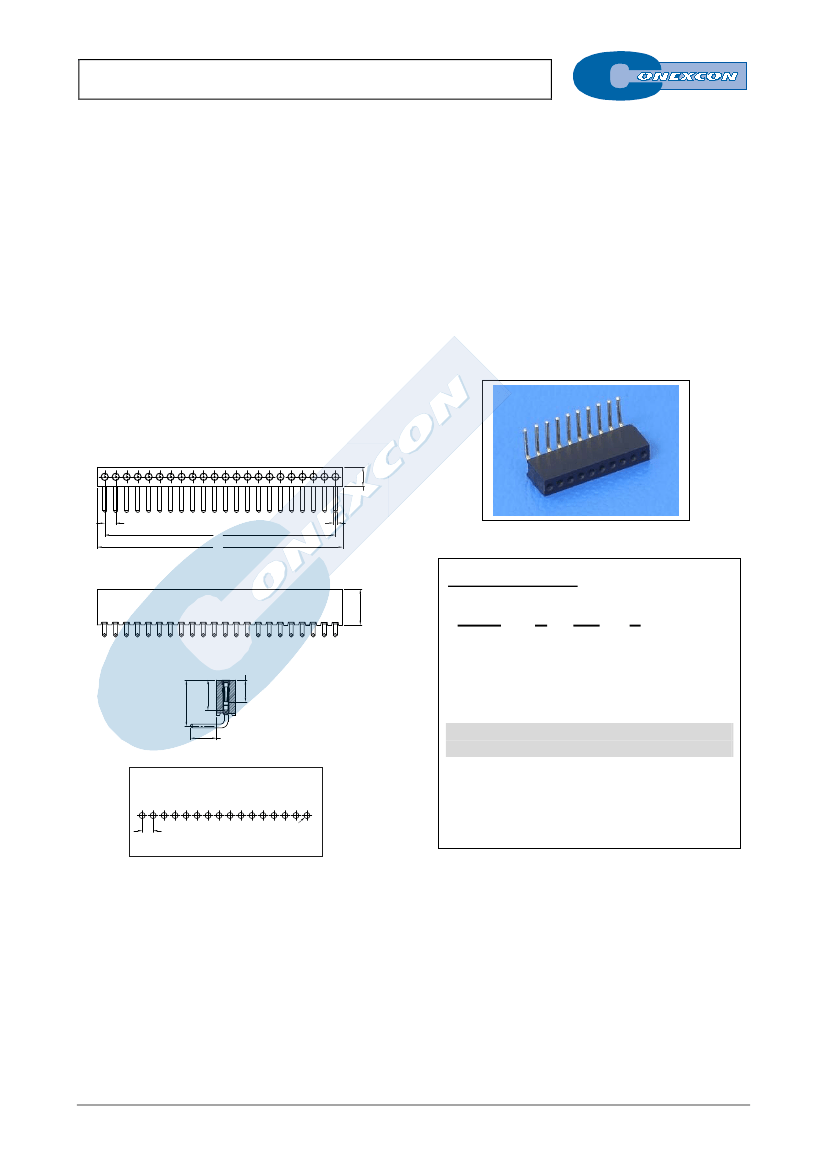

SINGLE ROW RIGHT ANGLE SOCKET

8363 SERIES.

1.27 mm. (0.050”) pitch. Machined contact.

General Features

Electrical Features



Available in 2 through 40 circuits



Mates with Pin headers 1.27mm. pitch 8350, 8353 and

8356 series



Accept round pin 0.38 to 0.50 mm.

Materials



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Clip (3 fingers) in Beryllium copper

Sleeve: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Insertion force per pin: < 0.25 Kgf (round pin 0.41 mm)



Withdrawal force per pin: > 0.03 Kgf (round pin 0.41 mm)



Durability: 500 Cycles

Dimension Information

1.27±0.10

ø0.44

2.20±0.15

Ordering Information:

4.10±0.15

8363 -

T-

XX-

2.50

5.30±0.25

3.45

1. Connector Series

2. (T) Contact Plating

3.00±0.25



T =

13.

Selec. gold flash over 30-50µ" Ni overall

Recommended Finish

RECOMMENDED HOLE PATTERN

(Tolerance ±0.05)



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

ø0

1.27



Available in 2 through 40 circuits

Dimensions:

(In mm.)

= 1.27 x (XX*-1)

= 1.27 x (XX*)+0.41

* XX

(Number of circuits)

A-XX
