.100" PIN HEADERS
.100" [2.54] CENTERLINE
PH SERIES

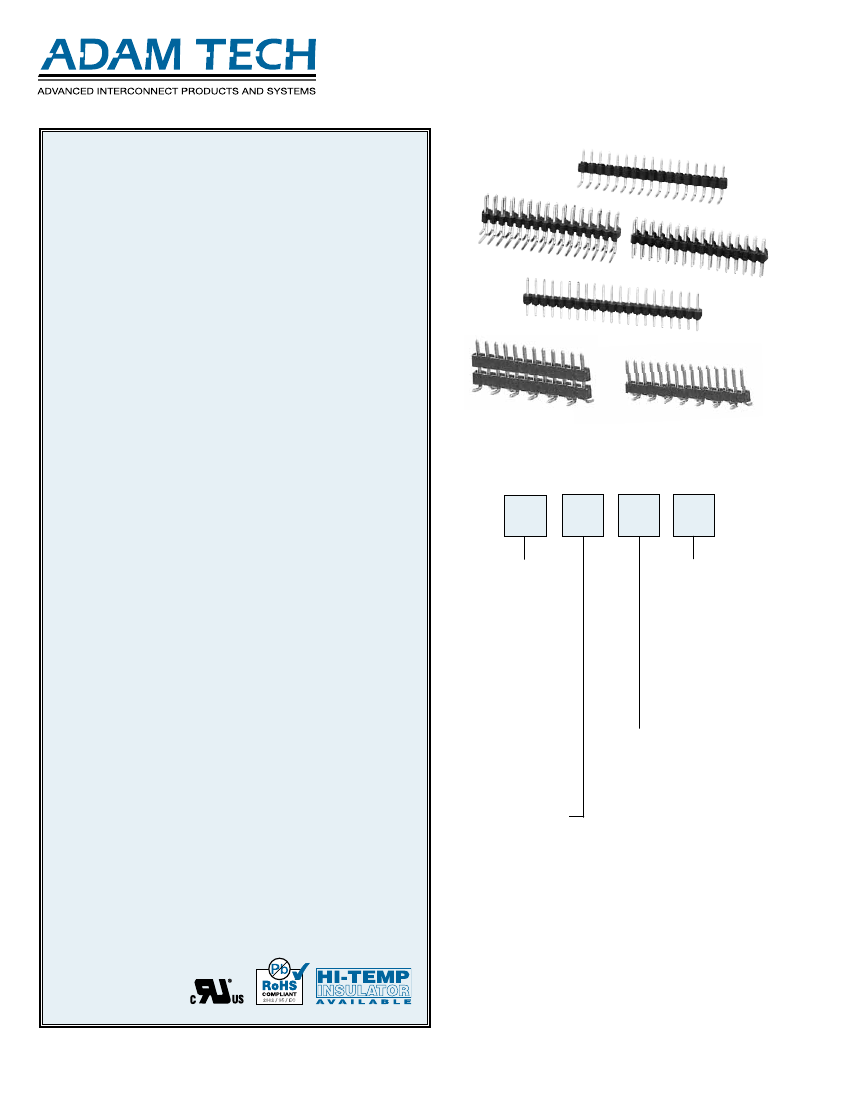

INTRODUCTION:
Adam Tech PH Series .100" Pin Headers are a full range headers in
a variety of configurations including Single, Dual and Three rows,
Straight or Right Angle in Thru-Hole or SMT mounting. Their close
tolerance .025" sq. posts are smoothly finished and taper tipped to
eliminate insertion damage to the PCB or mating connector. Adam
Tech Pin Headers can be easily cut into exact sizes as required.
Options include stacked insulator versions and choice of tin, gold
or selective gold plating. This series is compatible with all industry
standard .100" pitch pin headers.
FEATURES:
Single, Dual or Three Row
Tin, gold or selective gold plating options
Thru-hole or SMT mounting
Stacked and Custom length versions available
Versatile Breakaway design
Hi Temp Insulator available
MATING RECEPTACLES:
Mates with all industry standard receptacles accepting a .025"
square post on .100" [2.54mm] centerlines
SPECIFICATIONS:
Material:
Insulator: PBT, glass reinforeced, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0
Insulator Color: Black
Contacts: Brass
Plating:
U = Gold over nickel underplate
SG = Gold over nickel underplate on
contact area, tin over copper underplate on tails.
T = Tin over copper underplate overall
Electrical:
Operating voltage: 250V AC max.
Current rating: 3 Amps max
Contact resistance: 20 mΩ max. initial
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Insertion force: 2 oz lbs max.
Withdrawal force: .75 oz lbs min
Mating durability: 1000 cycles min.
Temperature Rating:
Operating temperature: -40°C to +105°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260°C
PACkAGING:
Anti-ESD plastic bags
SAFETy AGENCy APPROVALS:
UL Recognized & CSA Certified, File no. E224053
ORDERING INFORMATION

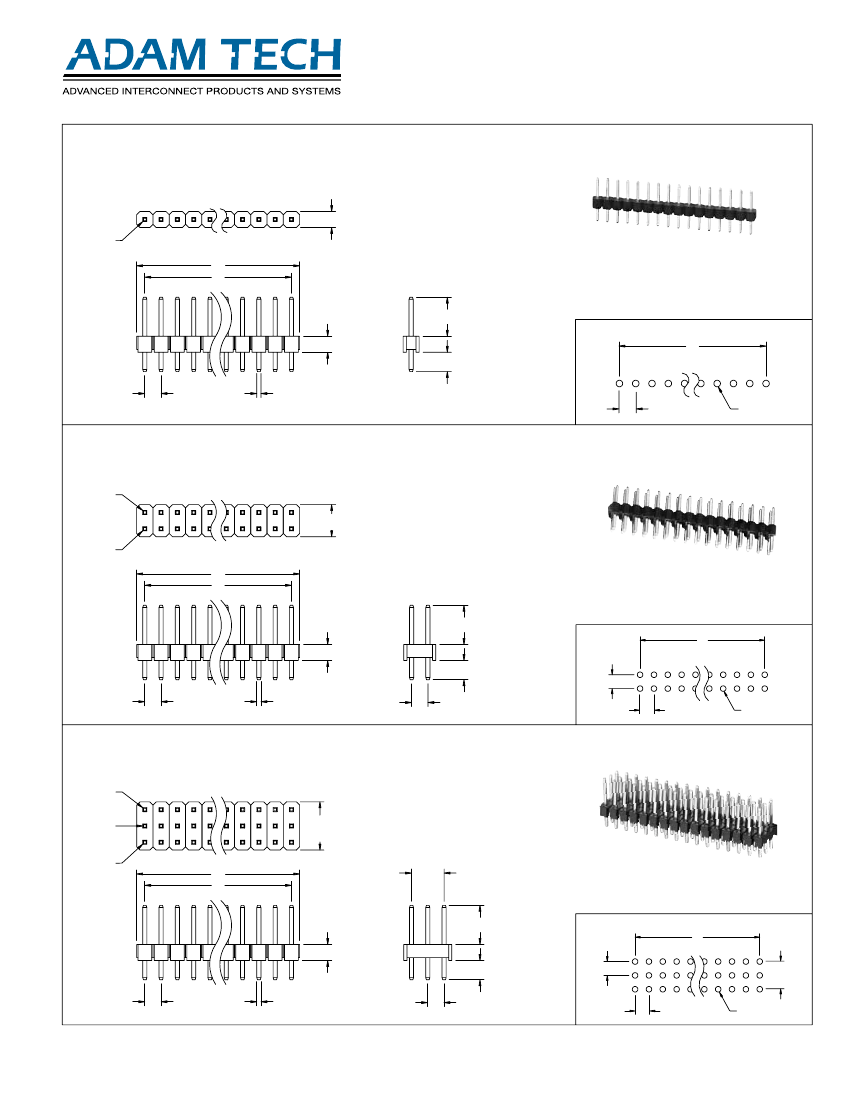

PH1
SERIES INDICATOR
PH1
= Single Row,
Straight
40
U
A
MATING/TAIL
LENGTH
A
= Mating Length
(“C” dim.) = .235"
Solder Tail
(“D” dim.) = .120"
B
= Mating Length
(“C” dim.) = .318"
Solder Tail Length
(“D” dim.) = .120"
Special lengths
available contact
factory

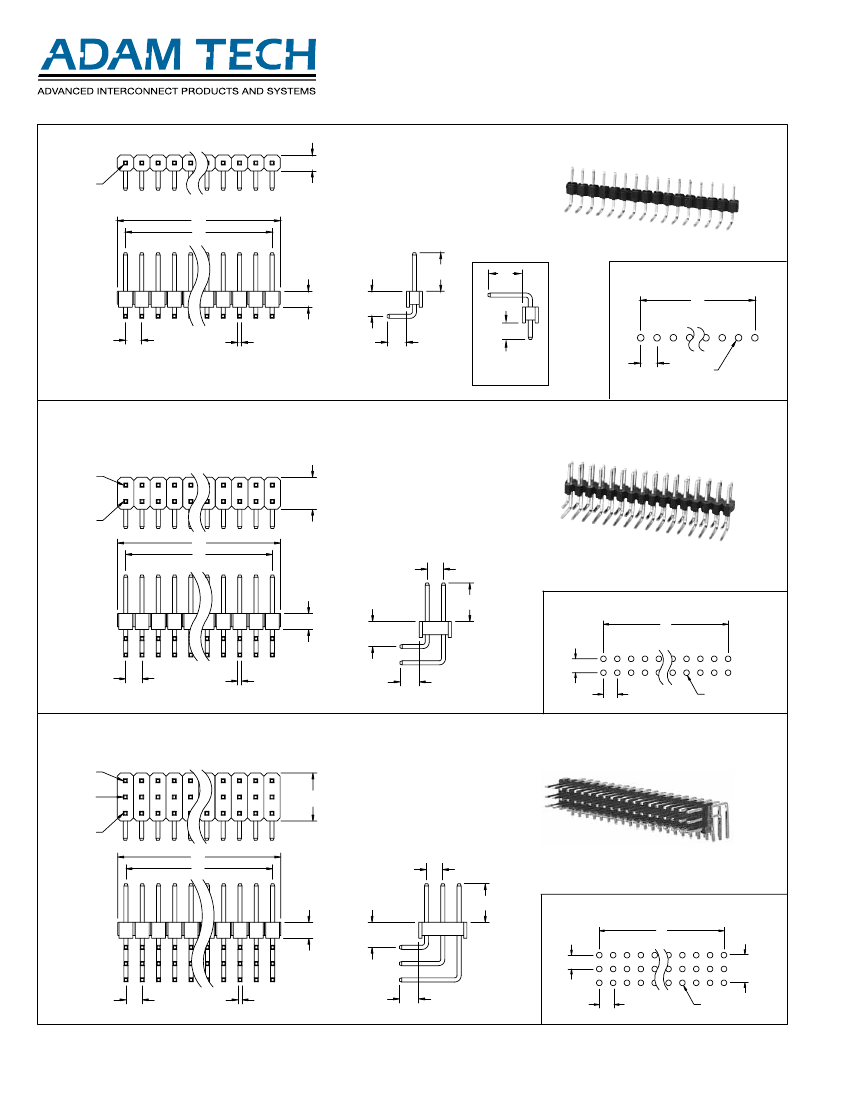

PH1RA
= Single Row,
Right Angle,
High Profile
PH1RB
= Single Row,
Right Angle,
Low Profile
PH2
= Dual Row,
Straight
PH2RA
= Dual Row,
Right Angle
PH3
= Three Row,
Straight
PH3RA
= Three Row,
Right Angle
PLATING
U
= Gold flash overall
V
= 15
µ
in gold on mating
area 100
µ
in tin on
solder tail
W
= 30
µ
in gold on mating
area 100
µ
in tin on
solder tail
T
= 100
µ
in tin overall
SG
= Gold flash on
mating area 100
µ
in
tin lead on solder tail
POSITIONS
PH1
: 1 thru 40
PH2
: 2 thru 80
PH3
: 3 thru 120
OPTIONS:
Add designator(s) to end of part number
SMT
= Surface mount leads Dual row with Hi-Temp insulator
SMT-A
= Surface mount leads Type A with Hi-Temp insulator
SMT-B
= Surface mount leads Type B with Hi-Temp insulator
HT
= Hi-Temp insulator for Hi-Temp soldering processes
up to 260°C
(Add this option for thru-hole products only.
All SMT products are manufactured with Hi-Temp insulators)
L
= Low profile 1.50 mm insulator thickness
312
www.adam-tech.com

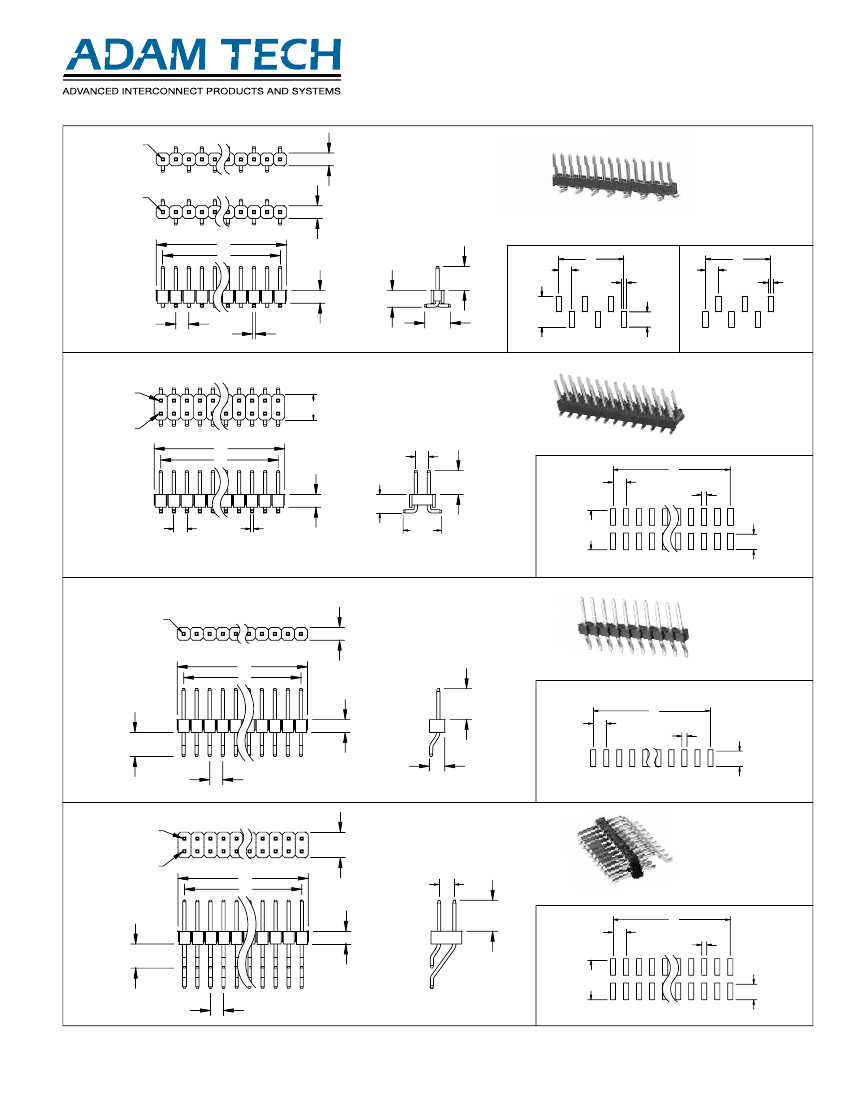

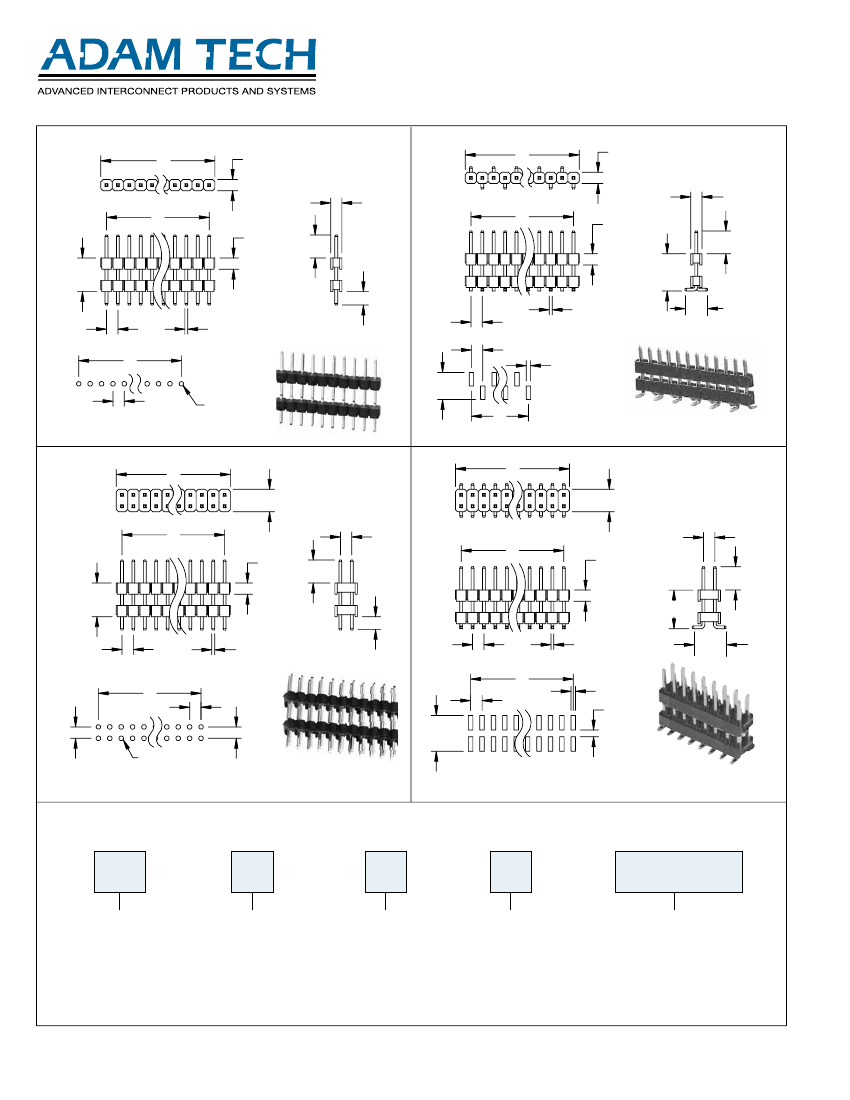

.100" [2.54] SURFACE MOUNT
PH SERIES
PIN 1
TYPE B
.098 [2.50]
A = .100 [2.54] X No. of Positions.
B = .100 [2.54] X No. of Spaces.
.100" PIN HEADERS
PH1
SMT-SINGLE ROW
STRAIGHT
PIN 1
TYPE A
A
B
C
.098 [2.50]
.100 [2.54
.025
[0.64] SQ
.130 [3.30]
.197
[5.00]
.216
[5.50]
TYPE A
SMT-A
A = .100 [2.54] X No. of Positions per row.
B = .100 [2.54] X No. of Spaces.
.197 [5.00]
PIN 1
A
B
.100 [2.54]
C
.098 [2.50]
.100 [2.54]
.025 [0.64] SQ.
.130 [3.30]
.295
[7.50]
.315
[8.00]
B
.100 [2.54]
.039 [1.00]
.098 [2.50]
PH1-15-UA-SMT-B
Recommended PCB Layout
B
.100 [2.54]
B
.100 [2.54]
.039
[1.00]
.039
[1.00]
.079 [2.00]
RECOMENDED PCB LAYOUT
TYPE B
SMT-B
PH2
SMT-DUAL ROW
STRAIGHT
PH2-26-UA-SMT
PIN 2
.079 [2.00]
Recommended PCB Layout
RECOMENDED PCB LAYOUT
A = .100 [2.54] X No. of Positions.
B = .100 [2.54] X No. of Spaces.
.098 [2.50]
A
B
C
.098 [2.50]
.180 [4.57]
0.154
[3.90]
PH1RB
SMT-SINGLE ROW
RIGHT ANGLE
PH1RB-10-UA-SMT
PIN 1
B
.100 [2.54]
.039 [1.00]
.079 [2.00]
.100 [2.54]
Recommended PCB Layout
RECOMENDED PCB LAYOUT
A = .100 [2.54] X No. of Positions per row.
B = .100 [2.54] X No. of Spaces.
PIN 2
.197 [5.00]
PIN 1
A
B
PH2RA
SMT-DUAL ROW
RIGHT ANGLE
PH2RA-20-UA-SMT
.100 [2.54]
C
.098 [2.50]
.180 [4.57]
.216
[5.50]
.100 [2.54]
B
.100 [2.54]
.039 [1.00]
.079 [2.00]
Recommended
PCB LAYOUT
PCB Layout
RECOMENDED
www.adam-tech.com
315
