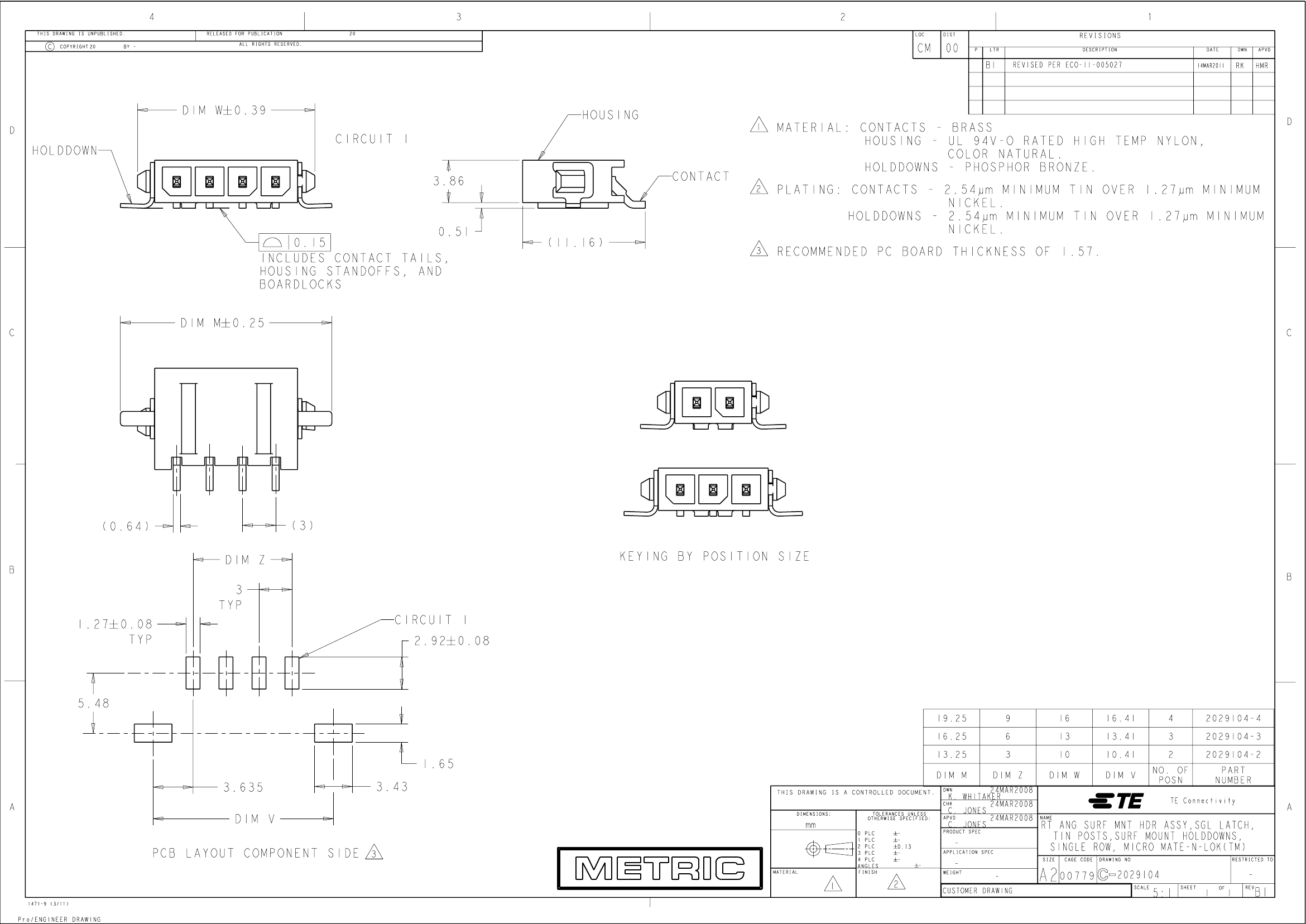

Preview

2029104-3: DescriptionCombination Line Connector, 3 Contact(s), Male, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2029104-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2029104-3	-	-	View	Buy Now

2029104-3 Overview

Combination Line Connector, 3 Contact(s), Male, Surface Mount Terminal, Plug

2029104-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2008373987
Reach Compliance Code	compliant
Factory Lead Time	14 weeks 1 day
Samacsys Description	Configuration Features: Number of Power Positions 3 \| PCB Mount Orientation Right Angle \| Number of Rows 1 \| Number of Positions 3 \| Number of Signal Positions 0 \| Contact Features: Multiple Contact Types Without \| PCB Contact Termination Area Plating Material Tin \| PCB Contact Termination Area Plating Material Thickness 2.54 MICM \| PCB Contact Termination Area Plating Material Thickness 100 MICIN \| Contact Layout Inline \| Contact Current Rating (Max) 5 AMP \| Contact Retention Within Housing Without \| Conta
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-04-03 09:25:58
YTEOL	8
Other features	LOW PROFILE
body width	0.172 inch
subject depth	0.439 inch
body length	0.639 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT APPLICABLE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Minimum insulation diameter	0.06 inch
Insulator color	NATURAL
insulator material	POLYAMIDE
MIL compliance	NO
Power Connector Ratings	5A
Plug contact pitch	0.118 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Panel mounting	NO
Plating thickness	100u inch
polarization key	POLARIZED
Rated current (signal)	5 A
Rated voltage	250 V
Guideline	CSA, UL, V
Terminal length	0.055 inch
Terminal pitch	3 mm
Termination type	SURFACE MOUNT
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

2029104-3 Related Products

	2029104-3	2029104-2	2029104-4
Description	Combination Line Connector, 3 Contact(s), Male, Surface Mount Terminal, Plug	2P MICRO MNL HDR ASY SR SIDE N	4P MICRO MNL HDR ASY SR SIDE N
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE
body width	0.172 inch	0.172 inch	0.172 inch
subject depth	0.439 inch	0.439 inch	0.439 inch
body length	0.639 inch	0.522 inch	0.758 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
Contact material	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO
empty shell	YES	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulator color	NATURAL	NATURAL	NATURAL
insulator material	POLYAMIDE	NYLON	NYLON
MIL compliance	NO	NO	NO
Plug contact pitch	0.118 inch	0.118 inch	0.118 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	100u inch	10u inch	10u inch
polarization key	POLARIZED	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	5 A	5 A	5 A
Guideline	CSA, UL, V	UL, CSA	UL, CSA
Terminal pitch	3 mm	4.191 mm	4.191 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	3	2	4
UL Flammability Code	94V-0	94V-0	94V-0
Brand Name	-	AMP	AMP
Is it lead-free?	-	Lead free	Lead free
Maker	-	TE Connectivity	TE Connectivity
Is Samacsys	-	N	N
JESD-609 code	-	e3	e3
Manufacturer's serial number	-	2029104	2029104
reliability	-	COMMERCIAL	COMMERCIAL
Shell material	-	POLYAMIDE	POLYAMIDE
Base Number Matches	-	2	1
