TBC5301-0110630 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> TBC5301-0110630

TBC5301-0110630: DescriptionSnap Acting/Limit Switch, Momentary, Quick Connect Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size143KB，4 Pages; ManufacturerHosiden Corporation

Download Datasheet Parametric View All

TBC5301-0110630 Overview

Snap Acting/Limit Switch, Momentary, Quick Connect Terminal, Panel Mount

TBC5301-0110630 Parametric

Parameter Name	Attribute value
Maker	Hosiden Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
body width	9.3 mm
body height	17.5 mm
Body length or diameter	31 mm
Contact (AC) maximum rated R load	1.6A@250VAC
Maximum contact current (AC)	1.6 A
Maximum contact voltage (AC)	250 V
Installation features	PANEL MOUNT
surface mount	NO
Switch action	MOMENTARY
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

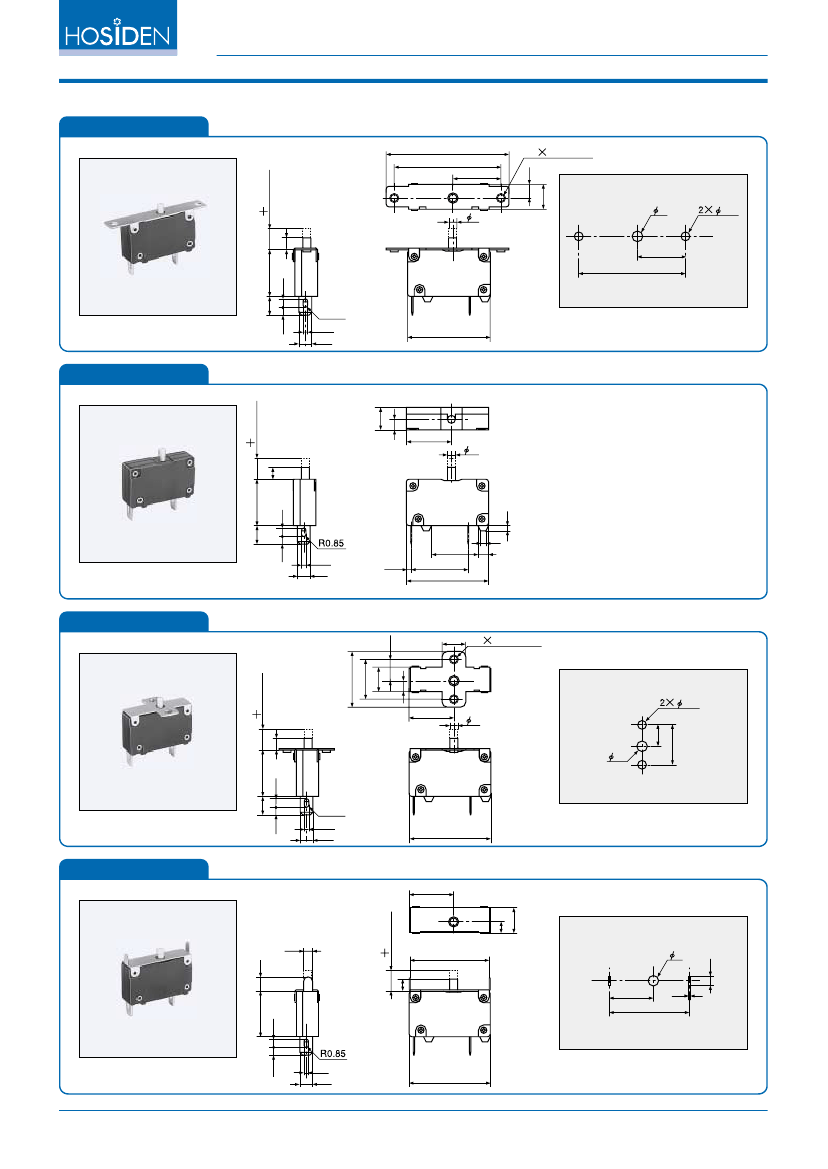

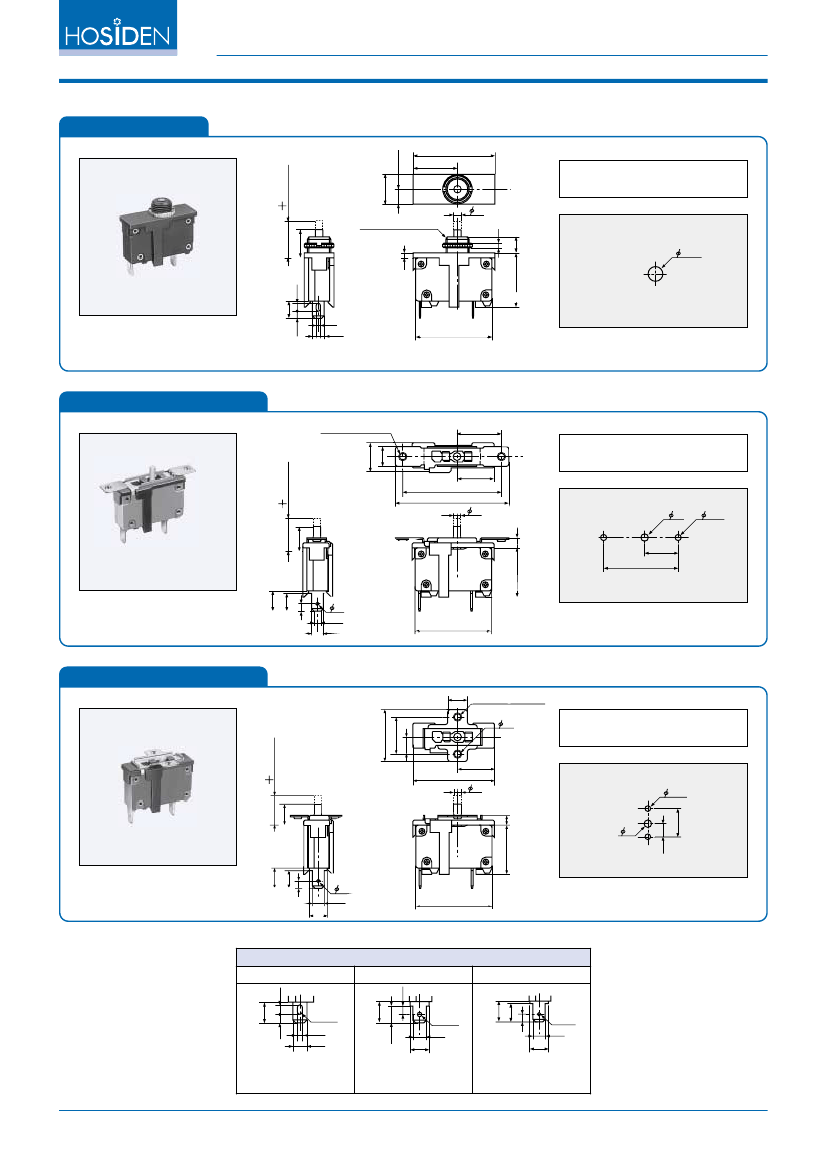

Circuit Protectors TBC5000 Series (Manual Reset Type)

Unit:mm

TBC5□01

L 3.5 Max.

5.1

9.3

0.5Thread

3.3

17.5

3.2

2.9

Manual Reset Type

R0.85

1.7

4.8

Mounting Hole Layout

TBC5□21

L 3.5 Max.

8.5

17.5

3.2

2.9

17.5

1.7

4.8

1.8

21.5

Manual Reset Type

TBC5□31

8.1

M3 0.5 Thread

3.5 Max.

21.1

15.1

9.3

3.3

8.1

15.1

17.5

3.2

2.9

Manual Reset Type

R0.85

1.7

4.8

Mounting Hole Layout

TBC5□41

L 3.5 Max.

8.9

30.2

3.4

5.4

16.8

17.5

3.2

30.6

0.6

Manual Reset Type

2.9

1.7

4.8

Mounting Hole Layout

3.6
