M68AF127BL70N1T datasheet, PDF

Datasheet> All Categories > storage> storage> M68AF127BL70N1T

M68AF127BL70N1T: Description1Mbit 128K x8, 5V Asynchronous SRAM; Categorystorage storage; File Size142KB，23 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

M68AF127BL70N1T Overview

1Mbit 128K x8, 5V Asynchronous SRAM

M68AF127BL70N1T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	TSOP
package instruction	8 X 20 MM, PLASTIC, TSOP-32
Contacts	32
Reach Compliance Code	_compli
ECCN code	EAR99
Maximum access time	70 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	18.4 mm
memory density	1048576 bi
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP32,.8,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum standby current	0.0000045 A
Minimum standby current	2 V
Maximum slew rate	0.015 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8 mm

Preview

Download Datasheet

View All

M68AF127B

1Mbit (128K x8), 5V Asynchronous SRAM

FEATURES SUMMARY

■

SUPPLY VOLTAGE: 4.5 to 5.5V

128K x 8 bits SRAM with OUTPUT ENABLE

EQUAL CYCLE and ACCESS TIMES: 55ns

LOW STANDBY CURRENT

LOW V

DATA RETENTION: 2V

TRI-STATE COMMON I/O

LOW ACTIVE and STANDBY POWER

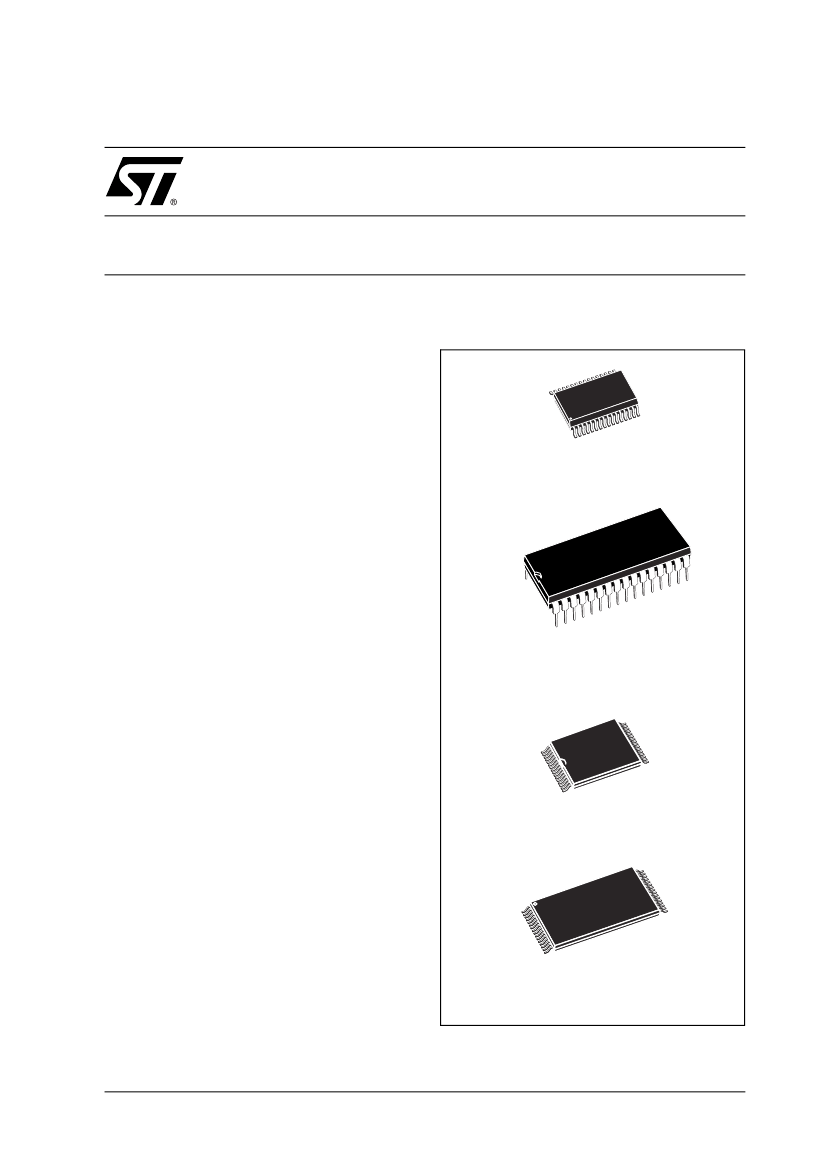

Figure 1. Packages

SO32 (MC)

PDIP32 (B)

TSOP32 (NK)

8 x 13.4mm

TSOP32 (N)

8 x 20mm

September 2004

1/23

M68AF127B

TABLE OF CONTENTS

FEATURES SUMMARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Figure 1. Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SUMMARY DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Figure 2.

Table 1.

Figure 3.

Figure 4.

Figure 5.

Figure 6.

Logic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Signal Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SO Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

DIP Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

TSOP Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Read Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Write Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Table 2. Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

MAXIMUM RATING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table 3. Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

DC AND AC PARAMETERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Table 4. Operating and AC Measurement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 7. AC Measurement I/O Waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 8. AC Measurement Load Circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Table 5. Capacitance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table 6. DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 9. Address Controlled, Read Mode AC Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 10.Chip Enable or Output Enable Controlled, Read Mode AC Waveforms . . . . . . . . . . . . . 11

Figure 11.Chip Enable Controlled, Standby Mode AC Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table 7. Read and Standby Mode AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 12.Write Enable Controlled, Write AC Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 13.Chip Enable Controlled, Write AC Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 8. Write Mode AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 14.E1 Controlled, Low V

Data Retention AC Waveforms . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 15.E2 Controlled, Low V

Data Retention AC Waveforms . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 9. Low V

Data Retention Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

PACKAGE MECHANICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 16.SO32 - 32 lead Plastic Small Outline, Package Outline . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 10. SO32 - 32 lead Plastic Small Outline, Package Mechanical Data. . . . . . . . . . . . . . . . . . 17

Figure 17.PDIP32 - 32 pin Plastic DIP, 600 mils width, Package Outline . . . . . . . . . . . . . . . . . . . . 18

Table 11. PDIP32 - 32 pin Plastic DIP, 600 mils width, Package Mechanical Data . . . . . . . . . . . . 18

Figure 18.TSOP32 - 32-lead Thin Small Outline Package, 8x13.4mm, Package Outline . . . . . . . . 19
