SSA-105-W-G-RA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SSA-105-W-G-RA

SSA-105-W-G-RA: Descriptionconn rcpt .100" 5pos gold WW R/A; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SSA-105-W-G-RA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SSA-105-W-G-RA	-	-	View	Buy Now

SSA-105-W-G-RA Overview

conn rcpt .100" 5pos gold WW R/A

SSA-105-W-G-RA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	2 weeks
body width	0.1 inch
subject depth	0.29 inch
body length	0.5 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.575 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	5
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

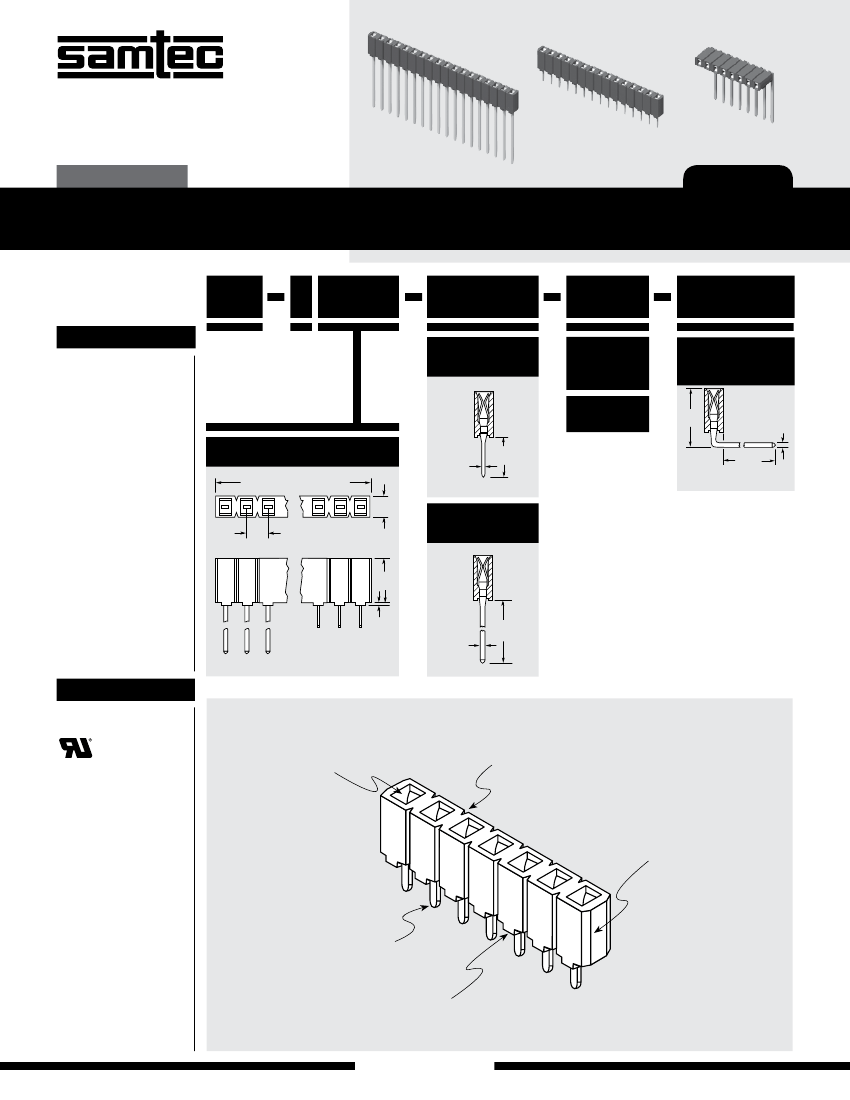

F-218 SUPPLEMENT

SSA–115–S–T

SSA–108–W–T–RA

SSA–118–W–G

(2.54 mm) .100"

SSA SERIES

COST-EFFECTIVE SOCKET STRIPS

Mates with:

TS, HTS, BBS,

BBL, BHS

SSA

NO. OF

POSITIONS

LEAD

STYLE

PLATING

OPTION

SPECIFICATIONS

For complete specifications

see www.samtec.com?SSA

Insulator Material:

Black PET Polyester

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Flammability Rating:

UL 94V-O

Insulation Resistance:

5000 MW min

Operating Temp Range:

-55 °C to +125 °C with Gold

-55 °C to +105 °C with Tin

Heat Deflection Temp:

215 °C @ 264 psi (1.8 MPa)

Dielectric Withstanding

Voltage:

1000 VRMS

Lead Size Range:

(0.38 mm) .015" to

(0.56 mm) .022" DIA

and most IC leads

Insertion Depth:

(1.27 mm) .050" to

(3.30 mm) .130"

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

–S

= P.C.

= 10 µ" (0.25 µm)

Gold

–G

–T

= Right-angle

– RA

= Matte Tin

(7.37)

.290

(0.64)

.025

01 thru 32

(2.54) .100 x No. of Positions

(0.25)

.010

(0.56)

.022

(3.84)

.151

(14.61)

.575

(Requires –W Lead Style)

(2.54)

.100

(2.54)

.100

TYP

= Wire Wrap

–W

(5.46)

.215

P.C.

W/W

(0.38)

.015

(0.64)

.025

(16.66)

.656

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

High-reliability

double side-wipe

contacts

Snap-strip

feature

UL Rated 94 V-O

High Temp PET

Polyester Body

Selectively plated

for lower contact

resistance

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

Standoffs allow for

easy board cleaning

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
